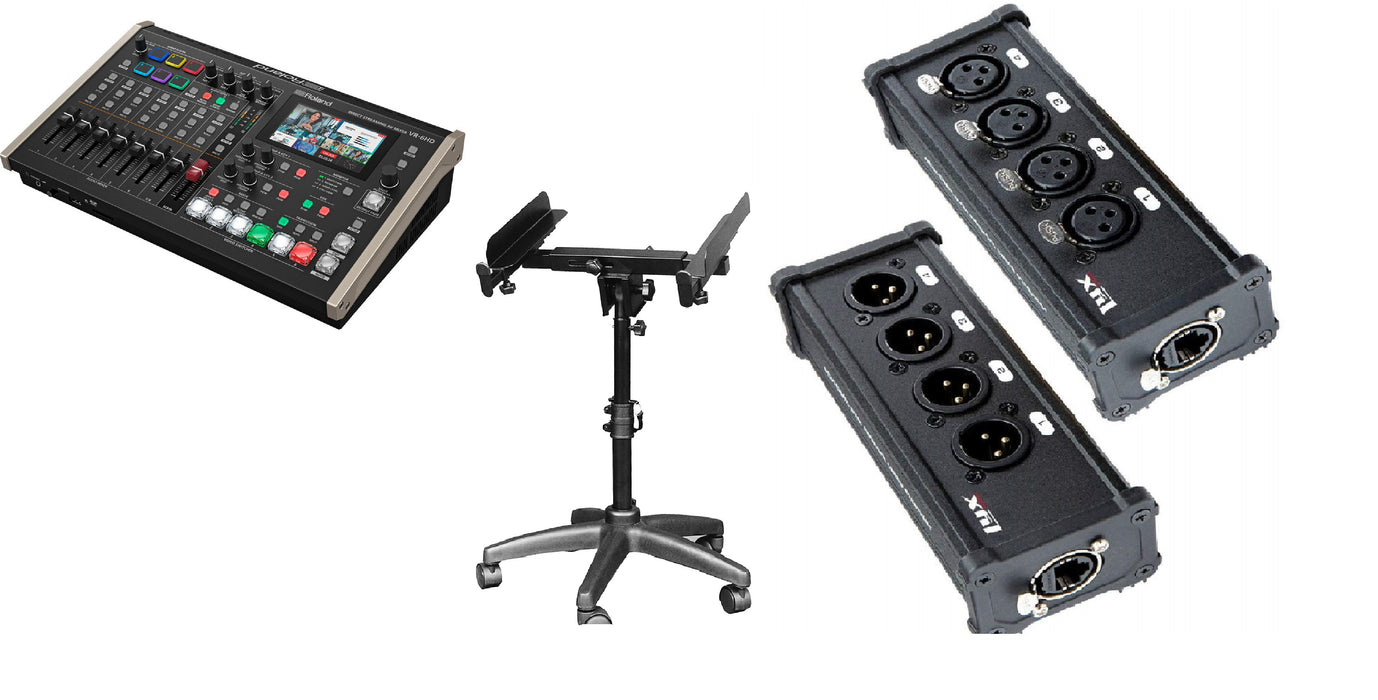

Roland VR-6HD HD AV Mixer – On-Stage MIX400 4 Channel 3 Pin Multi Network XLR Cable Breakout + Mixer Stand

Name: Roland VR-6HD HD AV Mixer – On-Stage MIX400 4 Channel 3 Pin Multi Network XLR Cable Breakout + Mixer Stand
Brand: Roland
SKU: VR-6HD-4cha_bun3
Price: 3541.00 USD
Availability: InStock

SKU VR-6HD-4cha_bun3

Save 26%

$4,766.00

$4,766.00 - $4,766.00

$4,766.00

$3,541.00

$3,541.00 - $3,541.00

$3,541.00

Portable Hybrid AV Live Streaming Mixer
Simultaneous Dual-Streaming via USB/LAN
6 HDMI Inputs, 1 USB and 3 HDMI Outputs
Direct Ethernet Streaming Output
Up to 1080p / 60 fps Video Support
28-Channel Digital Audio Mixer
Records H.264 MP4 to Optional SDXC Card
PTZ Control for up to 6 Cameras
4.3" Touchscreen with Graphical Menu

Quantity

Our Customers & Partners

Features

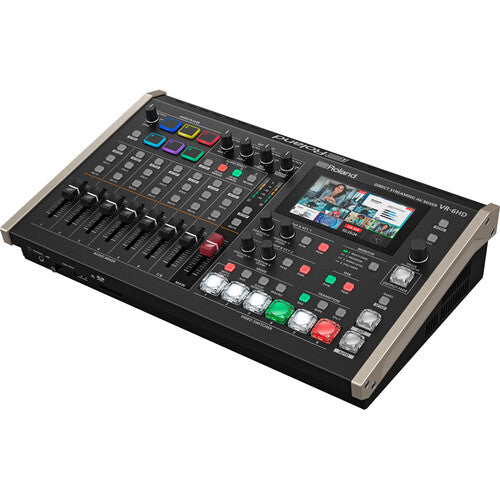

Add a professional hybrid live streaming event AV mixer to your production with this VR-6HD Direct Streaming AV Mixer from Roland. Combining the advanced functions of a video switcher and audio mixer, the portable VR-6HD is great for live school events, houses of worship, council meetings, corporate events, concerts, and other live performance venues. The switcher offers the capability of live streaming up to two simultaneous streams to popular online forums, such as Facebook and Twitch.

High-Quality Presentations Made Easy

The powerful video capabilities in the VR-6HD make it simple to bring professional production values to business streaming productions. Connect multiple cameras and computers via HDMI for different views, and incorporate robotic PTZ cameras to change angles at the touch of a button. Quickly assign and switch among sources on the fly, including live HDMI inputs, presentation decks, still images, and video clips. You can also create custom feeds for live and online viewers by assigning composition layers to multiple buses.

Multiple HDMI Inputs

The VR-6HD supports HDMI—the most common video connector in the world—and you can seamlessly combine six HDMI sources in Full HD with a range of broadcast and cinematic frame rates and color spaces. Built-in scalers with EDID and HDCP support provide easy integration with sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.

Integrated Playback of Stills and Video Clips

Enhance events with onboard support for graphics and video playback. Call up still images during transitions between presenters, display graphics for breaks, and use PNGs to create dynamic lower thirds. The integrated video player lets you trigger video clips directly from the SDXC card, with no need to connect an external playback device.

Layers and Keyers

Video effects and graphics bring polish and excitement to productions. The VR-6HD's effects engine features eight composition layers that can be assigned to the Program, Sub-Program, and Aux outs, so you'll always keep audiences engaged with visually appealing content. With up to four picture-in-picture windows and two downstream key layers with transparent PNG and external key support, you can manage the creative needs of any client.

Assignable Video Outputs

The VR-6HD puts a high-end video matrix at your fingers with three HDMI outputs, a USB-C streaming output, and an ethernet streaming output. Feed program displays, auxiliary monitors, multiview producer displays, and online audiences at once, complete with a clean output leftover for recording the presentation to an SDXC card.

Professional Digital Audio Mixing

The VR-6HD delivers world-class audio quality with 28 simultaneous channels and Roland's sound mixing features. Comprehensive EQ and dynamics processing is provided on every channel, complete with convenient preset libraries for achieving pro results instantly. Powerful problem-solving tools are also on hand, including audio sync alignment, de-essing, noise suppression, and more. It's even possible to play back stored audio during streams with quick touches on the panel.

Multichannel Audio Inputs and Bluetooth

The VR-6HD offers professional analog audio connectivity with six balanced XLR/TRS combination jacks, high-quality mic preamps, and phantom power. Stereo RCA inputs are available for audio players, electronic instruments, and other line-level devices, and you can mix the embedded digital audio from sources connected to the HDMI and USB inputs. And with onboard Bluetooth, it's easy to stream wireless audio from any mobile device.

Powerful Mixing Tools

Set up direct control for your most important sound feeds with eight assignable faders. And when you have multiple presenters to deal with, engage Auto Mixing to lighten your load and ensure that the mix between microphones remains balanced. You can set specific inputs to take priority when someone starts to speak, and other audio levels are automatically reduced as needed.

A Mix for Each Audience

Two auxiliary audio buses let you set up unique mixes for a variety of applications. For example, you can feed a monitor system for stage performers while live streaming a specialized mix that's independent of the in-person program. Versatile routing allows you to freely assign the mix and aux buses to the two stereo XLR outputs, RCA stereo output, USB and stream/record outputs, and HDMI outputs.

Shape Your Sound

The VR-6HD combines the full power of the latest digital audio consoles with expansive Roland effects. EQ and dynamics processing is provided for every input and output, and high-quality reverb is available for music applications and special effects. You also get specialized tools to quickly handle audio issues, like automatic antifeedback for stage mics, and adaptive noise reduction to suppress background noise and hum.

Audio on Demand

With the VR-6HD's Audio Player section and six assignable pads, it's simple to enhance events with custom sounds. With a quick press, you can trigger sound effects, event announcements, countdowns for e-sports, or theme songs when presenters take the stage.

Ethernet + USB Streaming and Onboard Recording

The VR-6HD advanced technology makes livestreaming to the most popular platforms smooth and worry-free. With direct streaming over ethernet, computer streaming over USB, and Adaptive Bitrate support, you can deliver high-quality presentations to any audience. And with simultaneous SDXC recording, it's easy to capture presentations for archiving and distribution.

Secure and Reliable Streaming over LAN

The VR-6HD's powerful LAN streaming capabilities allow you to directly connect with Twitch, Facebook, and other platforms without the need for a computer. The Adaptive Bitrate function monitors the quality of the network connection and automatically adjusts the streaming rate to reduce interruptions due to bandwidth issues. An adjustable Safety Delay is also available, allowing you to confidently stream unscripted events and prevent offensive content from being broadcast.

Dual LAN Streaming Destinations

Reach a wider audience by broadcasting to two different livestream channels at once. You can also use a mobile phone with a 4G or 5G data plan as the primary streaming connection or a redundant backup.

USB-C Streaming up to 60 fps

Stream to any audience in Full HD to a computer via USB. The USB-C connection offers the same plug-and-play technology as webcams, so you can begin streaming immediately with Zoom, Microsoft Teams, or any platform that can use a webcam as its source.

SDXC Card Recording

With the onboard recorder, you can easily record an event to an SDXC card and provide your client with an H.264 MP4 video file for their editing and distribution needs. Stereo WAV audio can also be recorded independently for podcasts and other audio-driven media. It's even possible to capture still images to internal memory from any video output bus and save them to the card for later use.

Take Full Control of Your Productions

Thanks to its well-organized panel and intuitive workflow, even novice operators will feel comfortable using the VR-6HD. Hardware knobs, faders, and buttons offer direct control for essential functions, while the 4.3" touch display provides smooth access to deeper parameters and settings. Scene memory, macro, and sequencing features simplify operation even more, letting you preprogram complicated actions and fire them off with simple actions.

Fast Recall of Complex Compositions

Storing and recalling custom looks can be accomplished with just a few button presses. The 32 scene memories and advanced effects engine work together to provide seamless changes, including synchronizing the transition of all composition layers at the program output. The 100 macros go even deeper, allowing you to build and execute complex action lists that include switching, DSK on/off, audio mixing adjustments, PTZ camera movements, and much more.

Sequencing Magic

The VR-6HD's sequencer makes scene memories and macros even more powerful, letting you perform perfectly timed cues with ease. Up to 1000 steps can be recorded in the sequencer, and each step can include both presets and macros. Set up your cues ahead of time in the sequence list and trigger them in order for a stress-free production.

Automated Switching and Mixing

When there are many stage presenters, you need to follow the action and switch audio and video together. The automated video switching and audio mixing features in the VR-6HD make this complicated task simple, greatly easing your workload and creating a smooth experience for the audience.

PTZ Camera Support

Robotic PTZ (pan-tilt-zoom) cameras eliminate the need for multiple operators, provide enhanced broadcast-quality coverage, and can be placed in discreet locations thanks to their small size. The VR-6HD features integrated support for select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. Mix and match different brands as you like, and operate up to six PTZ cameras simultaneously.

Remote-Control Options

The VR-6HD supports extended workflows with dedicated software apps and a variety of remote devices.

Connect footswitches or expression pedals to execute over 100 different switcher commands.
Trigger start/stop on Atomos recorders over HDMI.
Set up a tally light with Roland’s Smart Tally or the rear-panel hardware connector.
Seamlessly integrate with system installations via the RS-232 and TALLY/GPIO D-sub connectors.

Item Includes

All-in-one portable production solution
Easy to use thanks to dedicated hardware controls and audio faders as well as an integrated touch screen preview monitor
6-input, 4-Channel Video Switcher
Supports HDMI, RGB/component, and composite video inputs
Built-in scaler on CH4
18-Channel Digital Audio Mixer with XLR, TRS, and RCA jacks along with embedded audio from HDMI inputs
Embedding and de-embedding of audio with delay settings
Auto mixing and Echo Canceling function
Composition effects including DSK (Downstream Keyer), picture-in-picture, and more
Built-in touchscreen quad-input multi-viewer with audio metering
External Multi-View Output through HDMI
HDCP Support
USB 3.0 Video/Audio output up to 1080/30p
Software control using VR-4HD RCS application for Mac and PC
Tally, GPIO connections

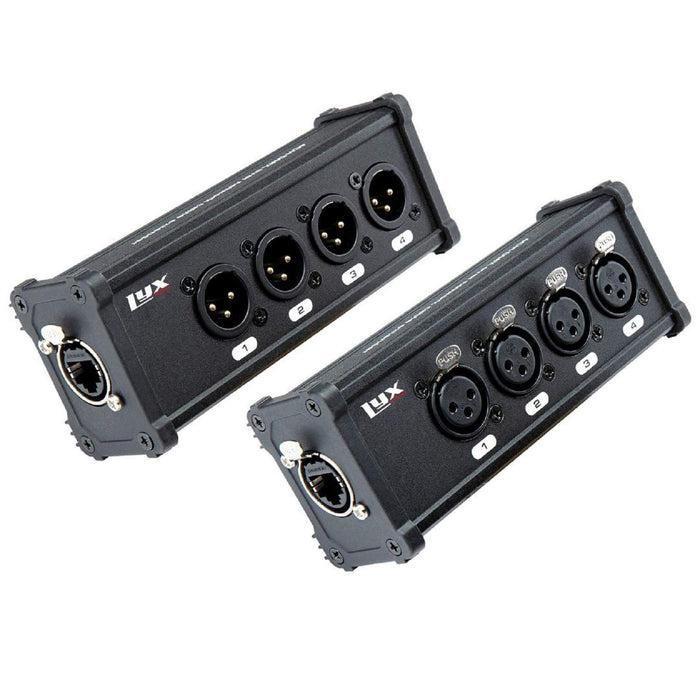

4 Channel 3 Pin Multi Network XLR Cable

Item Includes

Available M/E Layers	5 M/E
Effect Types	DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Downstream Keys	1x Chroma, Alpha, Luma, DVE
Audio Mixing	28-Channel Mixing

Processing

Switching Type	Pushbutton
Processing Resolution	1080p at 60
Color Processing	8-Bit 4:2:2
Audio Processing	48 kHz / 24-Bit

Input

Number of Video Input Sources	6
Video Inputs	6x HDMI Female
Input Video Format	HDMI (8-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94 fps 720p at 50/59.94 fps 576p at 50 fps 576i / 625 lines at 50 fps 480p at 59.94 fps 480i / 525 lines at 59.94 fps VGA (640 x 480) at 60 fps SVGA (800 x 600) at 60 fps XGA (1024 x 768) at 60 fps WXGA (1280 x 800) at 60 fps SXVGA (1280 x 1024) at 60 fps FWXGA (1366 x 768) at 60 fps SXGA+ (1400 x 1050) at 60 fps UXGA (1600 x 1200) at 60 fps WUXGA (1920 x 1200) at 60 fps USB-C (8-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 720p at 24/25/29.97/30/50/59.94/60 fps 480p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Inputs	6x Combo XLR-1/4" TRS Analog Female 2x 2RCA Analog Female
Input Audio Format	Analog: 48 kHz / 24-Bit LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Embedded Audio Input	HDMI: 2-Channel (per Input) USB-C: 2-Channel

Output

Video Output Channels	3
Video Outputs	3x HDMI Female 1x USB-C Female
Output Video Format	HDMI / SDI 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/60 fps 720p 50/59.94/60 fps
Audio Outputs	4x XLR 3-Pin Mono Analog Male 1x 2RCA Stereo Analog Female 1x 1/4" TRS Stereo Analog Female 1x 1/8" / 3.5 mm TRS Stereo Analog Female
Output Audio Format	Analog: 48 kHz / 24-Bit LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Embedded Audio Output	HDMI: 2-Channel (per Output) USB-C: 2-Channel
Multiview Output	Yes
Monitor Output	1x HDMI

Connectivity

Other I/O	1x DB-25 Tally 1x DE-9/DB-9 RS-232 1x RJ45 Control, LAN 2x 1/4" TRS Control
Video Standard Compliance	SMPTE 292M/424M/424M-A/424M-B
HDCP Support	Yes
IP Video	H.264/MJPEG: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p (20,000 Kb/s) Encoding
IP Audio	AAC-LC: 384 Kb/s Encoding
Simultaneous Streams	2 Streams
Recording Media	1x SDXC, SDHC
Recording Modes	1920 x 1080p up to 60 fps (MP4 via H.264/AVC)

Display

Display Size	4.3"
Screen Resolution	480 x 272

Hardware

OS Compatibility	macOS Windows
Processor	Not Specified by Manufacturer
Wi-Fi	No
Bluetooth	5.0
Power I/O	1x Barrel (24 VDC at 2.3 A) Input
Power Consumption	55 W

Environmental

Operating Temperature

32 to 104°F / 0 to 40°C

General

Certifications	FCC
Dimensions	14.6 x 9.5 x 3.9" / 37 x 24.2 x 10 cm
Weight	7.5 lb / 3.4 kg

Packaging Info

Package Weight	11.945 lb
Box Dimensions (LxWxH)	20.3 x 14.1 x 8.6"
