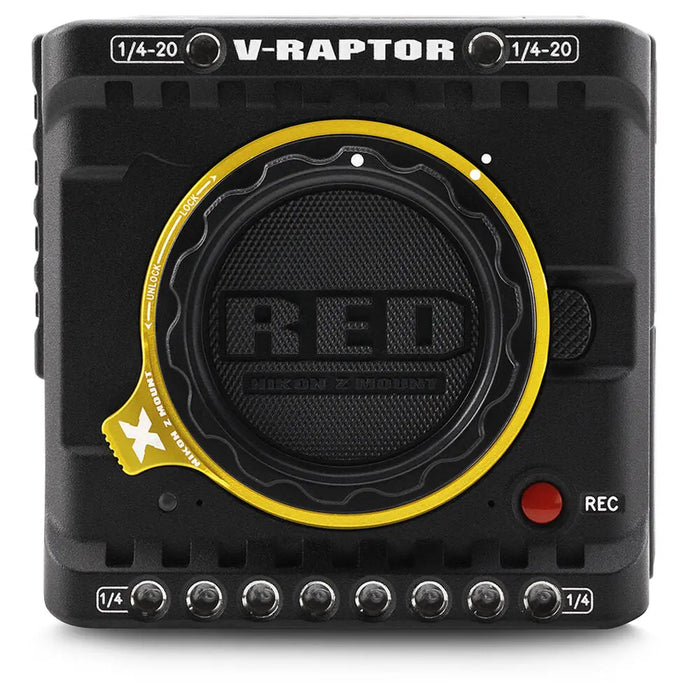

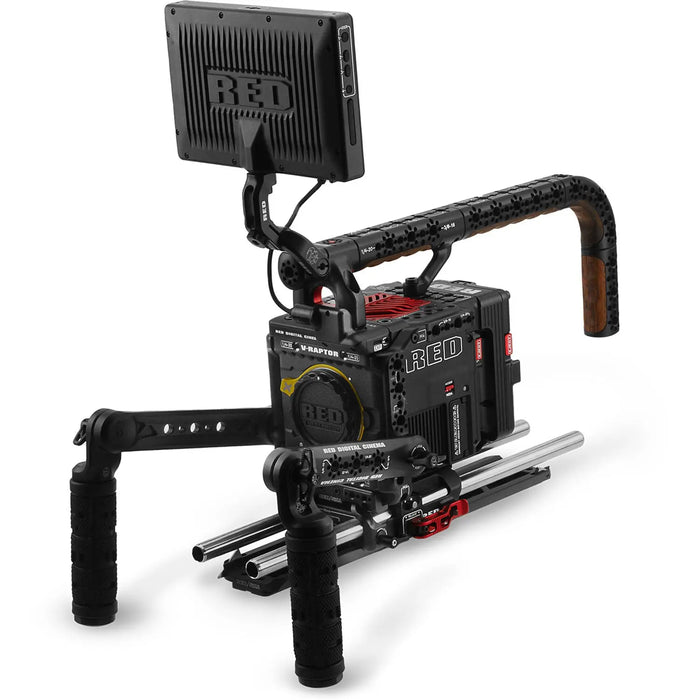

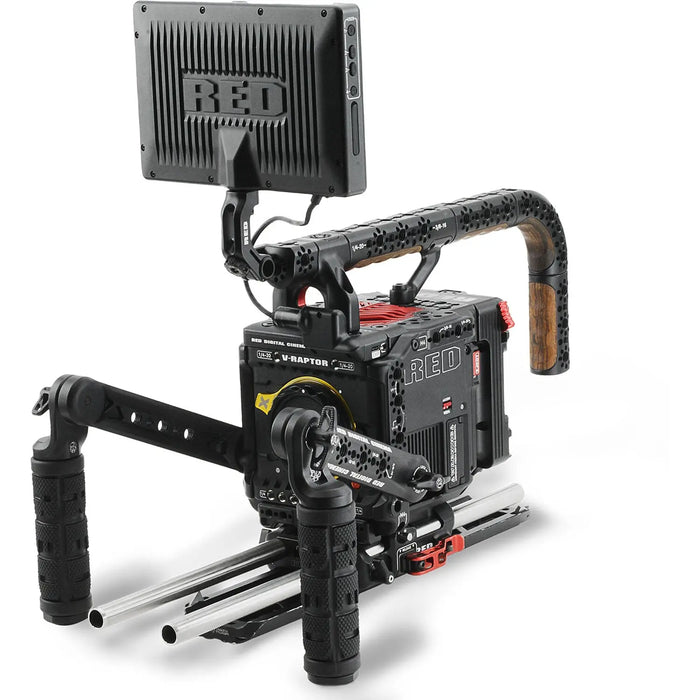

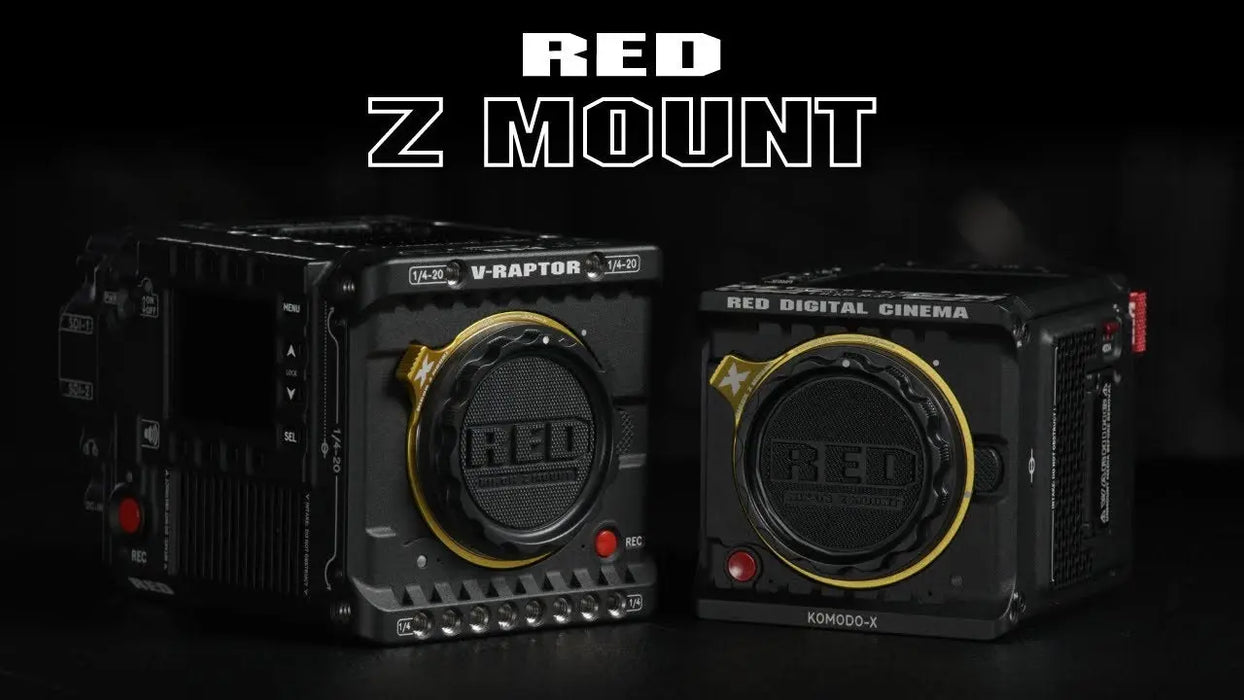

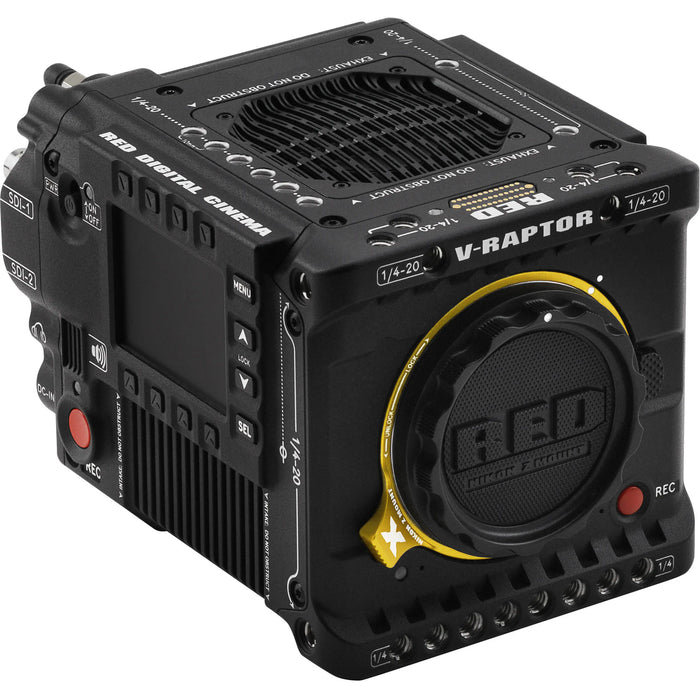

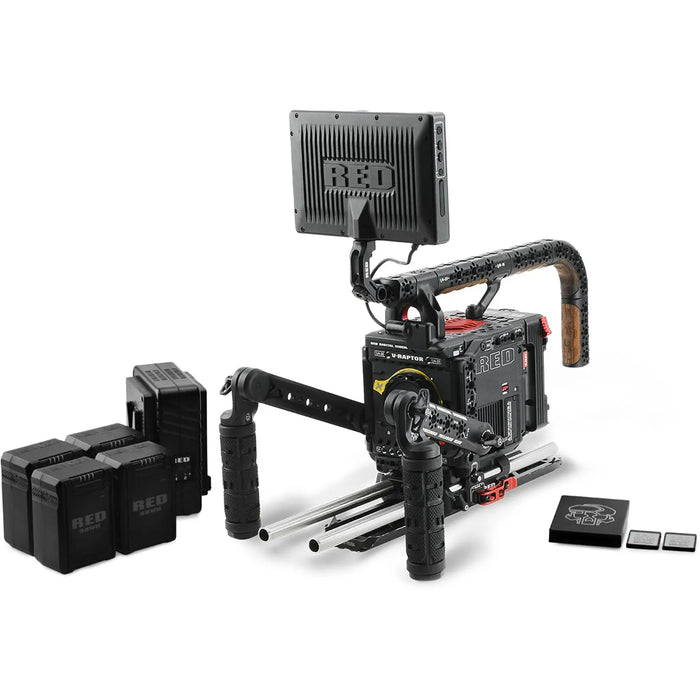

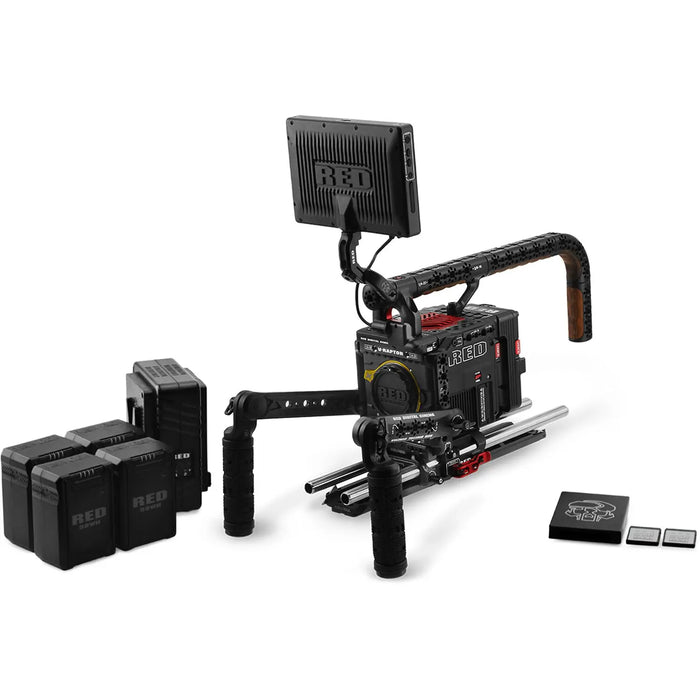

RED DIGITAL CINEMA V-RAPTOR [X] Z Mount Production Pack (V-Mount)

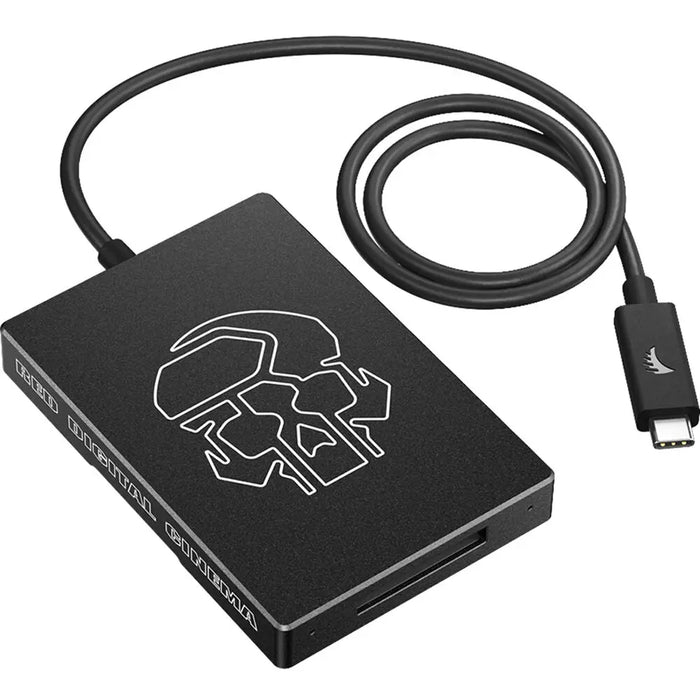

The CFexpress Card Reader from RED allows for the fast ingestion of the RED PRO 660GB CFexpress media card on systems that support 20 Gb/s USB 3.2 Gen 2x2. Built with a USB Type-C interface, power is received through the USB bus, meaning that no external power sources are required. The reader features a write-protect switch on the back to protect your data.

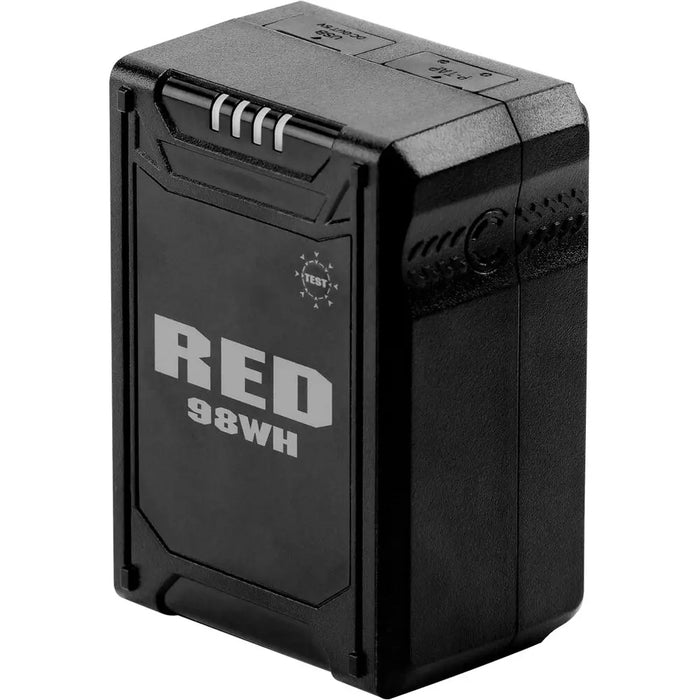

Power your KOMODO V-RAPTOR camera with the MICRO-V Battery from RED DIGITAL CINEMA. This 98Wh battery features a compact, lightweight form, up to 12A draw, and data transmission of the remaining time and select accessory information. Designed in conjunction with battery-maker Core SWX, the compact REDVOLT BP is compatible with select other cameras when used with a full-size V-mount adapter.

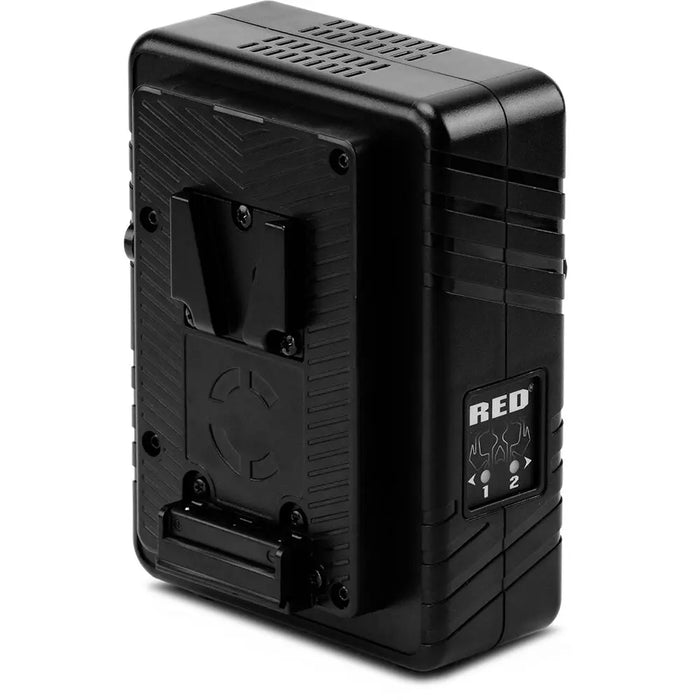

Charge two V-mount batteries for use with a DSMC3 cinema camera such as the V-RAPTOR 8K VV while on location with the RED Compact Dual V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this compact charger can charge two V-mount REDVOLT MICRO-V or REDVOLT XL-V batteries at a 3A rate. Designed and manufactured in partnership with Core SWX, the charger can charge two REDVOLT MICRO-V 98Wh batteries in less than five hours. A power cable is included.

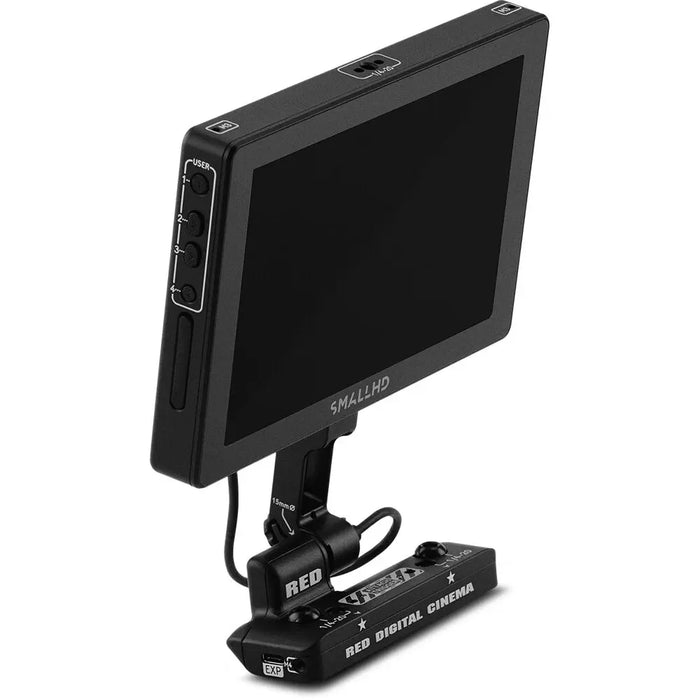

Add a direct-mount onboard monitor to your DSMC3 camera rig with the DSMC3 RED Touch 7.0" LCD Monitor with Rigid Hinge from RED DIGITAL CINEMA. The RED Touch features daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The rigid hinge and arm enable you to apply more pressure for positioning the Touch for optimal viewing. The Touch monitor features 1920 x 1200 resolution, a 1250:1 contrast ratio, and 1300 cd/m² brightness for high-quality imaging.

This monitor attaches directly to your DSMC3 BRAIN using its Pogo mount, which provides video, data, and power to the monitor from the camera. If you need to use the Pogo mount for another accessory, the monitor also features a locking USB-C connector that alternately allows you to pass video, data, and power to the camera. Note that the DSMC3 Touch monitor is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.

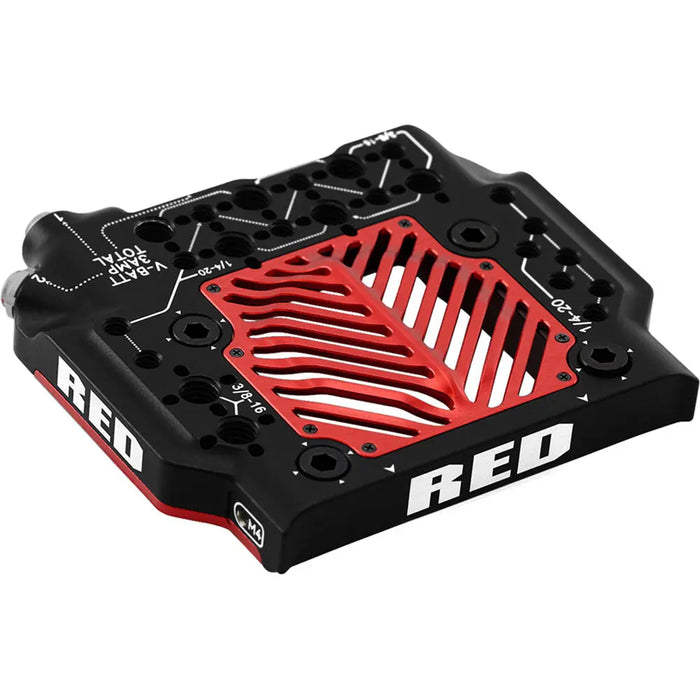

Use the V-RAPTOR Tactical Top Plate with Battery Adapter Plus from RED DIGITAL CINEMA to both securely mount a V-mount battery on your V-RAPTOR BRAIN and power select camera accessories. This plate provides one D-Tap and two 2-pin LEMO ports, a pogo connector, an SMBUS pass-through, an E-Fuse safety system, and multiple 1/4"-20 and 3/8"-16 accessory mounting threads. A 6-pin DC input port can be used to power your camera and accessories simultaneously.

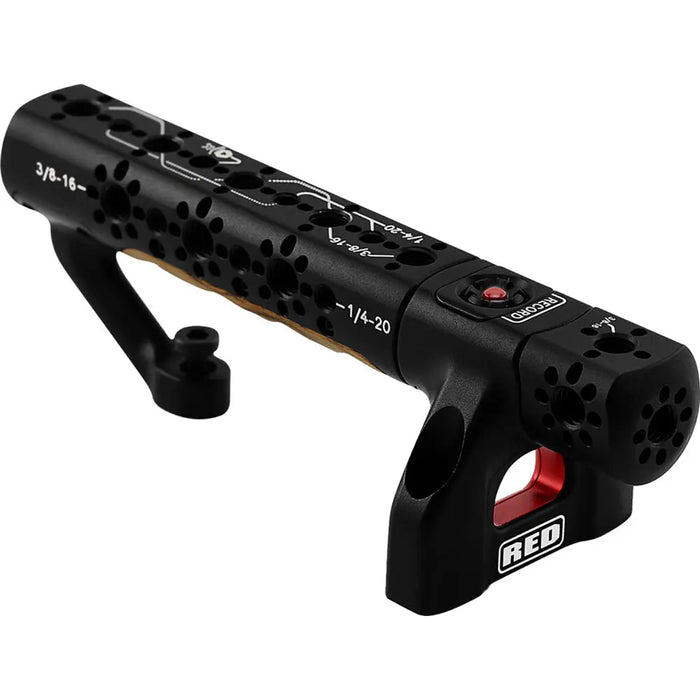

The RED DIGITAL CINEMA V-RAPTOR Top Handle with Extensions provides a complete modular top handle solution for the V-RAPTOR, allowing for lightweight or extended wraparound style configurations. It features a dedicated start/stop button, ergonomic bocote wood inlays, and multiple 3/8"-16 and 1/4"-20 mounting points. Additionally, this includes the 1", 3", and 5" top handle extension pieces, an elbow piece and a 15mm Monitor Mount.

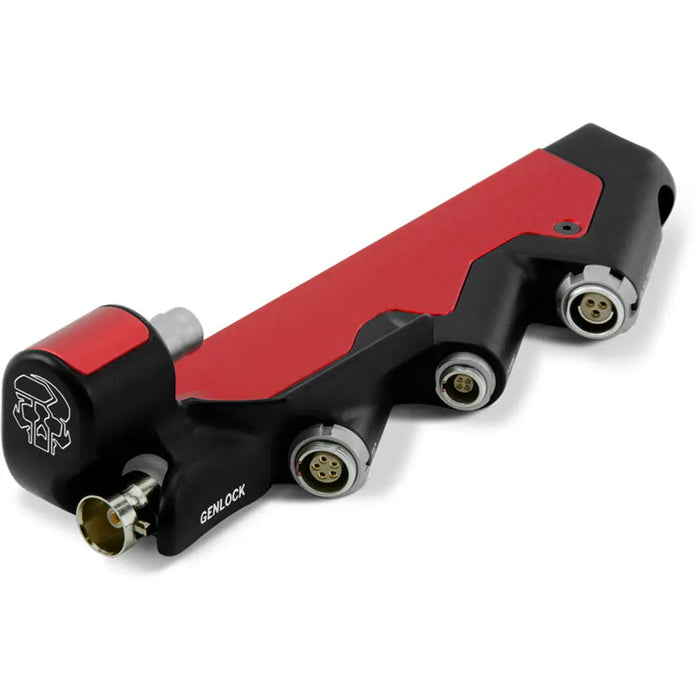

Mount the RED V-RAPTOR Expander Blade to your V-Raptor camera to gain video, power, and communication ports, enabling a wide choice in how you configure your camera for professional applications. The Expander Blade attaches to your camera via the camera's 9-pin EXT port and is supported by the included ARCA plate.

Once attached, the Expander plate provides a BNC connector (Genlock video), 5-pin connector for timecode, 4-pin connector for RED CTRL, and 3-pin Fischer for Run/Stop. Please note that the 3-pin Run/Stop is only for trigger, and it does not supply power.

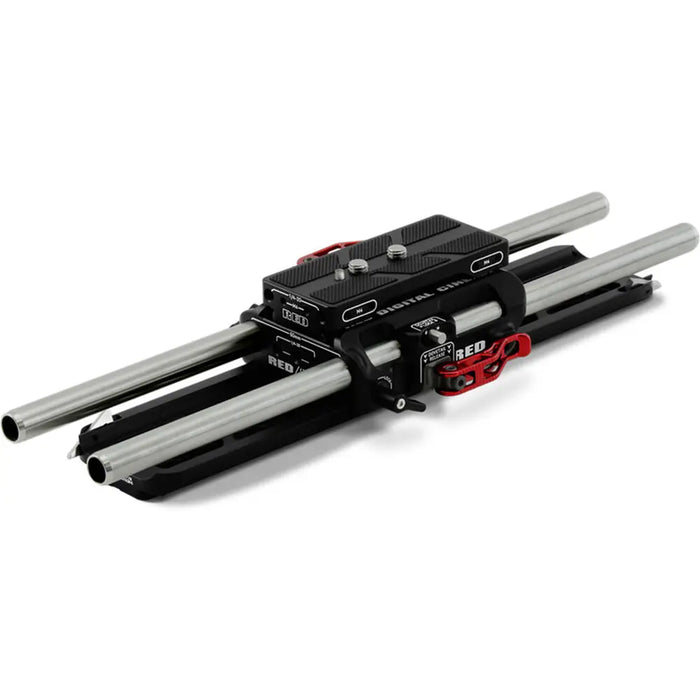

Designed for V-RAPTOR camera users, the RED V-RAPTOR Quick Release Platform Pack is a sturdy yet compact QR plate release system for mounting and balancing your V-Raptor on a tripod. The platform, or baseplate, features 15mm LWS rod clamps and includes two 15mm rods, allowing you to use standard lens supports and accessories such as matte boxes, follow focus units, lens motors, and more with your V-RAPTOR. The platform slides onto the included dovetail plate and has a lever lock to clamp it in place once you have found the balance point you want.

The platform has a lever lock for clamping the included Arca plate in place, as well as a spring-loaded safety catch to help prevent the Arca plate from accidentally sliding off the platform. The dovetail plate has multiple 1/4"-20 and 3/8"-16 threaded mounting holes along its length for attaching to a tripod, and the combination of the sliding platform, Arca plate, and dovetail with its multiple mounting holes allows you to balance a variety of shooting configurations. In addition to supporting your camera, the QR Platform Pack also supports optional battery adapter plates, the RED V-RAPTOR Expander Blade, and RED Side Ribs for added versatility.

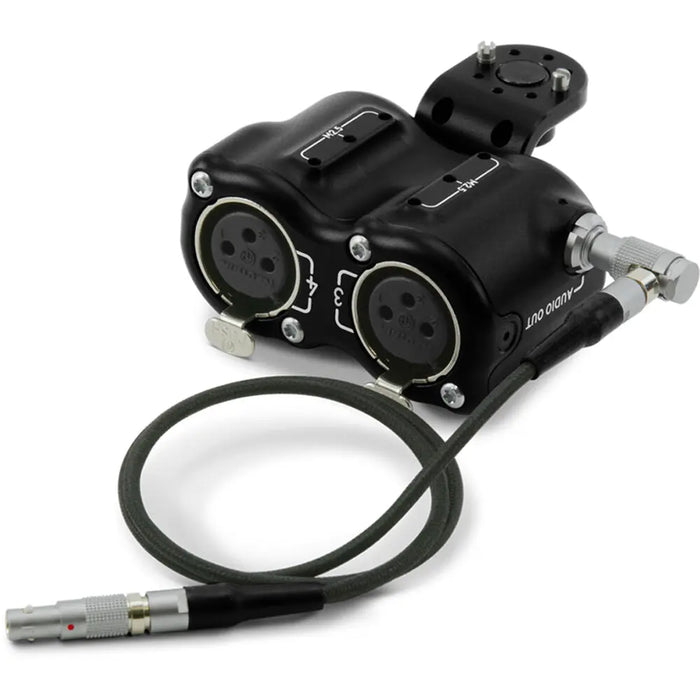

Add two XLR inputs to your V-RAPTOR camera with the RED DSMC3 5-Pin to Dual XLR 3-Pin Adapter. Connect the included 5-pin ODU cable to your camera's ODU port, and the other end of the cable to the adapter's port. The adapter can provide 48V phantom power and supports both mic and line-level inputs. It mounts to the V-Raptor using a 3/8"-26 screw, and has anti-twist pins to prevent it from spinning on your camera. The unit also features 6 x M2.5 screw holes for future accessories.

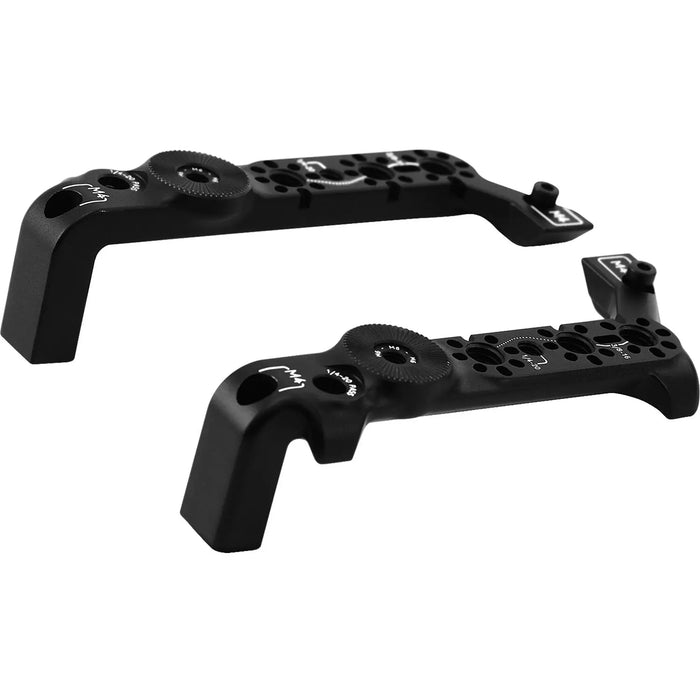

The Side Ribs for V-RAPTOR from RED DIGITAL CINEMA are designed to attach directly to the V-RAPTOR Tactical Top Plate. The two side ribs provide a multitude of accessory mounting options with various 1/4"-20 and 3/8"-16 threaded mounting points, as well as a standard rosette on each side rib. Constructed from sturdy 7075 aluminum, the side ribs collectively weigh just under 6 oz.

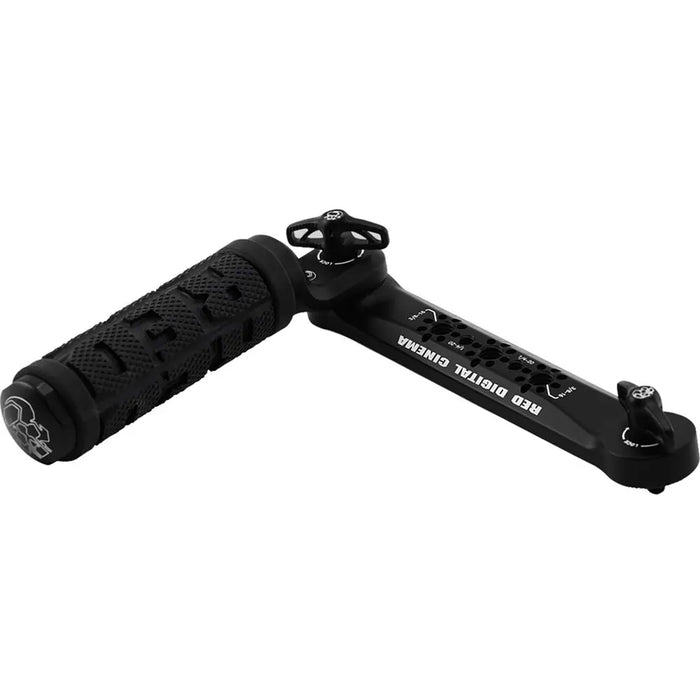

Use this pair of Production Grips from RED DIGITAL CINEMA to add two-handed support to your V-RAPTOR side ribs or any camera, baseplate, or cage with ARRI-standard rosette mounts. Made of durable aluminum, each handgrip features a contoured rubber grip, an extension arm, and anti-twist 1/4"-20 and 3/8"-16 accessory threads. Together, the grip and extension arm provide two rotation points for setting the grip at the most comfortable angle for your handheld shots.
