Atomos Ninja Blade 5" HDMI Monitor and Recorder

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request

Atomos Ninja Blade 5" HDMI Monitor and Recorder

SKU ATOMNJB001
Save 17% Save 17%
$599.00
$599.00 - $599.00
$599.00
$499.00
$499.00 - $499.00
$499.00

Professional media production is all about balancing quality, cost and time. Atomos understands this dynamic and their aim is to redefine the digital recording workflow to maintain the highest recording quality and the time taken to move video from camera to computer and lower the cost of production using affordable, high capacity, high speed media. The Ninja Blade takes any uncompressed HD or SD source and encodes it in real-time to 10-bit, 4:2:2 Apple ProRes or Avid DNxHD at up to 220Mbps. Both are class-leading codecs for production, broadcasting, editing and post-production. Because we are portable, we can record from the ultimate image source, the sensor of the camera. The Ninja Blade always records in 10-bit, even from an 8-bit source. We add color registries for incorporating higher bit-depth graphics from CG, animation and special effects. This avoids banding and makes editing and grading, in fact any precision effect, more accurate.

Key Features

  • 1280 x 720 On-Camera Monitor & Recorder
  • 5" IPS/325 DPI Touchscreen Display
  • Waveform, Vectorscope, Focus Peaking
  • Records 1080p30, 1080i60, 10-Bit, 4:2:2
  • ProRes or DNxHD Encoding and Playback
  • HDMI Input and Loop-Output
  • Records to 2.5" HDDs/SSDs
  • Cut and Tag Editing Tool
  • 2x Master Drive Caddies
  • Canon, Nikon Type Battery Adapters

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Atomos Ninja Blade 5" HDMI Monitor and Recorder

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

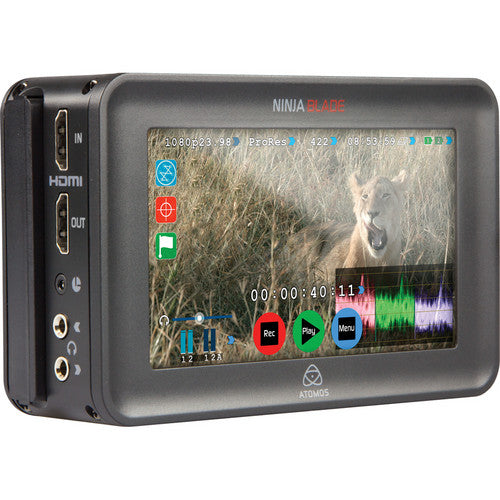

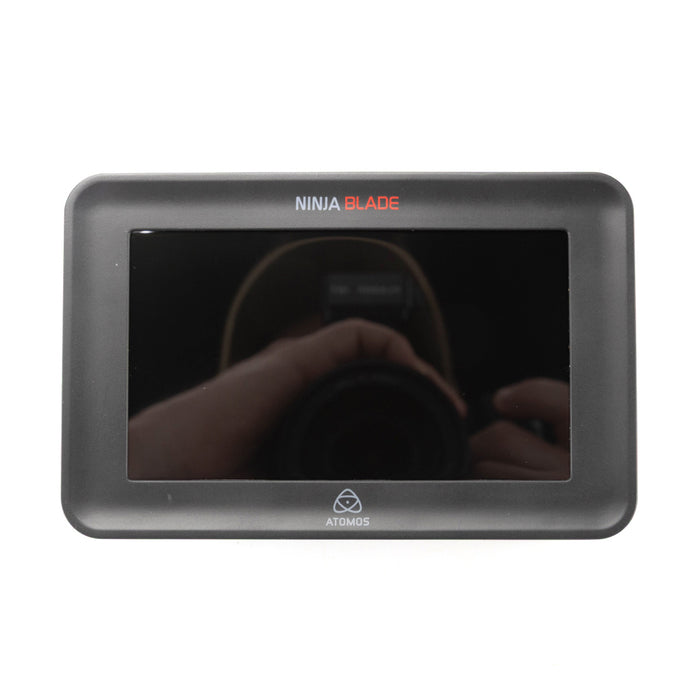

TheAtomos Ninja Blade 5" HDMI Monitor & Recorderfeatures a 1280 x 720 resolution display with 325 dpi providing a sharp image, in a small monitoring package. It records up to 1080 30p/60i resolution via HDMI to an available HDD or SSD using either Apple's ProRes or Avid's DNxHD codecs. Recording at 10-bit with 4:2:2 color sampling, this unit provides you a monitoring and recording solution in one compact battery powered unit.

The Ninja Blade features an on screen display system that allows you to select the functions you wish to control with a touch of your finger. Select from waveform or vectorscope overlay to view the signals, focus peaking helps you to see what is in focus in your shot.

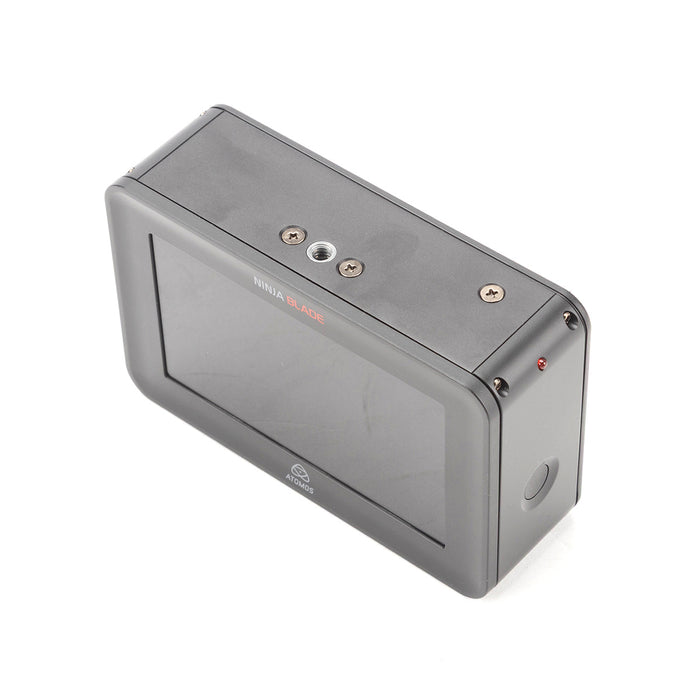

Blade accepts 2.5" HDDs/SSDs, which are sold separately. This is the full version, which includes a docking station that offloads these drives to your computer via USB 3.0/2.0. You also get a Sony-type NP-F570 battery, a charger, an AC adapter for continuous power, and two master caddies for available HDD/SSD It features two 1/4"-20 threaded mounting holed, one each top and bottom.

Key Features
  • 325DPI, 5" IPS 1280 x 720 capacitive touchscreen monitor/recorder.
  • Waveform RGB & luma parade, vectorscope with zoom, and test pattern generator.
  • Adjustable gamma, contrast and brightness.
  • HDMI input and output.
  • Real-time monitoring, playback, playout to a PC or Mac with QuickTime, and edit logging.
  • Focus peaking, 0-100% zebra, and two modes of false color monitoring.
  • Records 10-bit, 4:2:2 in ProRes or DNxHD.
  • S-Log / C-Log recording.
  • Trigger REC/STOP from camera (Canon, Sony, ARRI, Panasonic, RED, JVC)
  • Timecode from camera.
  • 2.5" HDD/SSD media storage.
Uncompressed Recording
The Ninja Blade records directly from from the camera's video output, bypassing in camera compression, allowing the unit to record at 10-bit, 4:2:2 to Apple ProRes or Avid DNxHD.
AtomOS 5.0 Capacitive Touchscreen OS
Blade's operating system, AtomOS, manages recording, playback, monitoring, and simple cut and tag editing via a capacitive touchscreen. AtomOS 5.0 supports alpha channel, transparency support, full waveform RGB and luma parade, and vectorscope with zoom.
Cut and Tag
AtomOS 5.0 lets you rough cut your footage, tag it as Favorite or Reject, and then save it as a project to be finished and polished in the studio. You can cut and tag short and long clips with transport controls and finite frame-by-frame accurate stepping.
Synced REC Trigger and Timecode
The Blade provides frame accurate timecode and start stop triggers over HDMI from many cameras, including Canon, Sony, Panasonic, Nikon, JVC, RED and ARRI. It also features LANC and rolling timecode trigger for those older cameras that don't have start stop flag protocols on board. The Blade additionally has tally lights to indicate start time.
ProRes and DNxHD Encoding & Playback
The unit encodes in your choice of Apple's ProRes and Avid's DNxHD codec and can also play back any ProRes or DNxHD file from any system, recorder or edit suite. You can take advantage of this playback capacity to take rushes on the road.
HDD or SSD Storage
It records to available 2.5" HDDs or SSDs, which are hot swappable. As SSDs are resistant to vibration they are ideal for shoots in rough conditions, such as on a race track.
File Recovery
In case you accidentally pull the power or remove the storage drive while recording, the operating system will detect the disruption and will reconstruct your file to within 2 frames.
Audio Monitoring
All audio, even analog, is locked frame accurately to every video frame, never drifting or losing sync. If digital audio is out of sync from the camera, you can even adjust sync on the fly by advancing or delaying incoming audio. The Ninja Blade monitors/records 2 channels of audio embedded in the HDMI signal, and 2 analog audio channels.
Construction
The Blade is built with aircraft grade aluminum and features locking mechanisms for each removable part.
Low Power Consumption

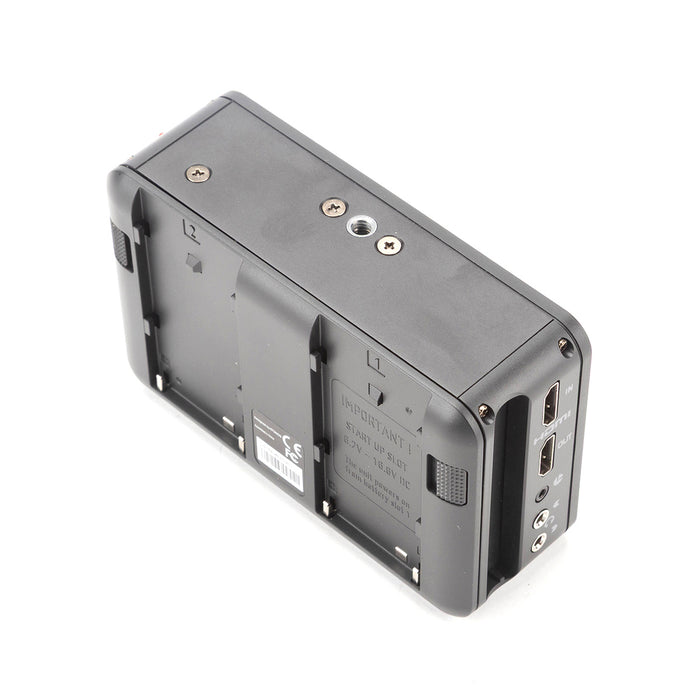

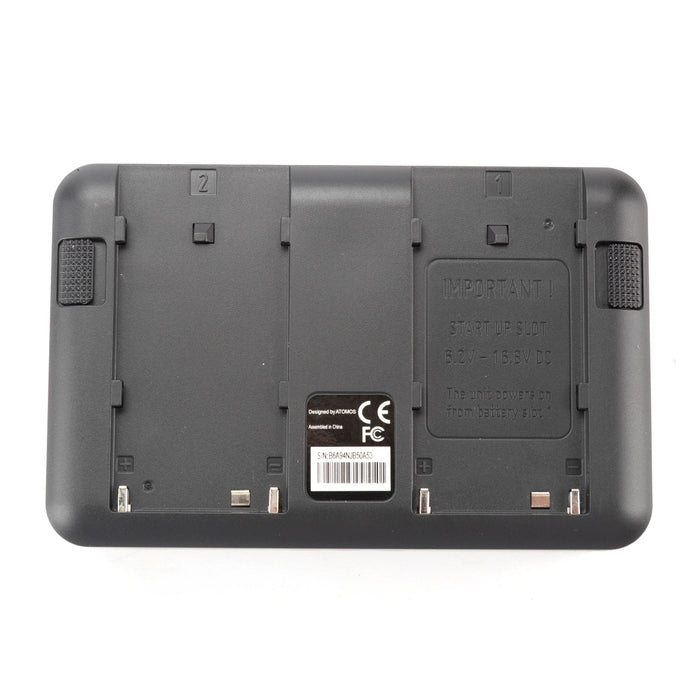

Blade consumes only 6W of power and can be powered by the included Sony NP Type battery. The unit features two locking battery slots, and comes with a Nikon EN-EL15 type battery adapter plate, and an LP-E6 type battery adapter plate, allowing you to use batteries other than the Sony NP type to power the unit.
""UPC: 853815005407

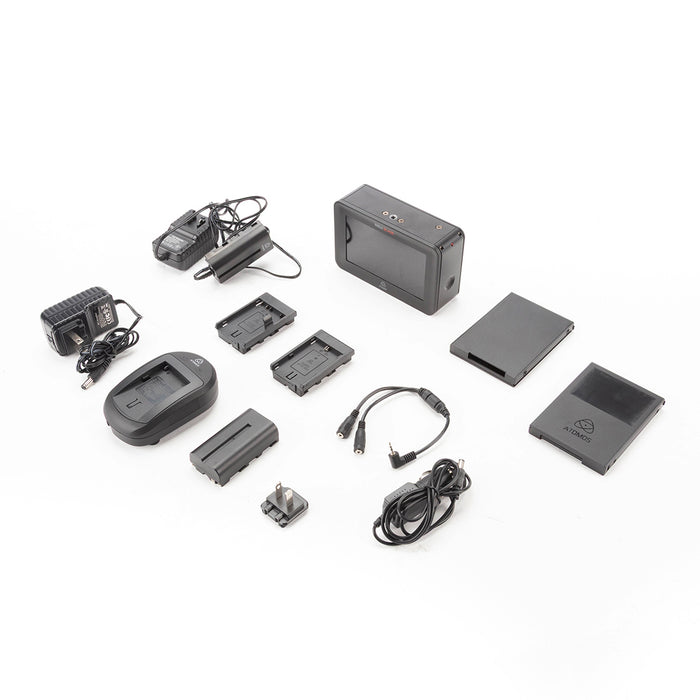

Item Includes

Atomos Ninja Blade 5" HDMI On-Camera Monitor & Recorder (Full Version)

  • Powered Docking Station with USB 3.0 & 2.0
  • Sony-Type NP-F570 Battery
  • Single Battery Charger
  • AC Adapter
  • 2 x Master Caddies
  • Canon LP-E6 Type Battery Adapter
  • Nikon EN-EL15 Type Battery Adapter

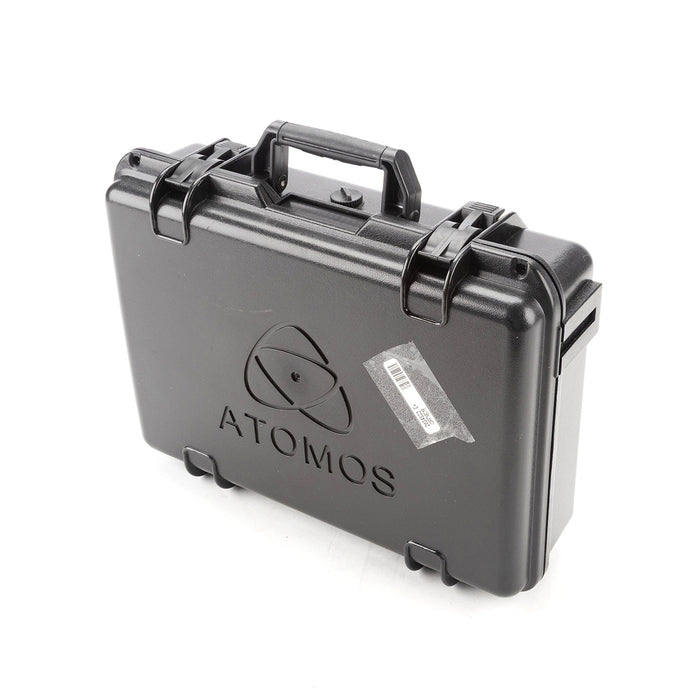

  • Rugged Carry Case
  • 1-Year Limited Warranty

Item Includes

Display5" IPS (12.7 cm)
1280 x 720 resolution
325 dpi
Capacitive touchscreen
Connections1x HDMI input
1x HDMI loop-output
RecordingUp to 1080/30p/60i, 10-bit, 4:2:2 to ProRes or DNxHD
S-Log / C-Log
Synced REC trigger
Storage2.5" HDD/SSD
PlaybackProRes and DNxHD
TimecodeTimecode from camera
Audio MonitoringDigital and analog locked frame accurately to every video frame
Operating SystemAtomOS 5.0
BuildAircraft grade aluminum; locking mechanisms for each removable part
Power Consumption6 W
Dimensions (W x H x D)Without battery: 5.5 x 3.4 x 1.6" (140 x 87 x 41 mm)
WeightUnit only: 11 oz (310 g)
Unit with batteries & HDD: 21 oz (595 g)
Packaging Info
Package Weight6.15 lb
Box Dimensions (LxWxH)14.4 x 11.4 x 4.5"
