DJI Goggles V2 w/ Iflight Crystal antenna patch

This setup combines the industry-leading digital video performance of the DJI FPV Goggles V2 with a popular aftermarket upgrade—the iFlight Crystal Patch Antenna—to create an enhanced immersive FPV experience optimized for long-range and focused flight.

Core Component: DJI FPV Goggles V2

The foundation of this package is the DJI FPV Goggles V2, the central hub for DJI's digital FPV ecosystem. Key features include:

• Stunning HD Low-Latency Feed: Provides an incredibly immersive, real-time view from your drone with a crystal clear 810p/120fps video feed and an ultra-low latency of under 30ms.

• Broad Compatibility: Designed to work seamlessly with the DJI FPV Drone, drones equipped with the DJI O3 Air Unit, and legacy drones using the original DJI FPV Air Unit.

• OcuSync 3.0 Transmission: Utilizes DJI's advanced dual-band (2.4 GHz and 5.8 GHz) technology for a robust, stable, and long-range connection up to 10 km, with automatic frequency switching to avoid interference.

• Integrated Design: Features a built-in battery for up to 110 minutes of cable-free operation, an adjustable headband for comfort, and diopter adjustment lenses (from -8.0D to +2.0D) for users who wear glasses.

• Onboard DVR: Records your flight perspective directly to a microSD card for analysis and sharing.

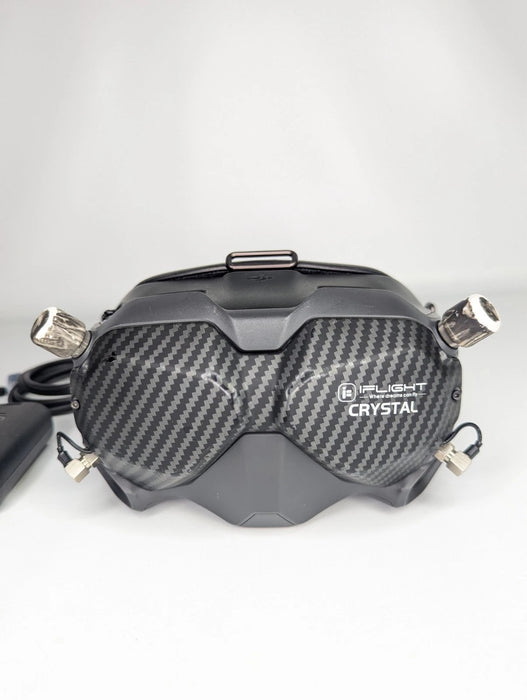

Performance Upgrade: iFlight Crystal Patch Antenna

This setup is enhanced by replacing one of the stock omnidirectional antennas with a high-gain directional antenna:

• Optimized Signal Focus: The patch antenna concentrates its receiving power in a specific, forward-facing direction, much like a spotlight. This results in a stronger, clearer, and more stable video signal when flying at long range or when the drone is positioned in front of the pilot.

• Increased Range & Penetration: The higher gain and focused signal can significantly extend the reliable range of your video link and improve its ability to penetrate light obstacles like trees.

• Reduced Interference: The directional nature makes it less susceptible to signal reflections and multipath interference, which can cause video flickering.

• DJI Goggles V2 w/ Iflight Crystal antenna patch

1. Display & Visual

• Screen Type: 2x separate Micro-OLED displays

• Screen Resolution: 1440 × 810 per eye

• Refresh Rate: 120fps (max)

• Field of View (FOV): 54°

• IPD Adjustment: 58 - 70mm (Manual)

• Diopter Adjustment: -8.0D to +2.0D

2. Transmission System (Goggles Base)

• Technology: DJI OcuSync 3.0 (O3)

• Supported Systems: DJI FPV Drone, DJI Avata (with adapter), DJI O3 Air Unit, DJI FPV Air Unit (V1)

• Operating Frequencies: 2.4 GHz & 5.8 GHz (Auto-switching)

• Max Latency: < 30 ms (in 120fps mode)

• Max Bitrate: 50 Mbps

• Onboard DVR: Records to microSD card (max 256 GB)

3. Antenna System (Aftermarket Upgrade)

• Antenna Type: Directional Patch (iFlight Crystal) & Omnidirectional (typically one stock DJI omni remains)

• Frequency: 5.8 GHz (optimized for the 5.8GHz band used for HD video transmission)

• Gain: ~8 dBi (Estimated for iFlight Patch) | ~2.5 dBi (Stock Omni)

• Polarization: Linear (The iFlight Crystal patch uses linear polarization, which should be matched with linearly polarized antennas on the drone for optimal performance).

• Connector: SMA (Standard connector for easy installation)

4. Power & Battery

• Battery: Integrated 1800mAh LiPo

• Voltage: 3.6 V

• Usage Time: Up to 110 minutes

• Charging: USB-C, approx. 2 hours

5. Physical Specifications

• Weight (Total): ~410 g (The antenna swap adds negligible weight)

• Dimensions (Goggles): 202×126×110 mm (L×W×H)
