DJI Matrice 350 RTK Worry Free Basic Combo

Basic Combo The DJI Matrice 350 RTK has a base weight of approximately 3.77 kg (8.31 lbs) without batteries and approximately 6.47 kg (14.26 lbs) when equipped with two TB65 Intelligent Flight Batteries. The platform is designed to handle a maximum takeoff weight of 9.2 kg (20.28 lbs). DJI Enterprise DJI Enterprise +3 Aircraft and Component Weights Aircraft (No Batteries): Approximately 3.77 kg (8.31 lbs) with a single downward gimbal. Aircraft (With Batteries): Approximately 6.47 kg (14.26 lbs) when carrying two TB65 batteries. TB65 Intelligent Flight Battery: Each battery weighs approximately 1.35 kg (2.97 lbs). DJI RC Plus Controller: Weighs approximately 1.25 kg without the external battery and 1.42 kg (3.13 lbs) with the WB37 battery installed. DJI Enterprise DJI Enterprise +7 Payload and Operational Limits Maximum Takeoff Weight: 9.2 kg (20.28 lbs) is the absolute upper limit for the aircraft, including all batteries and payloads. Maximum Payload Capacity: The drone can carry up to 2.7 kg (5.9 lbs) of external equipment, such as cameras or LiDAR sensors. Single Gimbal Limit: The maximum payload for a single gimbal damper is 960 g. DJI Enterprise DJI Enterprise +5 Combo Accessory Weights BS65 Intelligent Battery Station: The charging station included in the combo has a net weight of approximately 8.98 kg (19.79 lbs). Total System Weight: While the flight weight is around 6.47 kg, the total shipping or transport weight for the Worry-Free Basic Combo (including the charging station, batteries, and case) is significantly higher, often cited near 20 kg or more depending on the carrying case used by the supplier. Advexure Advexure +2 These specification sheets detail the weight of the DJI Matrice 350 RTK aircraft, its TB65 batteries, the DJI RC Plus controller, and the BS65 Intelligent Battery Station

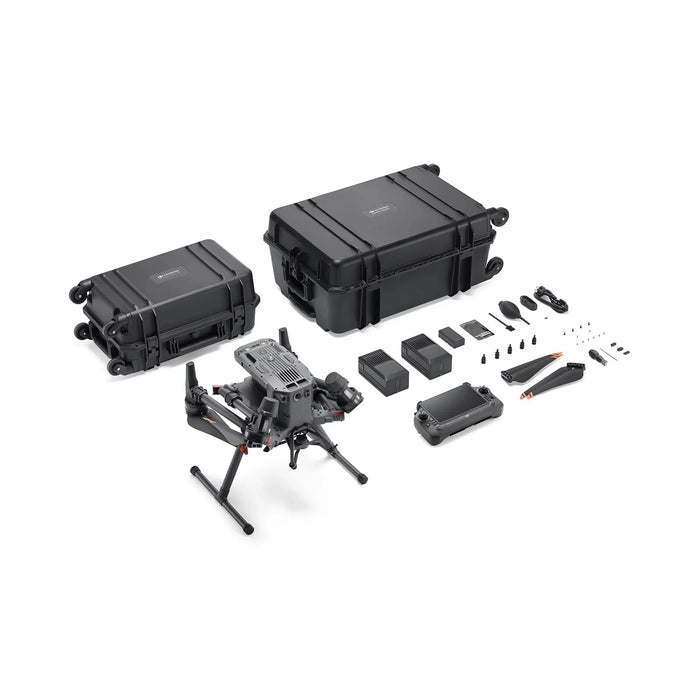

• Aircraft × 1
• RC Plus × 1
• WB37 Intelligent Battery × 1
• TB65 Intelligent Flight Battery × 2
• Carrying Case × 1
• BS65 Intelligent Battery Station × 1
• Landing Gear x2
• Matrice 350 RTK 2110s Propellers (Pair) × 1
• Screws and Tools × 1
• Cleaning Tools × 1
• Spare Gimbal Damper × 4
• Rubber Port Cover (Set) × 1
• Enterprise Shield Basic x 1

Flight Performance & Physical Specs Max Speed: 23 m/s (approx. 51.4 mph) in S mode. Wind Resistance: Capable of operating in wind speeds up to 12 m/s (26.8 mph). Operating Temperature: -20°C to 50°C (-4°F to 122°F). Max Takeoff Altitude: 5,000 m with standard 2110s propellers; up to 7,000 m with high-altitude propellers. Dimensions: Unfolded (no propellers) is 810 x 670 x 430 mm; folded is 430 x 420 x 430 mm. Weight: Approximately 6.47 kg (14.26 lbs) with two TB65 batteries. DJI Enterprise DJI Enterprise +5 Transmission & Control O3 Enterprise Transmission: Supports triple-channel 1080p HD live feeds with a maximum range of 20 km (12.4 miles) in FCC-compliant areas. DJI RC Plus: A rugged controller with a 7-inch 1200-nit high-brightness screen, IP54 rating, and dual-operator mode support. Transmission Stability: Uses a four-antenna transceiver system that intelligently selects optimal antennas to improve anti-interference. DJI DJI +4 Safety & Sensing Systems 6-Directional Sensing: Binocular vision and infrared sensors provide 360-degree obstacle awareness and positioning. Night-Vision FPV: Features an upgraded FPV camera (142° FOV) with enhanced low-light performance for safer night operations. Safety Redundancies: Includes arm lock detection to prevent takeoff with unlocked arm sleeves and multi-layered redundancy for flight control and sensor systems. Positioning Accuracy: Built-in RTK provides centimeter-level accuracy: 1 cm + 1 ppm (Horizontal) and 1.5 cm + 1 ppm (Vertical). Advexure Advexure +4 Battery & Charging System TB65 Intelligent Battery: Rated for 400 cycles, featuring a hot-swap design to allow continuous missions without powering down. BS65 Battery Station: A portable, wheeled case that stores and charges up to 8 TB65 batteries and 4 WB37 batteries. Charging Speed: Charges two TB65 batteries from 20% to 90% in ~30 minutes (with 220V input) or ~40 minutes (with 110V input.
