Epson PowerLite Pilot 3 Connection and Control Box

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request

Epson PowerLite Pilot 3 Connection and Control Box

SKU V12H927020
$329.08 - $329.08
$329.08
$329.08 - $329.08
$329.08
  • For Short/Ultra Short-Throw Projectors
  • Three HDMI Control Buttons
  • Split Screen Support
  • Consolidated Cable Management

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Epson PowerLite Pilot 3 Connection and Control Box

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

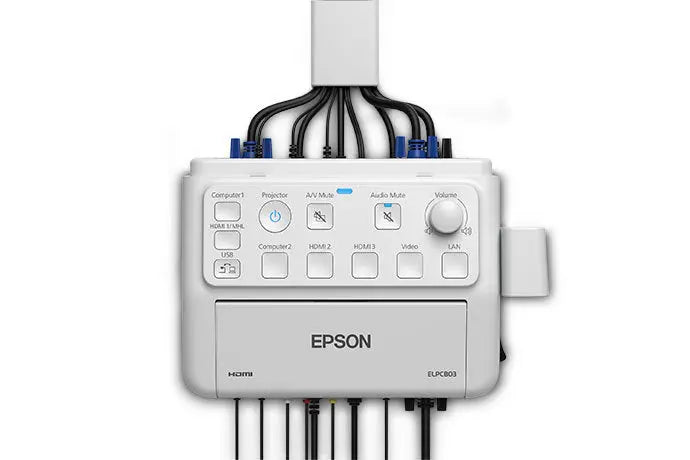

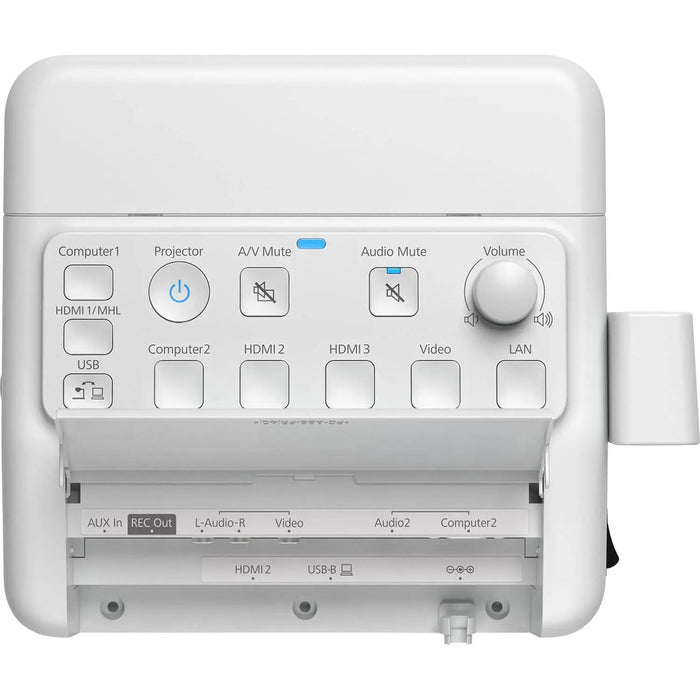

The PowerLite Pilot 3 Connection and Control Box from Epson is designed to maximize cable management and control for your classroom projector. This wall-mounted A/V connection and control box is compatible with short-throw and ultra short-throw projectors. Designed to support an array of devices, the PowerLite Pilot 3 streamlines source switching and volume control. With three HDMI control buttons (including one MHL), you can select from an array of connected classroom devices, and even display two sources side-by-side onscreen at once using your projector's Split Screen feature. You can also use it as an extension box to expand the range of your cables and increase flexibility.

Manage your Epson short-throw or ultra short-throw projector (power, A/V mute, volume, sources); no remote control needed
Large, individual source buttons intuitively match Epson projector inputs
Convenient wall placement helps avoid potential trip hazards
Three HDMI control buttons to select the source from connected high-definition A/V devices; connect and charge an MHL-enabled device via the MHL/HDMI port
Connect two devices and use your projector to simultaneously project two images (video or still) side by side
Use as an extension box to expand the range of your cables
Control projector audio from the front of the room via the volume dial and audio mute button
Easily attaches to the wall
Protective cable cover and pen/iPhone holder included
RoHS compliant
Recyclable product



Item Includes

  • Epson PowerLite Pilot 3 Connection and Control Box
  • AC Power Adapter with Power Cord
  • A/C Adapter Holder, Cable Cover
  • Interactive Pen Holder
  • HDMI Cable Clamp
  • Limited 2-Year Warranty

Item Includes

CompatibilitySelect PowerLite Projectors, BrightLink and BrightLink Pro Interactive Projectors
Connectors2 x VGA, Video Input
1 x Composite, Video Input
1 x HDMI, Input
1 x HDMI with MHL, Input
1 x USB Type-A, Input
1 x USB Type-B, Input
3 x 3.5 mm, Audio Stereo Input
1 x RCA L/R, Audio Stereo Input
1 x 1/4" Jack, Microphone Input
1 x 9-Pin Sub-D, RS-232C Port
2 x VGA, Video Output
1 x Composite, Video Output
2 x HDMI, Output
1 x USB Type-A, Output
1 x USB Type-B, Output
2 x 3.5 mm, Audio Stereo Output
1 x 3.5 mm, REC Output
Relative Humidity20 - 80%
Operating Temperature41 to 95°F / 5 to 35°C
Dimensions9.1 x 3.6 x 8.9" / 23.1 x 9.1 x 22.6 cm (With Cover)
9.1 x 3.6 x 7.1" / 23.1 x 9.1 x 18.0 cm (Without Cover)
Weight2.7 lb / 1.2 kg
Packaging Info
Package Weight5.54 lb
Box Dimensions (LxWxH)12 x 11 x 6"
