JVC DLA-X90RKT 4K e-shift 2 D-ILA Projector

JVC DLA-X90RKT 4K e-shift 2 D-ILA Projector

SKU DLA-X90RKT
$2,585.28 - $2,585.28
$2,585.28
$2,585.28 - $2,585.28
$2,585.28

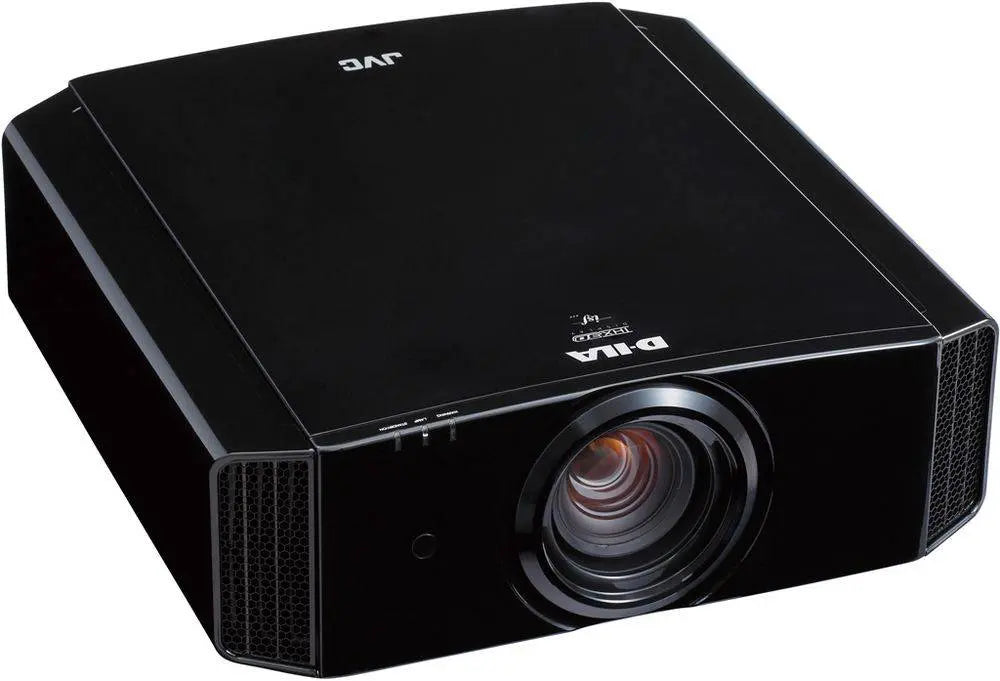

4K e-shift 3D projector with 120,000:1 native contrast ratio, three D-ILA devices, and 2x motorized zoom lens with motorized focus.

This projector features 3D viewing, Real Color Imaging Technology, Adobe RGB color space, New Color Management with 7-axis Matrix, New Clear Motion Drive, JVC's original Film Tone, New Screen Adjustment Modes, Dark/Light Correction, flexible set-up, etc. What's more, the projector is accredited by ISF and THX 3D certifications.

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

JVC DLA-X90RKT 4K e-shift 2 D-ILA Projector

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

  • Three 0.7" Full HD D-ILA devices
  • Input signal capability: 1080p
  • True full HD resolution: 1920 x 1080
  • 220W Ultra High-pressure Mercury Lamp (lamp life: approx. 3000 hours when the lamp is in Normal mode)
  • Projection Size: 60-inch to 200-inch
  • Projection Distance: 3.01m to 6.13m (100-inch)

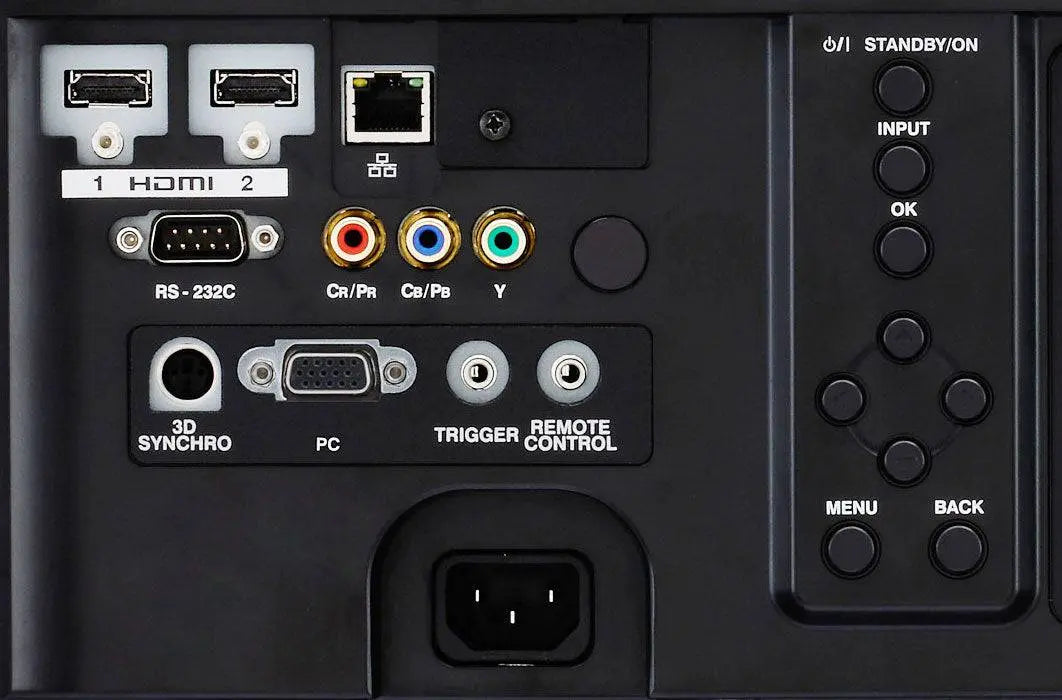

  • Terminals: RS232C x 1, HDMI x 2 (v.1.4a), Component x 1, PC x 1, Trigger x 1, 3D sync x 1, LAN x 1, Remote x 1
  • Industry's highest 100,000:1 native contrast ratio* realized by the combination of enhanced full HD D-ILA devices and new optical engine to deliver cinema-like quality (as of Nov. 1, 2010; JVC survey)
  • 3D stereoscopic viewing on D-ILA projection employing a Frame Sequential 3D method. Optional 3D Glasses (PK-AG1-B) and 3D Sync-emitter (PK-EM1) are required for viewing.
  • Exclusive Real Color Imaging Technology with Xenon lamp color temperature setting bring out the colors in original film prints
  • New color filter creates a wider color reproduction spectrum including Adobe RGB color space
  • New Color Management System with 7-axis Matrix
  • Original Film Tone balances gamma, contrast and brightness settings without affecting the gray scaling
  • New Screen Adjustment Modes; an optimal parameter can be selected from a set of 94 parameters
  • Darkness and Lightness Correction
  • New Clear Motion Drive improves pictures with rapid movement
  • The world's first projector to pass the THX 3D Display Certification (as of Nov. 1, 2010 under the front projector category; best performance screen size for 3D is 90 inches diagonal )
  • Certified by ISF (Imaging Science Foundation)
  • Automatic lens cover
  • Two HDMI standard (Ver.1.4a) inputs with 3D, 1080/24, and Deep Color
  • Flexible installation guaranteed with +/-80% vertical and +/-34% horizontal powered lens-shift function
  • High-performance 2x zoom lens with motorized focus
  • Quiet operation: only 20dB

Item Includes

  • Three 0.7" Full HD D-ILA devices
  • Input signal capability: 1080p
  • True full HD resolution: 1920 x 1080
  • 220W Ultra High-pressure Mercury Lamp (lamp life: approx. 3000 hours when the lamp is in Normal mode)
  • Projection Size: 60-inch to 200-inch

Item Includes

3DDLA-X90RKT
3D formatFrame packing:720p 60/50,1080p 24,1080i 60/50; Side by side (half): 720p 60/50, 1080p 60/50, 1080i 60/50; Top & bottom: 720p 60/50, 1080p/24
PictureDLA-X90RKT
Output terminals (back panel)
3D sync1 (Mini DIN 3-pin)
e-shift TechnologyYes
Lamp lifeApprox. 3,000 hours in normal mode
Device0.7-inch Full HD D-ILA (1920 x 1080) x3
Resolution3840 x 2160 (2D)[1]
Lens
Zoom2X zoom & focus, motorized
Focus21.4 -- 42.8mm
F3.2 -- 4
Lens shift function+/-80% vertical & +/-34% horizontal, motorized
Light source lamp220W Ultra High Pressure Mercury lamp
Brightness1,200lm[2]
Contrast RatioNative: 120,000:1
Video input signalsDigital: 480i/p, 576i/p, 720p 60/50, 1080i 60/50, 1080p 60/50/24; Analog: 480i/p, 576i/p, 720p 60/50, 1080i 60/50
PC input signal
DigitalVGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ WSXGA+/ WUXGA
AnalogueVGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ SXGA+/ WSXGA+/ 1920x1080/ Mac 13",16", 19"
Video input terminals (back panel)
HDMI2 (3D/Deep Color/CEC compatible)
Analog RGB1 (D-sub 15-pin)
Component1 (RCA; Y, PB/CB, PR/CR)
Control terminals
RS232C1 (D-sub 9-pin)
Remote1 (mini jack)
LAN (RJ45)1
Trigger1 (mini jack, DC12V/100mA)
GeneralDLA-X90RKT
Noise level20dB (when the lamp is in Normal mode)
Power consumption360W (Stand-by: 0.8W)
Dimensions: W x H x D, mm455 x 179 x 472
Weight, kg15.4
