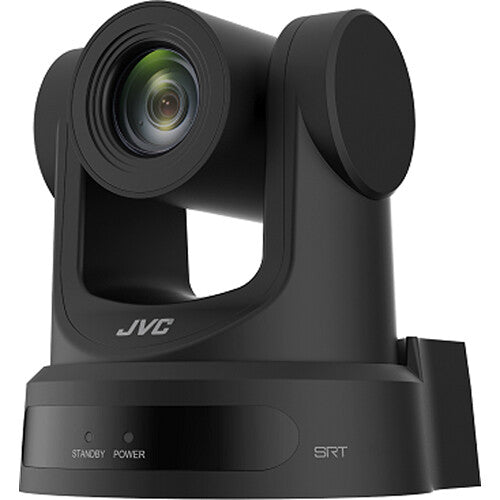

JVC KY-PZ200 HD PTZ Remote Camera with 20x Optical Zoom (Black)

SKU KY-PZ200BU
Save 50% Save 50%
$1,500.00
$1,500.00 - $1,500.00
$1,500.00
$756.90
$756.90 - $756.90
$756.90
  • 1/2.8" HD CMOS Sensor, 20x Optical Zoom
  • Resolution Capture up to 1920 x 1080p60
  • HDMI/3G-SDI/USB Video Output, PoE Power
  • 255 Presets, 3.5mm Stereo Audio In/Out
  • RS-232/RS-485 Serial Control, Cascading
  • Supports H.264/H.265/MJPEG Compression
  • Supports RTSP, RTMP, SRT, HTTP Protocols
  • Embedded AAC and G712 Audio Encoding
  • VITC and NTP Sync Support
  • Camera Comes in Black Color

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

JVC KY-PZ200 HD PTZ Remote Camera with 20x Optical Zoom (Black)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Add a remotely controllable camera to your video production with this black KY-PZ200 HD PTZ Remote Camera with 20x Optical Zoom from JVC. This PTZ camera features resolutions up to 1080p60, a 1/2.8" HD CMOS sensor, and an integrated 20x optical zoom lens to capture crisp imagery for your event production, house of worship, classroom, meeting room, or web conference.

  • In addition to HDMI, 3G-SDI, and USB output up to 1080p60, the camera supports H.264/H.265 compression and it transmits IP video streams using SRT, RTSP, RTMP, and HTTP protocols. You can also input audio using the 3.5mm analog audio input and output via 3.5mm to speakers.
  • You can set the camera to rapidly move between positions using RS-485 or RS-232 control with separately available serial controllers, or you can utilize the included IR remote control. The camera also supports UVC control over USB on macOS, Windows, Linux, and Android H.264/H.265/MJPEG video compression.
  • You can power and connect the camera using one connector using PoE (Power-over-Ethernet).
The camera also supports UVC communication over USB for video control using a computer. The camera features 3.5mm analog line audio input and output. Also supported for multi-camera productions are VITC and NTP synchronization for event production support that requires VITC timecode and real-time NTP clock sync.
A ceiling bracket is included, and you can flip the camera image when it is mounted upside-down.

Item Includes

  • JVC KY-PZ200 HD PTZ Remote Camera with 20x Optical Zoom (Black)
  • Power Adapter
  • Power Cable
  • RS-232 Cable
  • IR Remote Control
  • Ceiling Bracket
  • Limited 1-Year Manufacturer Warranty

Item Includes

Imaging
Sensor Type 1/2.8"-Type CMOS Sensor
Sensor Resolution Effective: 2.07 Megapixel
IR Cut Filter No
Built-In ND Filter None
Focus Control Autofocus
Manual Focus
Exposure Control
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/10000 to 1/30 Second
Minimum Illumination 0.5 Lux
Lens
Focal Length 4.4 to 88.5mm
Optical Zoom Ratio 20x
Max Digital Zoom 8x
Field of View Horizontal: 60.7 to 3.36°
Vertical: 34.1 to 1.89°
Maximum Aperture f/1.8 to 2.8
Video Capture
External Recording Modes SDI/BNC / HDMI / RJ45 / USB
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 25/50/59.94 fps
Audio Recording AAC Audio
Broadcast Output NTSC
IP Streaming H.264, H.265, MJPEG, RTMP, RTSP
1920 x 1080 at 25p, 29.97p, 50p, 59.94p
1280 x 720 at 25p, 29.97p, 50p, 59.94p
1024 x 576 at 25p, 29.97p, 50p, 59.94p
720 x 480 at 25p, 29.97p, 50p, 59.94p
720 x 408 at 25p, 29.97p, 50p, 59.94p
640 x 480 at 25p, 29.97p, 50p, 59.94p
640 x 360 at 25p, 29.97p, 50p, 59.94p
480 x 320 at 25p, 29.97p, 50p, 59.94p
320 x 240 at 25p, 29.97p, 50p, 59.94p
Control
Presets 255
Move Speed Pan: 1.7 to 100°/sec
Tilt: 1.7 to 69.9°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Supported Control Protocols Pelco-D
Pelco-P
RS-232
RS-422
RS-485
Max Cable Length 3937' / 1200 m (RS-485)
98.4' / 30 m (RS-232)
Interface
Video I/O 1 x BNC (3G-SDI) Output
1 x HDMI 1.4 Output
1 x RJ45 Output
1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Line Input
1 x 1/8" / 3.5 mm TRS Stereo Line Output
Other I/O 1 x Block 2-Pin (RS-485) Input/Output
1 x USB-A Input
1 x Mini-DIN 8-Pin (RS-232) Input
1 x Mini-DIN 8-Pin (RS-232) Output
1 x RJ45 (LAN)
Built-In Speaker No
Power
PoE Support PoE 802.3af
Power I/O 1 x Barrel (12VDC at 1.5 A) Input
Power Consumption Device: 12 VDC 12 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -40 to 140°F / -40 to 60°C
Operating Humidity 30 to 80%
General
OS Compatibility Windows 10
macOS 10.12.6
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
Mobile App Compatible No
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
Certifications FCC Part 15 Class A
*as per Manufacturer
Dimensions (W x H x D) 5.6 x 6.5 x 6.7" / 14.2 x 16.5 x 17 cm
Weight 3.7 lb / 1.7 kg
Packaging Info
Package Weight 6.49 lb
Box Dimensions (LxWxH) 11.8 x 9.6 x 9.6"
