JVC Triple 5" Rack Display Monitor With HDMI

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request

JVC Triple 5 inch Rack Display Monitor With HDMI

SKU DT-X51HX3
$2,010.92 - $2,010.92
$2,010.92
$2,010.92 - $2,010.92
$2,010.92
  • Triple Monitor Display
  • 500:1 Contrast Ratio
  • 800 x 480 Resolution
  • 16x9 Aspect Ratio (4:3 Adjustable)

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

JVC Triple 5 inch Rack Display Monitor With HDMI

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

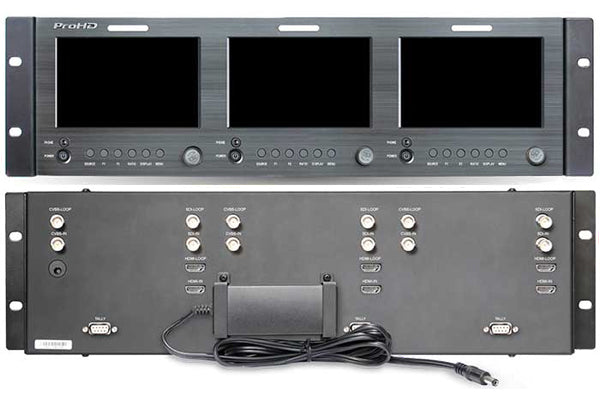

TheJVC DT-X51HX3 Triple 5" Rack Display Monitoris a 3RU standard rack mount LCD monitor with 3 high-resolution 5" LCD panels, independent input control, 800 x 480 resolution and a wide viewing angle of 140H by 120V.

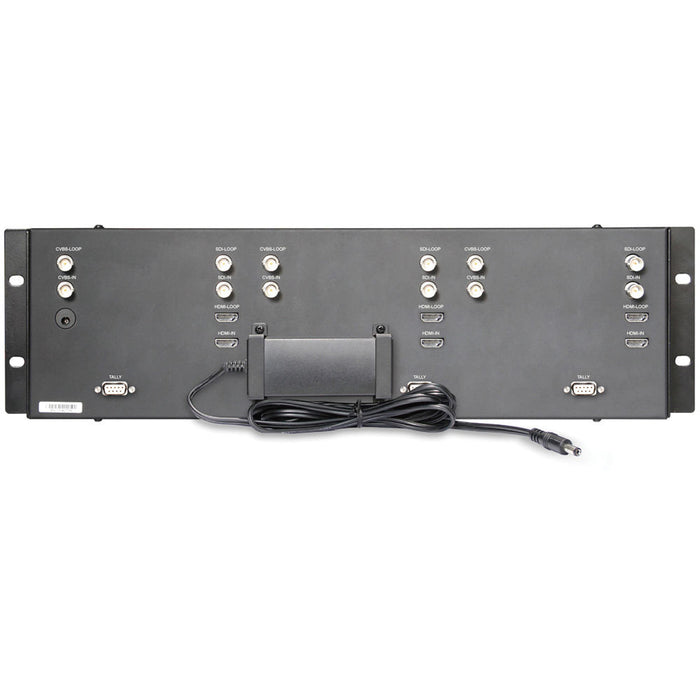

Each LCD monitor accepts 1 - 3G/HD/SD-SDI, 1 - HDMI, and 1 - Composite video input, and has 1 - 3G/HD/SD-SDI, 1 - HDMI, and 1 - Composite video loop through output. The X51HX3 also supports SDI and HDMI embedded audio output and tally light control and display. The DT-X51HX3 also offers a high luminance level of 350 cd/m2 and a contrast ratio of 500:1.

Item Includes

  • JVC Triple 5" Rack Display Monitor With HDMI
  • AC Power Adapter
  • Limited 1-Year Warranty

Item Includes

Monitor TypeTriple 5" LCD Rack Display Monitor
Screen SizeTriple 5" LCD Panels
Resolution800 x 480
Display ColorsRGB
Viewing Angle140 H/120 V
Brightness350 cd/m2
Contrast Ratio500:1
Inputs/OutputsInputs:
1x - 3G/HD/SD-SDI input (for each display)
1x - Composite video input (for each display)
1x - HDMI input (for each display(

Outputs:
1x - 3G/HD/SD-SDI loop through output (for each display)
1x - Composite video loop through output (for each display)
1x - HDMI loop through output (for each display)
Operating Temperature32 - 104F (0 - 40C)
Power Requirements12V DC supply (120V with provided adapter)
Power ConsumptionPower consumption less than 24W
Dimensions (WxHxD)19 x 5.2 x 3.15" (483 x 132 x 80 mm)
Weight4.6 lb (2.1 kg)
Packaging Info
Package Weight6.35 lb
Box Dimensions (LxWxH)20.3 x 7.2 x 6"
