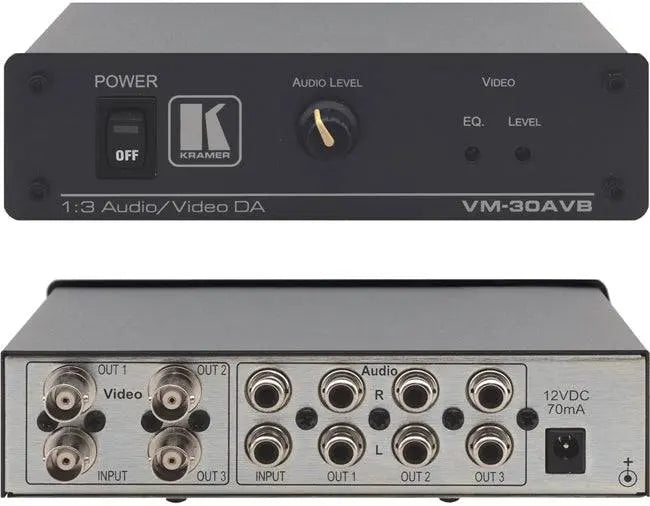

Kramer VM-30AVB Composite Video & Stereo Audio Distr. Amplifier

Kramer VM-30AVB Composite Video & Stereo Audio Distr. Amplifier

SKU VM-30AVB
$150.78 - $150.78
$150.78
$150.78 - $150.78
$150.78
  • 1x3 Signal Distribution
  • Composite & SDI Video
  • Unbalanced Stereo & Balanced Mono Audio
  • Compensation for Signal Loss

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Kramer VM-30AVB Composite Video & Stereo Audio Distr. Amplifier

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The VM-30AVB 1:3 Composite Video & Stereo Audio Distribution Amplifier from Kramer is a compact distribution amplifier designed for use with compositeor SDI video signals. It also supports unbalanced stereo or balanced mono audio. The unit also provides controls to compensate for signal losses that occurin long cable runs.

This unit offers a bandwidth capacity of 430MHz at -3dB
Video signals are managed on BNC connectors
Level (gain) and EQ (peaking) controls are standard features
Up to (2) of these units can be rack mounted side by side in 1U of rack space using the optional RK-1 adapter

Item Includes

Kramer VM-30AVB 1:3 Composite Video & Stereo Audio Distribution Amplifier
  • 12VDC Power Supply
  • Brackets (For Stacking Multiple Units)
  • Seven-Year Warranty Against Defects in Material & Workmanship

    • Item Includes

    PerformanceInputs:
    (1) video
    (1) Vpp/75 Ohms on a BNC connector
    (1) audio stereo
    (1) Vpp/70 kOhms on RCA connectors
    Outputs:
    (3) video
    (1) Vpp/75 Ohms on BNC connectors
    (3) audio stereo
    (1) Vpp/150 Ohms on RCA connectors
    Maximum Output Level:
    Video: 2Vpp
    Audio: 5.4Vpp
    Bandwidth (-3dB):
    Video: 430MHz
    Audio: 100kHz
    Differential Gain:
    0.04%
    Differential Phase:
    0.07 degrees
    K-Factor:
    <0.05%
    Signal-to-Noise Ratio:
    Video: 73dB
    Audio: 83dB
    Controls:
    Video level: -1.1 to +1.8dB, EQ.: 0 to +4.6dB @5.8MHz;
    Audio level: -66 to +16dB
    Coupling:
    AC
    Audio THD + Noise:
    0.03%
    Audio 2nd Harmonic:
    0.02%
    Power12VDC, 50mA (typical)
    Dimensions (HxWxD)2.8 x 6.5 x 4.7" (4.5 x 16.5 x 12cm)
    Weight1.4 lbs (0.65kg)
    Packaging Info
    Package Weight2.4 lb
    Box Dimensions (LxWxH)13.6 x 8.5 x 3.0"
