Optoma W505 Projector

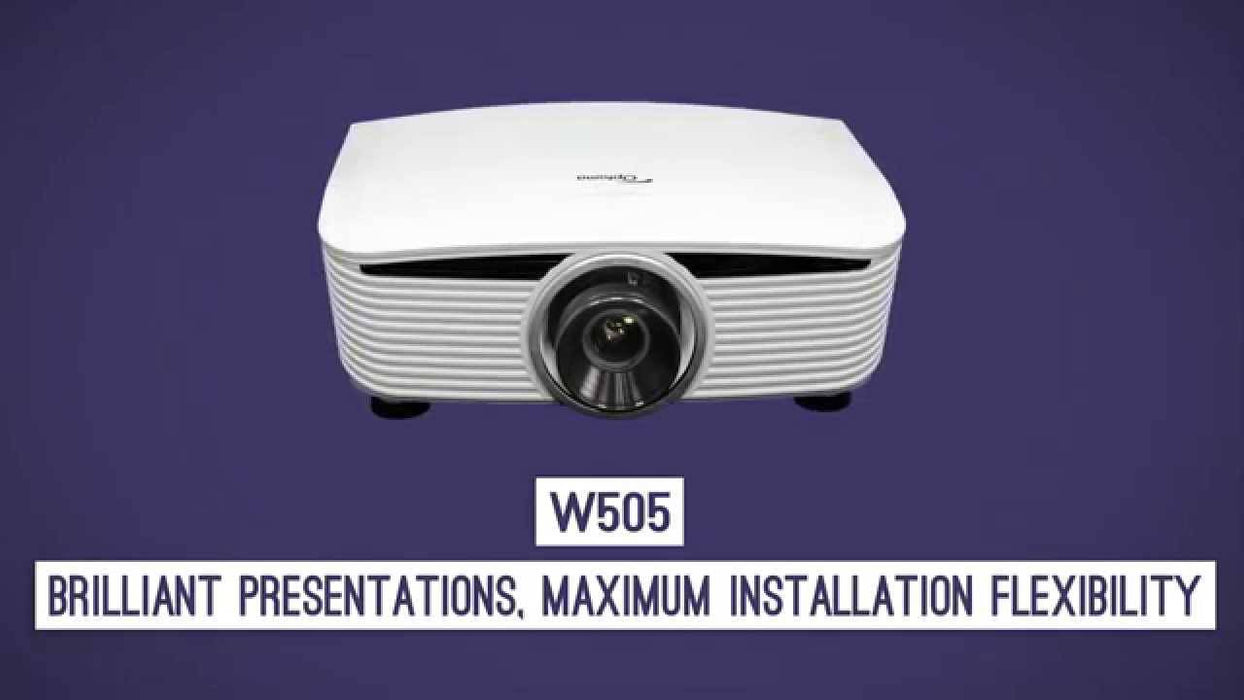

Optoma W505 WXGA DLP Projector 5200 Lumens

SKU w505
Save 51% Save 51%
$3,748.50
$3,748.50 - $3,748.50
$3,748.50
$1,840.27
$1,840.27 - $1,840.27
$1,840.27
  • 5200 Lumens, 1080p resolution
  • Installation flexibility - lens shift, interchangeable lenses, off-axis short Throw option
  • Ultimate control - full support for CRESTRON, Extron, AMX, pj-link and telnet LAN commands
  • Powerful Image blending tools - 3-axis Color matching system and 10x lamp-power Steps
  • Advanced features - wired remote, full 3D support and dicom simulation

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Optoma W505 WXGA DLP Projector 5200 Lumens

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

W505
Spectacular image quality, outstanding brightness and ultimate reliability
  • 5200 lumens, WXGA Resolution
  • Installation flexibility Lens shift, interchangeable lenses, off-axis short throw option
  • Ultimate Control - Full support for Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
  • Powerful Image Blending Tools - 3-axis color matching system and 10x lamp-power steps
  • Advanced features Wired Remote, Full 3D Support and DICOM simulation
The W505 is a product designed exclusively for demanding professional applications.

WXGA and 5200 lumens delivers bright crystal clear images with ultimate reliability, while 24/7 operation ensures that this is a projector on which youcan rely.

The dust-sealed, filter free design prevents dust and dirt from affecting the system ensuring optimal image quality with minimal maintenance.

Full lens shift combined with the multiple lens options provide installation flexibility for simple, trouble free installations.

Image Quality

Superb image quality is at the heart of every ProScene product design. At every step, commencing with the incredibly reliable, highresolution WXGA DLP chip where the image is initially created, via the UHP lamp pulsing technology that fine tunes the colour toexacting standards, through to the precision optics to focus the image on a screen, accuracy and integrity of the image are paramount.

ProScene chose DLP technology for its image quality and unmatched reliability. The reflective nature of DLP micro-mirror technologyprovides highly efficient bright images with great contrast whilst maintaining precise colour accuracy and natural, real-world colourreproduction. For demanding professional applications, the proven reliability of DLP technology makes it the obvious choice.

DLP Technology

DLP technology from Texas Instruments is widely recognized and acclaimed for its unmatched reliability and long lasting imageperformance. When combined with high brightness and native contrast ratios, it becomes the obvious choice for demandingapplications. Independent testing has proven DLP to be the most reliable of projector technologies. While other technologies mayshow image quality decline after only a few thousand hours, DLP technology can remain unchanged over hundreds of thousands ofhours.

True WXGA Resolution

Documents and presentations will appear as sharp and detailed as they do on your widescreen laptop in WXGA (1280 x 800) resolution,which also gives you 30% more pixels than an equivalent XGA projector.

UHP lamps

The 370W UHP lamp provides the highest possible luminance, the essential prerequisite of all highly efficient projectors.

These lamps have outstanding brightness, stay brighter for longer, and provide an optimal color spectrum. In addition, the lampdrivers are specifically tuned for the lamps, ensuring not only optimum operating conditions for every situation, but also providesophisticated lamp pulsing modes and the assurance that color can be fine-tuned according to the application.

Clear, Focused Images

DarkChip3 technology from Texas Instruments produces a stunning 2000:1 contrast ratio for pin sharp graphics and crystal cleartext. Crisper whites, ultra-rich blacks makes images come alive and text easier to read.

2000:1 Contrast Ratio

Amazing Colors

The W505 incorporates BrilliantColor technology to produce stunningly bright images with perfectly balanced life-like colors.

Flexibility

Installation Flexibility

To help meet the seemingly limitless challenges of ProAV installations, the W505 provides multiple lens options with zoom and focusadjustment to ensure you can get the image size you require, while a wide lens shift range helps you get the image exactly whereyou want it.

All 3 optional lenses, including the 0.81:1 short throw lens can use the full lens shift range.

Full Lens Shift

WXGA
Lens Position: Center
Shift Range
Projector

Throw distance chart

W505 Throw Distance
Diagonal Image Size (16:10)ShortSemi-shortStandardLongExtra-Long
Fixed (m)Min (m)Max (m)Min (m)Max (m)Min (m)Max (m)Min (m)Max (m)
500.871.241.471.742.192.193.283.395.65
601.051.491.762.092.622.623.944.076.78
701.221.742.062.443.063.064.604.757.92
801.401.992.352.793.503.505.265.439.05
1001.742.492.943.494.374.376.576.7811.31
1202.092.993.534.195.255.257.888.1413.57
1502.623.734.415.236.566.569.8510.1816.96
200-4.985.886.987.008.7413.1413.5720.00
250-6.227.35--10.9316.4216.9620.00
300-7.468.82--13.1219.71--

Features

DICOM simulation mode

Designed specifically for larger meeting rooms and lecture theatres, the W505 includes a special DICOMsim mode that has beenspecifically tuned for viewing greyscale images, perfect for viewing X-rays and scans during medical training.*

*The W505 is not suitable for use in medical diagnosis.

3D technology

Using the inherent speed of DLP technology, Optoma Full 3D projectors can output video and images at an astonishing rate of 120Hz,allowing you to show full screen, full color, stereoscopic 3D. The 3D effect is generated by splitting this signal into twostandard video streams, one for each eye. Using DLP Link technology, the 3D glasses synchronize with the image on screen tofilter each stream to the correct eye. Your brain then combines the two streams to make them jump into life.

The W505 supports multiple 3D formats from various devices such as PC, Blu-ray 3D, Sony PS3, Microsoft Xbox 360 or 3D TVbroadcast system.

Edge Blending Tools

No two projectors are completely identical. When performing complex, or even simple edge-blend projects using multiple projectors,it can be difficult to achieve good results if the images do not match. The W505 incorporates the following features to ensure highquality and consistent results.

Color matching

The W505 has a full 3-axis color matching system, which combined with accurate measurements can create seamless blends every time.

Brightness matching

The brightness of a projector will vary throughout its life. To correctly match multiple units, the W505 has 10x lamp power stepsbetween 80~100% full brightness.

Without
With

Wired remote

The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight tothe projector; invaluable when using multiple units during live events.

Control

System integration control

Multiple W505 can be monitored over LAN and can also provide the user with an email message alert in case an error occurs or a lampfails or needs to be replaced using Crestron Roomview. The web browser interface and full support for Telnet, Extrons IP Link, AMXdynamic device discovery and PJ Link protocols, allow almost all aspects of the W505 to be controlled across a network, keeping you incontrol, wherever you are.

Global monitoring of all AV devices
Track projector lamp life
Email alerts and instant notifications help desk requests, service reminders, device failure or theft
Event Scheduling

Ultimate control

Cut up to 30% from your energy bills using 24-hour automated power scheduling to ensure that projectors power off when not in use.
Download Crestron RoomView Express for free at www.crestron.com/getroomview
Selected view by rooms, attributes or contacts
RoomView Express gives you the ability to simultaneously view more than 250 connected devices from a single screen. CustomiseRoomView to view by room name, locations and group.
Display power
Check on/off status of any projector.
Display usage
View a bar graph to monitor the percentage of available projector lamp life and set an alert to notify the services department whena replacement lamp should be ordered, before the lamp fails.
Schedule Events
RoomView Express makes scheduling of recurring or one-time events easy. Setting RoomView to automatically power down at midnightthroughout the week can save valuable lamp life and ensure security inside the facility.
Event log
Automatically generates log files, reports and charts to analyze ROI and budget allocation. Track device usage, call statistics anduser history.

Green

We know that improving our products is the best way to reduce our impact on the environment. Thats why at Optoma, we design ourproducts to have a long usable life, use fewer materials, ship with the minimum packaging and be free of all possible toxicsubstances. Naturally, energy efficiency and being recyclable are built in at the design stage. With each new product, we strivetowards minimising our environmental impact.

Eco Friendly

Cut up to 30% from your energy bills using 24-hour automated power scheduling to ensure that projectors power off when not in use.

Direct Power On
The projector will start up instantly when power is supplied to the Unit. This eliminates the need to manually turn on theprojector via the remote control or the keypad, ideal for use in rooms with a master power switch.
Signal Power On
The projector will power on when it receives a signal through one of the PC/video inputs. This ensures that the projectoris only switched on when it is needed.
Auto Power Off
If after a pre-determined time the projector does not receive a signal, it will turn itself off automatically, conservingpower and extending the life of the lamp.
Eco Standby Mode
Reduces energy consumption to less than 0.5W when the projector is not in use.
Eco AV Mute & Eco Sleep
Direct your audiences attention away from the screen by blanking the image when no longer needed. When Eco AV-mute isenabled, or if no source is found after 60 seconds, the projector will automatically put the lamp into Eco mode, bothsaving power and further prolonging the life of your lamp.

Dimensions

Item Includes

Includes:

  • W505 ProScene Projector
  • AC power cord
  • VGA cable
  • Remote control with batteries
  • CD-ROM user's manual
  • Quick start card

Item Includes

Display TechnologyDLP Technology by Texas Instruments, 0.65 WXGA,Type A chip
Native ResolutionWXGA 1280 x 800
Brightness5200 ANSI Lumens
Contrast Ratio2000:1
Noise Level (Eco mode)37dB
Weight18.6 lbs (8.44 kg)
I/O ConnectorsHDMI (1.4a 3D support), DVI-D, DisplayPort, 5BNC, Component Video, 2 x VGA (RGB/YPbPr), S-Video, Composite, 5 x Audio In (RCA/3.5mm), AudioOut 3.5mm, VGA Out, RJ45, RS232, USB (Remote Mouse), +12v Trigger, Wired Remote, 3D-Sync
Maximum ResolutionHD 1920 x 1080
Computer CompatibilityHD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
Video CompatibilityPAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
Displayable Colors1.07 Billion
Projection Lens3 x lens Options "no lens supplied as standard"
Throw Ratio 30.81 ~ 3.05 "Lens dependent"
Projection Screen SizeDependent upon lens
Projection DistanceDependent upon lens
Zoom TypeDependent upon lens
Aspect Ratio16:10 Native, 16:9/4:3 Compatible
Horizontal Scan Rate15kHz to 91kHz
Vertical Scan Rate24Hz to 85Hz (120/144Hz for 3D playback)
Lamp Type370W
Lamp Life2 Bright1500 (hrs)
Keystone Correction 40 Vertical
Audio3W
Dimensions (W x H x D)16.9" x 7.1" x 13.4" (430 x 181 x 340 mm)
Remote ControlInfra-red remote control, Multiple IR code sets for controlling multiple units, Wired connection sup
Power Supply100 240V AC @ 50 60Hz
Power Consumption460W (max) bright mode, <0.5w standby mode
Operating Conditions5 ~ 40˚C, max. humidity 85%, max. altitude 3000m
Uniformity85% (centre)
Security4-digit PIN code, Kensington Lock port, Security Bar
Standard AccessoriesVGA to VGA AC power cord, Infra-red remote control, Batteries x 2, Quick start card, CD-ROM user's manual, warranty card (lens is notincluded(
RoHSRoHS
Lens ShiftMax. Lens Shift -20 to +70% V, 10% H (Manual)
3D SupportMandatory HDMI 1.4 3D formats,
120Hz frame sequential (up to 720p)
3D ViewingRequires 3D Glasses - supplied separately.
Speaker (Watts)3
Lens OptionsShort: 0.81:1 (Fixed)
Standard: 1.62~2.03:1 (1.25x zoom)
Long: 2.03~3.05:1 (1.5x zoom)
ConformancesCE, TUV-GS, CB
Operating Temperature0 ~ 750m, 5 ~ 45˚C
750m ~ 1500m, 5 ~ 35˚C
1500 ~ 3000m, 5 ~ 30C
360 OperationNot supported
Portrait ModeNot supported
Optional WirelessYes
Features"3 x Optional Lens [Short/STD/Long], Full Lens Shift, Crestron RoomView, PJ-Link
Warranty3-Year Optoma Express Service, 1-Year on Lamp
Projection methodFront, rear, ceiling mount, table top
