Optoma Technology ZU507TST 5000-Lumen WUXGA Short-Throw Laser DLP Projector

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request

Optoma Technology ZU507TST 5000-Lumen WUXGA Short-Throw Laser DLP Projector

SKU ZU507TST
Save 3% Save 3%
$3,999.00
$3,999.00 - $3,999.00
$3,999.00
$3,899.00
$3,899.00 - $3,899.00
$3,899.00

The Optoma ZU507TST delivers 5000 lumens of brightness with a native WUXGA resolution of 1920 × 1200 for crisp, detailed images. Its laser phosphor light source provides up to 20,000 hours of maintenance‑free operation and an IP6X‑rated dust‑proof enclosure. A short‑throw lens projects a 100‑inch image from just over 4 feet, reducing shadows and simplifying installation. Built‑in dual 10 W stereo speakers and extensive connectivity—including HDMI 2.0, HDBaseT, VGA and RS‑232—make it ready for professional venues.

Key Features
  • Brightness of 5000 Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • 0.58:1 Short-Throw Ratio
  • 4K HDR & HLG Compatible
  • VGA, HDBaseT & 2 x HDMI 2.0 Inputs
  • Wired LAN, RS-232 & 12V Trigger Control
  • 30,000 Hours of Laser Life
  • IP6X-Certified Dust Resistance
  • Golf Sim Mode
  • Dual 10W Speakers Built-In
💳 Finance This Purchase
Powered by First Citizens Bank Equipment Finance
→

Subject to credit approval. Min. $5,000 financed. 2+ yrs in business. 600+ FICO required.

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Optoma Technology ZU507TST 5000-Lumen WUXGA Short-Throw Laser DLP Projector

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features



The Optoma Technology ZU507TST 5000-Lumen WUXGA Short-Throw Laser DLP Projector is a bright, professional-grade projector model with 4K and HDR compatibility. Featuring an IP6X-certified optical engine and long-lasting laser light source, the ZU507TST is capable of 24/7 maintenance-free operation, making it suitable for a wide variety of applications.

Flexible Connectivity
Connect SD, HD, and 4K sources via HDMI, HDBaseT, VGA, and RCA composite video inputs. Two 3.5mm audio inputs are available to pair with the VGA and composite video connections. Additionally, there is a 3.5mm audio output.
Short Throw
With the integrated short-throw lens, you can project an impressive 100" image from just over 4' away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease.
HDBaseT
HDBaseT is capable of uncompressed Full HD video, audio, network, and control commands all delivered on a single CAT- type cable. It is able to transmit up to 328' without signal loss for hassle-free installation. HDBaseT simplifies cabling requirements and reduces installation complexity saving time and reducing costs.
Integrator Friendly Control
Featuring a wide range of options, you can control and monitor the projector remotely. Optoma projectors come with an extensive set of RS-232 commands, making it simple and easy to manage using any control system. Incorporated control is available with AMX, Crestron RoomView, and Extron IPLink.
Additional Features
  • MHL support
  • USB-A to power an HDMI dongle
  • 360° and portrait installation support
  • Auto vertical keystone
  • Four-corner correction
  • Built-in dual 10W speakers
  • Aito power off
  • Direct power on
  • Full 3D
  • Golf sim picture mode delivers true-to-life greens and blues, and impressive detailing
  • Telnet compatible
  • Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating
  • Chassis made with up to 50% post-consumer recycled plastics
  • Packaging contains up to 97% recyclable materials
UPC: 796435447410

Item Includes

  • Optoma Technology ZU507TST 5000-Lumen WUXGA Short-Throw Laser DLP Projector
  • Power Cord

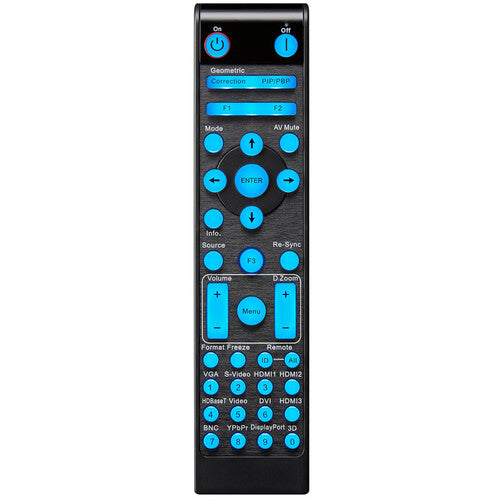

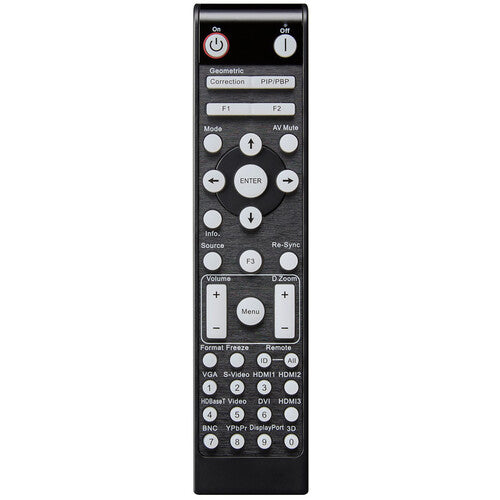

  • Remote Control
  • 2 x AAA Battery for Remote
  • Limited 3-Year Manufacturer Warranty

Item Includes

Display System
1-Chip DLP
Native Resolution
1920 x 1200
Maximum Brightness
5000 Lumens
Throw Ratio
0.58:1 (150" Screen Size @ 6.33' / 1.93 m)
Projection Size
30 to 300" / .8 to 7.6 m
HDR Support
Yes: HDR10/Hybrid Log Gamma
Inputs/Outputs
2x HDMI 2.0 Audio, Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, Remote, Video Input
1x DE-15/DB-15 (VGA) Video Input
1x RCA (Composite) Video Input
1x 1/8" / 3.5 mm Mini Audio Input
1x RJ45 (Ethernet) LAN Input
1x DE-15/DB-15 (VGA) Video Output
2x 1/8" / 3.5 mm Mini Audio Output
1x USB-A Power Output
1x DE-9/DB-9 (RS-232) Control Input
1x 12 V Trigger Control Output
Show More
Light Source
Laser Phosphor
Image Display
Display System
1-Chip DLP
Native Resolution
1920 x 1200
Supported Resolutions
Maximum: 3840 x 2160 @ 60 Hz
Maximum Brightness
5000 Lumens
Uniformity
85%
Offset
110%
Aspect Ratio
Native: 16:10
Supported: 16:9
Supported: 4:3
DLP Link 3D
Yes
Supported 3D Formats
Top Bottom
Frame Sequential
Frame Packing
Color Depth
10-Bit (1.07 Billion Colors)
Scan
Horizontal: 5 to 140kHz
Vertical: 24 to 120Hz
Lens
Includes Lens
Yes
Focus
Manual
Aperture
f/2.75
Focal Length
8.51mm
Lens Shift
Vertical: + 10%
Horizontal: ± 4%
Optical Zoom
No
Throw Distance
1.25 to 12.3' / 0.38 to 3.75 m
Throw Ratio
0.58:1 (150" Screen Size @ 6.33' / 1.93 m)
Projection Size
30 to 300" / .8 to 7.6 m
Features
Keystone Correction
Auto / Manual to Vertical: ± 15°
Manual to Horizontal: ± 15°
HDR Support
Yes: HDR10/Hybrid Log Gamma
Multi-Input Support (PIP/PBP)
No
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
Yes (Stereo)
Speaker Power
10 W
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI 2.0 Audio, Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, Remote, Video Input
1x DE-15/DB-15 (VGA) Video Input
1x RCA (Composite) Video Input
1x 1/8" / 3.5 mm Mini Audio Input
1x RJ45 (Ethernet) LAN Input
1x DE-15/DB-15 (VGA) Video Output
2x 1/8" / 3.5 mm Mini Audio Output
1x USB-A Power Output
1x DE-9/DB-9 (RS-232) Control Input
1x 12 V Trigger Control Output
HDCP Support
Yes
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
No
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Full Brightness: 20,000 Hours
Fan Noise
Full Brightness: 36 dB
Low Brightness: 33 dB
Security
Cable Lock Slot
Password Protection
Security Bar
Supported Languages
Arabic
Czech
Danish
Dutch
English
Farsi
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish
Vietnamese
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 366 W
Low Brightness: 240 W
Standby Mode (Lamp Off): < 0.5 W
Operating Conditions
32 to 104°F / 0 to 40°C at 10 to 85% Humidity
Dimensions (W x H x D)
14.7 x 4.6 x 11.9" / 374.0 x 117.0 x 302.0 mm (With Feet)
Weight
11.7 lb / 5.3 kg
Packaging Info
Package Weight
16.54 lb
Box Dimensions (LxWxH)
21.9 x 18.2 x 10.5"
