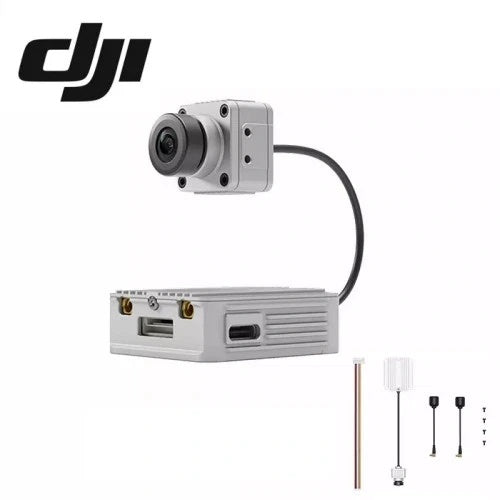

Original DJI FPV Air Unit with Camera

Original DJI FPV Air Unit with Camera

SKU CP.FP.00000120.011
Save 51% Save 51%
$898.50
$898.50 - $898.50
$898.50
$439.99
$439.99 - $439.99
$439.99

Key Features

1. Revolutionary Digital HD Video

Crystal Clear Feed: Transmitted a live 720p/120fps or 1080p/60fps video feed to the goggles, a massive leap from the standard-definition, often snowy analog video.

High Dynamic Range (HDR): Provided better detail in both shadows and highlights compared to analog, making it easier to see in challenging lighting conditions.

2. DJI's OcuSync 2.0 Transmission Technology

Low Latency: Achieved an end-to-end latency of under 28ms, which was competitive enough for professional racing and freestyle flying.

Long Range & Stability: Offered a robust and stable video link up to 4 km (FCC standard, actual range varies with environment), far surpassing typical analog range without static.

Dual-Frequency Auto-Switching: Operated on both 2.4 GHz and 5.8 GHz bands, automatically switching to the clearest frequency to avoid interference.

3. Integrated Design

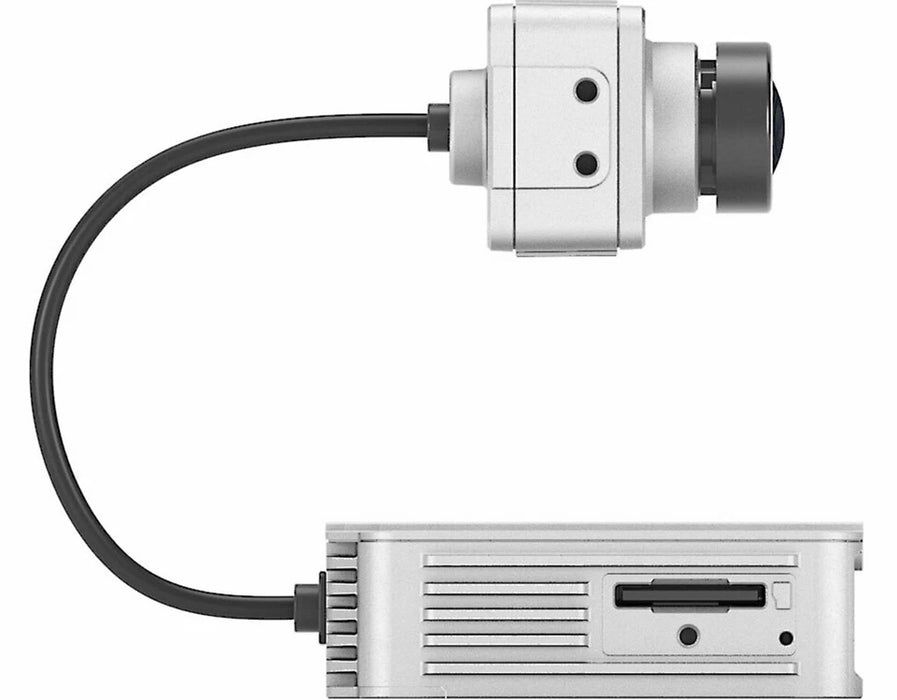

All-in-One Module: The Air Unit combined the video transmitter (VTX), camera, and onboard digital video recorder (DVR) into a single, compact module.

Onboard DVR: Could record the flight's HD video directly to a microSD card on the Air Unit itself, providing a clean, high-quality recording independent of the goggle's DVR.

Compatibility

  • Required Goggles: DJI FPV Goggles (V1) or DJI FPV Goggles V2

  • Supported Controller: DJI FPV Remote Controller (for control link via OcuSync)

  • Flight Controllers: Compatible with most common flight controllers via SBUS or DJI's custom protocol. Supports custom OSD data overlay (e.g., battery voltage, RSSI).

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Original DJI FPV Air Unit with Camera

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The DJI FPV Air Unit is the groundbreaking digital transmission system that redefined the first-person view (FPV) flying experience. This all-in-one module was DJI's first foray into the world of digital FPV, replacing fuzzy analog signals with a stunning, high-definition, low-latency video link for custom-built drones.

Key Features

  • Revolutionary Digital HD Live View: Experience the thrill of flight with a crystal-clear, real-time video feed transmitted directly to your DJI FPV Goggles. Say goodbye to the static and snow of analog systems.

  • High-Performance Transmission: Built on DJI's renowned OcuSync 2.0 technology, the Air Unit provides a robust and stable link with an ultra-low latency of under 28ms, essential for acrobatic freestyle and high-speed racing.

  • Integrated Design: This complete solution combines a 150° ultra-wide-angle camera, a powerful video transmitter (VTX), and an onboard DVR (Digital Video Recorder) into a single, streamlined module.

  • Onboard Recording: Capture your flights in smooth 1080p at 60fps directly to a microSD card inserted into the Air Unit itself, ensuring you have a high-quality master recording regardless of the goggle's DVR.

  • Long-Range Capability: Enjoy a reliable and immersive video feed at distances of up to 4 km (FCC standard), thanks to advanced dual-frequency auto-switching between 2.4 GHz and 5.8 GHz bands.

  • Seamless DJI Ecosystem Integration: Designed exclusively for use with the DJI FPV Goggles V1 and V2, and supports the DJI FPV Remote Controller for a fully integrated digital control link.

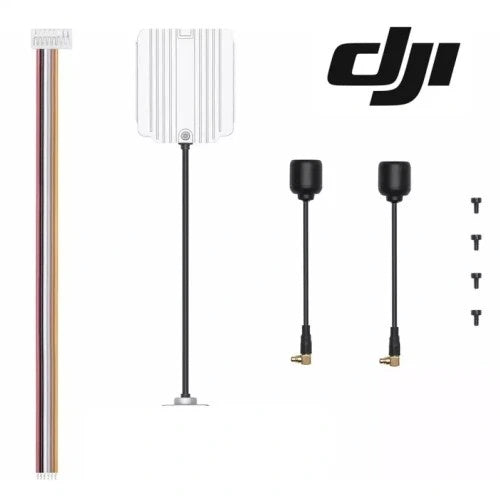

Item Includes

  • DJI Air Unit
  • Antennas (2x MMCX)
  • 8-pin cable for FC connection

Item Includes

Transmission System

  • Technology: DJI OcuSync 2.0

  • Live View Resolution: 720p @ 120fps or 1080p @ 60fps (user selectable)

  • Latency: As low as 28 ms (end-to-end, in 120fps mode)

  • Max Transmission Range: Up to 4 km (FCC standard, unobstructed, free of interference)

  • Operating Frequencies: 2.4 GHz & 5.8 GHz (Auto-Switching)

  • Video Bitrate: Up to 50 Mbps

Camera

  • Sensor: 1/2.3” CMOS

  • Lens FOV: 150° (Diagonally)

  • Aperture: f/2.8

  • ISO Range: 100 - 25600

  • Photo Resolution: Not Applicable (Video transmission unit only)

  • Video Recording Resolution:

    • Onboard DVR: 1080p @ 60fps / 50fps / 48fps / 30fps / 25fps / 24fps

    • Codec: H.264

    • Max Bitrate: 60 Mbps

  • Still Photography: No

Onboard DVR (Digital Video Recorder)

  • Recording: Supports microSD card (max 256 GB, Class 10 or UHS-1 required)

  • Function: Records a high-quality, stabilized video feed directly from the camera sensor.

Physical Specifications

  • Weight: ~36.5 g (Total for Air Unit, Camera, and connecting cable)

  • Air Unit Dimensions: 62×42×14 mm (L×W×H)

  • Camera Dimensions: 26×26×26 mm (L×W×H)

  • Connector: Standard DJI 3-port connector for power, data, and DJI FPV Remote Controller link.

Power Requirements

  • Input Voltage: 7.4 - 17.6 V

  • Typical Operating Voltage: 7.4V (2S) to 12.6V (3S Lipo)

  • Max Power Consumption: 8.5 W (Approx. 1.7A @ 5V)

Compatibility

  • Required Goggles: DJI FPV Goggles (V1) or DJI FPV Goggles V2

  • Supported Controller: DJI FPV Remote Controller (for control link via OcuSync)

  • Flight Controllers: Compatible with most common flight controllers via SBUS or DJI's custom protocol. Supports custom OSD data overlay (e.g., battery voltage, RSSI).

Environmental

  • Operating Temperature: 32° to 104°F (0° to 40°C)
