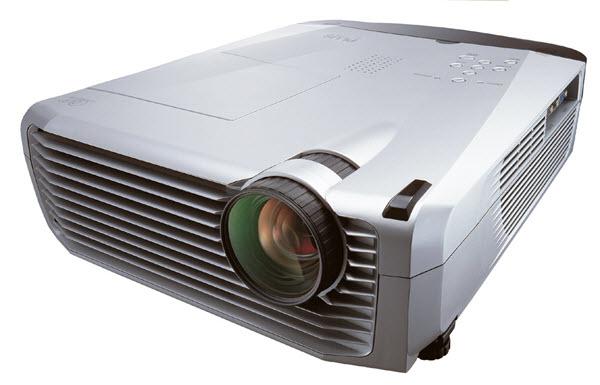

Plus U7-137SF Short-Throw DLP Projector

Plus U7-137SF Short-Throw DLP Projector

SKU U7-137SF
Save 55% Save 55%
$898.50
$898.50 - $898.50
$898.50
$403.46
$403.46 - $403.46
$403.46
  • Plus U7-137SF Projector Bare Bulb Replacement
  • Original Osram OEM Bare Bulb Replacement without cage assembly
  • Brand New Osram projector bare bulb without Cage / Housing
  • 100% identical with the original bulb used in the projector

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Plus U7-137SF Short-Throw DLP Projector

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Plus U7-137SF DLP Digital Projector, 3500 ANSI Lumens, Resolution 1024 x 768 XGA, 6.8 Lbs., Wireless (802.11b), Compact Flash Memory, USB Memory; Contrast Ratio 2000:1 Full On/Off; Network Capable; Two simultaneous data input terminals; Second monitor output; Support for High-Definition (480p, 576p, 1080i, 720p) broadcasts with line-doubling function; Easily accessible PC-control RS232 port; High contrast ratio of 2000:1 gives clear crisp images. Black looks black and white looks white; Digital keystone correction, zoom, smooth, mute, and freeze commands

Item Includes

  • Plus U7-137SF Short-Throw DLP Projector

Item Includes

Projection System DLP
Resolution 1024 x 768 XGA
Brightness 3500 ANSI Lumens
Eco-Mode: 30% increase in lamp life
Contrast Ratio 2000:1 Full On/Off
Aspect Ratio 4:3, Supports 16:9
Projection Lens F=2.6-2.8, f=22.1-25.6mm
1:1.2 Manual Zoom, Manual Focus
Light Resource 300-Watt High-Performance Compact Lamp
Note: Projector lamps contain trace amounts of mercury. Do not throw in trash. Dispose of lamps according to local, state, or federal laws.
Lamp Hours Approximately 2000 Hours in Normal Mode
Approximately 3000 Hours in Eco-Mode
Color Palette 16.7 Million Colors
Projecting Position Front/Rear, Table/Ceiling
Projection Distance 3.9-31.2', 1.2-9.5 m
Image Size 34"-300" diagonal
RGB Signal SXGA Compression, XGA True, SVGA/VGA Expansion/True
Video Signal NTSC3.58, NTSC4.43, PAL, PAL_N, PAL_M, PAL60, SECAM, YCbCr (NTSC, PAL), YPbPr (480p, 576p, 1080i, 720p)
Horizontal Synch Range 15 - 80 kHz
Vertical Synch Range 50 - 85 Hz
Audio Mono 0.5-Watt
Special Features Wireless (802.11b), Compact Flash Memory, USB Memory, Image Viewer, Network
Input/Output Terminals  RGB (Analog/Digital)/YCbCr/YPbPr: DVI-Ix1, Mini D-Sub 15 pin x 1, Composite Video: RCA x 1, S-Video: Mini DIN 4-Pin x 1, Audio (RGB/Video): 3.5mm Stereo Mini Jack x 1, PC Control: D-Sub 9-Pin x 1, Remote Mouse: USB Type B x 1, RS232C: Mini DIN 9 pin x 1
Color Silver
Dimensions 3.26 (H) x 10.1 (W) x 12.59" (L)
83 (H) x 258 (W) x 320 mm (L)
Weight 6.8 lbs, 3.1 kg
Power Supply 100-240 VAC at 50/60 Hz
Power Consumption 430 Watts (Normal Mode), 360 Watts (Eco-Mode), under 20 Watts (Standby)
Operating Environment 32-95 ºF/5-35 ºC
On-Screen Display Languages English, French, German, Italian, Spanish, Swedish, Korean, Chinese, Japanese
Functions Full-Auto Adjustment, Digital Keystone Correction (20 degrees), Digital Zoom (x 2), Freeze, Mute, Presentation Timer, Quick Color Adjustment, Security Password
Accessories Lens Cap, IR Remote Control Card, AAA Batteries for Remote Control x 2, Power Cable (1.8m/6') x 1, VGA Cable (2m/6.5'),Video Cable (2m/6.5') x 1, S-Video Cable (2m/6.5') x 1, 3.5mm Mini Plug for Audio Cable (2m/6.5') x 1, 3.5mm Stereo Mini Jack to RCA for Audio Adapter (0.15m/0.5') x 1, USB Cable (2m/6.5'), DVI-I Mini D-Sub Adapter (0.18m) x 1, Soft Carrying Case x 1, User's Manual (Booklet and CD-ROM), Security Label x 1
