Features

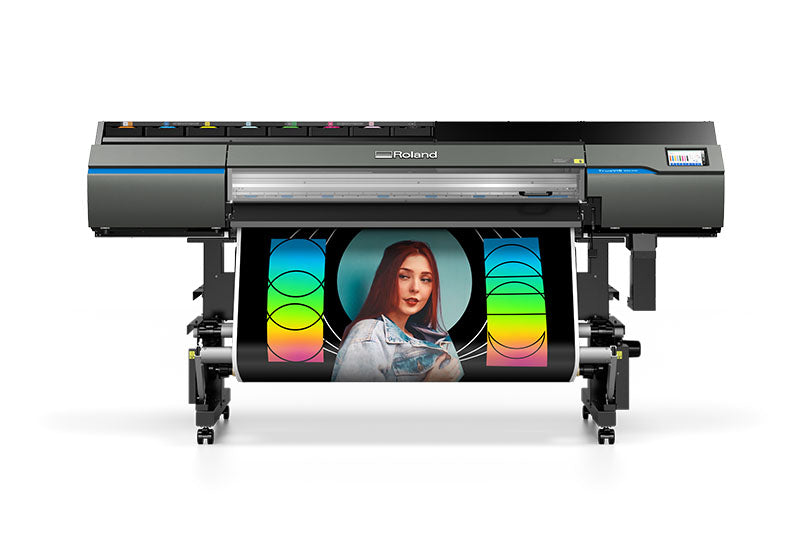

The TrueVIS VG3 is engineered to exceed the quality and production needs of today's most demanding professionals, offering everything you could ever want in a printer/cutter and more. Its user-enhancing features, including a 7-inch LCD touch-panel control, auto-calibration, and other intuitive, automated tools, make it a versatile choice.
With 8-color ink configurations, it provides an extensive range of color choices for your projects. Additionally, the four FlexFire printheads ensure the utmost accuracy, delivering on-color and on-brand custom graphics, making the TrueVIS VG3 a top choice for professionals seeking precision and versatility in their printing and cutting solutions.
Item Includes
7" LCD touch-panel-control screen allows for immediate access to print and cut settings, real time view of ink levels, easy operation of take-up, and much more
Media gap and feed compensation can now be adjusted automatically with a single button. Ensures print accuracy and avoids variations in output with it's optical registration
New media clamps with inetegrated grooves no longer interfere with sheet-cutting or need to be removed
Four FlexFire printheads with precision droplet technology maximize print performance
Redesigned to provide more stability, increased accuracy, easier user setup, and less media skewing during production
Popular Applications
Professional Signs, Banners, and Promotions
Professional Labels and Packaging
High-Quality Window Graphics
Custom Stickers and Decals
Custom Interiors and Wall Décor
Vehicle Graphics for Fleet and Consumer
Customized Apparel
Floor Graphics
MODEL VG3-540
PRINTING METHOD Piezo ink-jet method
MEDIA WIDTH 11.7 to 54 in. (297 to 1,371 mm)
MEDIA THICKNESS Max. 39.3 ml (1.0 mm) with liner, for printing
Max. 15.7 ml (0.4 mm) with liner and 8.6 ml (0.22 mm) without liner, for cutting
MEDIA ROLL OUTER DIAMETER Max. 9.8 in. (250 mm)
MEDIA ROLL WEIGHT Max. 77 lb. (35 kg)
MEDIA CORE DIAMETER 3 in. (76.2 mm) or 2 in. (50.8 mm)
PRINTING/CUTTING WIDTH (*1) Max. 52.9 in. (1,346 mm)
INK TYPE TrueVIS INK 500 ml pouch (only white 250 ml)
INK COLORS 8 colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and white)8 colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and white)
8 colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and orange)
8 colors (cyan, magenta, yellow, black, light black, orange, green and white)
8 colors (cyan, magenta, yellow, black, light cyan, light magenta, orange, and green)
7 colors (cyan, magenta, yellow, black, light black, orange, and green) Four colors (cyan, magenta, yellow, and black)
PRINTING RESOLUTION (DOTS PER INCH) Max. 1,200 dpi
CUTTING SPEED 0.39 to 11.8 in/s (10 to 300 mm/s)
BLADE FORCE (*2) 30 to 500 gf
BLADE TYPE Roland CAMM-1 series blade
BLADE OFFSET 0.0 to 59 ml (0.000 to 1.500 mm)
SOFTWARE RESOLUTION (WHEN CUTTING) 0.98 mil/step (0.025 mm/step)
MEDIA HEATING SYSTEM (*3) Print heater set temperature: 86 to 113 (°F 30 to 45 °C)
Dryer set temperature: 86 to 131 °F (30 to 55 °C)
CONNECTIVITY Ethernet (100BASE-TX/1000BASE-T, automatic switching)
POWER-SAVING FUNCTION Automatic sleep feature
POWER REQUIREMENTS AC 100 to 120 V +/-10%, 8.0 A, 50/60 Hz or
AC 220 to 240 V +/-10%, 4.1 A, 50/60 Hz
POWER CONSUMPTION DURING OPERATION Approx. 1,090 W
POWER CONSUMPTION DURING SLEEP MODE Approx. 50 W
ACOUSTIC NOISE LEVEL DURING OPERATION 63 dB (A) or less
ACOUSTIC NOISE LEVEL DURING STANDBY 53 dB (A) or less
DIMENSIONS (WITH STAND) 103.7 in. x 29.5 in. x 52.0 in.
(2,632 mm x 748 mm x 1,320 mm)
WEIGHT (WITH STAND) 417 lb. (189 kg)
ENVIRONMENT DURING OPERATION (*4) Temperature: 68 to 89.6 °F (20 to 32 °C), humidity: 35 to 80 % RH (no condensation)
ENVIRONMENT NOT OPERATING Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation)
