wePresent WiCS-2100 Wireless Presentation/Collaboration Device

• Sharp R9866210NA - wePresent WICS-2100 Wireless Casting Device



  • Video Output: 1 x HDMI
  • Frame rate: Up to 30 fps
  • Output resolution : Up to 1080p
  • Connected users : Up to 32 via Wi-Fi or 64 via LAN

  The Sharp R9866210NA is a wePresent WiCS-2100 wireless presentation collaboration solution that enables presentation, interaction, and collaboration between users with any kind of device. WiCS-2100 is the first wePresent unit to offer eco standby mode which enables reduced power consumption without compromising any performance or reliability. Eco standby mode uses discreet power to maintain functionality while conserving energy use.

  More effective meeting and learning collaboration

  WiCS-2100 comes the interactive features found in WiPG-1600W with additional upgrades designed to make meeting and learning experiences more collaborative.



  Monitor student device

  This feature in the wePresent Education Pack enables teachers (or moderators) to monitor or preview a thumbnail of a student's (or other user's) device on their own computer or device. Teachers can keep their students on the right track and focus even more on teaching.

  Google and Apple AirPlay support

  Chromecast and AirPlay devices including audio and video support can now be integrated into the WiCS-2100. This enables users of both mirroring solutions to collaborate and take advantage of the full range of on-board interaction and collaboration tools available like the on-screen annotation and interactive whiteboard capabilities.

  Dynamic screen layout


  WiCS-2100 delivers efficient wireless collaboration to boardrooms, classrooms and anywhere people work together.

  WiCS-2100 adapts to multiple presenters by automatically configuring the presentation content to optimize the display. The on-screen collaboration becomes quicker and more flexible, thanks to its dynamic screen layout.

  The conference controller of the WiCS-2100 gives an on-screen user preview for up to 32 logged-in users and the capability to lock down the presentation from others. This feature is perfect for environments where moderator control is necessary.

• wePresent WiCS-2100 Wireless Presentation/Collaboration Device
• AC Power Adapter
• Wall/Shelf Mount
• Limited 2-Year Manufacturer Warranty

Description wePresent WICS-2100 Wireless Casting Device from Barco
Operating system Windows 7, 8, 10 and above
macOS X, 10.9 and above
Chromebook OS 74 and above
Android 4.1 and above
iOS 9 and above
Native industry standard support Apple AirPlay
Google Cast
Video Output 1 x HDMI
Frame rate up to 30 fps
Output resolution up to 1080p
Connected users up to 32 via Wi-Fi or 64 via LAN
Sources up to 4 simultaneously with dynamic screen layout
Audio Outputs HDMI
analog via audio jack 3.5mm
Authentication protocol WPA / WPA2 PSK
Station mode 802.1X EAP
Wired 802.1X EAP
Wireless transmission protocol 2.4G(b/g/n) / 5G(a/n/ac) switchable

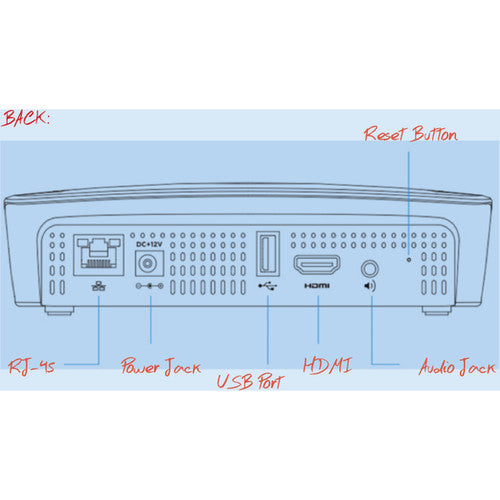

Interfaces 1 x Ethernet LAN
1 x (back) + 1 x (front) USB
Power consumption 11.79W（full load power consumption）

under test conditions:

Power source : DC 12V
SW version : RC217
HW version : ER
USB port : 0.5A load (each port)
WiFi : 5G/11ac (project four 1080p video stream)
Ethernet port : Transfer iperf packet
HDMI : Output four picture
Phone Jack : Connect to earphone
Heat dissipation 19 BTU/hr
Weight 1000±5%g（with package）
344±5%g（without package）
Dimensions 169.87 x 129.19 x 45.52mm（without package）
215 x 218 x 103mm（with package）
Environmental temperature Operation temperature: 0°C - +40°C
Storage : -20°C - +70°C
Environmental humidity Operational : ≦85%
Storage : ≦90%RH
Tech Specs
General Attributes
Warranty 2 YEARS
Product Weight 0.76 LBS
Shipping Weight 2.20 LBS
Product Height 1.79 IN
Product Length 5.09 IN
Product Width 6.69 IN
Shipping Height 4.05 IN
Shipping Length 8.58 IN
Shipping Width 8.46 IN
