DJI Digital FPV Goggles V1 and Apex 5" Drone Bundle

DJI Digital FPV Goggles V1 and Apex 5" Drone Bundle

SKU DJI FPV Goggles V1
Save 22% Save 22%
$1,299.00
$1,299.00 - $1,299.00
$1,299.00
$1,018.98
$1,018.98 - $1,018.98
$1,018.98

Key Features

  • Stunning Digital HD Video: Leave analog static behind. Enjoy a buttery-smooth, low-latency live feed in 720p at 120fps, providing incredible clarity to navigate tight gaps and complex environments with confidence.

  • Unmatched Robustness & Penetration: DJI's OcuSync 2.0 technology provides exceptional range and superior signal stability through obstacles like trees and buildings, far surpassing analog systems.

  • Premium Freestyle Platform: The Armattan Apex frame is renowned for its durability, perfect weight distribution, and exceptional flight characteristics, making it the ideal choice for powerful freestyle manoeuvres, tricking, and proximity flying.

  • High-Quality DVR: The integrated DVR in the goggles records your flight footage in high definition, perfect for analyzing your flights or sharing your best moments without needing an onboard action camera.

  • Ready-to-Fly Package: This bundle includes everything you need to get in the air except for your radio controller and batteries. Simply bind the components and fly.

Compatible balanced charger for 6S LiPo

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

DJI Digital FPV Goggles V1 and Apex 5" Drone Bundle

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

This bundle pairs the groundbreaking DJI Digital FPV Goggles V1 with a meticulously built Armattan Apex 5" freestyle drone. This is a top-tier setup designed for pilots who demand the utmost in video clarity, robust signal penetration, and aggressive flight performance. Built around DJI's original (and still fantastic) digital HD system, this combo eliminates the static and snow of analog video, delivering a crystal-clear, immersive flying experience that will forever change how you see FPV.

Key Features & Benefits

  • Stunning Digital HD Video: Leave analog static behind. Enjoy a buttery-smooth, low-latency live feed in 720p at 120fps, providing incredible clarity to navigate tight gaps and complex environments with confidence.

  • Unmatched Robustness & Penetration: DJI's OcuSync 2.0 technology provides exceptional range and superior signal stability through obstacles like trees and buildings, far surpassing analog systems.

  • Premium Freestyle Platform: The Armattan Apex frame is renowned for its durability, perfect weight distribution, and exceptional flight characteristics, making it the ideal choice for powerful freestyle manoeuvres, tricking, and proximity flying.

  • High-Quality DVR: The integrated DVR in the goggles records your flight footage in high definition, perfect for analyzing your flights or sharing your best moments without needing an onboard action camera.

Item Includes

  • DJI Digital FPV Goggles V1
  • Apex 5" Drone

Item Includes

Category Specification

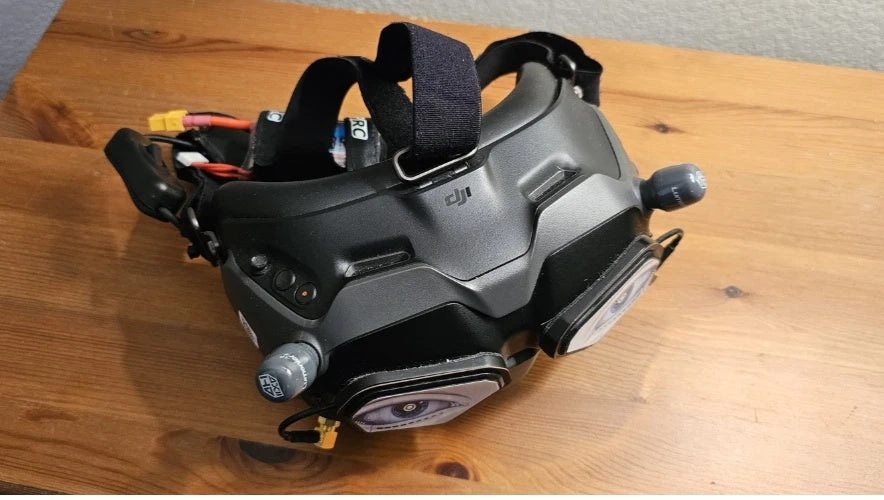

Model DJI FPV Goggles V1
Video System DJI FPV System (OcuSync 2.0)
Max Live View Resolution 720p @ 120fps
Latency < 28 ms (in 120fps mode)
Operating Frequency 2.400 - 2.4835 GHz; 5.725 - 5.850 GHz
Max Transmission Range FCC: ~4 km (2.5 mi); CE: ~0.7 km (0.43 mi) Ideal conditions, can vary
Display Dual 2.0-inch LCD screens
Field of View (FOV) 80°
Interpupillary Distance (IPD) 60 - 70 mm (Manually adjustable)
Diopter Range -8.0D to +2.0D (Adjustable)
Video Out USB-C (for head tracking output)
DVR Built-in; Records to microSD card (Max 256 GB)
Recording Format MP4 (H.264) at 720p 60fps
Power Source External battery pack (7.4V, 1800mAh - 4900mAh)
Battery Runtime Up to 110 minutes.
Connectors 4x Antenna ports (MMCX), USB-C, 3.5mm Headphone Jack
Weight (Headset Only) ~500 g
Weight (with Battery) ~840 g

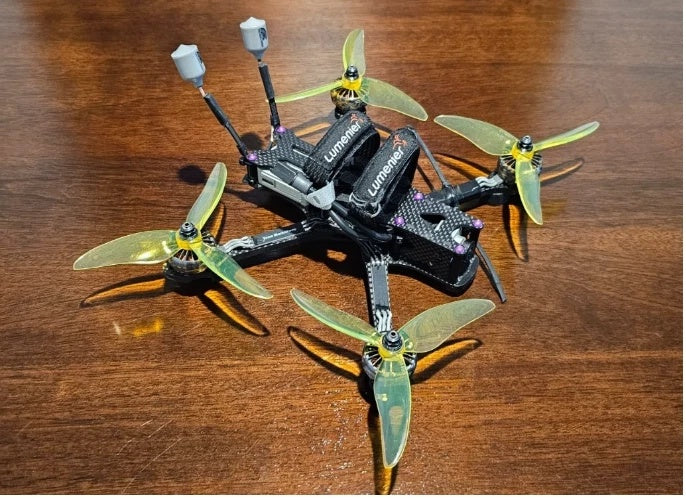

2. Custom Apex 5" Drone Specifications

These are typical specs for a build using a Caddx Vista. Weights are approximate.


Category Typical Specification
Frame Armattan Apex 5" (Lifetime Warranty on baseplate)
Arm Width 6mm (or specified by builder)
Wheelbase ~215mm
Dry Weight 550 - 600 g (highly dependent on components)
AUW (All-Up Weight) 720 - 800 g (with 6S 1300mAh LiPo)
Video Transmission Caddx Vista (DJI FPV System) or DJI Air Unit
Max Output Power 1200 mW (FCC) / 25 mW (CE)
FPV Camera DJI/Caddx Nebula Pro (or Nano)
Camera Sensor 1/1.7" (Nebula Pro) / 1/2.7" (Nebula Nano)
Lens FoV 150° DFOV (Nebula Pro)
Flight Controller e.g., 20x20/30x30mm F7 or F4 FC (Betaflight)
ESC e.g., 20x20/30x30mm 30A-60A BlHeli_32 4-in-1
Motors 4x 2207 or 2306 Motor Size, 1600-1800kv (for 6S)
Props 5" Triblade or Biblade (e.g., HQProp 5x4.3x3)
Receiver e.g., ExpressLRS 2.4GHz (900MHz also common)
Recommended Battery 6S LiPo, 1100mAh - 1500mAh
Recommended Charger Compatible balanced charger for 6S LiPo
