Panasonic Lumix DMW-YAGH Interface Unit for GH4

SKU DMW-YAGH

$1,139.69 - $1,139.69

$1,139.69

$1,139.69 - $1,139.69

$1,139.69

For Professional Audio/Video Workflows2x Monaural XLR InputsLine/Mic Level Switch & Phantom PowerAudio Level Display Monitor2x 3G-SDI Capable BNC Connectors2x HD-SDI Capable BNC ConnectorsQuad-Link SDI Output for 4:2:2/10-Bit 4KHDMI OutputTimecode In12VDC 4-Pin XLR Power Input

Quantity

Our Customers & Partners

Features

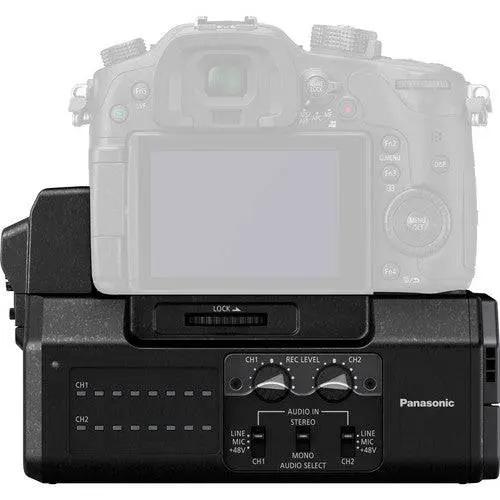

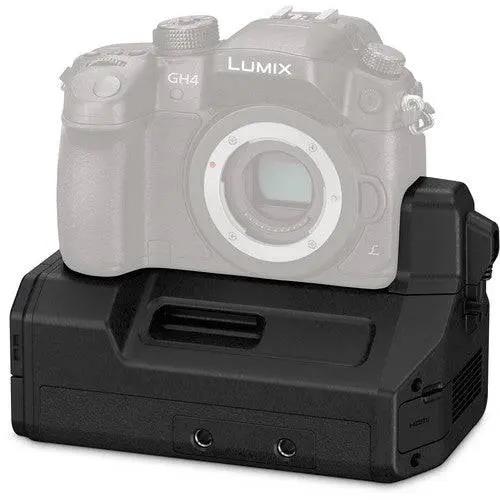

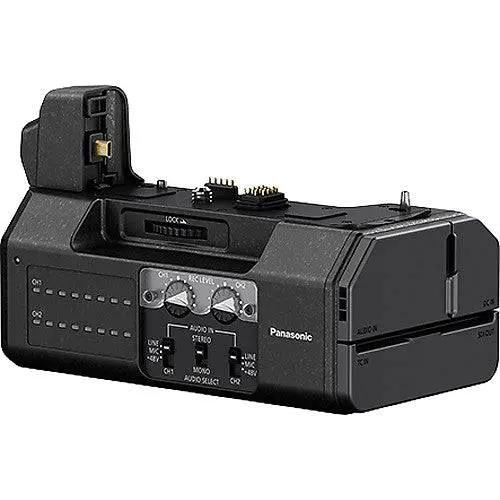

The Lumix DMW-YAGH Interface Unit for GH4 from Panasonic is designed to give the Lumix DMC-GH4 camera the video, audio, and power connectivity required for professional video workflows. When attached to the GH4, the Interface Unit has two monaural XLR inputs for line or condenser microphones, and gives you independent volume control of the left and right channels. There is also an audio level display monitor and +48V of phantom power for each channel. On the front of the unit you'll find a pair of front facing screw holes, which provide expandability for rod systems and added stability for PL mounts.

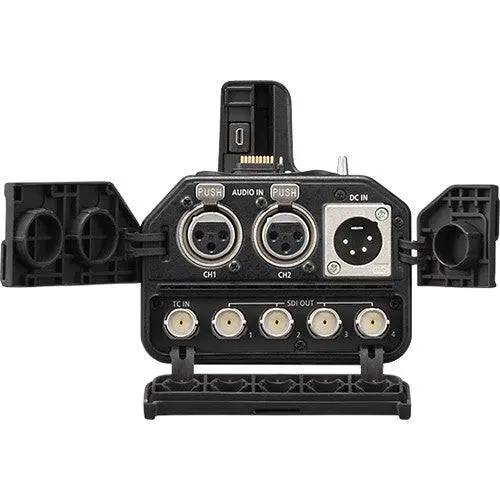

When it comes to video outputs, the Interface Unit provides four BNC connectors - two 3G-SDI capable and two HD-SDI capable. It outputs quad-link SDI 4K video in 4:2:2 10-bit, dual-link 4:2:2 10-bit 1080p up to 60 fps, or four simultaneous 1080p streams up to 30 fps - all with timecode. The Interface Unit also has a BNC connector for timecode input, and converts the GH4's micro HDMI output to a full-sized HDMI output. For power, a 4-pin XLR 12VDC input is available.

Note: The Interface Unit is not powered by the GH4 and requires an external 4-pin XLR 12VDC power source for use.

Note: When using 4:2:2/10-bit output, simultaneous video recording to an SDHC/SDXC memory card in the DMC-GH4 is not possible.

Features

Inputs/Outputs
Time Code In	1 x BNC, 1.0-4.0 Vp-p, 10 kΩ
Audio Input (CH 1/2)	2 x XLR 3-pin, high impedance, LINE / MIC / +48 V (switchable) LINE: 0 dBu MIC: -50 dBu +48 V Phantom power compatible, -50 dBu
SDI Output	4 x BNC (2x 3G-SDI and 2x HD-SDI), 0.8 Vp-p, 75 kΩ Embedded audio: 2 channel Embedded time code
HDMI Output	1 x HDMI (type A) Embedded audio: 2 channel (linear PCM)

Video
Resolutions & Frame Rates	4096 x 2160: 24p 3840 x 2160: 23.98p, 24p, 25p, 29.97p 1920 x 1080: 50p, 59.94p (3G-SDI Level-A/B) 1920 x 1080: 23.98PsF, 24PsF, 25PsF, 29.97PsF, 50i, 59.94i 1280 x 720: 50p, 59.94p
Color Sampling	4:2:2
Bit Depth	8-bit / 10-bit

Audio
Sampling Frequency	48 kHz (synchronized with video)
Audio Quantization	16-bit
Headroom	12 dB

General
Power Source	1 x XLR 4-pin, 12 VDC, 1.5 A (including GH4)
Operating Temperature	32 to 104F / 0 to 40C
Operating Humidity	10 to 80% (no condensation)
Dimensions (WxHxD)	6.30 x 2.52 x 3.58" / 16.0 x 6.4 x 9.1 cm (excluding protrusions and HDMI terminal)
Weight	Approx. 1.65 lb (0.75 kg)

Packaging Info
Package Weight	2.3 lb
Box Dimensions (LxWxH)	9.3 x 6.3 x 5.8"
