Nanlite PavoSlim 240CL RGB LED Panel: Ultra-Thin, Bright, Accurate, Pop-Up Softbox

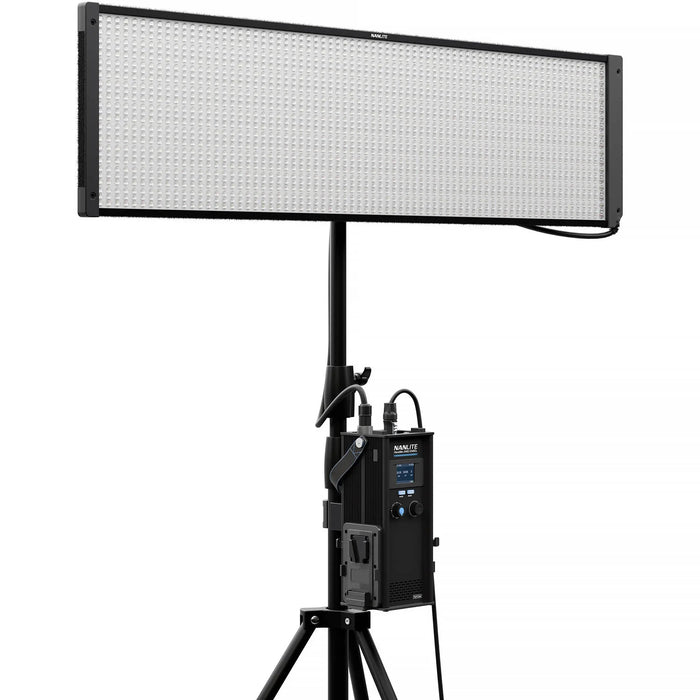

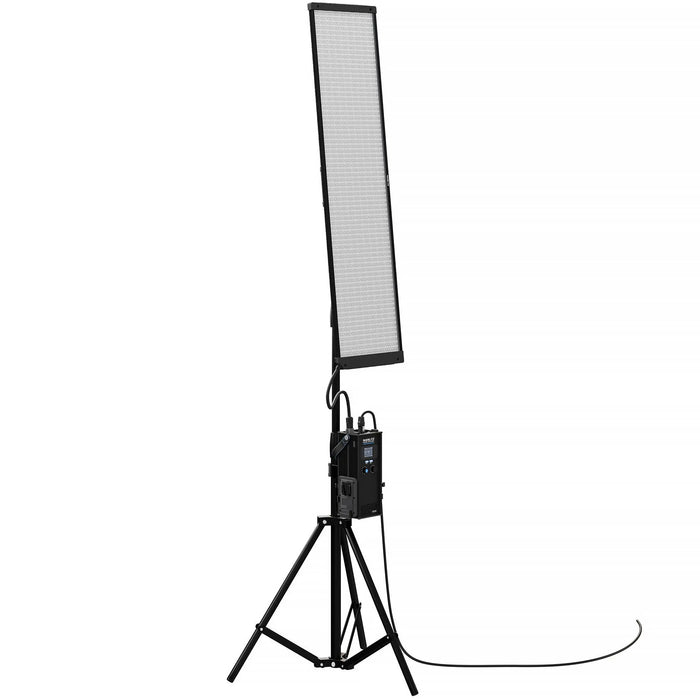

Nanlite PavoSlim 240CL RGB LED Panel with Pop-Up Softbox

SKU PS240CL
Save 4% Save 4%
$1,390.00
$1,390.00 - $1,390.00
$1,390.00
$1,340.00
$1,340.00 - $1,340.00
$1,340.00

This Nanlite PavoSlim 240CL RGB LED Panel is your new secret weapon for dazzling illumination, magically transforming any scene with its vibrant full-color RGBWW output. Its super-slim design and feather-light touch make it a breeze to set up, even in the tightest spots, while the included pop-up softbox makes getting that perfect glow a snap. Enjoy brilliant, flicker-free light with amazing color accuracy, from warm 2700K to cool 7500K, plus 15 fun special effects to spark your creativity. Control it all with a flick of your finger via the Nanlink app or go pro with CRMX and DMX, ensuring your lighting is always on point and ready for action.

Key Features
  • For Studio, Film & TV Production
  • Output: 21,030 Lux at 3.3' (5600K)
  • 2700-7500K; RGBWW Color Control
  • 48 x 12" Panel; AC/DC Operation
  • CRI 96 | TLCI 97
  • Onboard, DMX/RDM, CRMX & App Control
  • 15 Special Effects; 0-100% Dimming
  • Includes Pop-Up Softbox & Egg Crate Grid
  • Includes Baby Pin & Swivel Mount
  • Includes Quick Release Clamp & Case

Connectivity

  • Wireless Remote Control Type
  • Bluetooth (Nanlink)
  • Radio/RF *Remote Not Included
  • Wireless CRMX (LumenRadio)
  • Mobile App Compatible
  • Yes: Android & iOS
  • App Name: Nanlink
  • Functionality: Adjust Settings, Remote Control, Setup
  • Wireless Frequency
  • 2.4 GHz

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Nanlite PavoSlim 240CL RGB LED Panel with Pop-Up Softbox

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

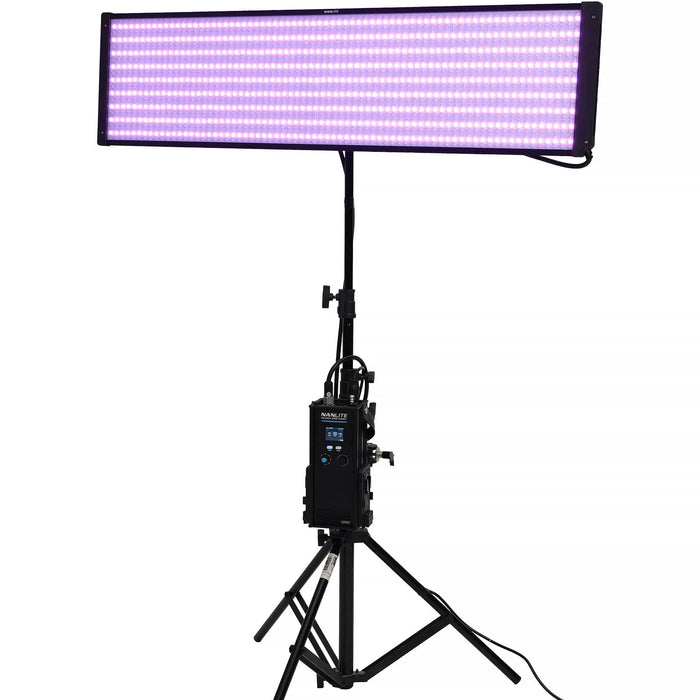

Experience an efficient and uncomplicated lighting setup with the PavoSlim 240CL RGB LED Panel with Pop-Up Softbox from Nanlite. Like the 240C unit, the 240CL is a full-color RGBWW fixture that remains thin, lightweight, and impressively bright. But this version was thoughtfully designed with a 48 x 12" format to be easily mounted close to the ceiling. Suitable for a variety of users and applications, the 240CL's ultrathin and compact metal body fits the most constrained spaces. Nanlite includes a pop-up softbox to give gaffers, DPs, and creators a fast and easy way to set up the LED panel. This 240W fixture offers a wide 2700 to 7500K color temperature and boasts high color accuracy ratings. It also features green-to-magenta shift by +/- 150, a full-color HSI mode, 151 gel presets, 15 lighting effects, multiple control methods, and AC or optional battery power. Its greatest convenience is the ability to assemble and disassemble it quickly and efficiently. A padded carry case safely holds everything, so you can take it anywhere.

Pop-Up Softbox

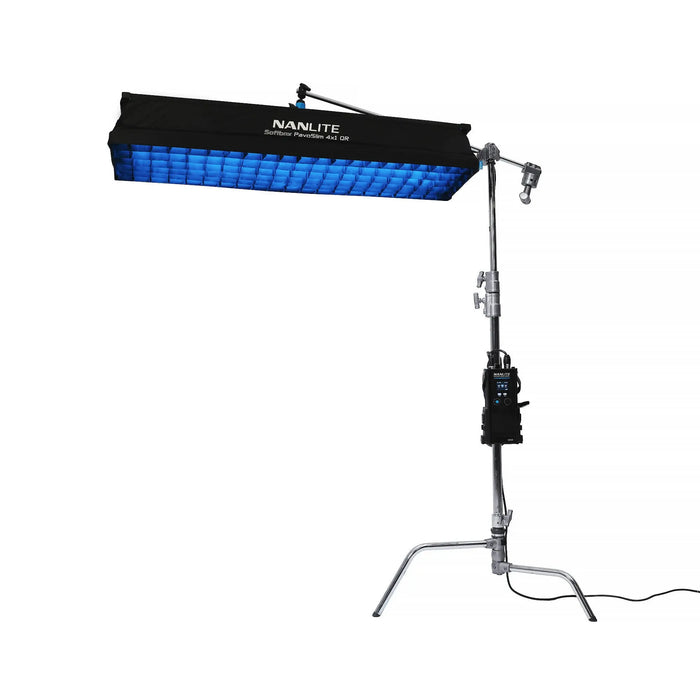

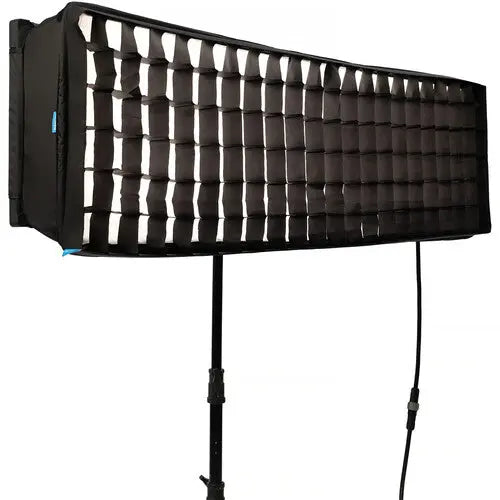

Nanlite combines the PavoSlim 240CL with a pop-up softbox that significantly shortens setup time to save you effort when it's time to shoot. An egg crate and 1.5- and 2.5-stop diffusers are also included for modifying and adjusting the panel's output.
Exceptionally Thin & Bright
Offering a wide variable color temperature range of 2700 to 7500K and 0 to 100% dimming, this ultrathin and powerful panel seamlessly integrates into ambient light situations, letting you match the output of most fixtures. Designed for studio, film, and TV productions, this thin and lightweight LED panel provides flicker-free, bright illumination of 21,030 lux at 3.3' (5600K).
Color Accuracy
The panel's high CRI/TLCI ratings of 96/97 provide high color accuracy and rendering. Other scores are SSI (3200K) of 84, SSI (5600K) of 74, TM-30 Rf of 94, and TM-30 Rg of 100.
Lighting Effects
Fifteen built-in special effects: hue loop, CCT loop, intensity loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding.
Advanced Control Methods

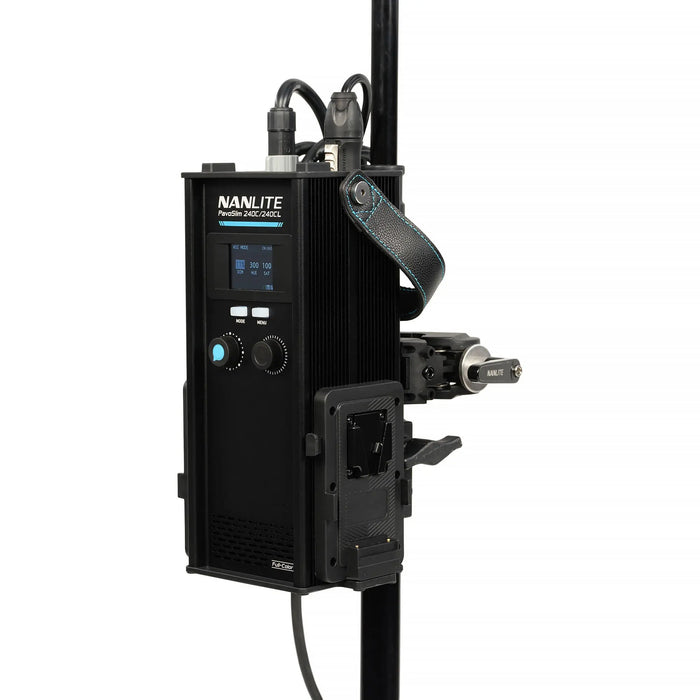

Multiple onboard and wireless control options make for easy creative adjustments. This version comes with built-in LumenRadio CRMX for a convenient connection to wireless DMX. Use the onboard controls located on the included control unit or the Bluetooth Nanlink app control right from your smartphone for intuitive management of settings. Going further, 2.4 GHz provides control through the separately available WS-TB-1 transmitter box for more elaborate setups or with the optional WS-RC-C2 handheld remote. DMX/RDM control is also supported for advanced users.
Power Options
  • Dual-voltage design for worldwide use
  • Control unit with built-in battery plates for two optional 14.4-14.8V or 26V V-mount batteries
  • Requires two optional batteries for full output power
Multiple Mounts

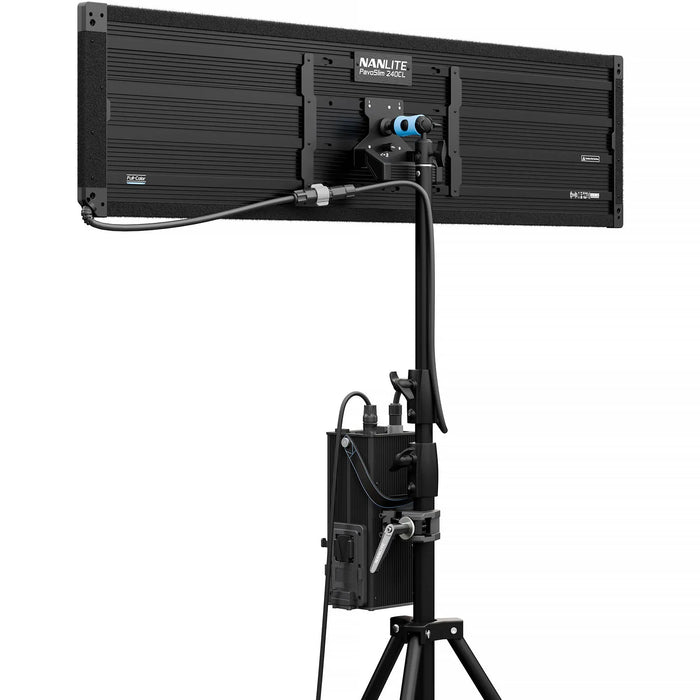

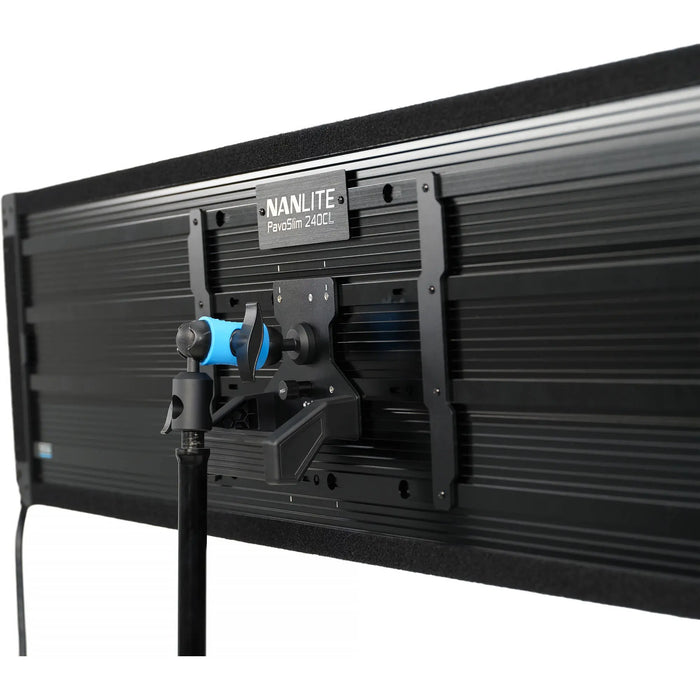

Expanding your mounting possibilities, this version includes a swivel holder, a baby pin mount, and a quick release clamp to attach the control unit to optional stands and trusses. The panel's back features multiple 4-pin locking plates to securely hold the two included mounts to meet your different mounting needs. The panel is also compatible with the separately available Nanlite magnetic base with 1/4"-20 threads.
Expandable System
Use the separately available multi-panel coupler kit to mount two or four 4 x 1 PavoSlim 240CL panels together, expanding your light source. This means you can easily create a larger 2 x 4 or 4 x 4 panel with their light-shaping accessories.
Other Benefits
  • Ultrathin at just 0.9"
  • 60° beam angle
  • Weighs 7.98 lb
  • Silent passive cooling operates without a fan for working on sets with sound recording

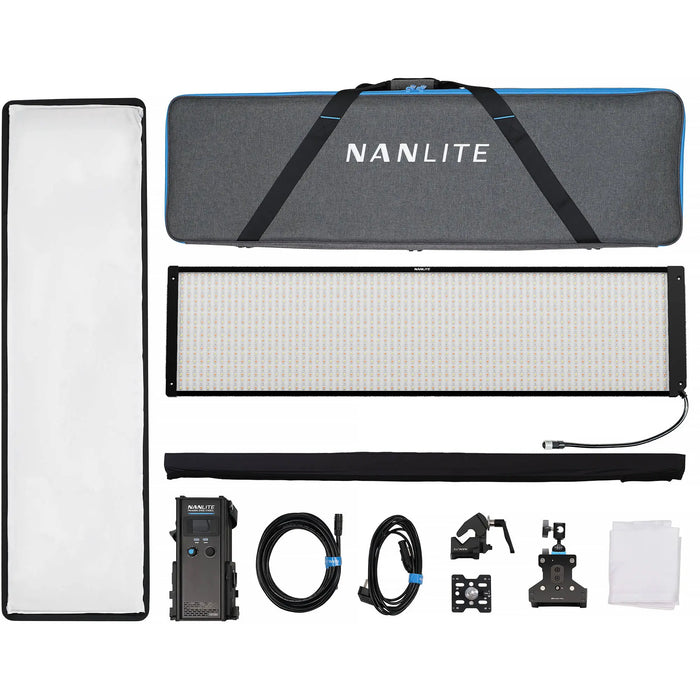

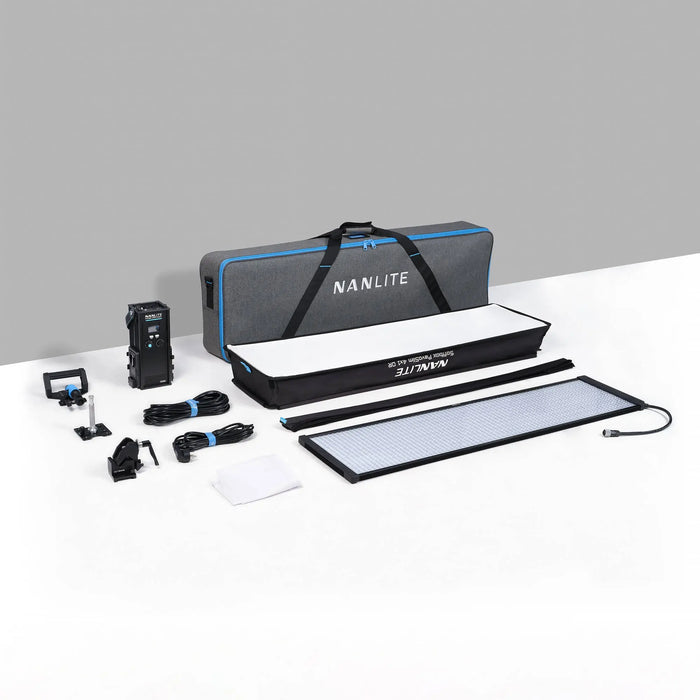

Item Includes

  • Nanlite PavoSlim 240CL RGB LED Panel with Pop-Up Softbox
  • Control Unit
  • Baby Pin Mount
  • Swivel Holder
  • Quick Release Clamp
  • DC Connection Cable (8.5')
  • AC Power Cable (14.7')
  • Pop-Up Softbox
  • Lite Diffuser
  • Standard Diffuser
  • Egg Crate Grid

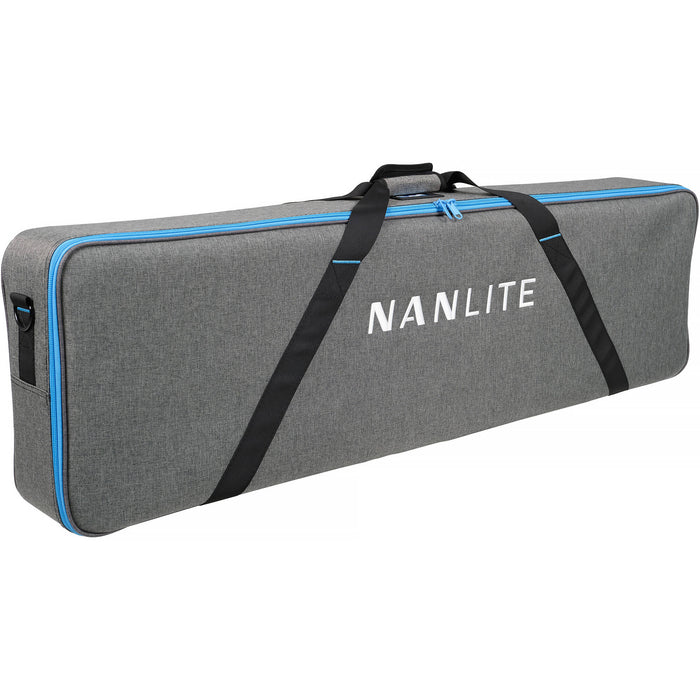

  • Padded Carry Case
  • Limited 2-Year Manufacturer Warranty
  • Registration Extension: 1-Year

Item Includes

Item Type

1x LED Array LED Light Panel

Included Light Modifier

1x Softbox

1x Grid/Louver

Included Storage Case

Yes

Photometrics

3200K: 1818 fc / 19,570 Lux

5600K: 1953 fc / 21,030 Lux

Color Temperature

2700 to 7500K

Color Modes

RGB, Daylight, Tungsten

Color Accuracy Standard

CRI 96

TLCI 97

SSI 84 at 3200K

SSI 74 at 5600K

Show More

Dimming

App-Controlled / Controller Included / DMX / RDM

• 0 to 100%

Front Accessory Mount

Proprietary

Wireless Remote Control Type

Bluetooth (Nanlink)

Radio/RF *Remote Not Included

Wireless CRMX (LumenRadio)

Power Source

AC Power (Cable Included)

Battery (Not Included)

Battery Plate Type

2x V-Mount (Built-In)

Battery

2x V-Mount Rechargeable, 14 to 26 VDC (Not Included)

Input Power

48 VDC

100 to 240 VAC, 50 / 60 Hz

Power Consumption

240 W

Fixture Mounting

1x 5/8" Receiver (Via Hardware)

Light Fixture

Item Type

1x LED Array LED Light Panel

Included Light Modifier

1x Softbox

1x Grid/Louver

Included Filters

Diffusion, Soft Diffusion

Included Storage Case

Yes

Lumens

24,024 (at 3200K)

25,748 (at 5600K)

Photometrics

3200K:

1818 fc / 19,570 Lux at 3.3' / 1 m

603 fc / 6496 Lux at 6.6' / 2 m

316 fc / 3404 Lux at 9.8' / 3 m

5600K:

1953 fc / 21,030 Lux at 3.3' / 1 m

648 fc / 6985 Lux at 6.6' / 2 m

316 fc / 3404 Lux at 9.8' / 3 m

Color Temperature

2700 to 7500K

Color Modes

RGB, Daylight, Tungsten

Color Accuracy Standard

CRI 96

TLCI 97

SSI 84 at 3200K

SSI 74 at 5600K

Dimming

App-Controlled / Controller Included / DMX / RDM

• 0 to 100%

Cooling System

Passive

Beam Angle

60° Unmodified

Built-In Flash

No

Preprogrammed Effects

Yes

Umbrella Mount

No

Front Accessory Mount

Proprietary

Connectivity

Wireless Remote Control Type

Bluetooth (Nanlink)

Radio/RF *Remote Not Included

Wireless CRMX (LumenRadio)

Mobile App Compatible

Yes: Android & iOS

App Name: Nanlink

Functionality: Adjust Settings, Remote Control, Setup

Wireless Frequency

2.4 GHz

Power & I/O

Power Source

AC Power (Cable Included)

Battery (Not Included)

Inputs/Outputs

Light Fixture

To Power Supply/Controller: 1x Built-In Cable with Unspecified Power Input

Light Fixture

To Power Supply/Controller: 1x Unspecified Power Output

1x 1/8" / 3.5 mm DMX Input

*Adapter Required (Not Included)

1x Unspecified AC Power Input

1x Unspecified Power Input (48 VDC)

Battery Plate Type

2x V-Mount (Built-In)

Battery

2x V-Mount Rechargeable, 14 to 26 VDC (Not Included)

Input Power

48 VDC

100 to 240 VAC, 50 / 60 Hz

Included Adapter / Cable

Yes

Inline Switch

No

Power Pass-Thru

No

Power Consumption

240 W

Mounting

Fixture Mounting

1x 5/8" Receiver (Via Hardware)

General

Display

Yes

Operating Conditions

-4 to 113°F / -20 to 45°C

Dimensions

48 x 12 x 0.93" / 121.9 x 30.5 x 2.36 cm (Fixture)

11.14 x 6 x 4.39" / 28.3 x 15.2 x 11.15 cm (Power Supply/Controller)

Weight

7.98 lb / 3.62 kg (Fixture)

6.08 lb / 2.76 kg (Power Supply/Controller)

Packaging Info

Package Weight

38 lb

Box Dimensions (LxWxH)

52 x 16.5 x 7.75"
