Panasonic PT-D5700U XGA (1024 x 768)

Panasonic PT-D5700U XGA (1024 x 768)

SKU PT-D5700U
Save 7% Save 7%
$6,799.00
$6,799.00 - $6,799.00
$6,799.00
$6,299.00
$6,299.00 - $6,299.00
$6,299.00

Key Features

  • 6000 ANSI LUMENS
  • XGA 1024 X 768
  • AUTHORIZED DEALER

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Panasonic PT-D5700U XGA (1024 x 768)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The Panasonic PT-D5700U is a high resolution projector that is perfect for presentations in large venues. This high quality projection system with 6000 ANSI lumens and a 2000:1 contrast ratio will provide brilliant, clear images even in a bright room.

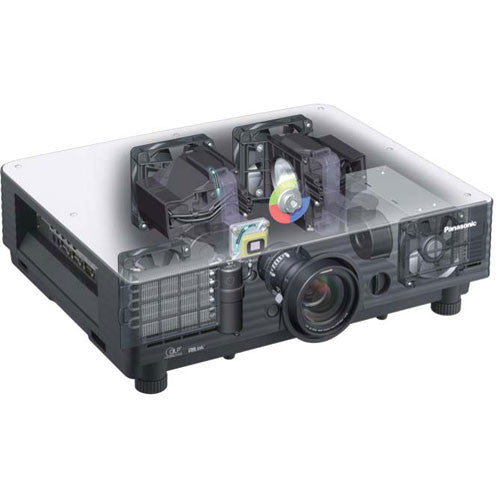

Building on the highly reliable DLP single-chip technology, the PT-D5700U delivers spectacular image reproduction in a low maintenance, high performance package. Features include 10-bit picture processing, IP conversion circuit, and Dynamic sharpness control. This makes the projector ideal for conference rooms, auditoriums, theaters, and houses of worship. The supplied 25.6 to 33.8 mm zoom lens has a throw ratio of 1.7 to 2.1:1. With the PT-D5700U, you don't just make a presentation, you're making a difference.

Full 10-Bit Picture
The use of a full 10-bit image processing system provides smooth tonal expression. For example, skin tones appear natural and true to life.
3D Color Management
3D Color Management automatically corrects color saturation, hue and brightness, resulting in a more accurate image reproduction.
IP Conversion Circuit
The PT-D5700U features an IP conversion circuit that produces detailed images.
Effective Noise Reduction
Images are noticeably clearer thanks to higher performance frame noise reduction, which lowers image graininess, and improved MPEG noise reduction, which suppresses the block noise and mosquito noise that are common in fast-action scenes.
Flexible Angle Setting
The projector can be rotated vertically. This means you can install it at any up and down angle you wish to accommodate different installation conditions.
Dual Lamp System
The use of a two lamp system increases brightness and eliminates the need to interrupt a presentation if a lamp burns out (in dual lamp operation mode).
Web Browser Control/Monitoring and E-mail Message Alert
Anybody can operate the projector by remote control or monitor its status over a LAN network, because it is all done using the computer's familiar Web browser. Furthermore, the projector sends an E-mail message to notify the operator when an error has occurred or a lamp needs to be replaced.
PJLink Compatibility
The LAN terminals support PJLink class 1 connection.
Zoom Lens Included
The supplied 25.6 to 33.8 mm zoom lens has a throw ratio of 1.7 to 2.1:1

Item Includes

  • Panasonic PT-D5700U XGA (1024 x 768)
  • Projection Lens
  • 2 x Projector Lamps Installed
  • Wired/Wireless Remote Control with Batteries
  • AC Power Cord
  • Lens Cover
  • Owner's Manual
  • 2-Year Parts & Labor Warranty
  • 90-Day Lamp Warranty

Item Includes

Image Display
Projector Display System
0.7" DMD, DLP x1
Native Resolution
XGA (1024 x 768)
Number of Pixels
786,432
Lumens Brightness
6000 ANSI Lumens
Contrast Ratio
2000:1
Aspect Ratio
Native 4:3
System
NTSC, PAL, SECAM, NTSC4.43, PAL60, PAL-M, PAL-N
HDTV Compatibility
480i, 480p, 576i, 576p, 720/60p, 720/50p, 1035/60i, 1080/60i, 1080/50i
Lens System
Lens
F 1.7-2.0, f 25.6-33.8 mm Zoom Lens
Focus/Zoom Adjusting
Powered zoom and focus
Lens Shift
Vertical (powered), horizontal (manual)
Recommended Projection Size
From 50 - 600" diagonal with a throw distance of 6 - 96.2'
Features
Keystone Correction
Yes

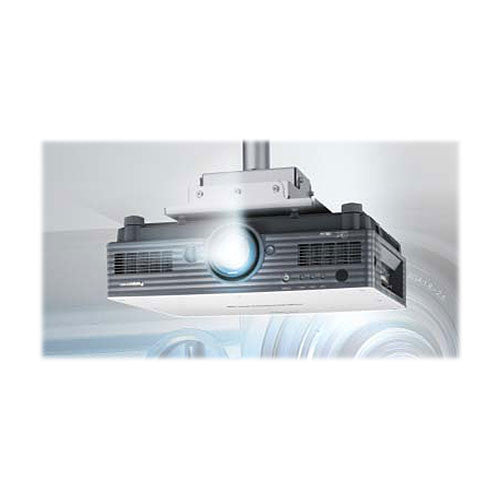

Ceiling Mountable
Yes
Rear Screen Projection
Yes
Projection Tilt Option
Yes
Built-In Speaker
No

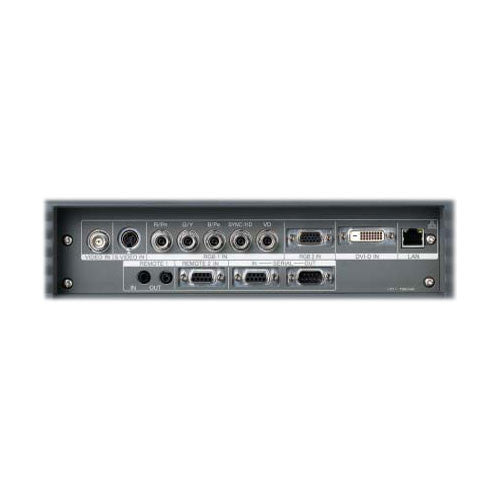

Input/Output Connectors
Input Terminals
Computer
VGA HD-15 pin x1
DVI-D 24 pin x1



Video
S-Video Mini DIN 4-pin x1
Component BNC x5
Composite Video BNC x1
Output Terminals
RS-232C out D-Sub 9 x1
Remote out M3 x1
Control Protocol
RS-232C in D-Sub 9 x1
Remote in M3 x1
Remote in D-Sub 9 x1
LAN connector: RJ-45 (10 Base-T/100 Base-TX)
General
Lamp (Bulb)
300W UHM x2
Fan Noise
Not Specified by Manufacturer
Remote Control
Wired/wireless
Power Requirements
770W, 120 V AC, 50/60 Hz
Dimensions
20.9 x 6.6 x 17.30" (530 x 167 x 441mm)
Weight
30.6 lbs (13.9 kg)
