Panasonic PT-DS20K2U 3D SXGA+ Large Venue 3-Chip DLP Projector (No Lens)

Panasonic PT-DS20K2U 3D SXGA+ Large Venue 3-Chip DLP Projector (No Lens)

SKU PTDS20K2U
Save 11% Save 11%
$30,595.00
$30,595.00 - $30,595.00
$30,595.00
$27,355.50
$27,355.50 - $27,355.50
$27,355.50

Key Features

  • 10,000:1 Contrast Ratio
  • 1400 x 1050 SXGA+ Resolution
  • 20,000 ANSI Lumens

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Panasonic PT-DS20K2U 3D SXGA+ Large Venue 3-Chip DLP Projector (No Lens)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The PT-DS20K2U 3D SXGA+ Large Venue 3-Chip DLP Projector from Panasonic has a resolution of 1400 x 1050 with 20,000 lumens of brightness, and features long lamp replacement cycles of up to 3,000 hours. These features make this projector great for large venue applications. Its real motion processor combines frame-creation and 120 Hz processing for fluid motion reproduction. The clarity processor delivers crisp and detailed image quality, providing a 10,000:1 contrast ratio with Dynamic Iris. This projector offers System Daylight View 3 for enhanced color performance in bright rooms and mapping applications, a Waveform Monitor function that allows for easy adjustment of black and white levels, and DICOM Simulation Mode for medical presentations and training. Additionally, it provides a liquid cooling system and highly efficient quad-lamp setup to reduce operational noise.

Active 3D projection capability
Quad-lamp system allows 24/7 operation in lamp relay mode

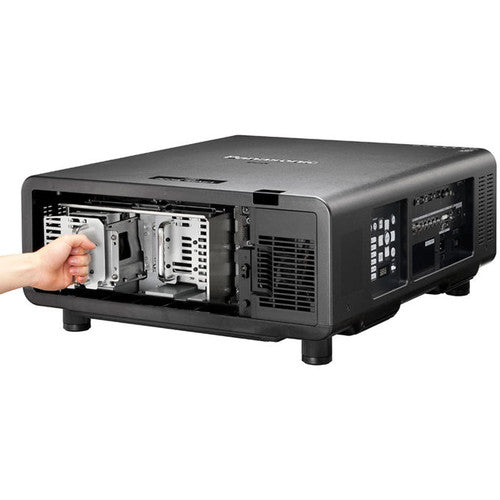

Easy lamp replacement from rear side
Eco filter requires no maintenance for 12,000 hours
Durable, precision-tuned optical engine
High-efficiency lamps reduce power consumption
Flexible installation with 360° vertical cabinet rotation
Multi-screen support seamlessly joins screens with edge blending, color matching, and multi-screen processing
Geometric adjustment for projection on curved or spherical surfaces
Multi-unit brightness control
Single-cable Digital Link connection transmits video and control signals up to 328 ft

Item Includes

  • Panasonic PT-DS20K2U 3D SXGA+ Large Venue 3-Chip DLP Projector (No Lens)
  • Power Cord with Secure Lock
  • Wireless/Wired Remote Control with Batteries
  • Multiple Projector Monitoring and Control Software
  • Limited 3-Year Warranty on Projector
  • Limited 90-Day Warranty on Lamp

Item Includes

Display System
3-Chip 0.95" DLP
Native Chip Resolution
1400 x 1050 (SXGA+)
Maximum Brightness
20,000 Lumens
Inputs/Outputs
1x 3BNC (Component) Video Input
1x 24-Pin Universal Port Video Input
1x RJ45 (Ethernet) LAN Input
Light Source
Lamp (4 x UHM)
Image Display
Display System
3-Chip 0.95" DLP
Native Chip Resolution
1400 x 1050 (SXGA+)
Maximum Brightness
20,000 Lumens
Uniformity
90%
Aspect Ratio
4:3
Contrast Ratio
10000:1
DLP Link 3D
Yes
Features
Keystone Correction
Vertical: ± 40°
Horizontal: ± 15°
Inputs/Outputs
1x 3BNC (Component) Video Input
1x 24-Pin Universal Port Video Input
1x RJ45 (Ethernet) LAN Input
General
Light Source
Lamp (4 x UHM)
Lamp Power
465 W
Expected Lamp Life
Medium Brightness: 3000 Hours
AC Input Power
240 VAC, 50 Hz
Power Consumption
Medium Brightness: 2300 W
Standby Mode (Lamp Off): 4 W
Standby Mode (Lamp Off): 0.3 W
Dimensions (W x H x D)
24.4 x 10.0 x 28.7" / 620.0 x 255.0 x 730.0 mm (without lens)
Weight
94.80 lb / 43 kg without lens
