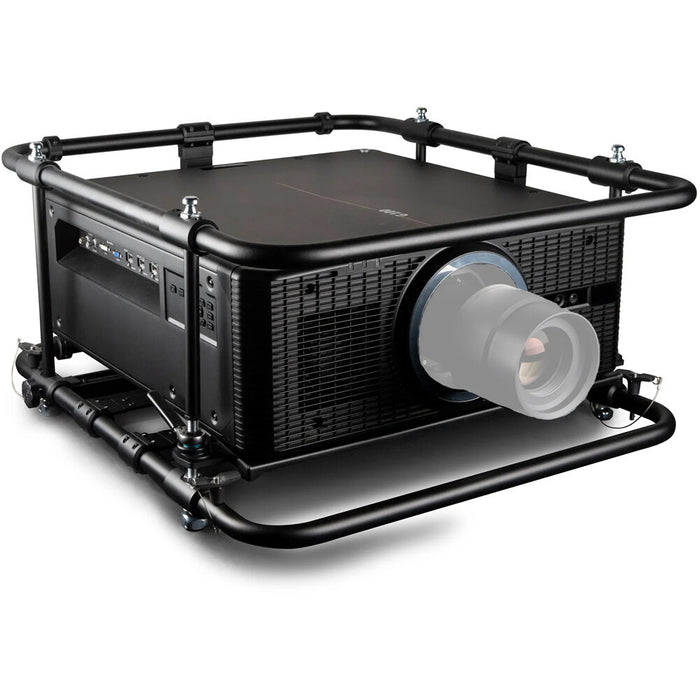

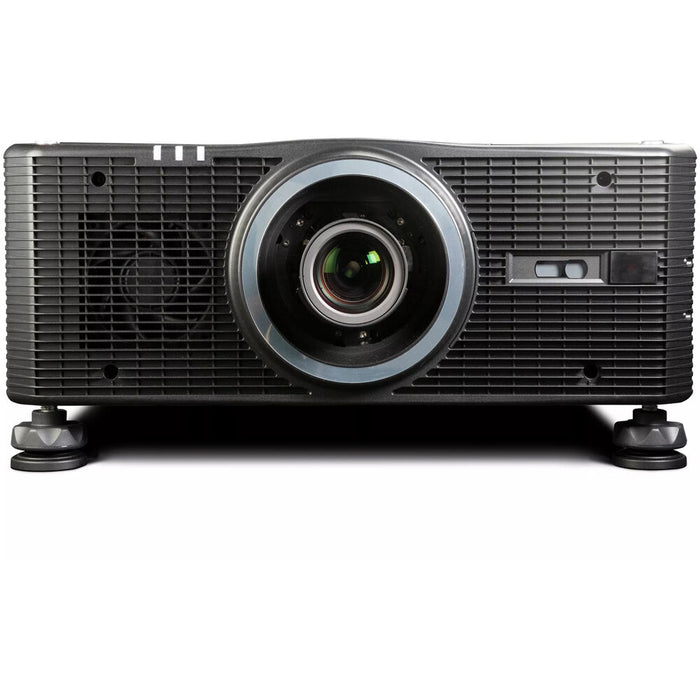

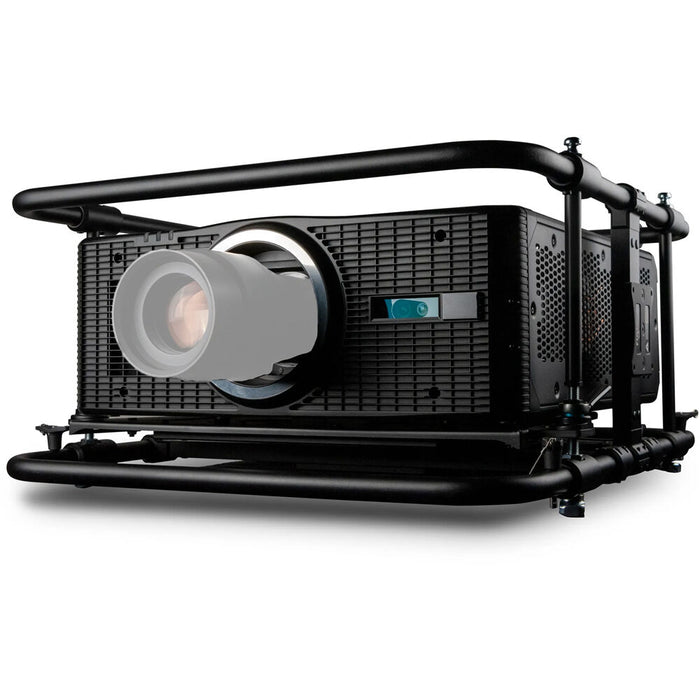

Barco G100-W25 25,000-Lumen WUXGA Laser DLP Projector for Professional Installations

Barco G100-W25 25,000-Lumen WUXGA Laser DLP Projector (No Lens)

SKU R9011920
Save 5% Save 5%
$44,289.00
$44,289.00 - $44,289.00
$44,289.00
$42,020.00
$42,020.00 - $42,020.00
$42,020.00

The Barco G100-W25 WUXGA Laser DLP Projector delivers an exceptional 25,000 lumens of brightness, making it suitable for demanding indoor and outdoor multimedia installations. Its single-chip DLP laser phosphor engine produces crisp 1920 x 1200 resolution images with consistent color accuracy. Designed for versatility, it supports 360° rotation, extensive input options, and a broad range of optional GC-series lenses. This projector ensures reliable 24/7 operation with over 20,000 hours of light source life, minimizing maintenance and operational costs.

Key Features
  • GC-Series Lens Required & Not Included
  • Brightness of 25,000 Lumens
  • Native WUXGA 1920 x 1200 Resolution
  • 1-Chip DLP Laser Phosphor Projection
  • Over 20,000 Hours of Runtime
  • Supports 360° Rotation
  • Keystone Correction
  • Motorized Optical Lens Shift
  • Supports 24/7 Operation
  • HDMI, DisplayPort, HDBaseT & VGA Ports

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Barco G100-W25 25,000-Lumen WUXGA Laser DLP Projector (No Lens)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

With an incredible brightness of 25,000 lumens, the G100-W25 25,000-Lumen WUXGA Laser DLP Projector from Barco is a high-quality option for an indoor or outdoor multimedia attractions at a museum, planetarium, theater, or convention center. The single-chip DLP laser phosphor projection is able to produce image resolutions up to 1920 x 1200 and supports the extensive range of optional Barco GC-series lenses. Choose from throw ratios ranging from 0.38 to 10.8 based on your facility's needs. Offering a flexible and versatile design to meet different needs, the projector supports 360° rotation and many input options, from legacy VGA to dual HDMI. It's also made to be affordably run with a long operation time of over 20,000 hours, saving in lamp and maintenance costs.

Additional Details
  • Sealed DLP core
  • Stable lens holder for reliable blending and nonmoving images
  • Supports 24/7 operation
  • Keystone correction
  • Motorized optical horizontal and vertical lens shift
  • Embedded warp and blending controls
  • Install and manage from a PC using Barco's Projector Toolset software
  • 3D ready
  • Rugged design with low noise
  • Color correction
  • CLO (Constant Light Output)
  • HDBaseT compliant

Item Includes

  • Barco G100-W25 25,000-Lumen WUXGA Laser DLP Projector (No Lens)
  • Power Cord
  • Wireless Remote Control
  • Limited 3-Year Manufacturer Warranty

Item Includes

Display System
1-Chip 0.96" DLP
Native Resolution
1920 x 1200
Maximum Brightness
25,000 Lumens (ISO)
23,500 Lumens (Center)
21,100 Lumens (ANSI)
HDR Support
No

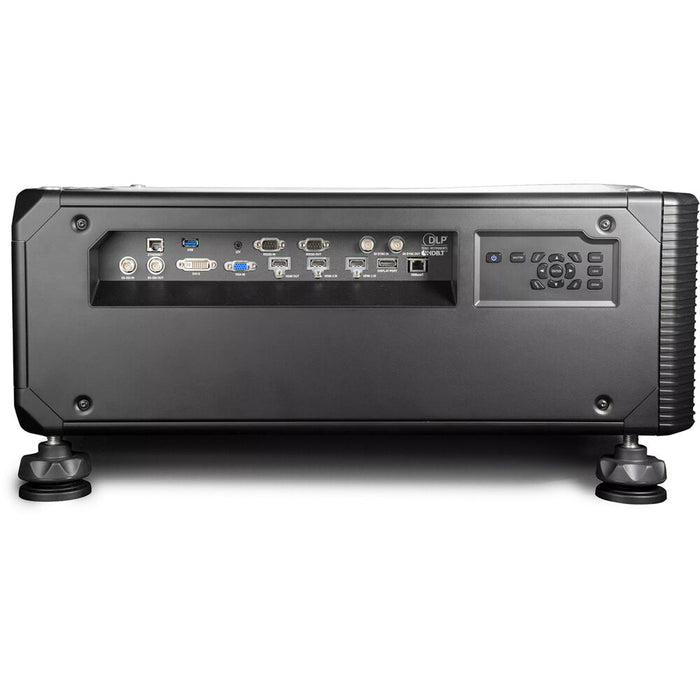

Inputs/Outputs
2x HDMI 2.0b Audio, Video Input
1x DisplayPort 1.2 Audio, Video Input
1x DVI-D Video Input
1x DE-15/DB-15 (VGA) Video Input
1x RF (3G-SDI) Audio, Video Input
1x HDMI 2.0b Audio, Video Output
1x RF (3G-SDI) Audio, Video Output
1x RJ45 (Ethernet) Data Input/Output
1x RJ45 (HDBaseT) Data Input/Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x RF (VESA 3D Sync) Video Input
1x RF (VESA 3D Sync) Video Output
1x USB-C Data Input/Output
1x 12 V Trigger Control Input
Show More
Light Source
Laser Phosphor
Image Display
Display System
1-Chip 0.96" DLP
Native Resolution
1920 x 1200
Supported Resolutions
Maximum: 4096 x 2160 @ 60 Hz
Maximum Brightness
25,000 Lumens (ISO)
23,500 Lumens (Center)
21,100 Lumens (ANSI)
Uniformity
90%
Aspect Ratio
Native: 16:10
Contrast Ratio
1100:1
Lens
Includes Lens
No
Features
HDR Support
No
Multi-Input Support (PIP/PBP)
No
Built-In Speaker
No
Projection Tilt Option
No
Input/Output Connectors
Inputs/Outputs
2x HDMI 2.0b Audio, Video Input
1x DisplayPort 1.2 Audio, Video Input
1x DVI-D Video Input
1x DE-15/DB-15 (VGA) Video Input
1x RF (3G-SDI) Audio, Video Input
1x HDMI 2.0b Audio, Video Output
1x RF (3G-SDI) Audio, Video Output
1x RJ45 (Ethernet) Data Input/Output
1x RJ45 (HDBaseT) Data Input/Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x RF (VESA 3D Sync) Video Input
1x RF (VESA 3D Sync) Video Output
1x USB-C Data Input/Output
1x 12 V Trigger Control Input
HDCP Support
No
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
No
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Low Brightness: 20,000 Hours
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Low Brightness: 1300 W
Full Brightness: 1500 W
Standby Mode (Lamp Off): < 0.5 W
Certifications
BIS, BSMI, CCC, CE, FCC Class A, KC, PSE, RCM, cTUVus
Operating Conditions
32 to 122°F / 0 to 50°C
Storage Conditions
14 to 140°F / -10 to 60°C
Dimensions (W x H x D)
25.6 x 9.9 x 28.0" / 650.0 x 251.0 x 710.0 mm (Without Feet)
Weight
121.7 lb / 55.2 kg
