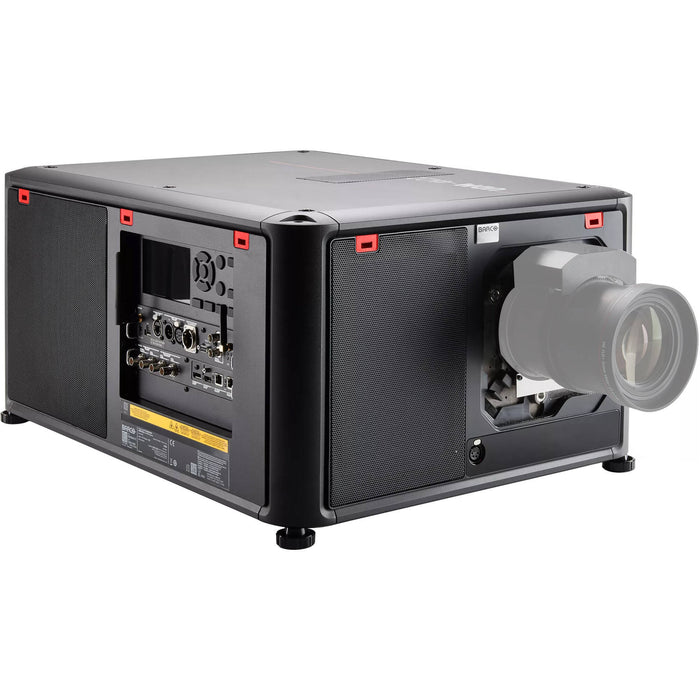

Barco UDM-4K30 27,000-Lumen XPR 4K Laser DLP Projector for Large Venues

Barco UDM-4K30 27,000-Lumen XPR 4K Laser DLP Projector (No Lens, No Wi-Fi, No GSM)

SKU R9401001BU
Save 2% Save 2%
$87,550.00
$87,550.00 - $87,550.00
$87,550.00
$85,740.00
$85,740.00 - $85,740.00
$85,740.00

The Barco UDM-4K30 is a high-performance 27,000-Lumen XPR 4K Laser DLP Projector designed for demanding large venue and event applications. Its modular, compact, and robust construction simplifies installation and maintenance while ensuring consistent, sharp imagery with low latency through Barco Pulse Single Step Processing. Featuring a long-life laser phosphor light source with Constant Light Output and an integrated cooling system, this projector delivers reliable, high-brightness performance. Advanced motorized lens adjustments and remote management capabilities provide precise control and operational efficiency for professionals.

Key Features
  • Lens Required & Not Included
  • Brightness of 27,000 ISO Lumens
  • UHD 4K 3840 x 2400 On-Screen Resolution
  • Native WQXGA 2560 x 1600 Resolution
  • 3-Chip DLP Laser Projection System
  • Integrated Laser Cooling System
  • Motorized Zoom, Focus & Lens Shift
  • Wide -100/+130% Vertical Lens Shift
  • Wide -40/+40% Horizontal Lens Shift
  • Compact, Rugged & Modular Design

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Barco UDM-4K30 27,000-Lumen XPR 4K Laser DLP Projector (No Lens, No Wi-Fi, No GSM)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Compact and lightweight for its category, the UDM-4K30 27,000-Lumen WQXGA Laser DLP Projector from Barco is also modular, making installation, shipping, and repair easier. Additional cost savings come in the form of the laser light source that does not require frequent bulb replacement. Barco incorporates Constant Light Output (CLO) to achieve consistent color and brightness throughout its lifespan, and an integrated cooling system keeps it from overheating. With these features and a wide motorized lens shift, remote management, and a plethora of inputs, the UDM-4K30 is an ideal solution when you need a solid projection solution for large venues and event spaces.

Lens Adjustment
Once you select your lens, motorized adjustment lets you manage zoom, focus, and lens shift. Your lens shift range is wide to better accommodate different types of locations and surfaces. Based on the lens, you can shift vertically -100 to +130%, and horizontally +/- 40%.
Barco Pulse
Built on the Barco Pulse electronics platform, the UDM-4K30 provides Barco Pulse Single Step Processing, where warping, scaling, and up to 4K image processing is done in a single step. This results in an image that's incredibly sharp and motion with extremely low latency.
Remote Management
Troubleshooting can be done onsite through the built-in controls and display panel, or you can do it remotely using the Barco Insights Management Suite. This cloud-based dashboard lets you manage the brightness settings of your projector fleet and keep track of operating conditions anywhere and anytime through a secured cloud-based platform.
Additional Features
  • 3-chip DLP system

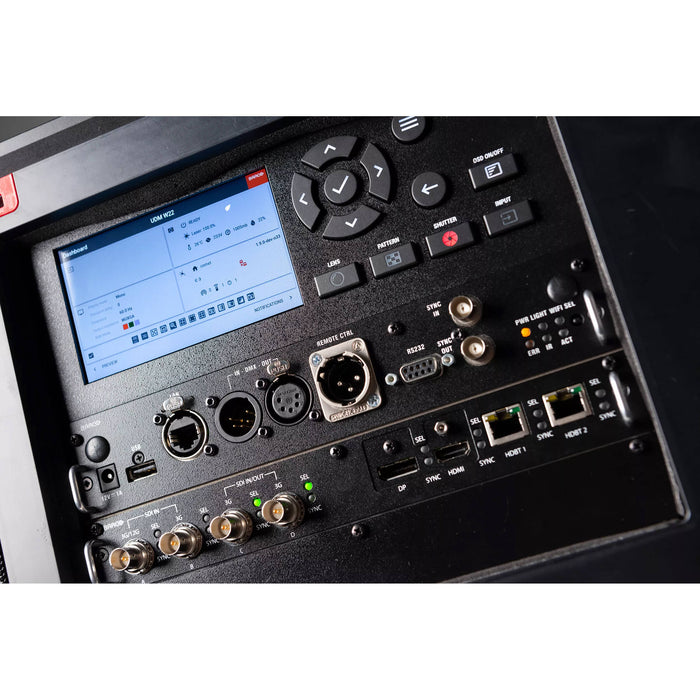

  • Built-in display and control panel
  • FLEX2 system lets you lock in brightness level and resolution values
  • Robust construction can handle tough conditions

Item Includes

  • Barco UDM-4K30 27,000-Lumen XPR 4K Laser DLP Projector (No Lens, No Wi-Fi, No GSM)
  • Power Cord
  • Wireless/XLR Wired Rugged Remote Control
  • Limited 3-Year Manufacturer Warranty

Not Included

  • Essential
    Lenses & Lens Adapters

Item Includes

Display System
3-Chip 0.9" DMD DLP
Native Resolution
2560 x 1600
Maximum Brightness
27,000 Lumens (ISO)
25,500 Lumens (Center)
25,000 Lumens (ANSI)
HDR Support
Yes: HDR10
Inputs/Outputs
2x RJ45 (HDBaseT) Audio, Control, Video Input
1x HDMI 2.0 Audio, Video Input
1x DisplayPort 1.2 Audio, Video Input
1x BNC (12G-SDI) Video Input
1x BNC (3G-SDI) Video Input
2x BNC (3G-SDI) Video Input/Output
1x RJ45 (Ethernet) LAN Input/Output
1x 5-Pin DIN (DMX) Control Input
1x 5-Pin DIN (DMX) Control Output
1x 3-Pin DIN Remote Input
1x BNC (VESA 3D Sync) Control Input
1x BNC (VESA 3D Sync) Control Output
1x DE-9/DB-9 (RS-232) Control Input
Show Less
Light Source
Laser Phosphor
Image Display
Display System
3-Chip 0.9" DMD DLP
Native Resolution
2560 x 1600
On-Screen Resolution
Up to 3840 x 2400 via Pixel-Shift Technology
Supported Resolutions
Maximum: 4096 x 2160 @ 120 Hz
2560 x 1600 @ 240 Hz
Maximum Brightness
27,000 Lumens (ISO)
25,500 Lumens (Center)
25,000 Lumens (ANSI)
Uniformity
95%
Aspect Ratio
Native: 16:10
Contrast Ratio
2000:1
Lens
Includes Lens
No
Features
HDR Support
Yes: HDR10
Multi-Input Support (PIP/PBP)
Yes: Picture-by-Picture (PBP)
Input/Output Connectors
Inputs/Outputs
2x RJ45 (HDBaseT) Audio, Control, Video Input
1x HDMI 2.0 Audio, Video Input
1x DisplayPort 1.2 Audio, Video Input
1x BNC (12G-SDI) Video Input
1x BNC (3G-SDI) Video Input
2x BNC (3G-SDI) Video Input/Output
1x RJ45 (Ethernet) LAN Input/Output
1x 5-Pin DIN (DMX) Control Input
1x 5-Pin DIN (DMX) Control Output
1x 3-Pin DIN Remote Input
1x BNC (VESA 3D Sync) Control Input
1x BNC (VESA 3D Sync) Control Output
1x DE-9/DB-9 (RS-232) Control Input
HDCP Support
Yes: Version 2.2
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
No
Bluetooth
No
General
Light Source
Laser Phosphor
Fan Noise
Full Brightness: 49 dB
Input Power
120 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: < 2300 W
Certifications
CE EN55032 Class A, EN60950-1, FCCpart 15, Class A, RoHS, UL60950-1
Operating Conditions
32 to 104°F / 0 to 40°C up to80% Humidity
Dimensions (W x H x D)
28.5 x 13.3 x 21.3" / 725.0 x 339.0 x 540.0 mm
Weight
105.8 lb / 48 kg
