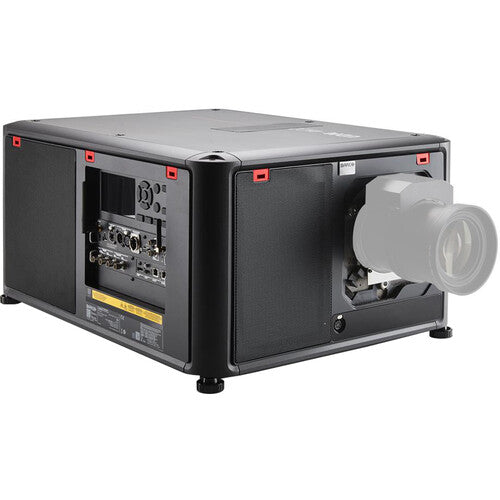

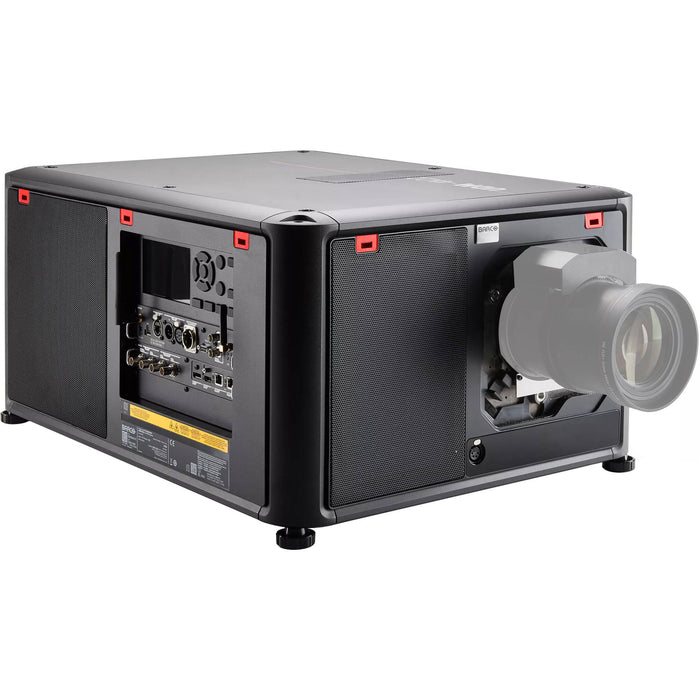

Barco UDM-W30 30,000-Lumen WUXGA Laser DLP Projector for Large Venues

Barco UDM-W30 30,000-Lumen WUXGA Laser DLP Projector (No Lens, No Wi-Fi, No GSM)

SKU R9401000BU
Save 3% Save 3%
$71,450.00
$71,450.00 - $71,450.00
$71,450.00
$69,520.00
$69,520.00 - $69,520.00
$69,520.00

The Barco UDM-W30 is a compact, modular 30,000-lumen WUXGA laser DLP projector meticulously engineered for large venues and event spaces. Its advanced laser phosphor light source delivers consistent brightness and significant cost savings over its extended lifespan, complemented by an integrated cooling system for optimal performance. Featuring the Barco Pulse platform, this projector ensures impressively sharp images and ultra-low latency motion through its single-step 4K image processing, warping, and scaling capabilities. Enhanced versatility is provided by remote management functionalities and a wide motorized lens shift, making it an ideal professional projection solution.

Key Features
  • Lens Required & Not Included
  • Brightness of 30,000 Lumens
  • Native WUXGA 1920 x 1200 Resolution
  • 3-Chip DLP Laser Projection System
  • Integrated Laser Cooling System
  • Motorized Zoom, Focus & Lens Shift
  • Wide -100/+130% Vertical Lens Shift
  • Wide -40/+40% Horizontal Lens Shift
  • Compact, Rugged & Modular Design

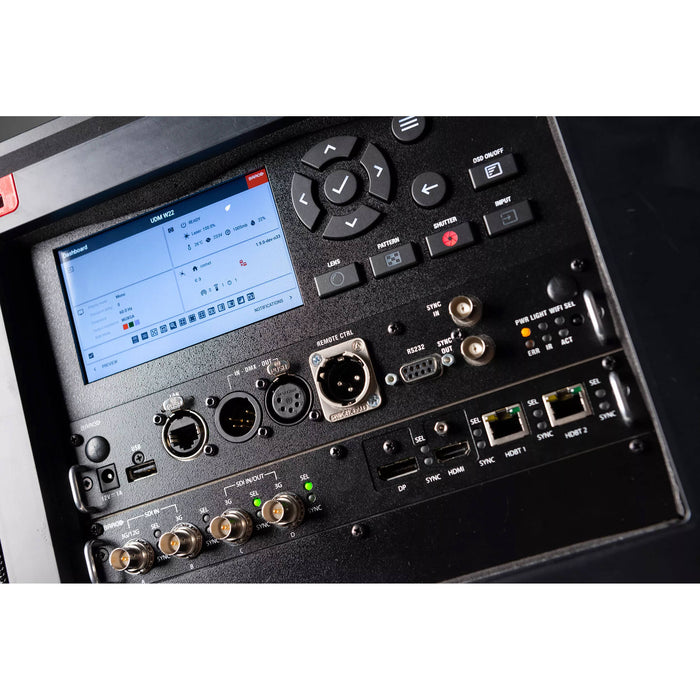

  • Built-In Display & Control Panel

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Barco UDM-W30 30,000-Lumen WUXGA Laser DLP Projector (No Lens, No Wi-Fi, No GSM)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Compact and lightweight for its category, the UDM-W30 30,000-Lumen WUXGA Laser DLP Projector from Barco is also modular, making installation, shipping, and repair easier. Additional cost savings come in the form of the laser light source that does not require frequent bulb replacement. Barco incorporates Constant Light Output (CLO) to achieve consistent color and brightness throughout its lifespan, and an integrated cooling system keeps it from overheating. With these features and a wide motorized lens shift, remote management, and a plethora of inputs, the UDM-W30 is an ideal solution when you need a solid projection solution for large venues and event spaces.

Lens Adjustment
Once you select your lens, motorized adjustment lets you manage zoom, focus, and lens shift. Your lens shift range is wide to better accommodate different types of locations and surfaces. Based on the lens, you can shift vertically -100 to +130%, and horizontally +/- 40%.
Barco Pulse
Built on the Barco Pulse electronics platform, the UDM-W30 provides Barco Pulse Single Step Processing, where warping, scaling, and up to 4K image processing is done in a single step. This results in an image that's incredibly sharp and motion with extremely low latency.
Remote Management
The Barco Insights Management Suite dashboard and remote log file access enables faster and more effective troubleshooting. Manage the brightness settings of your projector fleet and keep track of operating conditions anywhere and anytime through a secured cloud-based platform.
Additional Features
  • 3-chip DLP system
  • Built-in display and control panel
  • FLEX2 system lets you lock in brightness level and resolution values
  • Robust construction can handle tough conditions

Item Includes

  • Barco UDM-W30 30,000-Lumen WUXGA Laser DLP Projector (No Lens, No Wi-Fi, No GSM)
  • Power Cord
  • Wireless / XLR-Wired Rugged Remote Control
  • Limited 3-Year Manufacturer Warranty

Not Included

  • Essential
    Lenses & Lens Adapters

Item Includes

Display System
3-Chip 0.96" DMD DLP
Native Resolution
1920 x 1200
Maximum Brightness
31,000 Lumens (ISO)
29,000 Lumens (Center)
27,000 Lumens (ANSI)
HDR Support
Yes: HDR10
Inputs/Outputs
2x RJ45 (HDBaseT) Audio, Control, Video Input
1x HDMI 2.0 Audio, Video Input
1x DisplayPort 1.2 Audio, Video Input
1x BNC (12G-SDI) Video Input
1x BNC (3G-SDI) Video Input
2x BNC (3G-SDI) Video Input/Output
1x RJ45 (Ethernet) LAN Input/Output
1x 5-Pin DIN (DMX) Control Input
1x 5-Pin DIN (DMX) Control Output
1x 3-Pin DIN Remote Input
1x BNC (VESA 3D Sync) Control Input
1x BNC (VESA 3D Sync) Control Output
1x DE-9/DB-9 (RS-232) Control Input
Show More
Light Source
Laser Phosphor
Image Display
Display System
3-Chip 0.96" DMD DLP
Native Resolution
1920 x 1200
Supported Resolutions
Maximum: 4096 x 2160 @ 120 Hz
Maximum Brightness
31,000 Lumens (ISO)
29,000 Lumens (Center)
27,000 Lumens (ANSI)
Uniformity
93%
Aspect Ratio
Native: 16:10
Contrast Ratio
2200:1
Lens
Includes Lens
No
Features
HDR Support
Yes: HDR10
Multi-Input Support (PIP/PBP)
Yes: Picture-by-Picture (PBP)
Input/Output Connectors
Inputs/Outputs
2x RJ45 (HDBaseT) Audio, Control, Video Input
1x HDMI 2.0 Audio, Video Input
1x DisplayPort 1.2 Audio, Video Input
1x BNC (12G-SDI) Video Input
1x BNC (3G-SDI) Video Input
2x BNC (3G-SDI) Video Input/Output
1x RJ45 (Ethernet) LAN Input/Output
1x 5-Pin DIN (DMX) Control Input
1x 5-Pin DIN (DMX) Control Output
1x 3-Pin DIN Remote Input
1x BNC (VESA 3D Sync) Control Input
1x BNC (VESA 3D Sync) Control Output
1x DE-9/DB-9 (RS-232) Control Input
HDCP Support
Yes: Version 2.2
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
No
Bluetooth
No
General
Light Source
Laser Phosphor
Fan Noise
Full Brightness: 49 dB
Input Power
120 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: < 2300 W
Certifications
CE EN55032 Class A, EN60950-1, FCC, RoHS, UL60950-1
Operating Conditions
32 to 104°F / 0 to 40°C up to80% Humidity
Dimensions (W x H x D)
28.5 x 13.3 x 21.3" / 725.0 x 339.0 x 540.0 mm
Weight
105.8 lb / 48 kg
