Panasonic REQ12 Series PT-REQ12BU 12,000-Lumen Pixel Shift UHD 4K Laser DLP Projector (Black)

Panasonic REQ12 Series PT-REQ12BU 12,000-Lumen Pixel Shift UHD 4K Laser DLP Projector (Black)

SKU REQ12BU
Save 4% Save 4%
$50,199.00
$50,199.00 - $50,199.00
$50,199.00
$48,399.00
$48,399.00 - $48,399.00
$48,399.00

The PT-REQ12BU delivers 12,000 ISO lumens of brightness, enabling vivid images even in well‑lit venues. Its Quad Pixel Drive pixel‑shift technology produces true 4K resolution with a 240 Hz refresh rate for smooth motion. A sealed laser‑phosphor light source provides up to 20,000 hours of maintenance‑free operation and less than 39 dB fan noise. Connectivity includes dual HDMI, DisplayPort, LAN, RS‑232, and a versatile lens with ±60 % vertical and ±29 % horizontal shift.

Key Features
  • Brightness of 12,000 ISO Lumens
  • UHD 4K 3840 x 2400 On-Screen Resolution
  • WUXGA 1920 x 1200 Native Chip Resolution
  • 1.36-2.10:1 Throw Ratio Lens Included
  • 1 x DisplayPort & 2 x HDMI Inputs
  • Intel SDM-Ready Expansion Slot
  • 20,000 Hours of Maintenance Free Use
  • TAA Compliant

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Panasonic REQ12 Series PT-REQ12BU 12,000-Lumen Pixel Shift UHD 4K Laser DLP Projector (Black)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Experience dynamic visuals and professional reliability with the PT-REQ12BU Laser DLP Projector in black from Panasonic. Featuring a brightness of 12,000 ISO lumens, standard-throw lens, 4K on-screen resolution, and 240 Hz projection capability, the PT-REQ12BU is ideal for demanding commercial applications, like museums and small to midsize entertainment venues.

Connect devices via HDMI and DisplayPort with support for 4K HDR and HDCP 2.3. It is LAN and RS-232 controllable and compatible with many popular 3rd party functions, such as Crestron Connected, AMX DD, and PJLink. It can be installed in any orientation to cover a wide-range of uses and tricky installations. Additionally the PT-REQ12BU is TAA compliant.

UHD 4K via Panasonic's Quad Pixel Drive
The REQ12 Series projectors feature a Quad Pixel Drive, Panasonic's 2-axis pixel quadrupling technology, to create deep, smooth, and detailed 4K images. It supports 240 Hz projection and works with their optional real-time tracking projection-mapping system. Evolved Dynamic Contrast includes new scene-recognition circuitry to make the difference between black, white, and contrasting colors stand out dramatically and bring your content to life.
Professional Reliability
The REQ12 Series features an hermetically sealed optical block with all-liquid cooling, enabling 20,000 hours of maintenance-free projection. To prevent interruptions, Backup Input switches to a secondary signal without screen-blanking if the primary is disrupted, while a Multi Laser Drive Engine prevents brightness loss in the unlikely event of diode failure.
Effortless Workflow, Improved Expandability
The PT-REQ12BU responds to complex productions with expanded functions, interfaces, and options that streamline workflow. A new line of lenses improve native contrast, add powered peripheral focus, and expand the lens-shift range. An Intel SDM-specified slot integrates proprietary or third-party function boards to adapt and scale connectivity. You can import custom test patterns, use NFC function to prep for network connection without AC power, and save time with preactivated upgrade kits for Geo Pro software.
NFC Projector Prep
Using a mobile device and NFC technology, you can prepare your projector without it even being powered on. Tap the decal on the PT-REQ12BU to use the Smart Projector Control app to adjust settings that can then be applied when the projector is finally setup and powered on. This feature also lets you restore the PT-REQ12BU to factory defaults when powered off.

UPC: 885170405318

Item Includes

  • Panasonic REQ12 Series PT-REQ12BU 12,000-Lumen Pixel Shift UHD 4K Laser DLP Projector (Black)
  • Power Cord

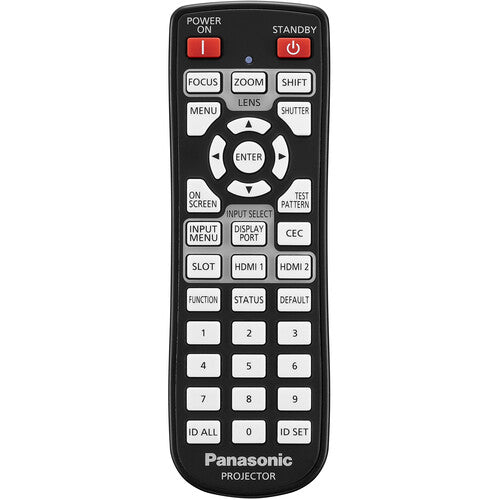

  • Remote Control
  • 2 x AAA Battery for Remote
  • Lens Cover
  • Slot Adapter
  • Limited 3-Year Manufacturer Warranty
  • Limited 3-Year Manufacturer Warranty (On Illumination Parts or 12,000 Hours, Whichever Comes First)

Item Includes

Display System 1-Chip 0.80" DLP Native Resolution 1920 x 1200 Maximum Brightness 12,000 Lumens (ISO) Throw Ratio 1.36 to 2.10:1 (200" Screen Size @ 24.6' / 7.5 m) Projection Size 70 to 700" / 1.8 to 17.8 m HDR Support Yes: HDR10/Hybrid Log Gamma Inputs/Outputs 2x HDMI Audio, Video Input 1x DisplayPort Audio, Video Input 1x USB-A Data, LAN Input 1x USB-A Power Output 1x RJ45 (Ethernet) Control, Data, LAN Input/Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x BNC Control Input 1x BNC Control Output 1x 1/8" / 3.5 mm Mini Remote Input 1x 1/8" / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input Show More Light Source Laser Phosphor Image Display Display System 1-Chip 0.80" DLP Native Resolution 1920 x 1200 On-Screen Resolution Up to 3840 x 2160 via Pixel-Shift Technology Supported Resolutions Maximum: 3840 x 2400 Maximum Brightness 12,000 Lumens (ISO) Aspect Ratio Native: 16:10 Supported: 16:9 Dynamic Contrast Ratio 20,000:1 Scan Horizontal: 27 to 291.6kHz Vertical: 24 to 240Hz Lens Includes Lens Yes Focus Manual Powered Aperture f/1.84 to 2.31 Focal Length 23.9 to 37.2mm Lens Shift Vertical: ± 60% Horizontal: ± 29% Optical Zoom Powered: Throw Distance 6.73 to 108.33' / 2.05 to 33.02 m Throw Ratio 1.36 to 2.10:1 (200" Screen Size @ 24.6' / 7.5 m) Projection Size 70 to 700" / 1.8 to 17.8 m Features Keystone Correction Manual to Vertical: ± 40° Manual to Horizontal: ± 40° HDR Support Yes: HDR10/Hybrid Log Gamma Multi-Input Support (PIP/PBP) No Ceiling Mountable Yes Rear Screen Projection Yes Built-In Speaker No Projection Tilt Option Yes Input/Output Connectors Inputs/Outputs 2x HDMI Audio, Video Input 1x DisplayPort Audio, Video Input 1x USB-A Data, LAN Input 1x USB-A Power Output 1x RJ45 (Ethernet) Control, Data, LAN Input/Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x BNC Control Input 1x BNC Control Output 1x 1/8" / 3.5 mm Mini Remote Input 1x 1/8" / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input HDCP Support Yes: Version 2.3 Media/Memory Card Slot No Number of Expansion Slots 1 Hardware Mobile App Compatible Yes, Adapter Required (Not Included): Android & iOS Wireless LAN / Wi-Fi No Bluetooth No General Light Source Laser Phosphor Expected Lamp Life Medium Brightness: 20,000 Hours Low Brightness: 24,000 Hours Fan Noise Medium Brightness: 39 dB Security Cable Lock Slot Password Protection Input Power 100 to 240 VAC, 50 / 60 Hz Power Consumption Full Brightness: < 1050 W Operating Conditions 32 to 113°F / 0 to 45°C at 10 to 80% Humidity Dimensions (W x H x D) 19.6 x 8.3 x 25.5" / 498.0 x 212.0 x 648.0 mm (with Lens and Feet) 19.6 x 7.7 x 21.2" / 498.0 x 196.0 x 538.0 mm (without Lens and Feet) Weight 63.5 lb / 28.8 kg
