Acebil WT-120 Wireless Video Transmitter/Receiver Set

Name: Acebil WT-120 Wireless Video Transmitter/Receiver Set
Brand: Acebil
SKU: WT-120
Price: 1273.10 USD
Availability: InStock

SKU WT-120

Save 8%

$1,389.00

$1,389.00 - $1,389.00

$1,389.00

$1,273.10

$1,273.10 - $1,273.10

$1,273.10

Up to 1080p60 Uncompressed Transmission
Range up to 394' with <1 ms Latency
HDMI and 3G-SDI Input/Output
Ten Channels at 5 GHz Frequency
Signal Status Indicators
Use up to Four Sets without Interruption
Supports Multiple Audio Formats
Pre-Paired Transmitter and Receiver Set

Quantity

Our Customers & Partners

Features

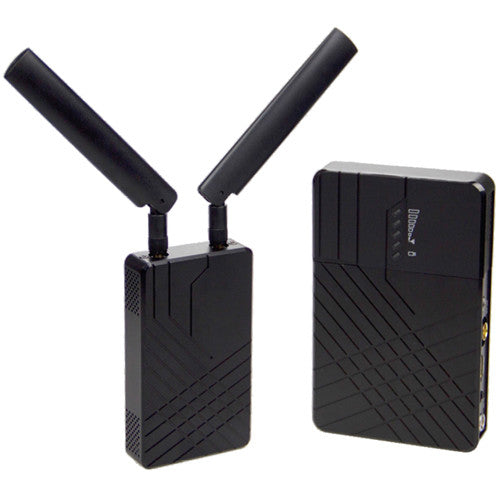

The Acebil WT-120 Wireless Video Transmitter/Receiver Set provides HDMI/SDI audio/video transmission up to 394' away. It supports signals up to uncompressed 1080p. The WT-120's <1 ms latency provides real-time viewing, crucial for accurate focus pulling by your camera assistant. Up to four systems can be used together without interruption, each paired to one of 10 channels (at 5 GHz frequency). Each transmitter and receiver set is factory pre-paired, reducing on-set startup time.

Multiple audio formats are supported, including Dolby True HD, and DTS-HD master audio. An optional Sony NP-F970 battery adapter (available separately) can be used for powering the units.

Up to 1080p uncompressed wireless video and audio transmission

Transmits up to a distance of 394' with under one millisecond latency

HDMI and 3G-SDI input and output

Select from ten 5 GHz channels

Employ up to four sets simultaneously

Factory-paired transmitter and receiver sets

LED indicators for receiver signal strength, network status, and video status

Multiple audio formats are supported

Works with optional Sony NP-F970 battery adapter plate

Item Includes

Acebil WT-120 Wireless Video Transmitter/Receiver Set
Limited 1-Year Manufacturer Warranty

Item Includes

Interface - Connectors	Transmitter: 1 x SDI input (BNC female) 1 x HDMI input (Type A female) 2 x Antenna ports (RF-2 SMA male) 1 x DC input (4-pin LEMO female) Receiver: 1 x SDI input (BNC female) 1 x HDMI input (Type A female) 1 x DC input (4-pin LEMO female)
Video Input/Output	HDMI: 1080p 23.98/24/25/29.9/30/50/59.94/60 1080i 50/59.94/60 720p 50/59.94/60 625i 50/59.94/60 525i 50/59.94/60 3G/HD/SD-SDI (Auto-Selected): SMPTE-259/274/292/296/372/424/425
Audio Input / Output	SDI 4-channel / embedded / 24-bit / 48 kHz
ESD Protection	All Ports: +/- 8 kV
Frequency	5.1 to 5.9 GHz
Modulation Mode	OFDM 16-QAM
Transmission Distance	131' (120 m)
Maximum Transmit Power	21 dBm
Receiver Sensitivity	-75 dBm
Occupied Bandwidth	40 MHz
Encryption	AES-128
Material of Construction	Anodized aluminum
Power Supply Voltage	Transmitter/Receiver: 7 to 36 VDC
Power Consumption	Transmitter: <6.5 W Receiver: <7.5 W
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Dimensions	Transmitter: 4.5 x 2.6 x 0.9" (11.5 x 6.7 x 2.3 cm) Receiver: 6.0 x 3.7 x 0.9" (15.2 x 9.5 x 2.3 cm)
Weight	Transmitter: 9.5 oz (270 g) Receiver: 12.5 oz (355 g)

Packaging Info

Package Weight	4.8 lb
Box Dimensions (LxWxH)	12.2 x 7.6 x 3.7"
