Barco F90-W13 R9023466 Laser/Phosphor Light Source Projector

Barco F90-W13 R9023466 Laser/Phosphor Light Source Projector

SKU R9023473
Save 28% Save 28%
$10,999.00
$10,999.00 - $10,999.00
$10,999.00
$7,968.04
$7,968.04 - $7,968.04
$7,968.04
  • Brightness of up to 13,000 Lumens
  • 1920 x 1200 (WUXGA) Resolution
  • Single-Chip DLP
  • 16:10 Aspect Ratio
  • Compatible with FLD+ Lenses
  • Constant Light Output Functionality
  • Lifetime of up to 60,000 Hours
  • HD-SDI, HDMI, HDBT, DisplayPort & DVI-D
  • P7 RealColor
  • Active Stereoscopic 3D

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Barco F90-W13 R9023466 Laser/Phosphor Light Source Projector

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

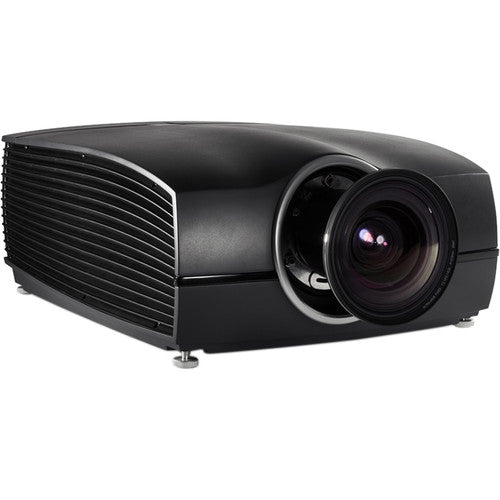

The F90-W13 13,000-Lumen WUXGA Laser Projector from Barco is a single-chip DLP projector that features brightness levels of up to 13,000 lumens at a WUXGA resolution. It is designed to be used with FLD+ lenses (available separately). This projector has CLO (Constant Light Output) functionality allowing it to produce constant brightness and color over a long period of time and supports a lifetime of up to 60,000 hours (depending on the mode of operation). It features IR, RS-232, and RJ45 controls and includes a power cord and a wireless remote control.

Item Includes

  • Barco F90-W13 13,000-Lumen WUXGA Laser Projector (No Lens)
  • Power Cord
  • Wireless Remote Control
  • Tool Set
  • Limited 3-Year Manufacturer Warranty
    Registration Extension: 2-Year (US Only)

Item Includes

Image Display
Display System
1-Chip DLP
Native Chip Resolution
1920 x 1200 (WUXGA)
On-Screen Resolution
Up to DCI 4K (4096 x 2160) via Pixel-Shift Technology
Supported Resolutions
4096 x 2160 @ 60 Hz
3860 x 2400 @ 60 Hz
2560 x 1600 @ 120 Hz
Maximum Brightness
13,000 Lumens (Center)
Uniformity
90%
Aspect Ratio
Native: 16:10
Supported: 17:9
Supported: 16:9
Contrast Ratio
1800:1
DLP Link 3D
Yes
Input/Output Connectors
Inputs/Outputs
1 x BNC (HD-SDI) Video
2 x DisplayPort Video
2 x DVI-D Video
1 x RJ45 (HDBaseT) Video
1 x HDMI Video
1 x RJ45 (Ethernet) LAN
1 x XLR Control Input/Output
1 x DE-9/DB-9 (RS-232) Control Input
2 x USB-A Control
1 x 12 V Trigger Control, Service Output
Hardware
Wireless LAN / Wi-Fi
No, Optional Adapter Available
General
Light Source
Laser Phosphor
Expected Lamp Life
Full Brightness: 60,000 Hours
Fan Noise
Full Brightness: 38 dB
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Heat Dissipation
Medium Brightness: 5100 BTU
Full Brightness: 7430 BTU
Power Consumption
Medium Brightness: 1500 W
Full Brightness: 2180 W
Standby Mode (Lamp Off): < 0.5 W
Operating Temperature
50 to 113°F / 10 to 45°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
20 to 80%
Storage Humidity
10 to 90%
Dimensions (W x H x D)
22.6 x 11.6 x 28.7" / 575.0 x 295.0 x 730.0 mm
Weight
98.1 lb / 44.5 kg
