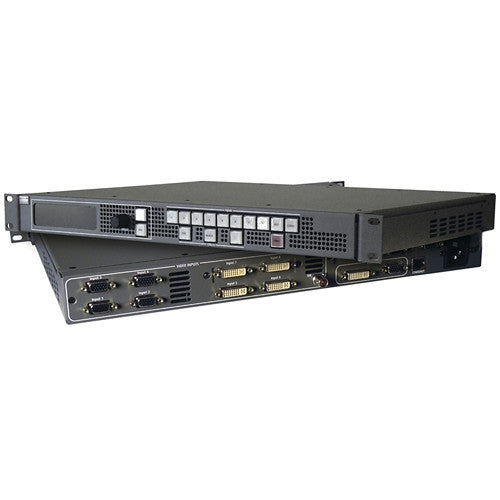

Barco R9004686 PDS-701 Presentation Switcher

Barco R9004686 PDS-701 Presentation Switcher

SKU R9004686
Save 54% Save 54%
$2,998.50
$2,998.50 - $2,998.50
$2,998.50
$1,380.70
$1,380.70 - $1,380.70
$1,380.70
  • Digital Switcher

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Barco R9004686 PDS-701 Presentation Switcher

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The Barco PDS-701 Digital Switcher features two DVI-I inputs, one 3G/HD/SD SDI, and four universal analog inputs. All analog and DVI inputs support the EDID 1.3 specification. Users can capture and store up to 3 images that can be used as a logo source during the presentation. Built-in test patterns are also provided. The PDS-701 Digital Switcher provides simultaneous program output via the DVI and analog connectors. Thanks to its straightforward setup and operation, the switcher is suitable for live events, boardrooms, hotel ballrooms, houses of worship, education and training facilities, and fixed installations.

Item Includes

  • Barco PDS-701 Digital Switcher
  • Limited 3-Year Warranty on Parts & Labor

Item Includes

Video Inputs
DVI-I
Digital formats: All single-link DVI digital formats up to 165 MHz, per DVI 1.0 specification
Analog formats: NTSC/PAL composite and Y/C video, SD YPbPR with bi-level sync, HD YPbPr with tri-level sync, RGBHV/RGBS/RGsB computer video with bi-level sync Analog 1:1 sampling up to 1920 x 1080 @ 60 Hz. Sources with native pixel rates greater than 150 MHz will be filtered and sampled at 150 MHz. These include but not limited to 1920 x 1080p @ 60 (173 MHz), 1920 x 1200 @ 60 (193.25 MHz) and 2048 x 1080p @ 60 (183.75 MHz)
EDID version 1.3 compatible - HDCP version 1.0 compatible

HD-15 VGA
Format: NTSC/PAL composite and Y/C video SD YPbPr with bi-level sync HD YPbPr with tri-level sync per SMPTE 274, RGBHV/RGBS/RGsB computer video with bi-level sync
Analog 1:1 sampling up to 1920 x 1080 @ 60 Hz. Sources with native pixel rates greater than 150 MHz will be filtered and sampled at 150 MHz. These include but not limited to 1920 x 1080p @ 60 (173 MHz), 1920 x 1200 @ 60 (193.25 MHz) and 2048 x 1080p @ 60 (183.75 MHz)
EDID version 1.3 compatible

SD/HD/3G SDI on BNC
Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424M
Video Outputs
DVI-I
Formats: All single-link DVI digital formats up to 165 MHz, per DVI 1.0 specification
EDID version 1.3 compatible - HDCP version 1.0 compatible

HD-15 VGA
Formats: HD YPbPr with tri-level sync per SMPTE 274, RGBHV/RGBS/RGsB computer video with bi-level sync
EDID version 1.3 compatible
Control
Ethernet RJ-45, 10/100 Mbps autosense
Computer, tablet, smartphone, or Encore, or ScreenPRO-II Controller via Ethernet link
Input Power
100 to 240 VAC, 47 to 63 Hz, auto-selecting 2.0 A maximum
Temperature
32 to 104°F (0 to 40°C)
Humidity
0 to 95% non-condensing
Height
1 RU Rack Mount: 1.75" (4.44 cm
Width
Without Chassis Handles: 17.00" (43.18 cm)
With Chassis Handles Attached: 19.06" (48.41 cm)
Depth
From Front to Rear Panel: 14.25" (36.19 cm)
Weight
12.5 lb (5.6 kg)
Packaging Info
Box Dimensions (LxWxH)
23 x 23 x 7"
