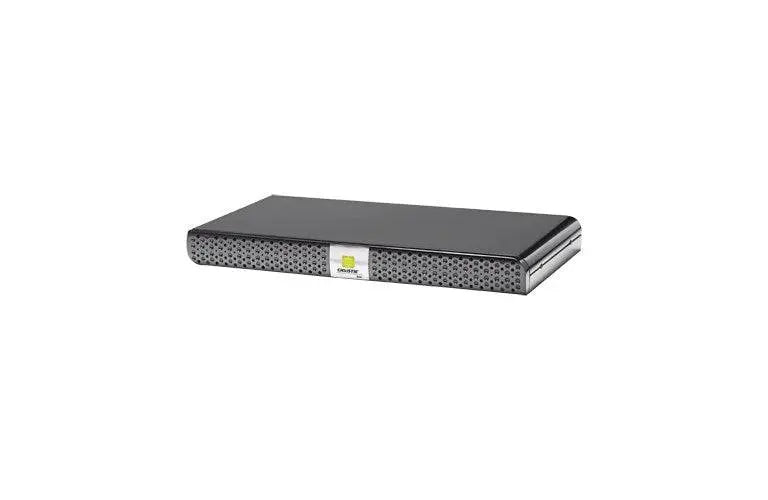

Christie Brio Team+ Point-to-Point Collaboration Solution

Christie Brio Team+ Point-to-Point Collaboration Solution

SKU 148-003104-01
Save 66% Save 66%
$7,722.00
$7,722.00 - $7,722.00
$7,722.00
$2,610.75
$2,610.75 - $2,610.75
$2,610.75

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Christie Brio Team+ Point-to-Point Collaboration Solution

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

For high-security environments where access to a local area network is restricted, ChristieBrio Team+ is a licensed option that offers the advantage of displaying original video content at native resolutions through DVI-D wired video inputs. The Team+ unit has an integrated wireless access point (WAP), supporting output sources of up to 2560 x 1600 at 30 Hz or 1920 x 1080 at 60 Hz with HDCP.

Features

Outputs
  • Dual DisplayPorts: Up to 2560x1600 pixels per output
Inputs
  • Dual DVI-D: Support for up to 2560 x 1600 pixels per input (wired connection)
  • Up to 5 video sources from 640x480 to 1920x1080 encoded to H.264
  • 2 analog 3.5mm stereo audio
  • Up to 5 audio encoded streams to H.264
  • Support for HDCP (High-bandwidth Digital Content Protection)
  • 4 USB ports
Network
  • Internal 2.4GHz wireless access point
  • IEEE 802.11 a/b/g/n standard
  • 2Tx / 2Rx MIMO
  • Up to 300Mbps data rate
  • 64/128/152 bit WEP, WPA, WPA2, 802.1x, AES & TKIP
Encoding
  • 2 high definition DVI-D inputs to L5 H.264 video streams @ 30 FPS
  • Up to 5 high-definition L5 H.264 video streams @30 FPS
  • 2 stereo audio streams
  • Support for variable bitrate
Decoding
  • Up to 5 high-definition network video streams @ 30Hz
Protocols supported
  • AirPlay
  • MS Network Projector
  • Brio Screen Projector (for use with Android devices)
Physical Specifications
  • Size: (WxHxD) 17.40" x 1.74" x 9.5" (442 x 44 x 241mm)
  • Weight: 6.5lbs (2.95kg)
  • Chassis: 1U form factor
Power
  • Voltage range: 100-240V AC (auto-ranging power supply)
  • Current: 2-4A (max)
  • Power consumption: 220W (max)
Reliability
  • MTBF: >50,000 hours for major modules
Regulatory
  • CAN/CSA C22.2 No. 60950-1
  • UL 60950-1
  • IEC 60950-1 emissions
  • FCC CFR47, Part 15, Subpart B, Class A unintentional radiators
  • EN55103-1 Class A audio, video, audio-visual equipment emission; EN55103-2 audio video, audio-visual equipment immunity; EN61000-3-2, EN61000-3-3
  • Directives: (EC) 2011/65/EU (RoHS); 2012/19/EU (WEEE); Regulation (EC) No. 1907/2006 (REACH)
  • Certification marks (check with Christie for latest update): cULus (Canada & US), CE (EU), CCC (China), Saudi Arabia, South Africa, Ukraine, Mexico, GoST-R (Russia) and/or Customs Union which includes Belarus, Kazakhstan, Russia, KC (Korea), S-Mark (Japan), C-Tick (Australia & New Zealand), Taiwan
Manufacturing location
  • Designed, manufactured, and tested by Christie Digital Systems Inc. at our facility in Phoenix, Arizona, USA
Warranty
  • Limited two years parts and labour
