NJA 4K HDMI to USB 3.0 Video Capture Card

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request

NJA 4K HDMI to USB 3.0 Video Capture Card

SKU 4K2USB3
Save 55% Save 55%
$889.50
$889.50 - $889.50
$889.50
$396.25
$396.25 - $396.25
$396.25
  • Uncompressed Video & Audio Capture
  • Ideal for Streaming & Videoconferencing
  • HDMI Input
  • Up to 2160p30 Video

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

NJA 4K HDMI to USB 3.0 Video Capture Card

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Overview

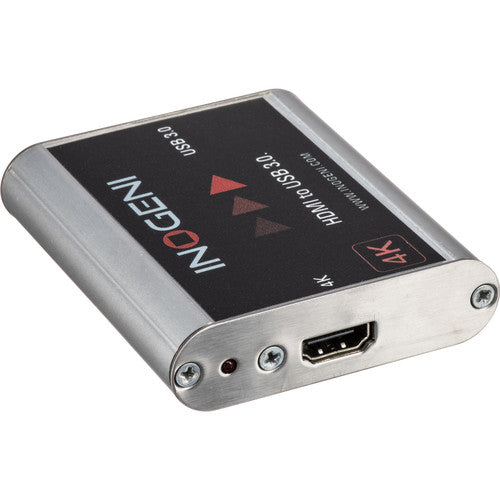

The4K HDMI to USB 3.0 Video Capture Cardallows you to capture uncompressed video with audio from your camera's HDMI output on your PC for recording, editing, videoconferencing, and streaming applications. No driver installation is necessary and it will work on all motherboard and USB 3.0 chipsets. It features an HDMI input and a USB 3.0 output. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OS X, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. This capture card is backward compatible with USB 2.0 devices. However, due to bandwidth restrictions, the card will only be able to operate at resolutions below 1080p.

The converter supports 4K resolutions up to 30 fps, and 1080p resolutions up to 60 fps as well as most computer graphic formats. All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0while all UHD resolution signals are converted to 4:2:0 8-bit. The embedded audio in the HDMI signal is extracted and output as two-channel LPCM. A USB 3.0 cable comes included.

Features

HDMI capture to USB 3.0 (Backward compatible with USB 2.0)
Supports 4K, 1080p, 1080i, 720p, 480p, and 576p video formats
Supports 1920 x 1200, 1280 x 1024, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480 graphic formats
HDMI audio support
Fluid technology - Internal frame buffers maximize frame rate regardless of PC
Hardware-based color space and sampling conversion
Automatic scaling and frame rate conversion (UHD upscaling not supported)
Customizable video processing functions
Image controls: Brightness, contrast, saturation, and hue settings
Bus-powered from the USB port
Compatible with Windows, Mac OS X, Linux, and Android
Note: Not all resolutions will be supported on some devices with input bandwidth restrictions

Item Includes

  • 4K HDMI to USB 3.0 Video Capture Card
  • USB 3.0 Cable
  • Limited 2-Year Warranty

Item Includes

Host ConnectionUSB Type-B (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)
Input
Video Input Connectors1 xHDMI (HDMI 1.4a)
Input Video FormatHDMI
480p: 23.98/24/25/29.97/30/50/59.94/60 fps
576p: 23.98/24/25/29.97/30/50/59.94/60 fps
720p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 23.98/24/25/29.97/30/50/59.94/60 fps
WUXGA (1920 x 1200): 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio InputHDMI: 2-Channel
Output
Video Output Connectors1 xUSB Type-B
Hardware
OS CompatibilityWindows 7 or Later
macOS 10.10 or Later
Linux
Environmental
Operating Temperature32 to 113F / 0 to 45C
Storage Temperature-40 to 221F / -40 to 105C
Operating Humidity0 to 90%
General
Dimensions3.2 x 2.9 x 0.75" / 8.13 x 7.37 x 1.91cm
Weight4.23oz / 120g
Warranty LengthLimited 2-Year Warranty
Packaging Info
Package Weight0.7 lb
Box Dimensions (LxWxH)5.95 x 4.5 x 1.85"
