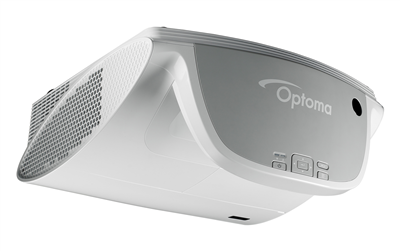

Optoma TX565UT-3D Ultra-Short Throw DLP Projector

Optoma TX565UT-3D Ultra-Short Throw DLP Projector

SKU TX565UT3D
Save 36% Save 36%
$499.00
$499.00 - $499.00
$499.00
$321.12
$321.12 - $321.12
$321.12
  • Ultra short throw design minimizes shadows
  • 3D-capable via DLP® Link™ technology – Up to 720p resolution**
  • Natively-embedded Crestron RoomView® delivers built-in connectivity and control
  • Powerful audio – Built-in 10-watt speaker system
  • Environmentally-friendly design uses less than 0.5 watt of power in standby mode

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Optoma TX565UT-3D Ultra-Short Throw DLP Projector

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Optoma’s TX565UT-3D brings together high brightness and contrast with 3D capabilities to allow presenters and educators to deliver sharp, crystal-clear images and bring content to life. Sophisticated optics technology allows the projector to be placed above and just inches from a whiteboard, screen or wall to reduce on-screen shadows and eye glare. Meanwhile, the sleek and sophisticated design provides streamlined installation.

Item Includes

  • Optoma TX565UT-3D

Item Includes

Display Technology Single 0.55" DC3 DMD DLP by Texas Instruments
Resolution XGA (1024x768)
Brightness 2500 ANSI Lumens
Contrast Ratio 3000:1 (Full On/Full Off)
Lamp Life and Type 4000/3000 Hours (STD/Bright) 230W P-VIP
Throw Ratio 0.38 (Distance/Width)
Projection Distance 18.5" to 25.8" From Projector mirror to Screen
Image Size (Diagonal) 63" to 85" (1.96m to 2.54m)
Aspect Ratio 4:3 Native, 16:9 Compatible
Offset 128%
Displayable Colors 1.07 Billion
Uniformity 85%
Audio Two 5-Watt Speakers Variable Audio Out HDMI Audio Pass-Thru
Noise Level 30dB/32dB
Remote Control IR Remote with Mouse Control
Computer Compatibility UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
Video File Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
3D Compatibility 120Hz Frame Sequential 3D for Resolutions Up to 720p, 60Hz Field Sequential 3D for Resolutions Up to 480i
Monitor Loop Through D-Sub 15 pin VGA Output (Functional in Both Normal and Standby Modes)
Projection Lens F=2.71, f=4.415mm, Manual Focus Digital Zoom=0.8~2.0
Closed Captioning Enabled Via On-Screen Menu
User Controls Complete On-Screen Menu Adjustments in 26 Languages
I/O Connectors HDMI v1.3, Two VGA-In, VGA-Out, S-Video, Composite Video, RCA Stereo Audio-In, Stereo Audio-In, Stereo Audio-Out, Microphone-In, 12v Trigger, RJ45 and RS-232
Security Kensington® Lock Port, Security Bar and Keypad Lock
Product Dimensions (W x H x D) 16.8” x 8.27” x 16” (426.5 x 210 x 407 mm)
Horizontal Scan Rate 15.3, 30 - 91.1 KHz
Vertical Refresh Rate 24 – 85, 120 Hz
Operating Temperature 41 to 104°F (5 to 40°C), 85% Max Humidity
Power Supply AC Input 100-240V, 50-60Hz, Auto-Switching
Power Consumption 330 Watts (Bright), 255 Watts (STD), 14 Watts (Active Standby),
Standard Accessories AC Power Cord, VGA to VGA Cable, Remote Control, Batteries for Remote, Mini-USB Cable, Multilingual CD-ROM User’s Manual, Quick Start Card and Warranty Card
Optional Accessories HDMI Cable, Microphone, Component to VGA Cable, Composite Video Cable, RS-232 Cable and Panoview™ Series Screens, DLPLink 3D glasses, 3D scaler box
Warranty 3-Year Optoma Express Replacement Service, 1-Year Lamp
UPC 796435 41 750 5
