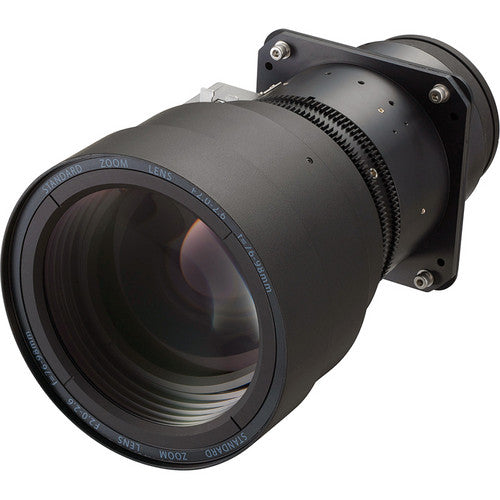

Sanyo LNS-S04 Standard Zoom Lens

Sanyo LNS-S04 Standard Zoom Lens

SKU LNS-S04
Save 68% Save 68%
$3,750.00
$3,750.00 - $3,750.00
$3,750.00
$1,196.10
$1,196.10 - $1,196.10
$1,196.10
  • For PLC-XF47, XF1000, HF10000L, HF15000L
  • Standard-Throw Ratio 2.0 - 2.6 : 1
  • Motorized Focus & Zoom
  • Zoom Ratio: 1.3:1

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Sanyo LNS-S04 Standard Zoom Lens

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The Sanyo LNS-S04 Standard Zoom Lens allows you to change the focal length, which enables a range of projection distances. For this lens, the focal distance is 76 - 98mm. It has a zoom ratio of 1.3:1 and a standard-throw ratio of 2.0 - 2.6:1. Installing a zoom lens affords greater flexibility since you can alter the projection distance without actually moving the projector. This is convenient for permanently installed projectors. You can compensate for miscalculations during installation and it's possible to adjust your display proportions depending on class size or type of presentation.

Motorized Zoom
The LNS-S04 is a motorized zoom lens with a 1.3:1 zoom ratio. Its focal length is 76 - 98 mm

Vertical & Horizontal Lens Shift
Vertical lens shift allows the projector to optically move the image up and down so the projector will always be properly placed, even in varying installation scenarios. Horizontal lens shift works the same way for side-to-side movement

Item Includes

  • Panasonic LNS-S04 Standard Zoom Lens
  • Front Lens Cap
  • Rear Lens Cap
  • Screw Driver
  • Instillation Manual
  • Limited 1-Year Warranty

Item Includes

General
Lens Type
Zoom
Motorized
Yes
Performance
Throw Ratio
2.0 to 2.6:1
Aperture
f/2 to 2.6
Focal Length
f = 76 to 98mm
Throw Distance
5.3 to 116.1' / 1.6 to 35.4 m
Lens Shift Ratio
PLC-HF10000L / PLC-HF10000L
Vertical: 10:0 to 0:10
Horizontal: 3:2 to 2:3
PLC-HF15000L / PLC-HF15000L
Vertical: 10:0 to 0:10
Horizontal: 3:2 to 2:3
PLC-XF47 / PLC-XF47
Vertical: 5:2 to 2:5
Horizontal: 3:2 to 2:3
PLC-XF1000 / PLC-XF1000
Vertical: 5:2 to 2:5
Horizontal: 3:2 to 2:3
Zoom Ratio
1.3
Physical
Exterior Dimensions
ø: 5.5 x " / ø: 140.0 x  mm
Weight
5.7 lb / 2.6 kg
