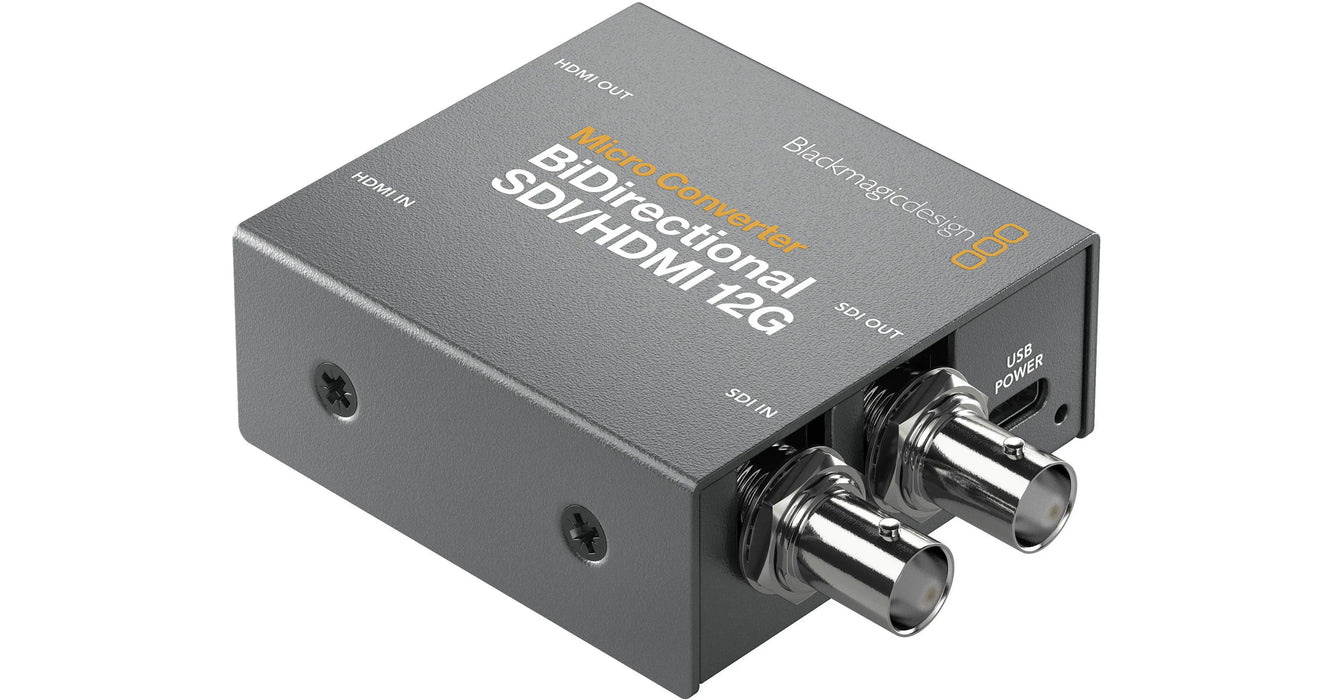

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply

SKU BLMCBDSH12GP
Save 5% Save 5%
$199.00
$199.00 - $199.00
$199.00
$190.00
$190.00 - $190.00
$190.00

Unleash your video setup's full potential by effortlessly merging SDI and HDMI components with this clever Micro Converter. This compact bidirectional wizard transforms SDI to HDMI and back again, handling all SD, HD, and UHD formats up to 2160p60. Imagine two converters in one, with each direction supporting a different video standard, plus camera control for your Blackmagic HDMI cameras. Its sturdy design, USB-C power, and re-clocking make it a tiny powerhouse for any pro broadcast scenario.

Key Features
  • Simultaneous SDI to HDMI & HDMI to SDI
  • 1 x SD/HD/12G-SDI & 1x HDMI Input/Output
  • Supports up to DCI/UHD 4K60 Video
  • Blackmagic Camera Control, Tally Support
  • SDI Re-Clocking/HDMI Timecode
  • HDMI Copy Protection Support
  • Automatic Input Signal Detection
  • Embedded HDMI & SDI Input/Output
  • LED Video & Power Signal Indicators
  • A Power Supply Is Included

  • HDMI Video Standards

    525i59.94 NTSC, 625i50 PAL
    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60
    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI

  • HDMI Color Precision

    4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color

  • HDMI Color Space

    YUV

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Easily combine SDI and HDMI components in your video setup with the Micro Converter BiDirectional SDI/HDMI 12G from Blackmagic Design. This compact bidirectional converter can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Since each conversion direction can be a different SD, HD, or UHD video standard, it's like getting two converters in one. It also offers camera control conversion for Blackmagic HDMI cameras like the Pocket Cinema Camera 4K or 6K, enabling you to use them with an SDI-based live switcher.

The pocket-sized Micro Converter BiDirectional SDI/HDMI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions, including cine-style 48 fps, and both HDMI and SDI embedded audio input and output. This converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. A power supply and an international plug adapter set are included with the converter.

Features
Bidirectional Format Conversion
You can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Each conversion direction can be a different SD, HD, or UHD video standard, so it's like getting two converters in one.
Compact, Rugged Design
  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or Windows computer
HDMI Camera Control
  • Camera control conversion for the HDMI-output Blackmagic Pocket Cinema Camera 4K or 6K, enables use with an SDI-based live switcher
SDI & HDMI Timecode
  • HD and SD timecode support
  • Converts HDMI timecode to SDI and vice versa
SDI Re-Clocking
  • Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
Wider Resolution Support
  • SDI support from NTSC and PAL up to DCI/UHD 4K60
  • HDMI support from NTSC and PAL up to DCI/UHD 4K60
Embedded Audio
  • Supports embedded SDI and HDMI input and output
LED Indicators
  • LED indicators for video and power signals
Versatile Power Options
  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Power supply and international plug adapter set are included

Item Includes

  • Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply
  • Power Adapter
  • International Plug Adapter Set
  • Limited 3-Year Manufacturer Warranty

Item Includes

Connections

Jump to...

  • SDI Video Inputs

    1

  • SDI Video Outputs

    Automatically matches the HDMI video input

  • HDMI 2.0 Video

    Inputs: 1x type A
    Outputs: 1x type A

  • SDI Rates

    270Mb, 1.5G, 3G, 6G, 12G

  • Multi Rate Support

    Auto detection of SD, HD, 2K, Ultra HD and 4K

  • Updates, Configurations and Power

    USB Type-C

  • Reclocking

    Yes

Standards

Jump to...

  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

  • 2K Video Standards

    2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
    2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60

  • 4K Video Standards

    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1

  • SDI Video Rates

    SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI

  • SDI Color Precision

    4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color

  • SDI Color Space

    YUV

  • SDI Auto Switching

    Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output

  • HDMI Video Standards

    525i59.94 NTSC, 625i50 PAL
    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60
    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI

  • HDMI Color Precision

    4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color

  • HDMI Color Space

    YUV

Copy Protection

Jump to...

  • Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources
    Always confirm copyright ownership before capture or distribution of content

Camera Control

Jump to...

  • Camera Control

    Bidirectional signal conversion supports Blackmagic Camera Control and Tally

Settings Control

Jump to...

  • Settings Control

    Via MacOS and Windows software utility connected by USB

Operating Systems

Jump to...

  • Operating Systems

    Mac 10.15 Catalina, Mac 11.1 Big Sur or later
    Windows 10, 64-bit

Software

Jump to...

  • Software

    Internal software upgrade via USB

Power Requirements

Jump to...

  • Power Supply

    +5V universal power supply included with international socket adapters for most countries

  • Power Consumption

    5W max

  • Operational Voltage Range

    4.4V to 5.25V DC

Environmental

Jump to...

  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...

  • Dimensions

    3.18 x 2.32 x 0.98" (8.1 x 5.9 x 2.5cm)

  • Weight

    6.13 oz (174g)

Other

Jump to...

  • UPC Code

    9338716007053
