Christie 4K22A-HS 19,000-Lumen Pixel Shift UHD 4K Laser DLP Projector

Christie 4K22A-HS 19.000-Lumen Pixel Shift UHD 4K Laser DLP Projector (No Lens)

SKU 171-067104-01
Save 5% Save 5%
$54,789.00
$54,789.00 - $54,789.00
$54,789.00
$51,890.00
$51,890.00 - $51,890.00
$51,890.00

The Christie 4K22A-HS Laser DLP Projector delivers stunning, large-scale visuals with its 19,000-lumen brightness and UHD 4K pixel-shift resolution, ideal for high-demand venues. Featuring long-lasting laser illumination and BoldColor+ technology, it ensures rich, accurate colors and extended operational life with minimal maintenance. Advanced connectivity options, including 12G-SDI, DisplayPort, HDBaseT, and HDMI 2.0b, facilitate versatile integration into complex AV systems. Built-in Christie Twist and Mystique compatibility enable seamless edge-blending, warping, and stacking for precise multi-projector display management.

Key Features
  • Brightness of 19,000 ANSI Lumens
  • Full HD 1920 x 1080 Native Resolution
  • UHD 4K Resolution via Pixel Shift
  • Uses Interchangeable Lenses
  • 2 x HDMI 2.0b Inputs
  • 12G-SDI, DisplayPort, and HDBaseT Inputs
  • Christie BoldColor+ Technology
  • Built-In Image Warping and Blending
  • AMX and Crestron Connectivity
  • TAA Compliant

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Christie 4K22A-HS 19.000-Lumen Pixel Shift UHD 4K Laser DLP Projector (No Lens)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Create large, impressive visuals with the incredible brightness and resolution of the 4K22A-HS 19.000-Lumen Pixel Shift UHD 4K Laser DLP Projector from Christie. With its high-brightness, long-lasting laser illumination and Christie BoldColor+ technology for rich color, the 4K22A-HS is ideal for high-demand, high-use situations and large venues, such as live events, museums, houses of worship, theme parks, and more. With Christie Twist built-in and Christie Mystique compatibility, the 4K22A-HS offers users the tools needed to quickly and easily set up and align irregular screens and multi-projector displays.

Laser Light Illumination
Rated at 20,000 hours to 50% brightness, Christie laser projectors are engineered for long life and low maintenance, even in high-use situations. To provide extra peace of mind, Christie provides a warranty to cover the illumination system for five years or 20,000 hours, whichever comes first.
Flexible Connections
Connect practically any video device to the 4K22A-HS with 12G-SDI, DisplayPort, HDBaseT, and two HDMI 2.0b inputs. HDMI and 12G-SDI outputs are provided for daisy-chaining in multi-projector applications.
Christie BoldColor Technology
Christie BoldColor+ Technology creates the color balance needed to accurately reproduce colorful images without sacrificing brightness. Christie BoldColor+ Technology employs blue and red laser diodes as well as an optical chamber, video processing, and specialized software to produce enhanced color and saturation and more lifelike visuals when compared to typical laser phosphor projectors.
Built-In Christie Twist and Compatible with Christie Mystique
Built-in Christie Twist allows you to seamlessly edge-blend and stack multiple projected images on any 2D or 3D surface and precisely control the geometry of each projector through an easy-to-use grid-point, mesh interface. Working in conjunction with Twist, Christie Mystique automates multi-projector warping and blending. With the click of a mouse, the camera-based software automatically aligns, stacks, and blends multi-projector systems in minutes. For simple 2D setups using up to 3 projectors in a single horizontal array on a flat screen or surface, you can download Mystique Lite at no additional cost and purchase an inexpensive supported webcam to get started.
Interchangeable Lenses
Throw Ratio Lens Type Part Number
0.38:1 Ultra short-throw lens 140-142108-XX
0.65-0.75:1 Short-throw zoom lens 140-144100-XX
1.02-1.36:1 Standard-throw zoom lens 140-115108-XX
1.2-1.5:1 Standard-throw zoom lens 140-109101-XX
1.5-2.0:1 Standard-throw zoom lens 140-110103-XX
2.0-4.0:1 Long-throw zoom lens 140-111104-XX
4.0-7.0:1 Long-throw zoom lens 140-116109-XX
7.2-10.8:1 Ultra long-throw zoom lens 140-145101-XX





Additional Features
  • AMX and Crestron connectivity
  • Boresight adjustable lens
  • Motorized horizontal and vertical offset
  • Motorized zoom and focus (for full ILS lenses)
  • Full HD 3D support
  • Eco mode
  • Full-range voltage support - system dims to 80% brightness whenit detects 100-120 VAC power
  • Picture-in-picture
  • Picture-by-picture
  • TAA compliant

Item Includes

  • Christie 4K22A-HS 19.000-Lumen Pixel Shift UHD 4K Laser DLP Projector (No Lens)
  • AC Power Cord
  • IR Remote Control
  • Limited 5-Year Manufacturer Warranty (Parts and Labor on the Projector)
  • Limited 5-Year Manufacturer Warranty (Or 20,000 Hours Parts and Labor on the Illumination System)

Not Included

  • Essential
    Lenses & Lens Adapters

Item Includes

Display System
1-Chip 0.95" DMD DLP
Native Resolution
1920 x 1080
Maximum Brightness
19,000 Lumens (ANSI)
22,500 Lumens (ISO)
HDR Support
Yes

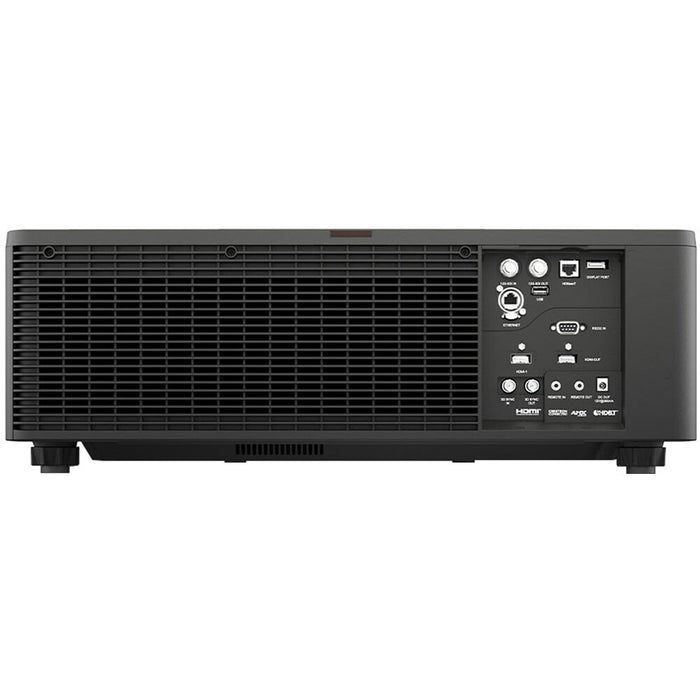

Inputs/Outputs
2x HDMI 2.0b Audio, Video Input
1x BNC (12G-SDI) Video Input
1x DisplayPort Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, Remote, Video Input
1x USB-A Power Output
1x BNC (12G-SDI) Video Output
1x HDMI Video Output
1x DE-9/DB-9 (RS-232) Control Input
1x RJ45 (Ethernet) Control, Data, LAN Input
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
Show More
Light Source
Laser Phosphor
Image Display
Display System
1-Chip 0.95" DMD DLP
Native Resolution
1920 x 1080
On-Screen Resolution
Up to 3840 x 2160 via Pixel-Shift Technology
Supported Resolutions
Maximum: 3840 x 2160 @ 60 Hz
Maximum Brightness
19,000 Lumens (ANSI)
22,500 Lumens (ISO)
Aspect Ratio
Native: 16:9
Contrast Ratio
1200:1
Dynamic Contrast Ratio
6000:1
DLP Link 3D
Yes
Supported 3D Formats
Frame Packing (up to 1080i/p)
Top Bottom (up to 1080i/p)
Side by Side (up to 1080i/p)
Frame Sequential (up to 1080i/p)
Color Wheel
3-Segment (RGB)
Scan
Horizontal: 15 to 91kHz
Vertical: 24 to 240Hz
Lens
Includes Lens
No
Features
HDR Support
Yes
Multi-Input Support (PIP/PBP)
Yes: Picture-in-Picture (PIP), Picture-by-Picture (PBP)
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
No
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI 2.0b Audio, Video Input
1x BNC (12G-SDI) Video Input
1x DisplayPort Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, Remote, Video Input
1x USB-A Power Output
1x BNC (12G-SDI) Video Output
1x HDMI Video Output
1x DE-9/DB-9 (RS-232) Control Input
1x RJ45 (Ethernet) Control, Data, LAN Input
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
HDCP Support
Yes: Version 2.2
Hardware
Mobile App Compatible
Yes: Android & iOS
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Full Brightness: 20,000 Hours
Fan Noise
Full Brightness: 45 dB
Low Brightness: 42 dB
Security
Cable Lock Slot
Input Power
220 to 240 VAC, 50 Hz
Power Consumption
Full Brightness: 1553 W
Medium Brightness: 1281 W
Low Brightness: 806 W
Certifications
BIS, BSMI, CCC, CE, CSA, EAC, FCC Class A, IEC 60950-1, PSE, RCM, REACH, RoHS, UL, VCCI, WEEE, cTUVus
Operating Conditions
32 to 104°F / 0 to 40°C at 10 to 85% Humidity
Dimensions (W x H x D)
23.5 x 8.0 x 26.7" / 596.0 x 203.0 x 677.0 mm (without feet)
Weight
95.9 lb / 43.5 kg
