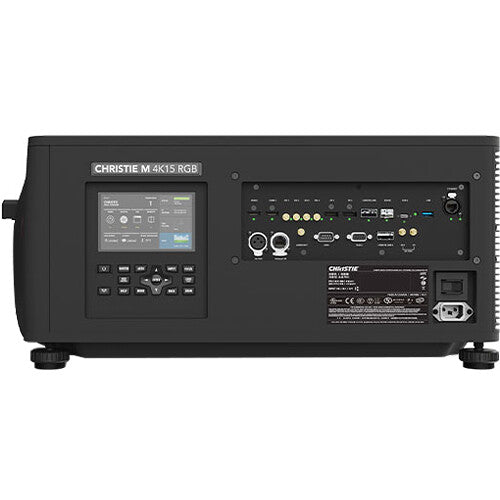

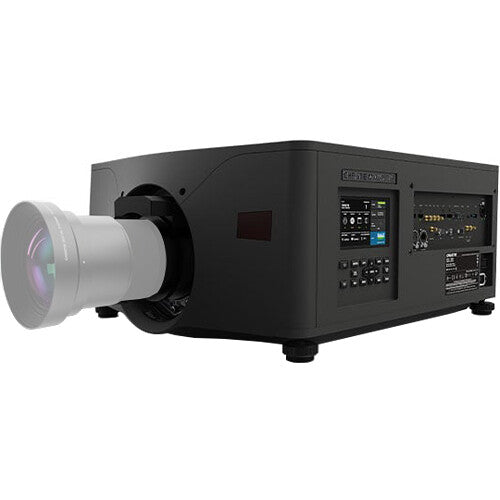

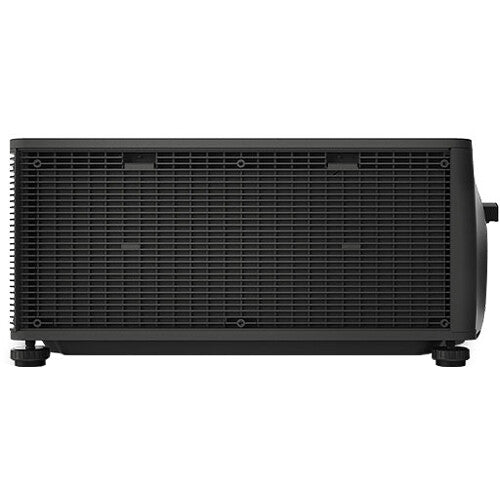

Christie M 4K15+ RGB 14,000-Lumen Pixel Shift WQUXGA 3-DLP Laser Projector (No Lens)

Christie M 4K15+ RGB 14,000-Lumen Pixel Shift WQUXGA 3-DLP Laser Projector (No Lens)

SKU 163-068105-01
Save 4% Save 4%
$48,599.00
$48,599.00 - $48,599.00
$48,599.00
$46,796.00
$46,796.00 - $46,796.00
$46,796.00

The Christie M 4K15+ RGB projector delivers 14,000 ANSI lumens of pure laser brightness, ensuring vivid images even in demanding environments. Its 3‑chip 0.96‑inch DLP engine combined with pixel‑shift technology provides up to 3840 × 2400 WQUXGA resolution and covers 98% of the Rec. 2020 color gamut. Integrated TruLife+ electronics consolidate all inputs, while electronic color convergence allows remote adjustment of red, green, and blue channels. Designed for rugged installations, the unit weighs 84 lb and fits standard M‑Series rigging cages.

Key Features
  • 15,750 ISO / 14,000 ANSI Lumens Bright
  • Solid State Pure RGB Laser System
  • 3840 x 2400 Resolution via Pixel Shift
  • Covers 98% of the Rec. 2020 Color Gamut
  • Uses Interchangeable ILS1 Lenses
  • 4 x 12G-SDI BNC Inputs
  • HDBaseT | 2 x DisplayPort | 2 x HDMI
  • Christie TruLife+ Electronics
  • LiteLOC
  • Fully Omnidirectional Installation

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Christie M 4K15+ RGB 14,000-Lumen Pixel Shift WQUXGA 3-DLP Laser Projector (No Lens)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The Christie M 4K15+ RGB projector re-imagines and reinvents the rugged and reliable M Series industry workhorse with innovative, cutting-edge technology. It features 3-DLP RGB pure laser technology, WQUXGA (3840 x 2400) on-screen resolution, TruLife+ electronics, electronic color convergence (ECC), and an intelligent lens system (ILS1) that is compatible with Christie's legacy M, J, and Crimson Series projector lenses.

The M 4K15+ provides 14,000 ANSI lumens while operating on 100-120 VAC, in a small form factor. Among the smallest and lightest, fully-omnidirectional 3DLP RGB laser projectors, it weighs 83.8 lbs, and fits the same rigging cage as the original M series for additional cost savings. The M 4K15+ RGB is also quiet, but it features double the brightness, double the color, and quadruple the resolution over the legacy M Series projectors.

UHD 4K Pixel Shift
Christie's proprietary new precision pixel shift technology operates at significantly higher frame rates enabling both 2D and 3D formats at UHD 4K resolution up to 120 Hz.
All-in TruLife+ Electronics
TruLife+ electronics provides all-in video processing, eliminating the option card-based platform. No need to buy additional input cards. All the connections you need are built in and will never be misplaced again. TruLife+ all-in connectivity makes it easy to switch inputs wherever and whenever you want. This forward-thinking state-of-the-art electronics platform also features Christie's electronic color convergence (ECC) via remote control. ECC creates a new ease of use. Whether it's ceiling or truss-mounted, you can digitally adjust the red, green, or blue individually using the remote control—so you never have to climb a ladder or rent a lift to adjust your color convergence again.
ILS1 Intelligent Lens System
Christie's ILS1 is compatible with their standard and ultra-high-contrast legacy M, J, and Crimson Series projector lenses. The ILS1 lens suite makes life easier when your projector is ceiling mounted or hung from truss with motorized zoom and focus as well as horizontal and vertical offset via remote control.
LiteLOC
The proprietary LiteLOC technology can automatically manage your projectors brightness over time in higher ambient temperatures and more humid environments to ensure your presentation is the same as day one.
Additional Features
  • 3DLP RGB pure laser projection
  • Liquid, self-contained cooling
  • Full brightness at 100-120 VAC: Also operates at 200-240 VAC
  • Achieves 98% of the Rec. 2020 color gamut
  • Operation noise as low as 41dBA in quiet mode

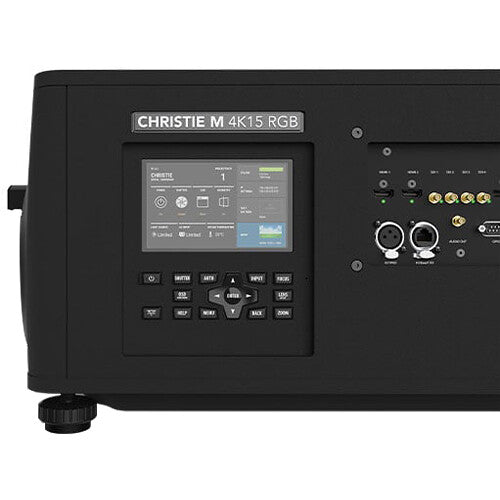

  • Integrated user interface with full-color LCD screen
  • Web user interface via Ethernet for real-time adjustments and monitoring
  • Omnidirectional orientation support
  • Compatible with the original M Series, J, and Crimson Series lenses for added cost-savings
  • Field-replaceable RGB laser light source for easy service and replcament
  • Christie Conductor software can be downloaded at no extra charge
  • Mirage option upgradeability
  • Standard Christie Twist included, upgradeable to Premium or Pro
  • Christie Mystique Lite software is free to download (requires web cam, sold separately)
  • Compatible with optional Mystique Essentials, Myatique pro Venue, and Mystique Large Scale Experience Edition

Item Includes

  • Christie M 4K15+ RGB 14,000-Lumen Pixel Shift WQUXGA 3-DLP Laser Projector (No Lens)
  • Power Cord
  • IR Remote
  • Maintenance Tools
  • Limited 3-Year Manufacturer Warranty

Item Includes

Display System
3-Chip 0.96" DLP
Native Resolution
1920 x 1200
Maximum Brightness
14,000 Lumens (ANSI)
15,750 Lumens (ISO)
HDR Support
Yes
Inputs/Outputs
2x HDMI 2.0 Audio, Video Input
4x BNC (12G-SDI) Video Input
2x DisplayPort 1.2 Video Input
1x Proprietary Video Input
1x USB-C Data, Service Input/Output
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video
1x 1/8" / 3.5 mm Mini Audio Output
1x RJ45 (Ethernet) LAN Input
1x BNC (VESA 3D Sync) Control, Data Input
1x BNC (VESA 3D Sync) Control, Data Output
1x USB-A 3.0 / 3.1/3.2 Gen 1 Data, Service Input
1x DE-9/DB-9 (RS-232) Control Input/Output
1x XLR Remote Input
Show More
Light Source
Laser Phosphor
Image Display
Display System
3-Chip 0.96" DLP
Native Resolution
1920 x 1200
On-Screen Resolution
Up to 3840 x 2400 via Pixel-Shift Technology
Supported Resolutions
Maximum: 4096 x 2160 @ 60 Hz
Maximum Brightness
14,000 Lumens (ANSI)
15,750 Lumens (ISO)
Aspect Ratio
Native: 16:10
DLP Link 3D
Yes
Supported 3D Formats
Frame Sequential
Color Wheel
3-Segment (RGB)
Lens
Includes Lens
No
Features
HDR Support
Yes
Multi-Input Support (PIP/PBP)
No
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
No
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI 2.0 Audio, Video Input
4x BNC (12G-SDI) Video Input
2x DisplayPort 1.2 Video Input
1x Proprietary Video Input
1x USB-C Data, Service Input/Output
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video
1x 1/8" / 3.5 mm Mini Audio Output
1x RJ45 (Ethernet) LAN Input
1x BNC (VESA 3D Sync) Control, Data Input
1x BNC (VESA 3D Sync) Control, Data Output
1x USB-A 3.0 / 3.1/3.2 Gen 1 Data, Service Input
1x DE-9/DB-9 (RS-232) Control Input/Output
1x XLR Remote Input
HDCP Support
Yes
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
No
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Full Brightness: 25,000 Hours
Low Brightness: 50,000 Hours
Fan Noise
Full Brightness: 44 dB
Security
Keypad Lock
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: < 1200 W
Medium Brightness: 827 W
Certifications
FCC, REACH, RoHS, WEEE
Operating Conditions
41 to 104°F / 5 to 40°C at 10 to 80% Humidity
Storage Conditions
-13 to 158°F / -25 to 70°C at 10 to 80% Humidity
Dimensions (W x H x D)
20.7 x 10.6 x 24.3" / 525.0 x 270.0 x 617.0 mm
Weight
84 lb / 38.1 kg
