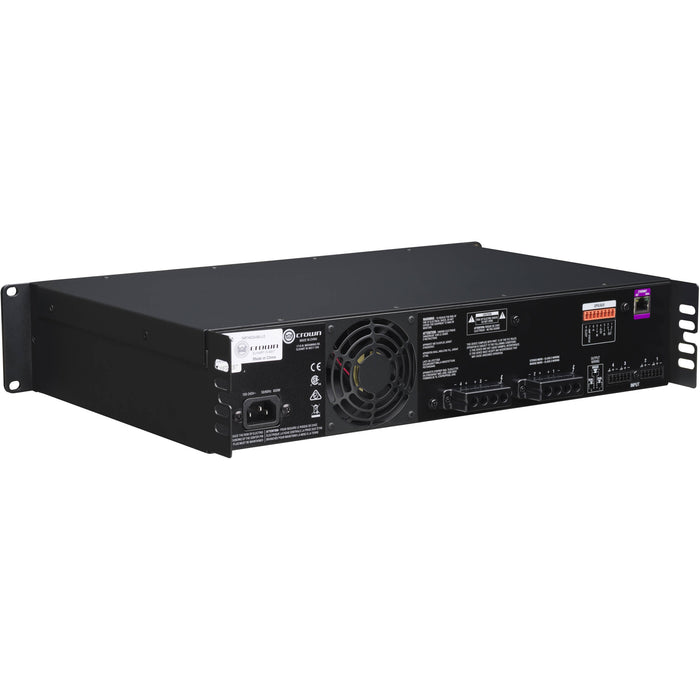

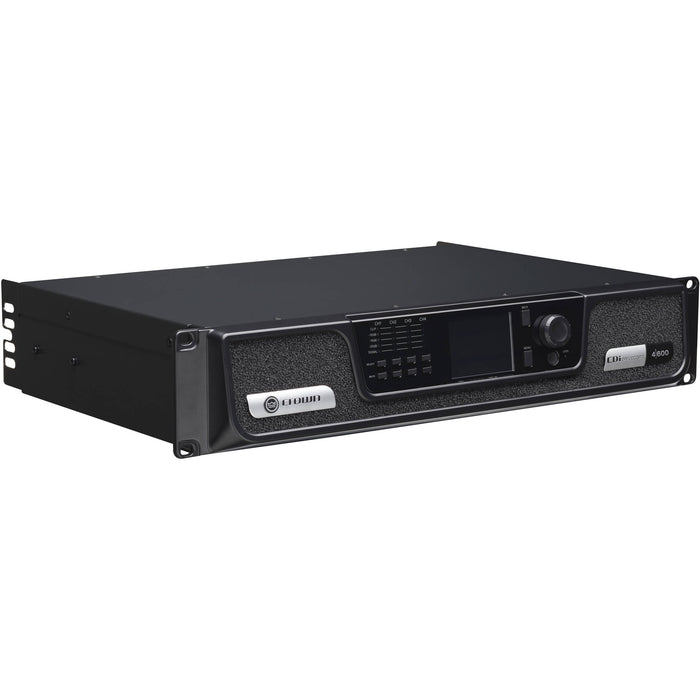

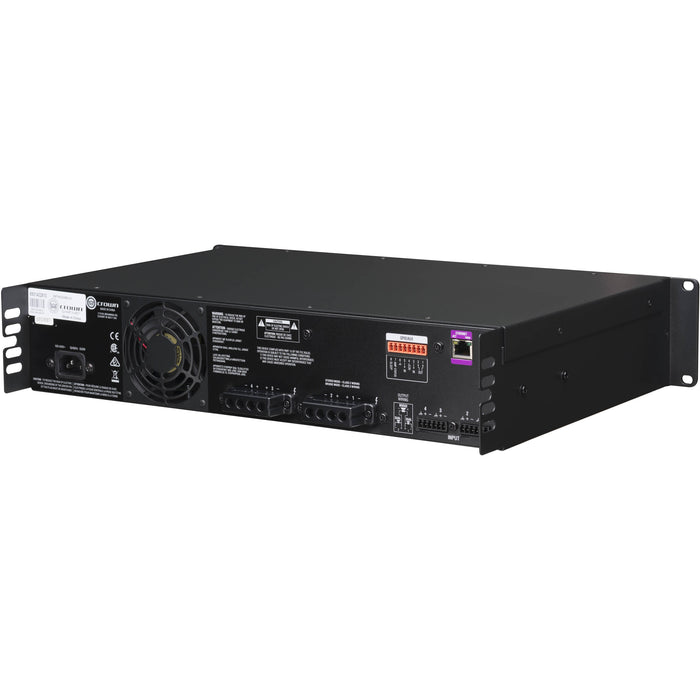

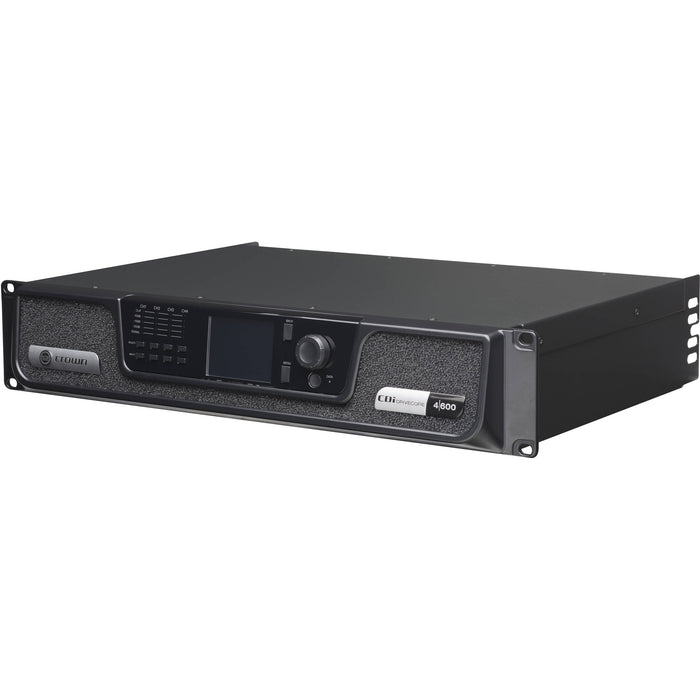

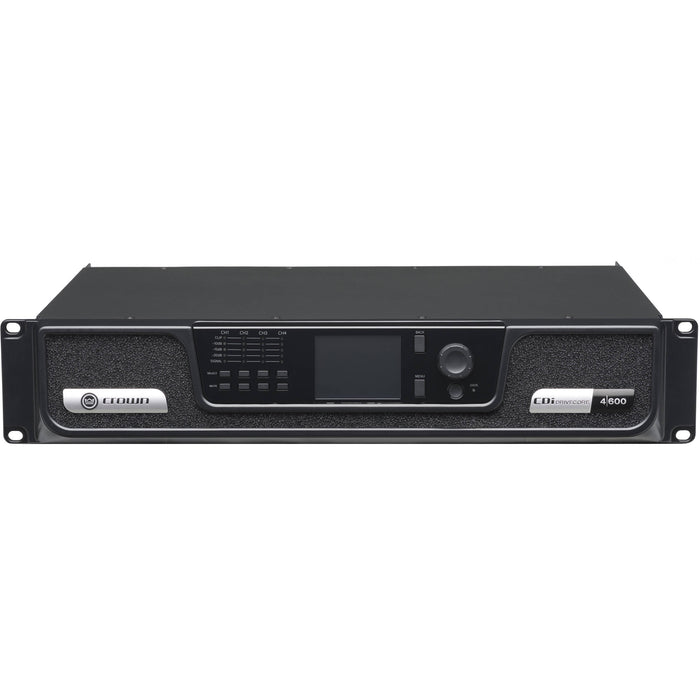

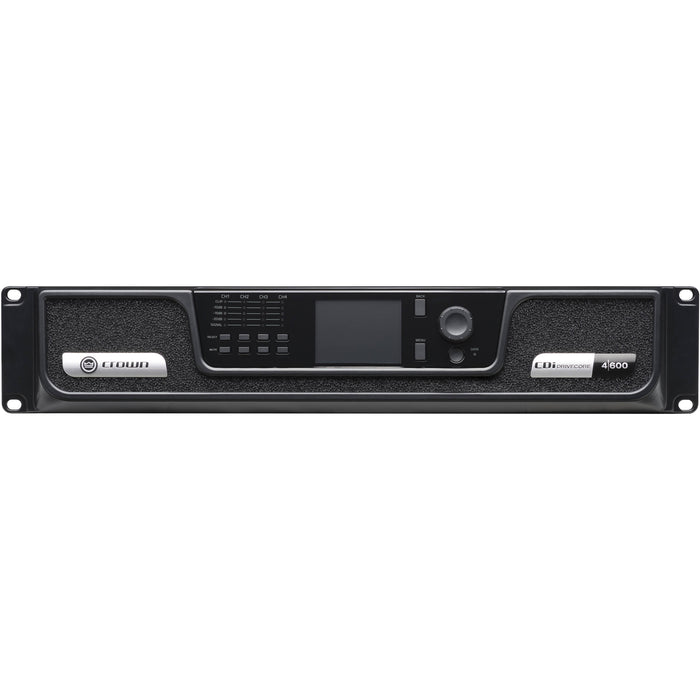

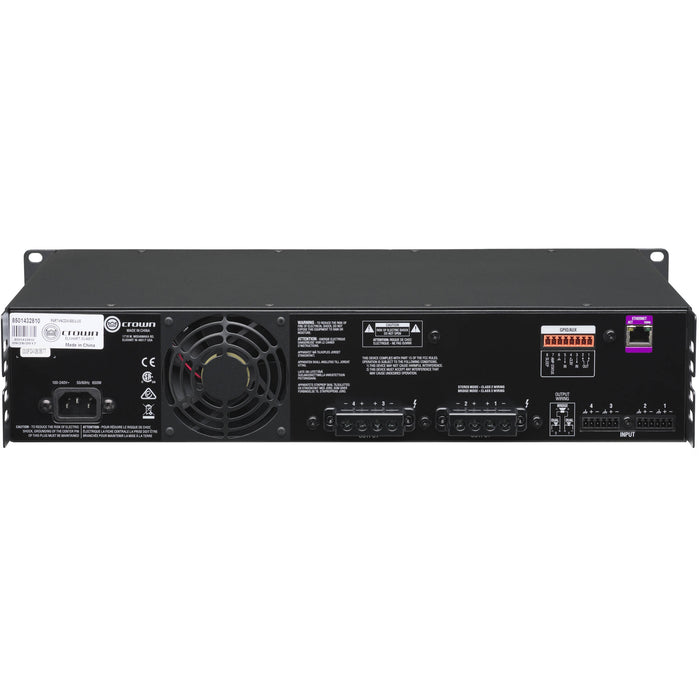

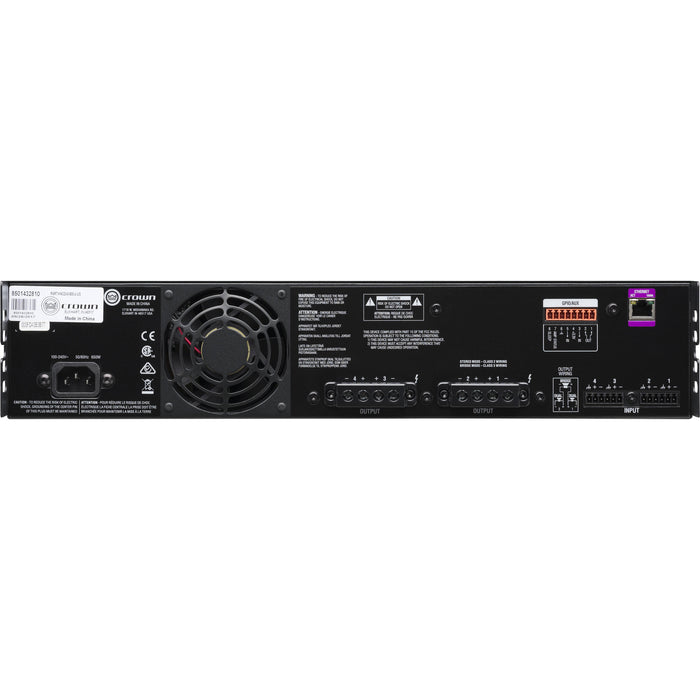

Crown Audio CDi 4|600 4-Channel 600W DriveCore Power Amplifier for Pro Audio

Crown Audio CDi 4|600 4-Channel DriveCore Series Power Amplifier (600W)

SKU NCDI4X600-U-US
Save 17% Save 17%
$4,199.00
$4,199.00 - $4,199.00
$4,199.00
$3,499.00
$3,499.00 - $3,499.00
$3,499.00

The Crown Audio CDi 4|600 is a 600W, 4-channel DriveCore Series power amplifier designed for medium-sized installations like cinemas, houses of worship, and lounges. Leveraging DriveCore technology, its integrated circuit ensures high performance, reliability, and remarkable audio fidelity through an efficient design. This amplifier features network control and monitoring capabilities, advanced DSP for precise audio management, and an intuitive front-panel interface. It supports direct drive for 70V and 100V speaker loads without a transformer and includes pre-loaded JBL speaker tunings for simplified installations.

Key Features
  • DriveCore Technology
  • Remarkable Performance & Reliability
  • Supports HiQnet Audio Architect Software
  • Monitor & Control over Standard TCP/IP
  • Color LCD Panel for Control & Monitoring
  • Advanced DSP on Inputs & Outputs
  • Works with 70V & 100V Speakers
  • Universal Power Supply

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Crown Audio CDi 4|600 4-Channel DriveCore Series Power Amplifier (600W)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The 600W Crown Audio CDi 4|600 4-Channel DriveCore Series Power Amplifier utilizes technology derived from the flagship Crown DriveCore Install series amplifiers, providing an impressive mix of high-performance, rich feature set, and competitive cost. The CDi DriveCore 4|600 offers streamlined functionality for most medium-sized installation such as cinema, houses of worship, bars, lounges, and more.

The DriveCore integrated circuit eliminates hundreds of components within the amplifier, reducing the variability of component values and increasing reliability, resulting in remarkable audio fidelity from an efficient design. The 4-channel amplifier is simple to use and includes a network control & monitoring, an advanced DSP circuit, and an easy-to-use, front-panel interface.

The amplifier is capable of driving up to 100Vrms speaker loads without requiring a transformer and comes pre-loaded with JBL speaker tunings to help make installations quicker and easier. The CDi 4|600 features an Ethernet port for using HARMAN's HiQnet Audio Architect software for configuration and operation over a standard TCP/IQ network. The rear panel includes terminal block inputs and barrier strip outputs.

  • DriveCore Technology: patented DriveCore integrated circuit combines hundreds of discrete circuits into one chip for better performance, lower power consumption, and improved reliability
  • Supports configuration and control using HiQnet Audio Architect
  • Monitoring and control over TCP/IP
  • Color LCD and front-panel user interface for amplifier configuration, control, and monitoring
  • Programmable GPIO (general purpose input/output) control port
  • Digital signal processing (input/output EQ filters, crossover, input/output delay, LevelMAX limiters)
  • Support for importing of FIR filter coefficients
  • 20 device presets—1 factory and 19 user
  • 96 kHz/32-bit floating-point signal processing
  • Universal power supply with PFC for reduced current draw and industry-leading efficiency
  • Power saving modes
  • Remote power off—Sleep mode activated via AUX port
  • 70/100Vrms direct drive
  • Each channel independently configurable for low z or high z operation
  • Advanced protection circuits—amplifier and loads are protected against shorted outputs, DC, mismatched loads, overheating, over/undervoltage, and high-frequency overload
  • Three-year, no-fault transferable warranty—your investment is fully protected
  • Complies with GreenEdge by HARMAN—environmentally friendly practices in design, manufacturing, and packaging complement energy-efficient operation
  • Support for BSS Audio Soundweb Contrio Ethernet wall controllers
  • Included speaker tuning for various JBL speaker models

UPC: 691991006982

Item Includes

  • Crown Audio CDi 4|600 4-Channel DriveCore Series Power Amplifier (600W)
  • 2 x Terminal Blocks
  • Power Cord
  • Limited 3-Year Warranty

Item Includes

Form Factor/Type

Rackmount

Number of Amplifier Channels

4

Load Impedance/Voltage Support

4 / 2 / 8 / 16 Ohms

100 / 70 / 200 / 140 V

Power Rating per Channel

4x 600 W at 8/4 Ohms

4x 600 W at 100/70 V

Channel Bridging & Power Sharing

2x 600 W Bridged at 4 Ohms

2x 1200 W Bridged at 8/16 Ohms

2x 1200 W Bridged at 140/200 V

Performance

Protections

DC Fault, Low Impedance, Open Circuit, Overcurrent, Overvoltage, Ultrasonic, Undervoltage

Frequency Response

20 Hz to 20 kHz ±0.25 dB (8 Ohms)

Damping Factor

> 1000

SNR/Noise

> 104 dB SNR

THD/Distortion

≤ 0.35% THD (at Rated Power)

≤ 0.35% IMD

Crosstalk

> 80 dB (Below Rated Power)

Signal Processing

DSP

Yes: 32-Bit Floating Point DSP at 96 kHz

Audio Delay

Adjustable Up to 1000 ms

EQ & Filters

8-Band Parametric EQ, High-Pass Filter, Crossover, Low-Pass Filter (via Software Control)

Dynamics

Limiter

Connectivity

Analog Audio I/O

2x Block 6-Pin Balanced Line Input

2x Barrier Strip Speaker Output

Digital Audio I/O

No

Network I/O

1x RJ45 Ethernet

USB I/O

No

Phantom Power

No

Wireless

No

Power

Input Power

100 to 240 VAC, 60 / 50 Hz

AC Power Connector

1x IEC 15 A / NEMA 5-15

Current Consumption

2 to 4.5 A (1/8 Power)

2.7 to 9.8 A (1/3 Power)

Power Consumption

144 to 225 W (1/8 Power)

169 to 443 W (1/3 Power)

Physical

Display

Backlit LCD

Rackmount Size

2 U

Cooling

Fan (Variable Speed)

Dimensions

19 x 12.25 x 3.5" / 48.26 x 31.12 x 8.89 cm

Weight

16.3 lb / 7.39 kg
