DJI Goggles V2 w/ Iflight Crystal antenna patch DJI

DJI Goggles V2 w/ Iflight Crystal antenna patch

SKU CP.FP.00000179
Save 30% Save 30%
$1,125.00
$1,125.00 - $1,125.00
$1,125.00
$785.28
$785.28 - $785.28
$785.28

Key features

  • High-Resolution Low-Latency Feed: Provides an immersive HD live view with a resolution of 810p/120fps and an ultra-low latency of under 30ms.

  • Dual-Frequency Support: Automatically switches between 2.4 GHz and 5.8 GHz bands (using DJI's OcuSync 3.0 technology) to find the clearest signal, minimizing interference.

  • Wide Compatibility: Work with:

    • The standalone DJI FPV Drone

    • Drones built with the DJI FPV Air Unit (original)

    • Drones built with the DJI O3 Air Unit (current)

  • Onboard DVR: Records the pilot's perspective directly to a microSD card, which is crucial for analyzing flights and sharing footage.

  • Built-in Battery: Features an integrated battery that provides up to 110 minutes of use, reducing cable clutter and making the setup more portable.

  • Focus Mode: A dedicated button that temporarily increases the video transmission bitrate to maximize image clarity when flying through tight gaps or gates.

  • Adjustable IPD (Interpupillary Distance): The lenses can be physically adjusted (58-70mm) to match the distance between the user's eyes for a clear and comfortable view.

  • Head Tracking: When used with the DJI FPV Drone and a compatible controller, head movements can control the drone's gimbal for a more immersive experience.

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

DJI Goggles V2 w/ Iflight Crystal antenna patch

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

This setup combines the industry-leading digital video performance of the DJI FPV Goggles V2 with a popular aftermarket upgrade—the iFlight Crystal Patch Antenna—to create an enhanced immersive FPV experience optimized for long-range and focused flight.

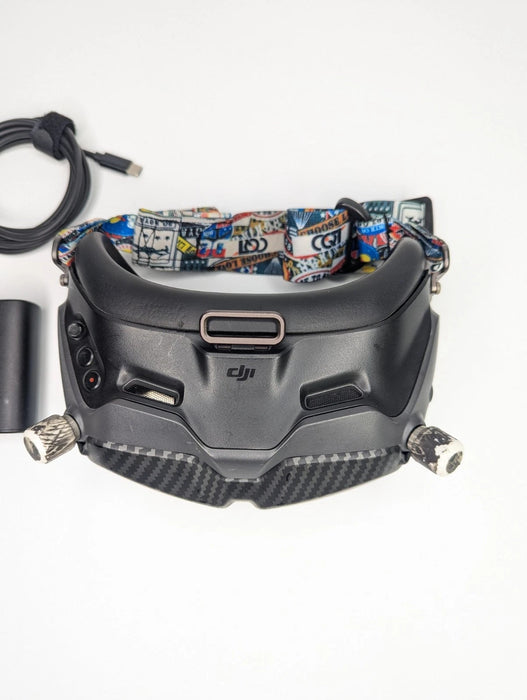

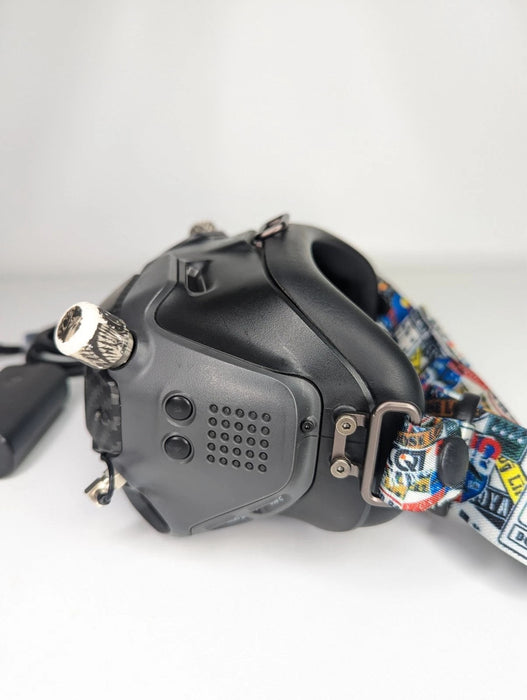

Core Component: DJI FPV Goggles V2

The foundation of this package is the DJI FPV Goggles V2, the central hub for DJI's digital FPV ecosystem. Key features include:

  • Stunning HD Low-Latency Feed: Provides an incredibly immersive, real-time view from your drone with a crystal clear 810p/120fps video feed and an ultra-low latency of under 30ms.

  • Broad Compatibility: Designed to work seamlessly with the DJI FPV Drone, drones equipped with the DJI O3 Air Unit, and legacy drones using the original DJI FPV Air Unit.

  • OcuSync 3.0 Transmission: Utilizes DJI's advanced dual-band (2.4 GHz and 5.8 GHz) technology for a robust, stable, and long-range connection up to 10 km, with automatic frequency switching to avoid interference.

  • Integrated Design: Features a built-in battery for up to 110 minutes of cable-free operation, an adjustable headband for comfort, and diopter adjustment lenses (from -8.0D to +2.0D) for users who wear glasses.

  • Onboard DVR: Records your flight perspective directly to a microSD card for analysis and sharing.

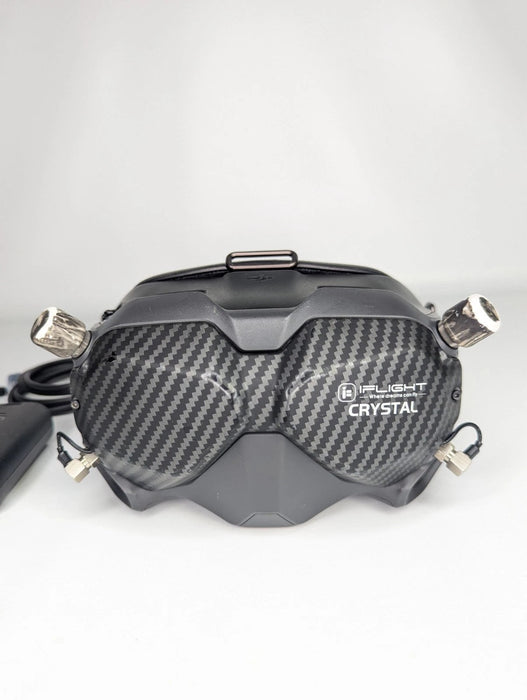

Performance Upgrade: iFlight Crystal Patch Antenna

This setup is enhanced by replacing one of the stock omnidirectional antennas with a high-gain directional antenna:

  • Optimized Signal Focus: The patch antenna concentrates its receiving power in a specific, forward-facing direction, much like a spotlight. This results in a stronger, clearer, and more stable video signal when flying at long range or when the drone is positioned in front of the pilot.

  • Increased Range & Penetration: The higher gain and focused signal can significantly extend the reliable range of your video link and improve its ability to penetrate light obstacles like trees.

  • Reduced Interference: The directional nature makes it less susceptible to signal reflections and multipath interference, which can cause video flickering.



Item Includes

  • DJI Goggles V2 w/ Iflight Crystal antenna patch

Item Includes

1. Display & Visual

  • Screen Type: 2x separate Micro-OLED displays

  • Screen Resolution: 1440 × 810 per eye

  • Refresh Rate: 120fps (max)

  • Field of View (FOV): 54°

  • IPD Adjustment: 58 - 70mm (Manual)

  • Diopter Adjustment: -8.0D to +2.0D

2. Transmission System (Goggles Base)

  • Technology: DJI OcuSync 3.0 (O3)

  • Supported Systems: DJI FPV Drone, DJI Avata (with adapter), DJI O3 Air Unit, DJI FPV Air Unit (V1)

  • Operating Frequencies: 2.4 GHz & 5.8 GHz (Auto-switching)

  • Max Latency: < 30 ms (in 120fps mode)

  • Max Bitrate: 50 Mbps

  • Onboard DVR: Records to microSD card (max 256 GB)

3. Antenna System (Aftermarket Upgrade)

  • Antenna Type: Directional Patch (iFlight Crystal) & Omnidirectional (typically one stock DJI omni remains)

  • Frequency: 5.8 GHz (optimized for the 5.8GHz band used for HD video transmission)

  • Gain: ~8 dBi (Estimated for iFlight Patch) | ~2.5 dBi (Stock Omni)

  • Polarization: Linear (The iFlight Crystal patch uses linear polarization, which should be matched with linearly polarized antennas on the drone for optimal performance).

  • Connector: SMA (Standard connector for easy installation)

4. Power & Battery

  • Battery: Integrated 1800mAh LiPo

  • Voltage: 3.6 V

  • Usage Time: Up to 110 minutes

  • Charging: USB-C, approx. 2 hours

5. Physical Specifications

  • Weight (Total): ~410 g (The antenna swap adds negligible weight)

  • Dimensions (Goggles): 202×126×110 mm (L×W×H)
