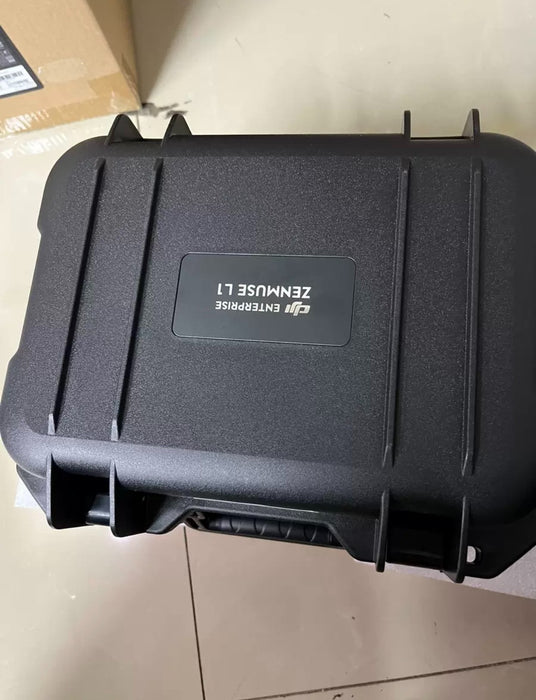

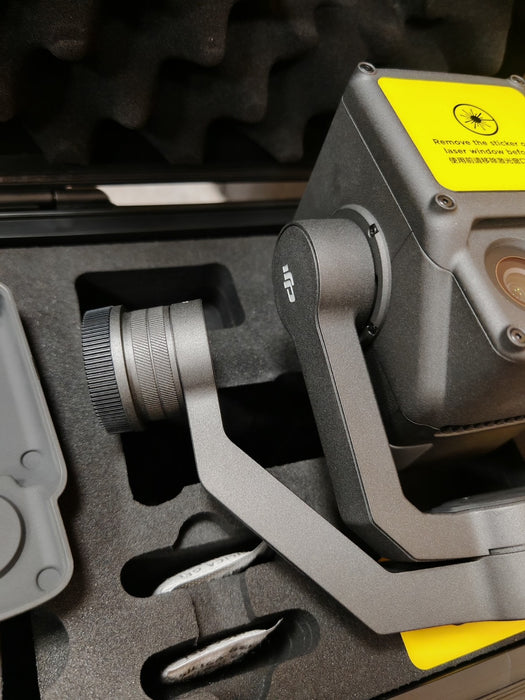

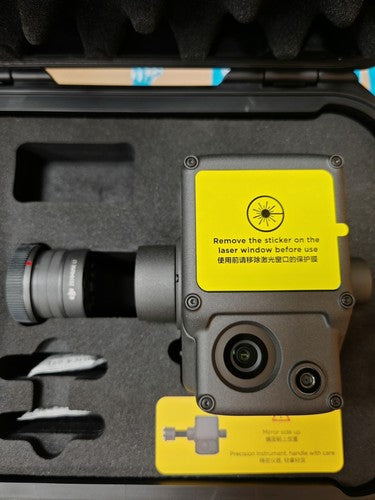

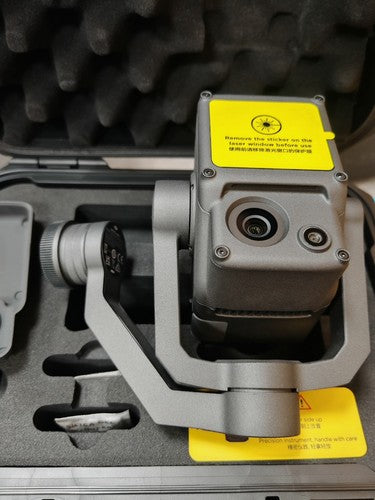

DJI Zenmuse L1 Lidar+RGB Surverying Solution

The DJI Zenmuse L1 is an integrated LiDAR + RGB photogrammetry payload designed for high-precision 3D surveying and mapping. Built for the Matrice 300 RTK drone, it combines a Livox LiDAR sensor, a 20MP RGB camera, and a high-accuracy IMU to deliver centimeter-level 3D point clouds with real-time georeferencing. Ideal for topographic mapping, forestry, urban planning, and infrastructure inspection, the L1 streamlines data collection with efficiency and professional-grade accuracy.

Key Features

1. LiDAR Sensor (Livox Mid-40 Based)

• Range: Up to 450 m (80% reflectivity, 0 klux)

• Accuracy: ±3 cm (typical)

• Point Rate: 240,000 points/sec

• Scan Pattern: Non-repetitive scanning (wider FOV coverage)

• Field of View (FOV): 70.4° (Horizontal) × 4.5° (Vertical)

• Multiple Returns: Supports 3 returns per pulse (for vegetation penetration)

2. High-Resolution RGB Camera

• Sensor: 1-inch CMOS (20MP)

• Mechanical Shutter: Eliminates rolling shutter distortion

• Global Shutter Sync: Aligns RGB images with LiDAR data

• Photo Resolution: 5472 × 3648 px

3. Integrated GNSS/IMU (Applanix APX-15)

• Positioning Accuracy: 1 cm + 1 ppm RTK (with DJI D-RTK 2)

• Roll/Pitch Accuracy: 0.025°

• Heading Accuracy: 0.08°

4. Real-Time Data Processing

• Point Cloud Live View: Visualize scans in real-time via DJI Pilot 2

• File Formats:

  • LAS/LAZ, PLY, PCD (LiDAR point clouds)

  • GeoTIFF, JPG (RGB imagery)

• Post-Processing: Compatible with DJI Terra, Pix4D, Global Mapper, AutoCAD

5. Flight & Survey Efficiency

• Max Coverage (Single Flight): Up to 2 km² (at 100m altitude)

• Recommended Speed: 10 m/s (optimal point density)

• Multiple Flight Modes:

  • Waypoint Grid (autonomous area scanning)

  • Terrain Follow (for uneven landscapes)
