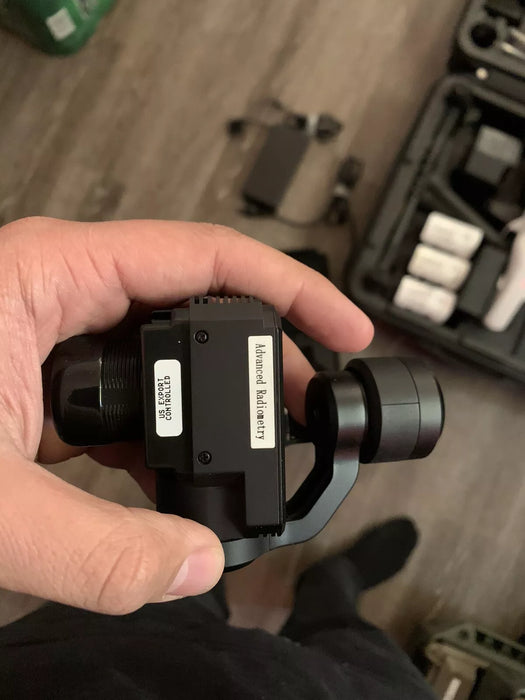

DJI ZENMUSE XT 640 Thermal Camera

DJI ZENMUSE XT 640 13MM 30HZ FLIR Thermal Camera

SKU DJI-ZENMUSE-XT-640
$5,862.45 - $5,862.45
$5,862.45
$5,862.45 - $5,862.45
$5,862.45

This DJI Zenmuse XT 640 camera is a thermal imaging powerhouse, capturing stunning 640x512 resolution images at 30Hz. With its 13mm lens, you'll get a wide field of view to survey your surroundings. Whether you're inspecting infrastructure, monitoring wildlife, or searching for survivors, this camera delivers. Its thermal capabilities make it perfect for a variety of applications, from industrial inspection to search and rescue missions.

Key features

  • Resolution 640x512
  • Frame Rate 30Hz
  • Lens 13mm
  • Field of View 45 degrees
  • Weight 405 grams
  • Dimensions 112mm x 62mm x 134mm
  • Operating Temperature -20 to 50 degrees Celsius
  • Storage Temperature -40 to 60 degrees Celsius

Compatible Drones:

  • Matrice 200/210/300 RTK (via SkyPort/X-Port)

  • Inspire 2 (with XT Adapter)

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

DJI ZENMUSE XT 640 13MM 30HZ FLIR Thermal Camera

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

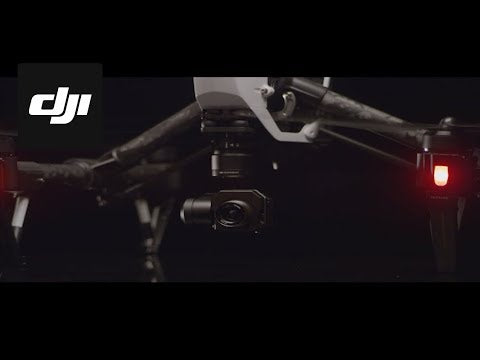

The DJI Zenmuse XT 640 is a high-performance radiometric thermal imaging camera designed for integration with DJI enterprise drones, such as the Matrice 200/210/300 RTK and Inspire 2 (with adapter). Featuring a FLIR Tau 2 thermal core, this camera delivers 640 × 512 px resolution at 30Hz, providing crisp, real-time thermal data for industrial, public safety, and agricultural applications.

Key Features:

  • High-Resolution Thermal Imaging: 640 × 512 px FLIR sensor with <50mK thermal sensitivity for detecting minute temperature differences.

  • 13mm Fixed Lens: Wide field of view (FOV) ideal for large-area inspections.

  • Radiometric Measurement: Captures temperature data in every pixel for precise analysis.

  • Multiple Color Palettes: 9 options (e.g., White Hot, Black Hot, Ironbow) for optimized visualization.

  • MSX® Technology: Overlays visual details onto thermal imagery for enhanced clarity.

  • Spot & Area Temperature Analysis: Measure up to 3 points simultaneously with adjustable emissivity settings.

  • Robust & Weather-Resistant: IP44-rated for dust and splash resistance, operating in -20°C to 50°C.

  • 3-Axis Gimbal Stabilization: Ensures steady footage even in windy conditions.

Compatible Drones:

  • Matrice 200/210/300 RTK (via SkyPort/X-Port)

  • Inspire 2 (with XT Adapter)

Typical Applications:

Search & Rescue (SAR) – Locate missing persons in low-visibility conditions.
Firefighting – Identify hotspots and fire spread in real time.
Industrial Inspections – Detect electrical faults, overheating components, and energy leaks.
Solar Farm & Power Line Inspections – Pinpoint defective panels or faulty connections.
Agricultural Monitoring – Assess crop health and irrigation efficiency.

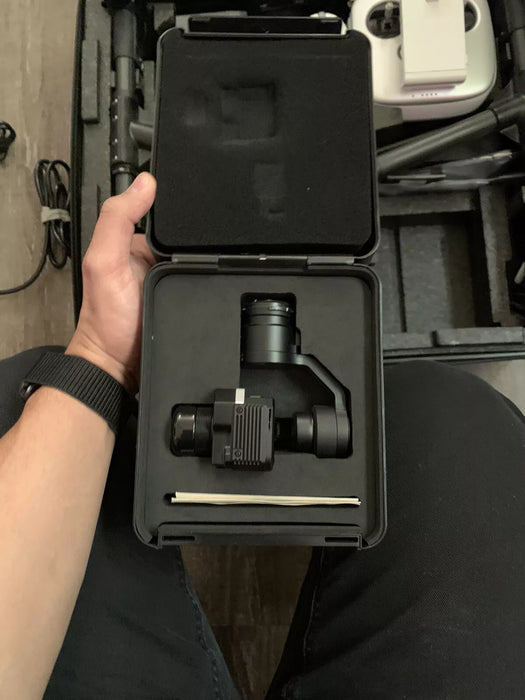

Item Includes

  • Zenmuse XT 640 (13mm, 30Hz) Thermal Camera

  • SkyPort/X-Port Mounting Adapter

  • Power & Data Cables

Item Includes

  • Sensor: FLIR Tau 2 (uncooled VOx microbolometer)

  • Resolution: 640 × 512 pixels

  • Frame Rate: 30Hz (real-time video)

  • Spectral Band: 7.5–13.5 μm (LWIR)

  • Thermal Sensitivity: <50mK (detects subtle temp differences)

  • Lens: 13mm fixed focal length (FOV: 45° × 37°)

  • Focus: Fixed (manual calibration)

Temperature Measurement

  • Range: -25°C to 135°C (extendable to 550°C in High-Gain Mode)

  • Accuracy: ±5°C or ±5% of reading

  • Radiometric Data: Saves temperature values per pixel (JPEG + CSV)

  • Spot Meter: 3-point measurement (adjustable emissivity)

Drone Integration

  • Compatible Drones:

    • Matrice 200/210/300 RTK (via SkyPort/X-Port)

    • Inspire 2 (with XT Adapter)

  • Gimbal: 3-axis stabilized (±0.05° accuracy)

  • Stabilization: Tilt, roll, and pan compensation

Imaging Modes

  • Color Palettes: 9 options (White Hot, Black Hot, Ironbow, etc.)

  • MSX®: Edge enhancement (overlays visual details on thermal)

  • Isotherms: Highlight temp thresholds (customizable)

  • Picture-in-Picture: Thermal/visual overlay

  • Physical & Environmental

  • Weight: 420g (0.93 lbs)

  • Dimensions: 147 × 143 × 123 mm

  • IP Rating: IP44 (splash/dust resistant)

  • Operating Temp: -20°C to 50°C

Power & Data

  • Power Source: Drone-powered (via SkyPort/X-Port)

  • Data Output: Radiometric JPEG, video stream (1080p)

  • Storage: Saves to drone’s SD card
