Epson EB-PQ2216B 16,000-Lumen Pixel-Shift 4K Laser 3LCD Projector (No Lens, Black) - Buy Direct & Save

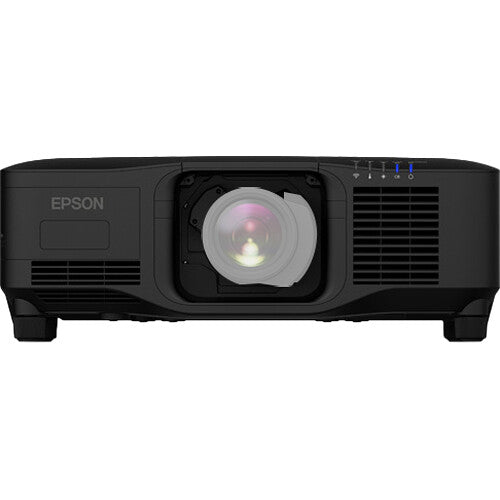

Epson EB-PQ2216B 16,000-Lumen Pixel-Shift 4K Laser 3LCD Projector (No Lens, Black)

SKU V11HB04820
Save 49% Save 49%
$70,635.00
$70,635.00 - $70,635.00
$70,635.00
$35,950.96
$35,950.96 - $35,950.96
$35,950.96
  • Brightness of up to 16,000 ISO Lumens
  • UHD 4K 3840 x 2160 On-Screen Resolution
  • 1920 x 1080 Native Chip Resolution
  • 4K Crystal Motion Technology
  • 2 x HDMI | 1 x 12G-SDI | 1 x HDBaseT
  • IP5X-Rated Sealed Optical Drive
  • 9 Optional Lenses (Sold Separately)
  • H/V Keystone & Lens Shift Capabilities
  • Powered Shift, Focus & Zoom
  • Built-In NFC for Mobile Device Setup

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Epson EB-PQ2216B 16,000-Lumen Pixel-Shift 4K Laser 3LCD Projector (No Lens, Black)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Experience high power and performance in a compact design with the Epson EB-PQ2216B 16,000-Lumen UHD 4K Laser 3LCD Projector in black. Designed for the demands of large venues and live events, this projector uses a long-lasting laser light source, vivid 3LCD color, and 4K Crystal Motion technology to produce bright images, with high contrast, and 4K on-screen resolution.

The EB-PQ2216B can deliver up to 16,000 lumens of white and color brightness using 220V, and up to 15,500 lumens using standard 120V AC power. Connect an array of sources via HDMI, 12-G SDI, and HDBaseT inputs, with support for up to 4K resolution and HDR color. It pairs with nine optional motorized lenses (sold separately) to cover a range of installation distances, and includes premium features to simplify setup, such as built-in NFC functionality, and an optional attachable PixAlign camera to streamline multi-projector applications.

Reliable Laser Light Source
The laser is housed in a hermetically sealed optical engine for IP5X dust resistance and a filter-less cabinet, with optimized liquid cooling, for low-maintenance operation.
4K On-Screen Resolution
The EB-PQ2216B uses Epson's 4K Crystal Motion technology, along with a thermo-controlled panel and double micro-lens array to realize on-screen clarity beyond Full HD.
App Assisted Setup
NFC function is built-in to reduce installation time of multiple projectors, allowing you to read and write setting information using Epson's mobile app.
PixAlign Camera
To further assist in projector setup, especially with multiple projectors, the optional attachable PixAlign camera (sold separately) provides access to features, including edge blending assist, stacking assist function, auto color calibration, and screen matching.
Additional Features
  • Frame interpolation for fast moving objects
  • HDR support and scene adaptive gamma correction
  • Two HDMI in and one HDMI out
  • 12G-SDI in and out for daisy chaining and signal monitoring
  • Auto input switching when signal is disrupted

Features

Display System
3-Chip Polysilicon TFT LCD
Native Resolution
1920 x 1080
Maximum Brightness
White: 16,000 Lumens (ISO)
Color: 16,000 Lumens
HDR Support
Yes, HDR10/Hybrid Log Gamma
Inputs/Outputs
2x HDMI Audio, Video Input
1x BNC (12G-SDI) Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input
2x USB-A Control, Data, Power Input/Output
1x RJ45 (Ethernet) LAN Input
1x HDMI Audio, Video Output
1x BNC (12G-SDI) Video Output
1x 1/8" / 3.5 mm Mini Audio Output
1x 1/8" / 3.5 mm Mini Remote Input
1x DE-9/DB-9 (RS-232) Control Input
1x USB-B Service Input
Light Source
Laser Phosphor
Image Display
Display System
3-Chip Polysilicon TFT LCD
Native Resolution
1920 x 1080
On-Screen Resolution
Up to 3840 x 2160 via Pixel-Shift Technology
Supported Resolutions
Maximum: 4096 x 2160 @ 60 Hz
Maximum Brightness
White: 16,000 Lumens (ISO)
Color: 16,000 Lumens
Uniformity
85%
Aspect Ratio
Native: 16:9
Supported: 4:3
Supported: 16:10
Supported: 21:9
Dynamic Contrast Ratio
5,000,000:1
Color Depth
10-Bit (1.07 Billion Colors)
Lens
Includes Lens
No
Features
Keystone Correction
Manual to Vertical: + 45°
Manual to Horizontal: ± 30°
HDR Support
Yes, HDR10/Hybrid Log Gamma
Multi-Input Support (PIP/PBP)
Not Specified by Manufacturer
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
No
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI Audio, Video Input
1x BNC (12G-SDI) Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input
2x USB-A Control, Data, Power Input/Output
1x RJ45 (Ethernet) LAN Input
1x HDMI Audio, Video Output
1x BNC (12G-SDI) Video Output
1x 1/8" / 3.5 mm Mini Audio Output
1x 1/8" / 3.5 mm Mini Remote Input
1x DE-9/DB-9 (RS-232) Control Input
1x USB-B Service Input
HDCP Support
Yes, Version 2.3
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
Yes: Android & iOS
Wireless LAN / Wi-Fi
No, Optional Adapter Available
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Medium Brightness: 20,000 Hours
Low Brightness: 30,000 Hours
Fan Noise
Full Brightness: 44 dB
Low Brightness: 36 dB
Security
Cable Lock Slot
Password Protection
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 1114 W
Low Brightness: 784 W
Standby Mode (Lamp Off): < 2 W
Certifications
FCC Part 15B Class A, UL62368-1, ICES-003 Class B, RoHS
Operating Conditions
32 to 122°F / 0 to 50°C at 20 to 80% Humidity
Storage Conditions
14 to 140°F / -10 to 60°C at 10 to 90% Humidity
Dimensions (W x H x D)
23.1 x 7.3 x 19.4" / 586.0 x 185.0 x 492.0 mm (Excluding Feet)
Weight
64.4 lb / 29.2 kg
