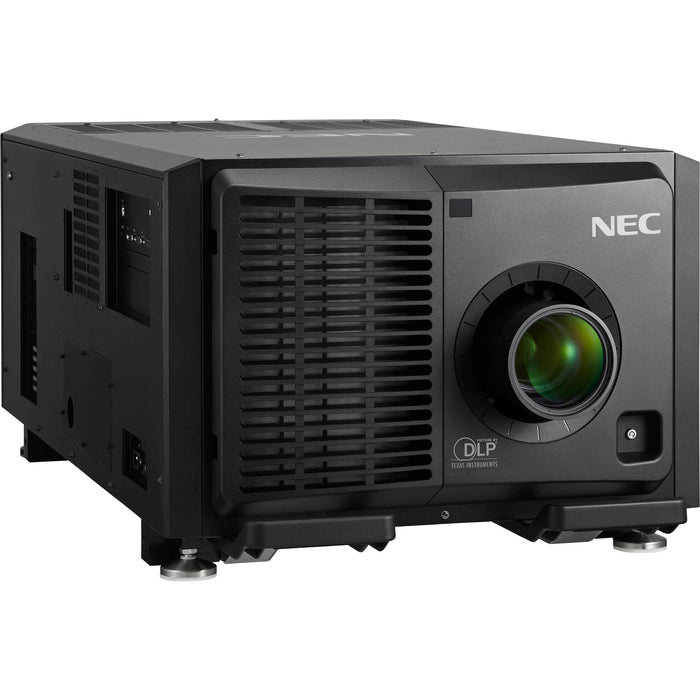

NEC 40,000 Lumen 4K DLP Laser Installation Projector for Large Venues

Sharp 40,000-Lumen 4K Professional Laser Installation Projector

SKU NP-PH3501QL
Save 1% Save 1%
$159,000.00
$159,000.00 - $159,000.00
$159,000.00
$158,000.00
$158,000.00 - $158,000.00
$158,000.00

The NEC 4K Professional Laser Installation Projector delivers an exceptional 40,000 lumens brightness and 4096 x 2160 native resolution, ideal for demanding large-venue applications. Featuring 3-Chip DLP RB laser technology, it ensures stunningly lifelike video images with superior color accuracy and contrast. Its sealed optical engine provides maintenance-free operation for up to 20,000 hours, ensuring long-term reliability. Advanced features like HDBaseT, edge blending, and geometric correction offer unparalleled installation flexibility and seamless multi-screen presentations.

Key Features
  • Brightness of 40,000 Lumens
  • 3-Chip DLP RB Laser
  • 4096 x 2160 Native Resolution
  • 20,000 Hours Laser Life
  • Stacking Correction
  • Edge Blending
  • Built-In HDBaseT Support
  • Dust Protection

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Sharp 40,000-Lumen 4K Professional Laser Installation Projector

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The 4K Professional Laser Installation Projector from NEC is a 40,000 center lumens (35,000 ANSI) 3-Chip DLP RB laser projector suitable for education, houses of worships, rental & staging, museums, and corporate environments. The 4096 x 2160 native resolution projector creates real life video images using proprietary Digital Cinema Quality Video processing. Extreme brightness and resolution offer a seamless alternative to video walls. With its various digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus, and zoom) and built-in edge blending. Stacking and geometric correction help support projection mapping when single or multiple projectors are required. The sealed optical engine creates a filter/maintenance free projector.

Laser Light Module
• Up to 20,000 hours of operation
• High-brightness, lower power consumption enhances applications such as retail, digital signage, and theme parks
• Ability to control brightness creating a stable image over longer time periods
• Images appear immediately after power on due to instantaneous start-up of the laser
Integrated and Powerful
• Project uncompressed FHD video with integrated HDBaseT
• High performance video processing/scaling creates life-like images
• Integrated software applications such as DisplayNote, Crestron Roomview, AMX Beacon, and PJ Link allow for interactivity and control
• Tile Matrix enables 4K resolution
Flexible
• Enjoy installation flexibility with powered optional bayonet style lenses, providing quick and easy exchanges
• Tilt-free installation capabilities makes this projector ideal for almost any installation environment, including portrait orientation.
Stacking Correction
• Stacking correction capability (up to two projectors) allows the projectors to boost an image's brightness up to 80,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light.
• This feature also prevents the complete loss of an image, which can happen when using only one projector
Edge Blending
• This function seamlessly blends multiple projected images to display a single high- resolution image.
Built-In HDBaseT Support
• Simplify your installations with HDBaseT.
• Optimized for video applications and supporting uncompressed full HD digital video, audio, ethernet, power, and various control signals.
• With a single cable (up to 328') to run, installations are significantly easier and there is no cable clutter to manage.
Super Dust Protection
• NEC's patented heat exchanger and the completely sealed optical engine offer continuous performance in harsh Rental/Staging environment.
Cornerstone
• Enhanced keystone correction allows for horizontal, vertical, and diagonal image correction for aligned images even when the projector is set up at an angle to the screen
Geometric Correction
• Geometric correction allows this model to project an image on spheres, cylinders, corner angles, and other non-standard surfaces.
Other Features
• Advanced AccuBlend ensures detailed images when non-native resolution sources are connected to the projector
• AutoSense automatically syncs with any computer signal and features one-touch image optimization
• 64-step image magnification with location control
• Discreet source keys for source selection
• Remote diagnostics enable the user to monitor and make adjustments to the projector remotely
• Built-in HTTP page for control and monitoring over a LAN network. Email notification of error messages or lamp end-of-life can be sent to remote locations.

Item Includes

  • Sharp 40,000-Lumen 4K Professional Laser Installation Projector
  • Remote Control & Batteries
  • Power Cord
  • Lens Hole Cap
  • Service Door Key
  • Limited 5-Year or 20,000-Hour Warranty, Whichever Comes First

Item Includes

Display System
3-Chip 1.38" DMD DLP
Native Resolution
4096 x 2160
Maximum Brightness
40,000 Lumens
Projection Size
50 to 500" / 1.27 to 12.70 m
HDR Support
No
Inputs/Outputs
2x HDMI Video Input
2x DisplayPort Video Input
4x BNC (3G-SDI) Video
1x RJ45 (HDBaseT) LAN
1x 1/8" / 3.5 mm Mini Remote
1x RJ45 LAN
1x USB-A Data
1x DE-9/DB-9 (RS-232) Control
1x DE-15/DB-15 (VESA 3D Sync) Video
1x Proprietary Control
Show More
Light Source
Laser Phosphor
Image Display
Display System
3-Chip 1.38" DMD DLP
Native Resolution
4096 x 2160
Supported Resolutions
Maximum: 4096 x 2160
Maximum Brightness
40,000 Lumens
Aspect Ratio
17:9
Contrast Ratio
30,000:1
Dynamic Contrast Ratio
30,000:1
DLP Link 3D
Yes
Supported 3D Formats
Side by Side
Top Bottom
Lens
Includes Lens
Yes
Focus
Manual Powered
Projection Size
50 to 500" / 1.27 to 12.70 m
Features
Keystone Correction
Manual to Vertical: ± 40°
Manual to Horizontal: ± 40°
HDR Support
No
Multi-Input Support (PIP/PBP)
Yes: Picture-in-Picture (PIP)
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
No
Input/Output Connectors
Inputs/Outputs
2x HDMI Video Input
2x DisplayPort Video Input
4x BNC (3G-SDI) Video
1x RJ45 (HDBaseT) LAN
1x 1/8" / 3.5 mm Mini Remote
1x RJ45 LAN
1x USB-A Data
1x DE-9/DB-9 (RS-232) Control
1x DE-15/DB-15 (VESA 3D Sync) Video
1x Proprietary Control
HDCP Support
Not Specified by Manufacturer
Media/Memory Card Slot
No
Hardware
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Medium Brightness: 20,000 Hours
Fan Noise
Medium Brightness: 55 dB
Low Brightness: 53 dB
Input Power
240 VAC, 50 Hz at 5.2 to 11.8 A
Power Consumption
Medium Brightness: 4705 W
Standby Mode (Lamp Off): 205 W
Dimensions (W x H x D)
27.4 x 46.5 x 17.9" / 69.6 x 118.1 x 45.5 cm
Weight
372.6 lb / 169 kg
