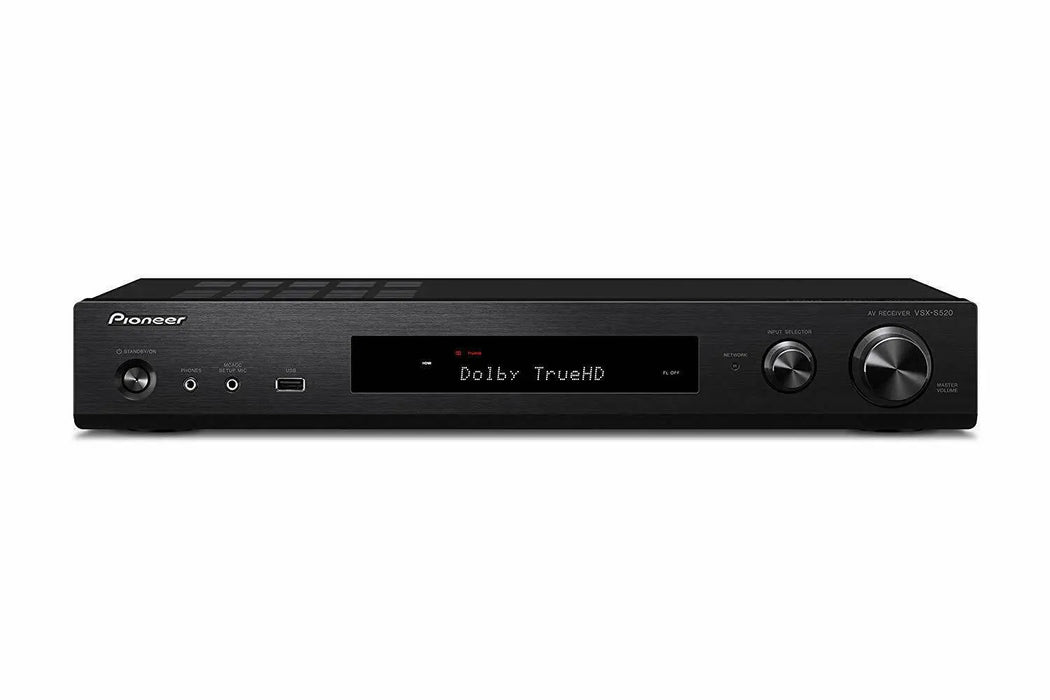

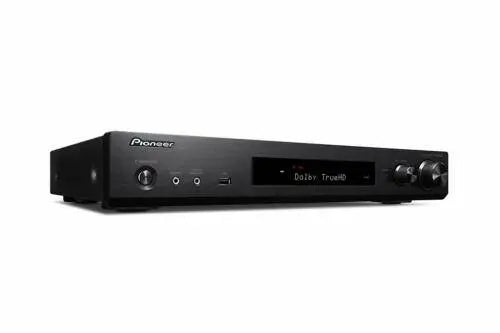

Pioneer VSX-S520 5.1-Channel Network A/V Receiver

Pioneer VSX-S520 5.1-Channel Network A/V Receiver

SKU VSX-S520
Save 57% Save 57%
$1,538.00
$1,538.00 - $1,538.00
$1,538.00
$666.00
$666.00 - $666.00
$666.00
  • Up to 50W per Channel at 4 Ohms
  • MCACC Sound Optimization
  • 4K Ultra HD Upscaling and Pass-Through
  • HDMI with 3D and Audio Return Channel

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Pioneer VSX-S520 5.1-Channel Network A/V Receiver

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Achieve 4K Ultra HD pass-through with 3D support via HDMI with thePioneer VSX-S520 5.1-Channel Network A/V Receiver. It produces up to 50W of power per channel at 4 Ohms for room-filling sound. MCACC sound optimization will allow you to tailor the sound to your room's specific acoustics. Built-in Bluetooth connectivity allows you to listen to music wirelessly from your favorite Bluetooth-capable device and AirPlay will allow you to connect to your compatible iOS devices. You can also attach a USB drive to the USB port on the front panel to play your MP3, WMA, AAC files, and more.

The VSX-S520 is equipped with four HDMI inputs and one HDMI output. The HDMI output supports ARC for the reproduction of TV-based audio, such as your TV's built-in Netflix or Hulu apps. It also features an on-screen GUI for simplified setup and control. You can also control it with the iOS- and Android-compatible Pioneer Remote app.

Audio Features

  • Dolby TrueHD, Dolby Digital Plus, Dolby Pro Logic II
  • DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-HD Express, DTS Neo:6 5.1
  • Dolby Atmos and DTS:X support with future firmware update
  • DSD playback via network/USB (5.6 MHz/2-channel, 2.8 MHz/2-channel)
  • DSD disc (SACD) playback via HDMI (2.8 MHz/5.1-channel, 2-channel)
  • Digital Core Engine with Cirrus Logic (Quad Core)
  • HDMI Audio Return Channel (ARC)
  • MCACC Auto Room Tuning: Phase Control, Subwoofer EQ (4 Band)
  • Advanced Sound Retriever (2-channel)
  • Advanced Surround Modes: Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround, Auto Surround

Video Features

  • Ultra HD pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
  • HDR and BT.2020 support
  • Ultra HD upscaling (1080p, 4K)
  • 3D ready (Blu-ray Disc, broadcast, and games)
  • Deep Color (36-bit), x.v.Color

Home Network Features

  • FireConnect technology (powered by Blackfire Research, available via a future firmware update; requires compatible speakers) Wireless protocol that mirrors some audio sources, such as Bluetooth audio, front USB audio files, and Internet radio
  • Google Cast available via a future firmware update
  • Apple AirPlay Certified
  • Pandora, Spotify, TIDAL (via future firmware update), and DEEZER (via future firmware update) music streaming services ready
  • Internet radio (TuneIn)
  • Hi-Res audio file playback via USB/network: Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV; 5.6/2.8 MHz DSD Playback

Convenience Features

  • Built-in Wi-Fi (Dual-band 5 GHz/2.4 GHz)
  • Built-in Bluetooth wireless technology (Version 4.1, A2DP/AVRCP, SBC/AAC)
  • Works with Pioneer Remote App for iOS/Android
  • GUI with System/Network Setup Menu
  • Auto Power Off in HDMI Standby Through mode
  • FM tuner with 40 presets
  • Sleep Timer
  • Remote control designed for user friendliness

Item Includes

  • Pioneer VSX-S520 5.1-Channel Network A/V Receiver

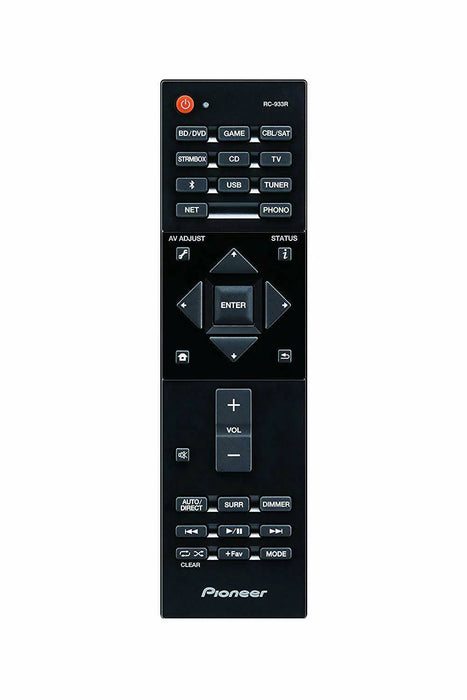

  • Remote Control
  • 2 x AAA Batteries
  • Speaker Setup Microphone
  • Indoor FM Antenna
  • Limited 1-Year Warranty

Item Includes

Amplifier
Channels5.1
Amplifier ClassClass-D
Power Output per Channel2-Channel Driven:
50W at 4Ohms / 1kHz / 1% THD
Speaker Impedance4 to 8Ohms
Audio Processing
DTS CompatibilityDTS 96/24, DTS-HD High Resolution, DTS-HD Master Audio, DTS Neo:6, DTS-HD Express
Dolby CompatibilityDolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD
Auro 3D SupportNo
Supported File Formats2.8 MHz DSD, AAC, AIFF, Apple Lossless, FLAC, MP3, WAV, WMA
Video
Pass-Through Support4K60p4:4:4 (3D, Deep Color, x.v. Color)
Upscaling4K UHD

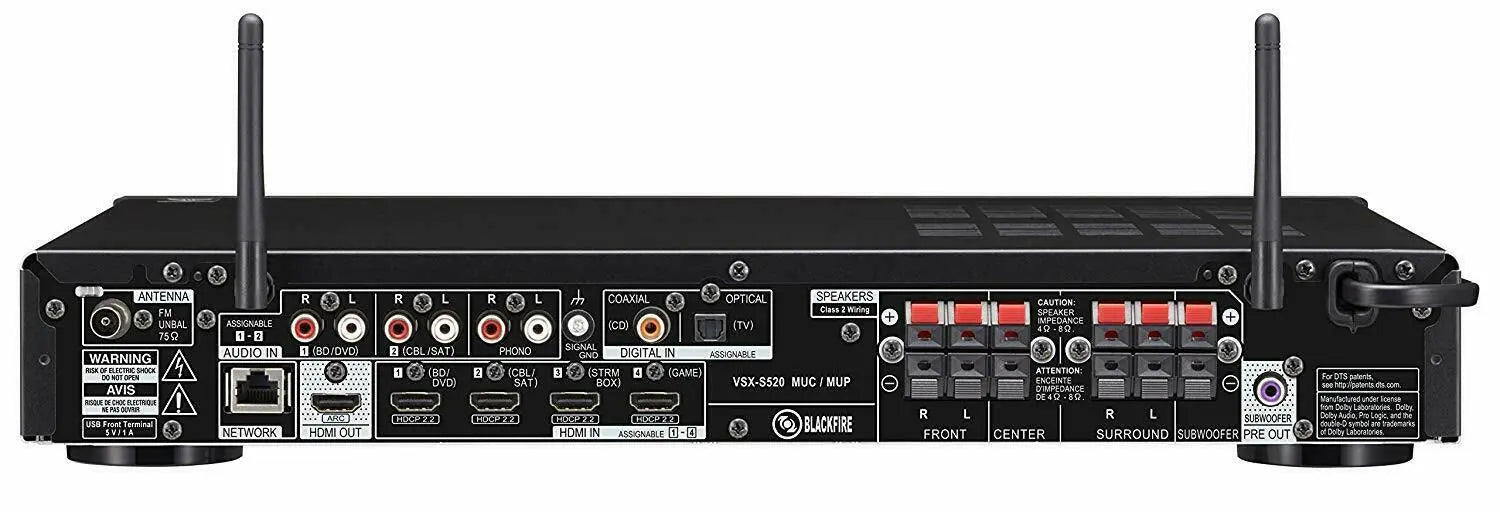

Connectivity
Rear A/V Inputs2 xStereo RCA
1 xStereo RCA (Phono) with Ground Screw
4 xHDMI
1 xDigital Coaxial
1 xOptical TOSLINK
Rear A/V Outputs1 x1/8" / 3.5 mmHeadphone
1 xHDMI
1 xRCASubwooferPre-Out
Front I/O1 x1/8" / 3.5 mmSetup MicInput
1 xUSB Type-A
Other Rear I/O1 xRJ45 (Ethernet)Input
1 xFMAntenna TerminalInput
Speaker Connectors6 xSpring Clip Pairs
HDCP SupportVersion 2.2
Audio Return Channel (ARC)Yes
