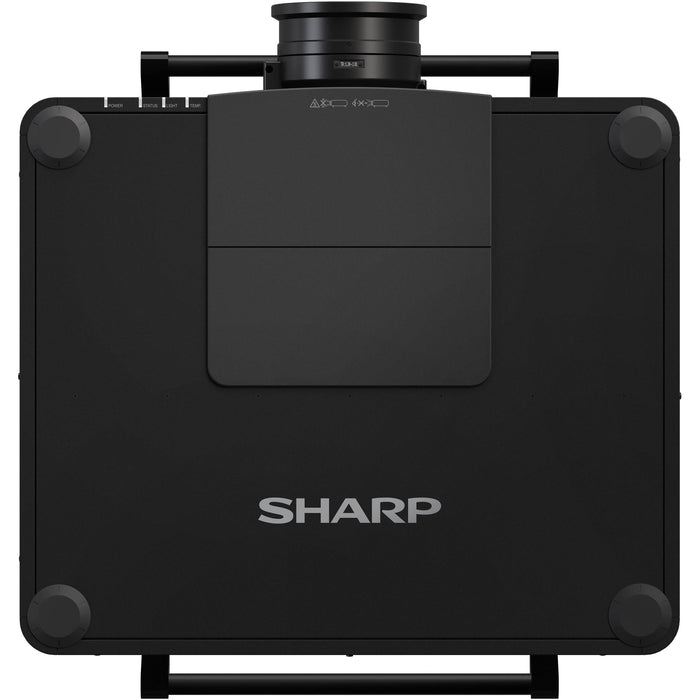

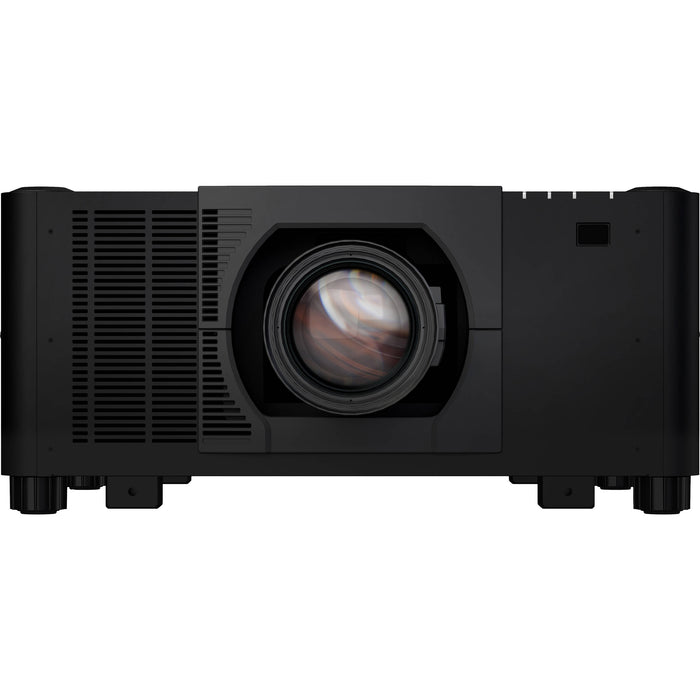

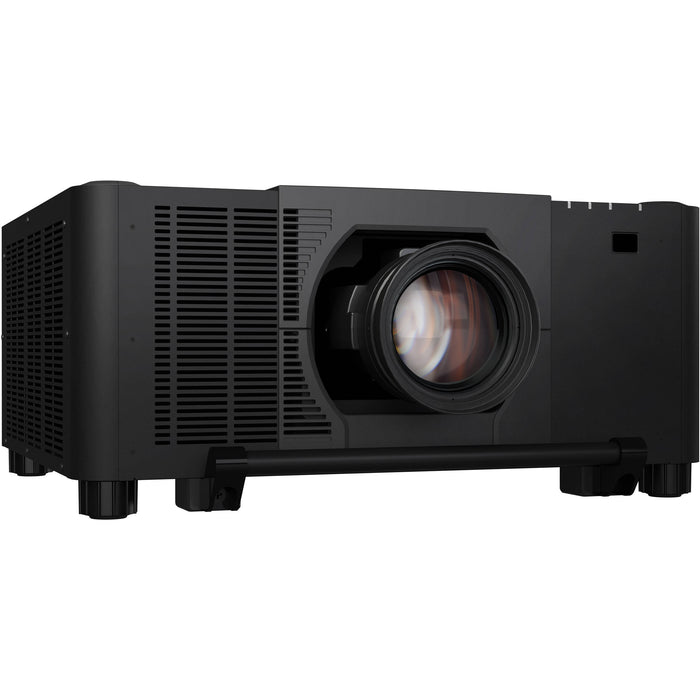

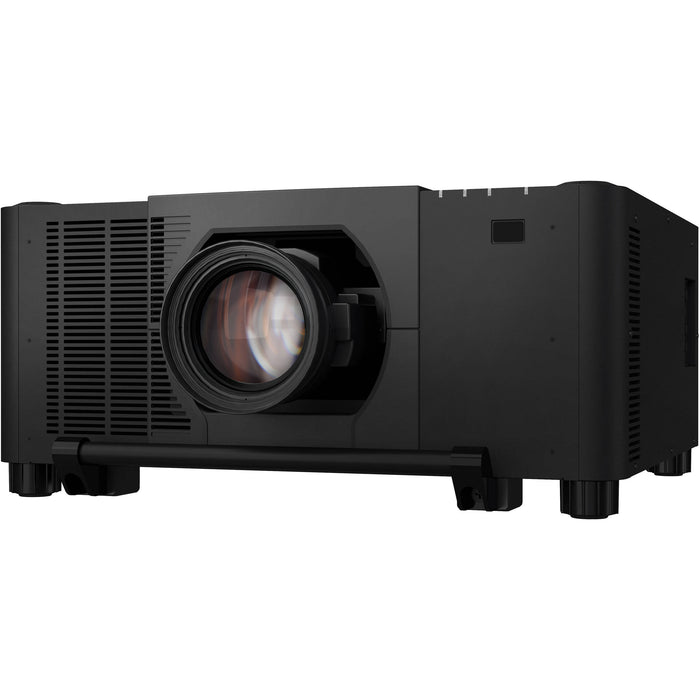

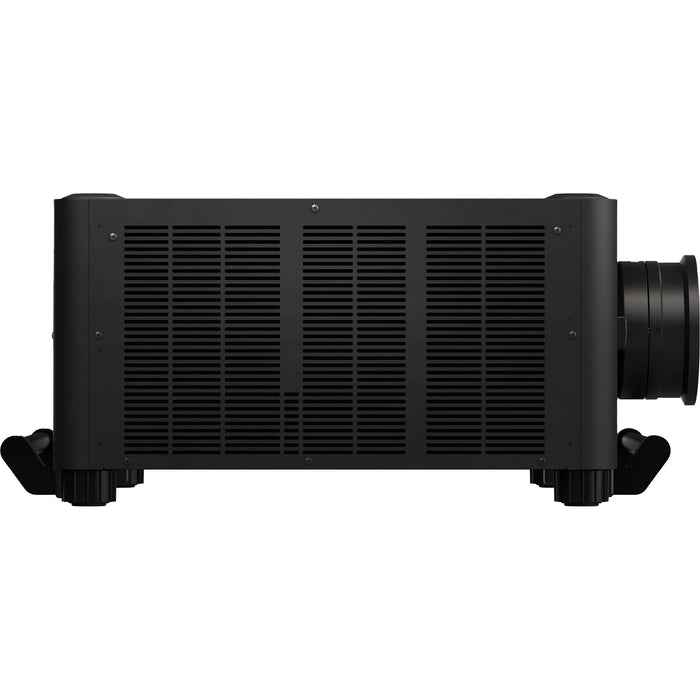

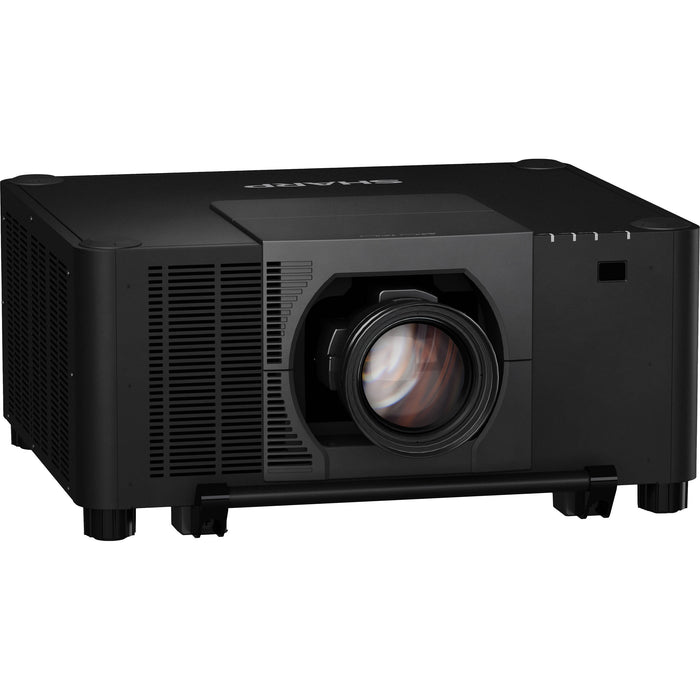

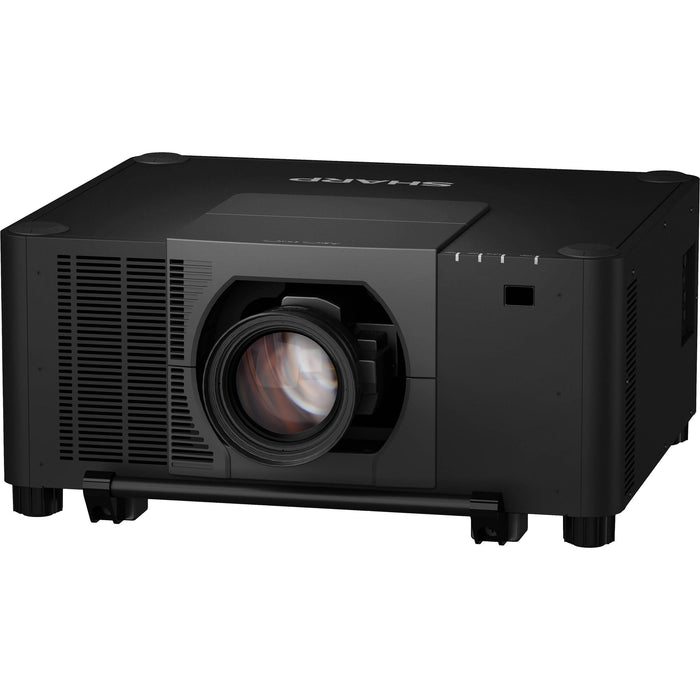

Sharp XP-A201U-B 20,000 ISO-Lumen WUXGA RB-Laser LCD Projector (No Lens)

SKU XP-A201U-B
Save 6% Save 6%
Original price $39,265.00
Original price $39,265.00 - Original price $39,265.00
Original price $39,265.00
Current price $36,799.00
$36,799.00 - $36,799.00
Current price $36,799.00

This Sharp XP-A201U-B professional installation projector delivers exceptional 20,000 ISO-Lumen brightness and WUXGA resolution for large venues. Its durable RB laser light source and IP5X sealed optical engine ensure thousands of hours of maintenance-free operation. Advanced features like HDBaseT connectivity, stacking correction, and edge blending support complex multi-projector setups. Enjoy flexible installation options with optional motorized lenses and comprehensive system integration.

Key Features
  • Brightness of 20,000 ISO Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • RB (Red and Blue) Laser Light Source
  • IP5X Filter-Free Sealed Optical Engine
  • LCD with Micro Lens Array Color
  • 92% DCI Color Space Coverage
  • 2 x HDMI | 1 x HDBaseT | 1 x 3G SDI
  • HDBaseT Out for Daisy Chaining
  • Built-In Stacking for up to 4 Projectors
  • Compatible with AMX, Crestron & Others

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Sharp XP-A201U-B 20,000 ISO-Lumen WUXGA RB-Laser LCD Projector (No Lens)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features




The Sharp XP-A201U-B 20,000 ISO-Lumen WUXGA RB Laser LCD Projector is a large-venue, professional installation projector with features well suited to higher education and corporate users. A long-lasting laser light source and IP5X rated sealed optical engine provide thousands of hours of virtually maintenance free operation.

Installation is flexible with a complete line of optional motorized lenses (sold separately). Connect sources via HDMI, HDBaseT, or 3G SDI inputs. The onscreen resolution is Full HD, with input support for 4K content and passthrough for multi-projector setups. Built-in stacking and edge blending supports up to four projectors without the need for external hardware or processing.

HDBaseT
HDBaseT is optimized for video applications and supports uncompressed full HD digital video, audio, ethernet, power, and various control signals. With only a single cable (up to 100m) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage.
Multi-Display Support
Built-in software supports picture-in-picture and picture-by-picture displays. TileMatrix capability via HDBaseT output enables 4K resolution using four projectors, with no need for external hardware. Built-in edge blending helps create a seamless image with multiple projectors.
Stacking Correction
This projector includes built-in stacking correction capabilities for up to four projectors. Stacking correction allows the projectors to boost an image’s brightness up to 80,000 lumens, which is ideal for larger sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.
ProAssist Management
Projector management software for installation professionals provides full control for multiple screens to create the perfect image. Controls such as input switching, picture, lens, edge blending, uniformity, and gamma control are adjustable though the GUI.
Integrator Friendly
Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP, and PJ Link allow for complete control system support. Furthermore, learning of basic control of competitors' products reduces the need for reprogramming of a control system lowering the cost of your installation by eliminating the need for costly reprogramming of a control system.
Additional Features
  • Optional lenses support projection distances from 4.25 to 141'
  • Bayonet style lenses provide quick and easy exchange
  • Motorized zoom and focus
  • Roll-free installation capability, including portrait orientation
  • RB (Red and Blue) Laser system achieves 92% of the DCI color space
  • IP5X certified sealed LCD cooling system prevents dust from reaching the optics and eliminates the need for a filter
  • Built-in wall color correction
  • NaViSet Administrator 2

Item Includes

  • Sharp XP-A201U-B 20,000 ISO-Lumen WUXGA RB-Laser LCD Projector (No Lens)
  • Remote Control with Batteries
  • Power Cord
  • Lens Hole Cover
  • Lens Anti-Theft Screw
  • Limited 5-Year Manufacturer Warranty

Not Included

  • Essential
    Lenses & Lens Adapters

Item Includes

Display System
1" Micro Lens Array (MLA) LCD
Native Resolution
1920 x 120
Maximum Brightness
21,000 Lumens (Center)
20,000 Lumens (ISO)
HDR Support
Yes

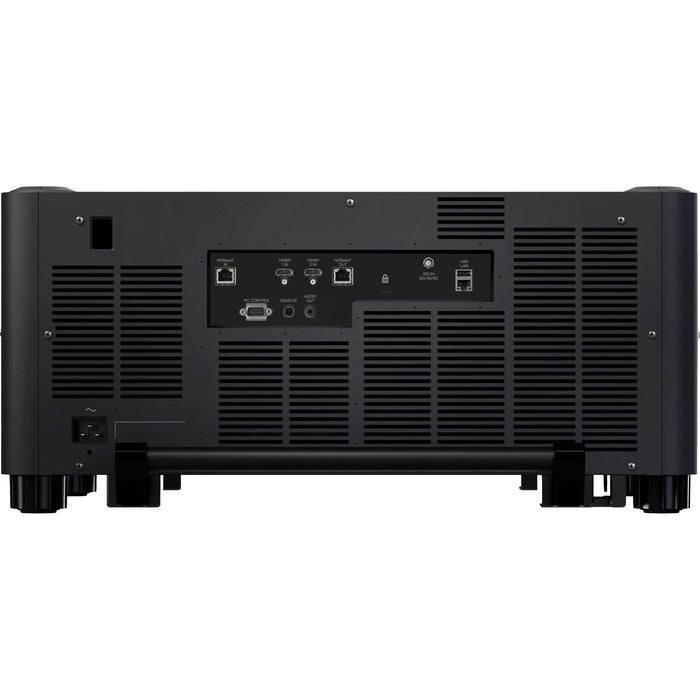

Inputs/Outputs
2x HDMI Audio, Video Input
1x BNC (3G-SDI) Video Input
1x RJ45 (HDBaseT) Audio, Control, LAN, Remote, Video Input
1x RJ45 (HDBaseT) Audio, Control, LAN, Remote, Video Output
1x 1/8" / 3.5 mm Mini Audio Output
1x USB-A Control Input
1x RJ45 (Ethernet) LAN Input
1x DE-9/DB-9 (RS-232) Control Input
1x 1/8" / 3.5 mm Mini Remote Input
Show More
Light Source
Laser Phosphor
Image Display
Display System
1" Micro Lens Array (MLA) LCD
Native Resolution
1920 x 120
Supported Resolutions
Maximum: 4096 x 2160 @ 60 Hz
Maximum Brightness
21,000 Lumens (Center)
20,000 Lumens (ISO)
Aspect Ratio
Native: 16:10
Supported: 16:9
Supported: 4:3
Scan
Horizontal: 15 to 153kHz
Vertical: 50 to 120Hz
Lens
Includes Lens
No
Features
Keystone Correction
Manual to Vertical: ± 40°
Manual to Horizontal: ± 30°
HDR Support
Yes
Multi-Input Support (PIP/PBP)
Yes: Picture-in-Picture (PIP), Picture-by-Picture (PBP)
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
No
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI Audio, Video Input
1x BNC (3G-SDI) Video Input
1x RJ45 (HDBaseT) Audio, Control, LAN, Remote, Video Input
1x RJ45 (HDBaseT) Audio, Control, LAN, Remote, Video Output
1x 1/8" / 3.5 mm Mini Audio Output
1x USB-A Control Input
1x RJ45 (Ethernet) LAN Input
1x DE-9/DB-9 (RS-232) Control Input
1x 1/8" / 3.5 mm Mini Remote Input
HDCP Support
Yes: Version 1.4/2.2
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
No
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Medium Brightness: 20,000 Hours
Fan Noise
Medium Brightness: 42 dB
Low Brightness: 34 dB
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 1530 W
Standby Mode (Lamp Off): < 1 W
Certifications
CSA C22.2 No.62368-1-19, FCC Part15, UL60950-1
Operating Conditions
32 to 113°F / 0 to 45°C
Storage Conditions
14 to 122°F / -10 to 50°C at 20 to 80% Humidity
Dimensions (W x H x D)
25.6 x 12.2 x 26.0" / 650.0 x 311.0 x 661.0 mm
Weight
85.3 lb / 38.7 kg
