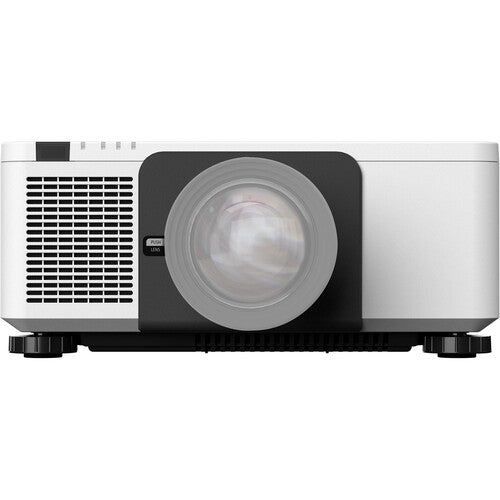

Sharp XP-X171Q-W 16,500-Lumen UHD 4K Laser DLP Projector (No Lens, White)

Sharp XP-X171Q-W 16,500-Lumen UHD 4K Laser DLP Projector (No Lens, White)

SKU XP-X171Q-W
Save 5% Save 5%
$47,399.00
$47,399.00 - $47,399.00
$47,399.00
$45,119.00
$45,119.00 - $45,119.00
$45,119.00

The Sharp XP-X171Q-W delivers 16,500 ANSI lumens of laser phosphor brightness and native WUXGA resolution for vivid, high‑definition images. It features extensive connectivity—including HDMI 2.0, DisplayPort, HDBaseT, and dual 12G‑SDI ports—and ±60% vertical and ±20% horizontal lens shift for flexible installation. With a 20,000‑hour laser lifespan and a five‑year warranty, it provides reliable performance for corporate, education, and museum environments.

Key Features
  • Brightness of 16,500 ANSI Lumens
  • UHD 4K 3840 x 2400 On-Screen Resolution
  • WUXGA 1920 x 1200 Native Resolution
  • Estimated 20,000 Hours of Laser Life
  • HDBaseT, HDMI, DP & 12G-SDI Connectivity
  • Integrated Edge Blending Capabilities
  • Motorized Focus, Shift & Zoom
  • ±36° H&V Keystone Correction
  • RS-232 & LAN Controllable
  • Integrated ProAssist Control Software

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Sharp XP-X171Q-W 16,500-Lumen UHD 4K Laser DLP Projector (No Lens, White)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The Sharp XP-X171Q-W 16,500-Lumen UHD 4K Laser DLP Projector comes with advanced professional features for corporate, higher education, and museum users. Enjoy a full suite of inputs, 4K onscreen resolution, and installation flexibility that includes geometric correction and 360° orientation capability to cover a wide range of traditional and non-standard applications and surfaces.

Laser Light Module
The XP-X171Q-W provides 20,000-plus hours of virtually maintenance-free operation with an included five-year/20,000-hour limited warranty. Compared to lamp-based projectors, laser projectors produce a higher perceived brightness, with lower power consumption for demanding applications such as retail, digital signage, and theme parks. You will also experience a more stable image over longer periods. Additionally, there is no warm-up period of waiting for the lamp to come to full brightness, images appear immediately after power on.
Flexible Installation
Enjoy greater installation flexibility with a complete line of six bayonet style lenses (sold separately) for quick and easy exchange. Lens throw distances range from 1.3 to 141.3'. Tilt- and roll-free installation capabilities make this projector well suited for a variety of applications, including portrait orientation. Furthermore, ±60% vertical and ±20% horizontal lens shift capabilities make alignment easy.
Stacking Correction
The industry's first built-in stacking correction capabilities, for up to four projectors, allow the projectors to boost an image's brightness up to 66,000 lumens, which is ideal for large-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.
HDBaseT Support
Simplify your installations with HDBaseT connectivity, optimized for video applications. It supports uncompressed Full HD digital video, audio, ethernet, power, and various control signals over one network cable connection. With only a single cable (up to 328') to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage.
Geometric Correction
Projecting an image isn't confined to a standard flat screen or wall with the Sharp X Series. Geometric correction allows these models to project an image on spheres, cylinders, corner angles, and many more non-standard surfaces.
ProAssist
ProAssist is software for controlling the projector and adjusting the projected image on the screen, from a computer, via a network. It allows necessary adjustments to be carried out easily when combining several projectors together.
Additional Features
  • Integrated software support for Crestron RoomView, AMX Beacon, and PJ Link
  • Edge blending
  • IP6X dust protection
  • Horizontal and vertical keystone correction
  • Advanced AccuBlend ensures detailed images for non-native resolution sources
  • AutoSense automatically synchronizes with any computer signal and features one-touch optimization
  • Remote diagnostics enable the user to monitor and make adjustments to the projector remotely
  • Built-in HTTP page for control and monitoring over a LAN network
  • Email notification of error messages or lamp end-of-life can be sent to remote locations

Item Includes

  • Sharp XP-X171Q-W 16,500-Lumen UHD 4K Laser DLP Projector (No Lens, White)
  • Power Cord
  • Remote Control with Batteries
  • Limited 5-Year Manufacturer Warranty (or 20,000 Hours)

Item Includes

Display System
1-Chip 0.80" DMD DLP
Native Resolution
1920 x 1200
Maximum Brightness
16,500 Lumens (ANSI)
17,000 Lumens (Center)
HDR Support
Yes
Inputs/Outputs
2x HDMI 2.0 Audio, Video Input
2x DisplayPort Video Input
1x RJ45 (HDBaseT) Audio, Control, Remote, Video Input
1x BNC (12G-SDI) Video Input
1x BNC (12G-SDI) Video Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x 12 V Trigger Control Output
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x USB-A Power Output
Show More
Light Source
Laser Phosphor
Image Display
Display System
1-Chip 0.80" DMD DLP
Native Resolution
1920 x 1200
On-Screen Resolution
Up to 3840 x 2400 via Pixel-Shift Technology
Supported Resolutions
Maximum: 3840 x 2400 @ 60 Hz
Maximum Brightness
16,500 Lumens (ANSI)
17,000 Lumens (Center)
Aspect Ratio
Native: 16:10
Color Depth
10-Bit (1.07 Billion Colors)
Scan
Horizontal: 15 to 153kHz
Vertical: 24 to 120Hz
Lens
Includes Lens
No
Features
Keystone Correction
Vertical: ± 36°
Horizontal: ± 36°
HDR Support
Yes
Multi-Input Support (PIP/PBP)
Not Specified by Manufacturer
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
No
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI 2.0 Audio, Video Input
2x DisplayPort Video Input
1x RJ45 (HDBaseT) Audio, Control, Remote, Video Input
1x BNC (12G-SDI) Video Input
1x BNC (12G-SDI) Video Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x 12 V Trigger Control Output
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x USB-A Power Output
HDCP Support
Yes: Version 1.4/2.2
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
No
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Full Brightness: 20,000 Hours
Fan Noise
Full Brightness: 41 dB
Low Brightness: 39 dB
Security
Cable Lock Slot
Keypad Lock
Security Bar
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Medium Brightness: 1290 W
Low Brightness: 1100 W
Standby Mode (Lamp Off): < 1.9 W
Certifications
FCC, UL
Operating Conditions
32 to 113°F / 0 to 45°C at 20 to 85% Humidity
Storage Conditions
14 to 140°F / -10 to 60°C at 20 to 80% Humidity
Dimensions (W x H x D)
19.7 x 8.5 x 23.0" / 500.0 x 216.0 x 583.0 mm
Weight
64.8 lb / 29.4 kg
