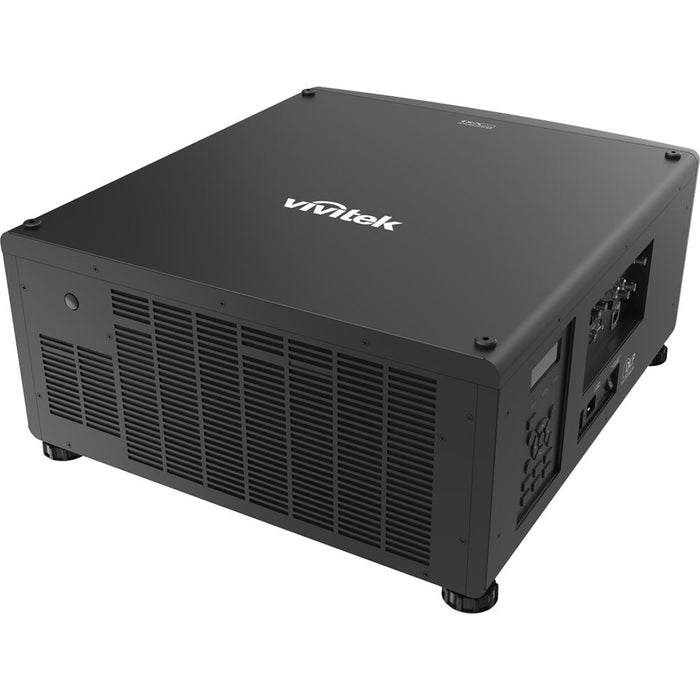

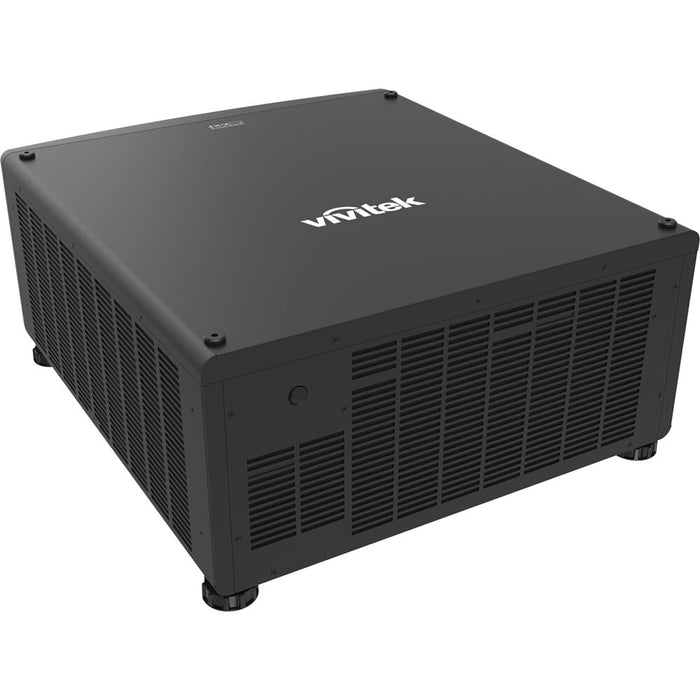

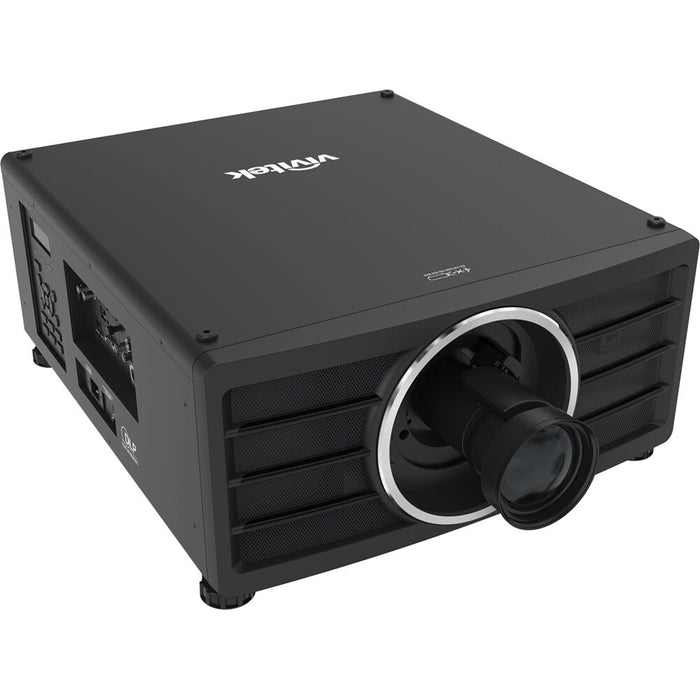

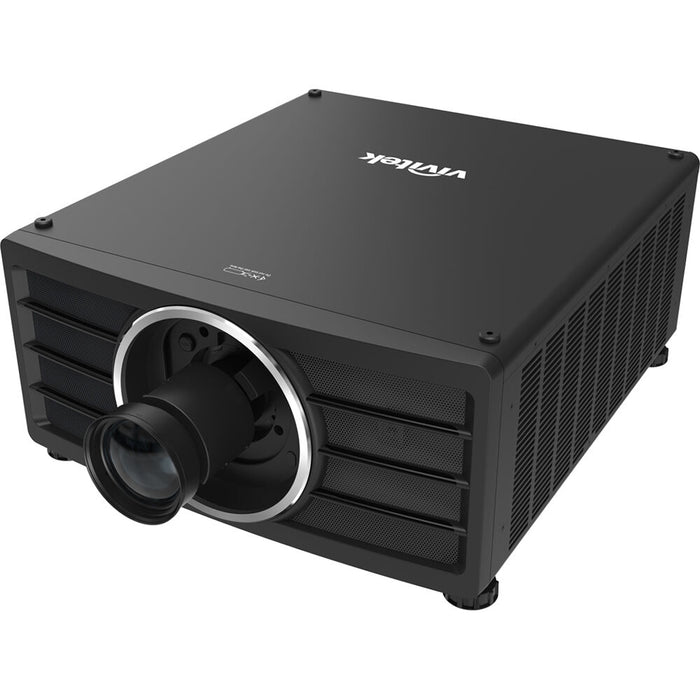

Vivitek DU9055Z 24,000-Lumen WUXGA Laser DLP ProAV Projector

Vivitek DU9055Z 24,000-Lumen WUXGA Laser DLP Projector (No Lens)

SKU DU9055Z-BK
Save 6% Save 6%
$40,250.00
$40,250.00 - $40,250.00
$40,250.00
$38,000.00
$38,000.00 - $38,000.00
$38,000.00

The Vivitek DU9055Z is a formidable 24,000-lumen WUXGA laser DLP projector engineered for demanding professional environments. It integrates advanced features like edge blending, geometric correction, and lens positioning memory to streamline complex installations. Boasting an IP6X sealed optical system and a 30,000-hour laser light source, this projector offers exceptional reliability and minimal maintenance for continuous 24/7 operation. Its high efficiency and robust design ensure consistent, vibrant projections in ProAV, stage, and outdoor mapping applications.

Key Features
  • Brightness of 24,000 ISO Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • Up to 30,000 Hours of Laser Life
  • Network LAN & RS-232 Controllable
  • Seven Optional Lenses (Sold Separately)
  • HDMI, DP, DVI, 12G-SDI & HDBaseT Inputs
  • 360° & Portrait Orientation Support
  • IP6X Dust Protection
  • 24/7 Operation Capable
  • Edge Blending & Geometric Correction

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Vivitek DU9055Z 24,000-Lumen WUXGA Laser DLP Projector (No Lens)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Experience ultra-high brightness and easy installation with Vivitek's flagship DU9055Z 24,000-Lumen WUXGA Laser DLP Projector. Compact and lightweight for its class, the DU9055Z features built-in edge blending, geometric and auto-color uniformity correction, and lens positioning memory to help simplify installation in professional environments such as ProAV, stage, and outdoor mapping applications.
Ultra-High Efficiency
The DU9055Z uses the latest laser light source technology to enhance brightness, it is among the lowest in power consumption and highest in efficiency on the market. Compared to previous projectors, this series has up to 23% lower power consumption.
Built-In Image Edge Blending
The DU9055Z features edge-blending capability. This allows multiple projectors to simultaneously project a combined seamless image on large displays.
Built-In Geometric Correction
The geometric correction function of the DU9055Z can provide highly precise image correction and adjustment through the grid, making installation more flexible.
Lens Position Memory
The DU9055Z comes with powered horizontal and vertical lens shift capability for easy adjustment and positioning flexibility. Lens Positioning Memory also offers quick recall of user-defined lens positions (lens shift) for easy setup to ensure perfectly proportioned images.
24/7 Operation
Vivtek’s laser light source is good for 30,000 hours of operation in Eco Mode and supports continuous 24/7 operation. It delivers high stability and reliability for commercial applications.
High Standard Anti-Dust Protection
The optical system, from the laser light source to lens is completely sealed and rated IP6X for protection again dust ingress, ensuring consistent brightness over time with reliable performance and much reduced need for maintenance.
Rental Mode
After rental agents have installed the projector for customers, a specific rental period can be set, and the screen image will be automatically blocked when the period expires.
Additional Features
  • Dual laser technology
  • DLP DarkChip3 and BrilliantColor technologies for optimal black levels and vibrant colorful images
  • Embedded smart sensor detects the brightness levels and automatically adjusts the output levels to ensure a constant bright image
  • Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
  • Almost maintenance free with up to 30,000 hours of operating time
  • Native WUXGA resolution with a maximum 4K UHD input resolution
  • Crestron RoomView integration for network monitoring and management
  • Heavy-duty steel chassis for extra strength and integrity
  • Network ready for integration and system administration via RJ45

Item Includes

  • Vivitek DU9055Z 24,000-Lumen WUXGA Laser DLP Projector (No Lens)
  • AC Power Cord
  • Remote Control with Batteries
  • HDMI Cable
  • Wired Remote Cable
  • Limited 5-Year Manufacturer Warranty (On Projector)
  • Limited 5-Year Manufacturer Warranty (or 20.000 Hours on the Laser Light Source, Whichever Comes First)

Not Included

  • Essential
    Lenses & Lens Adapters

Item Includes

Display System
1-Chip 0.96" DLP
Native Resolution
1920 x 1200
Maximum Brightness
24,000 Lumens (ISO)
HDR Support
Yes: HDR10/Hybrid Log Gamma
Inputs/Outputs
2x HDMI 2.0 Video Input
1x DVI-D Video Input
1x RJ45 (HDBaseT) Video Input
1x BNC (12G-SDI) Video Input
1x BNC (12G-SDI) Video Output
1x RJ45 (Ethernet) LAN Input
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x 12 V Trigger Control Output
1x DE-9/DB-9 (RS-232) Control Input
1x BNC (VESA 3D Sync) Data Input
1x BNC (VESA 3D Sync) Data Output
1x BNC (VESA 3D Sync) Control Input
1x USB-A Power Output
Show More
Light Source
Laser Phosphor
Image Display
Display System
1-Chip 0.96" DLP
Native Resolution
1920 x 1200
Supported Resolutions
Maximum: 3840 x 2160 @ 60 Hz
Maximum Brightness
24,000 Lumens (ISO)
Aspect Ratio
Native: 16:10
Contrast Ratio
1500:1
Dynamic Contrast Ratio
20,000:1
DLP Link 3D
Yes
Supported 3D Formats
Side by Side
Top Bottom
Frame Sequential
Frame Packing
Scan
Horizontal: 15 to 91.4kHz
Vertical: 24 to 120Hz
Lens
Includes Lens
No
Features
Keystone Correction
Vertical: ± 40°
Horizontal: ± 45°
HDR Support
Yes: HDR10/Hybrid Log Gamma
Multi-Input Support (PIP/PBP)
No
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
No
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI 2.0 Video Input
1x DVI-D Video Input
1x RJ45 (HDBaseT) Video Input
1x BNC (12G-SDI) Video Input
1x BNC (12G-SDI) Video Output
1x RJ45 (Ethernet) LAN Input
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x 12 V Trigger Control Output
1x DE-9/DB-9 (RS-232) Control Input
1x BNC (VESA 3D Sync) Data Input
1x BNC (VESA 3D Sync) Data Output
1x BNC (VESA 3D Sync) Control Input
1x USB-A Power Output
HDCP Support
Yes: Version 2.2
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
Yes: Android & iOS
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Low Brightness: 30,000 Hours
Fan Noise
Medium Brightness: 47 dB
Low Brightness: 45 dB
Supported Languages
English
French
German
Japanese
Korean
Portuguese
Simplified Chinese
Spanish
Traditional Chinese
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Medium Brightness: < 1400 W
Standby Mode (Lamp Off): < 6 W
Certifications
CE, FCC
Operating Conditions
32 to 104°F / 0 to 40°C at 10 to 85% Humidity
Storage Conditions
14 to 140°F / -10 to 60°C at 5 to 95% Humidity
Dimensions (W x H x D)
26.6 x 10.6 x 23.6" / 676.6 x 270.0 x 598.8 mm
Weight
100.1 lb / 45.4 kg
