Features

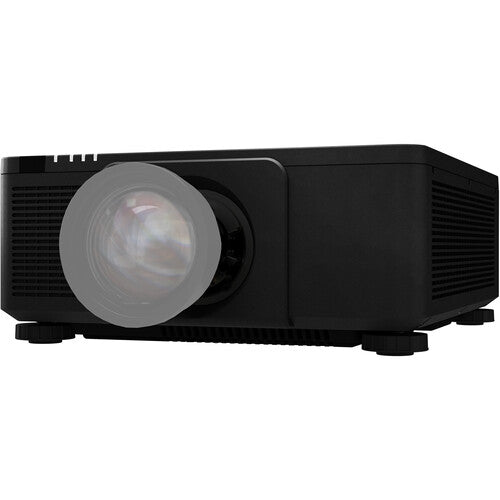

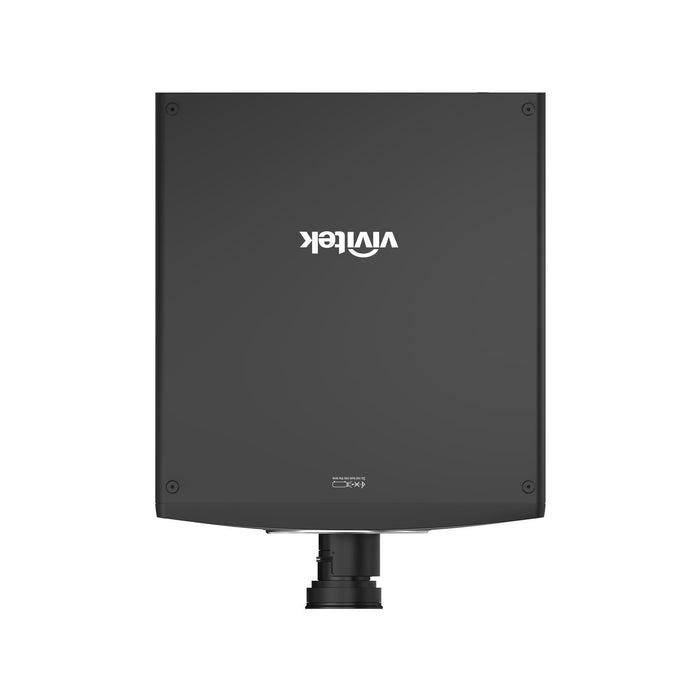

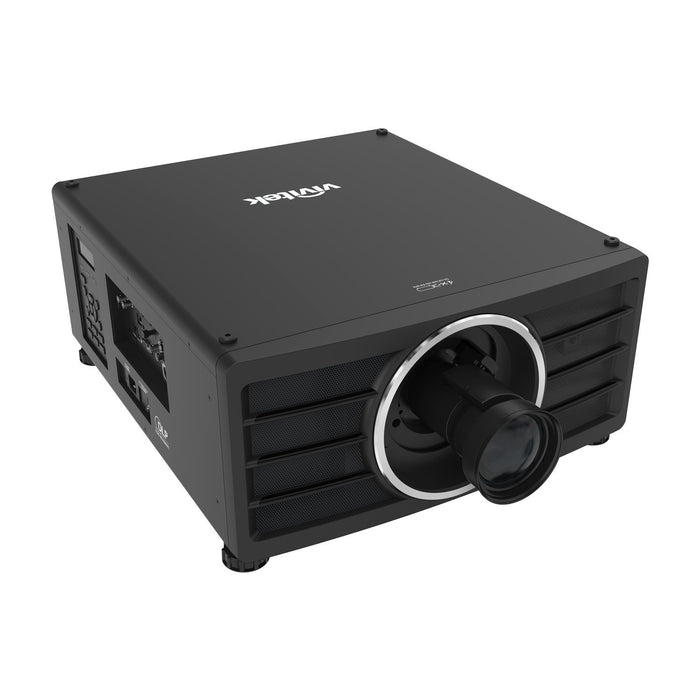

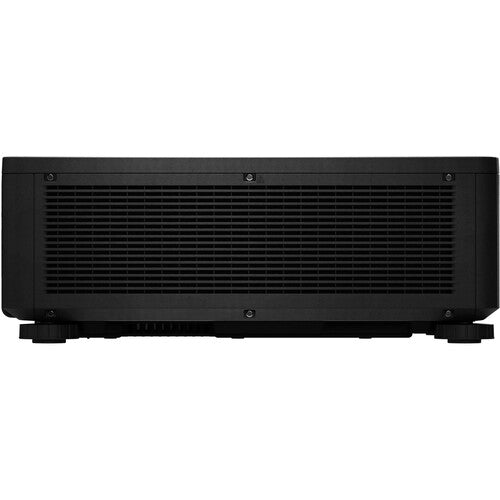

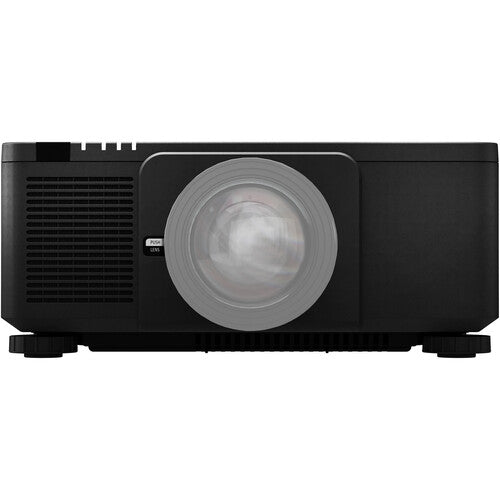

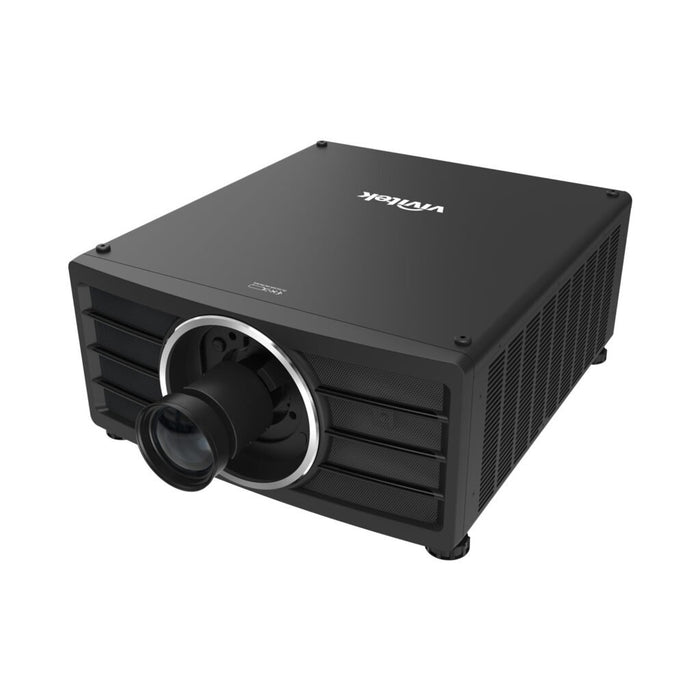

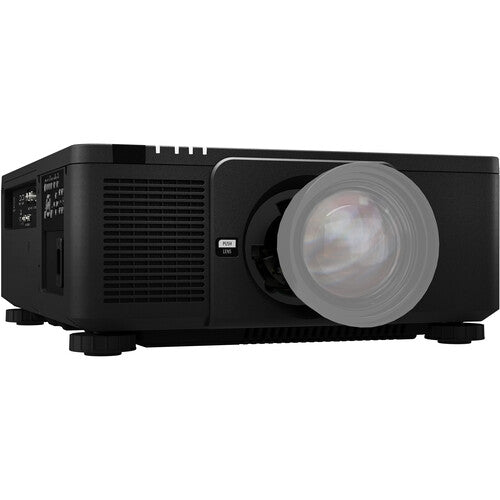

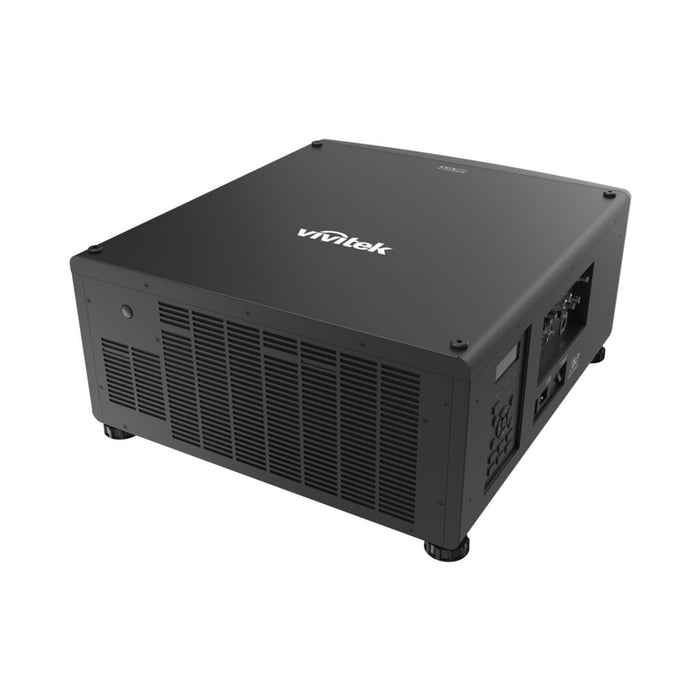

Experience ultra high-brightness and easy installation with Vivitek's flagship DU9057Z 27,000-Lumen WUXGA Laser DLP Projector. Compact and lightweight for its class, the DU9057Z features built-in edge blending, geometric and auto-color uniformity correction, and lens positioning memory to help simplify installation in professional environments such as ProAV, stage, and outdoor mapping applications.
Ultra-High Efficiency
The DU9057Z uses the latest laser light source technology to enhance brightness, it is among the lowest in power consumption and highest in efficiency on the market. Compared to previous projectors, this series has up to 23% lower power consumption.
Built-In Image Edge Blending
The DU9057Z features edge-blending capability. This allows multiple projectors to simultaneously project a combined seamless image on large displays.
Built-In Geometric Correction
The geometric correction function of the DU9057Z can provide highly precise image correction and adjustment through the grid, making installation more flexible.
Lens Position Memory
The DU9057Z comes with powered horizontal and vertical lens shift capability for easy adjustment and positioning flexibility. Lens Positioning Memory also offers quick recall of user-defined lens positions (lens shift) for easy setup to ensure perfectly proportioned images.
24/7 Operation
Vivtek's laser light source is good for 30,000 hours of operation in Eco Mode and supports continuous 24/7 operation. It delivers high stability and reliability for commercial applications.
High Standard Anti-Dust Protection
The optical system, from the laser light source to lens is completely sealed and rated IP6X for protection again dust ingress, ensuring consistent brightness over time with reliable performance and much reduced need for maintenance.
Rental Mode
After rental agents have installed the projector for customers, a specific rental period can be set, and the screen image will be automatically blocked when the period expires.
Additional Features
Dual laser technology
DLP DarkChip3 and BrilliantColor technologies for optimal black levels and vibrant colorful images
Embedded smart sensor detects the brightness levels and automatically adjusts the output levels to ensure a constant bright image
Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
Almost maintenance free with up to 30,000 hours of operating time
Native WUXGA resolution with a maximum 4K UHD input resolution
Crestron RoomView integration for network monitoring and management
Heavy-duty steel chassis for extra strength and integrity
Network ready for integration and system administration via RJ45
Item Includes
Display System
1-Chip 0.96" DLP
Native Resolution
1920 x 1200
Maximum Brightness
27,000 Lumens (ISO)
HDR Support
Yes: HDR10/Hybrid Log Gamma
Inputs/Outputs
2x HDMI 2.0 Video Input
1x DVI-D Video Input
1x RJ45 (HDBaseT) Video Input
1x BNC (12G-SDI) Video Input
1x BNC (12G-SDI) Video Output
1x RJ45 (Ethernet) LAN Input
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x 12 V Trigger Control Output
1x DE-9/DB-9 (RS-232) Control Input
1x BNC (VESA 3D Sync) Data Input
1x BNC (VESA 3D Sync) Data Output
1x BNC (VESA 3D Sync) Control Input
1x USB-A Power Output
Show More
Light Source
Laser Phosphor
Image Display
Display System
1-Chip 0.96" DLP
Native Resolution
1920 x 1200
Supported Resolutions
Maximum: 3840 x 2160 @ 60 Hz
Maximum Brightness
27,000 Lumens (ISO)
Aspect Ratio
Native: 16:10
Contrast Ratio
1500:1
DLP Link 3D
Yes
Supported 3D Formats
Side by Side
Top Bottom
Frame Sequential
Frame Packing
Scan
Horizontal: 15 to 91.4kHz
Vertical: 24 to 120Hz
Lens
Includes Lens
No
Features
Keystone Correction
Vertical: ± 40°
Horizontal: ± 45°
HDR Support
Yes: HDR10/Hybrid Log Gamma
Multi-Input Support (PIP/PBP)
No
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
No
Projection Tilt Option
Yes

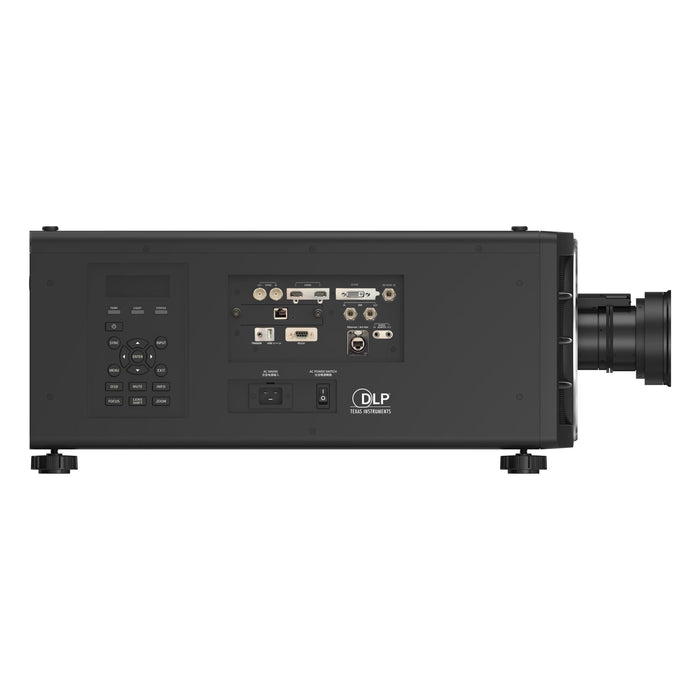

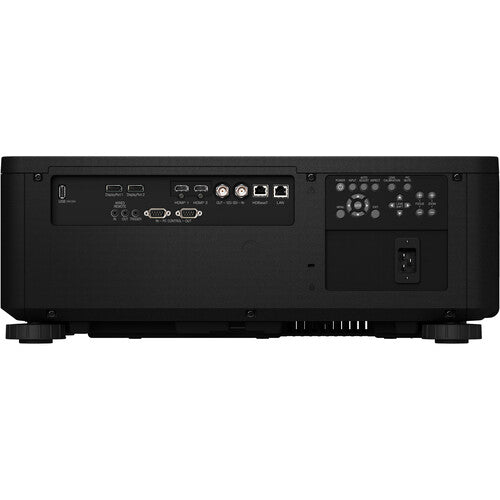

Input/Output Connectors
Inputs/Outputs
2x HDMI 2.0 Video Input
1x DVI-D Video Input
1x RJ45 (HDBaseT) Video Input
1x BNC (12G-SDI) Video Input
1x BNC (12G-SDI) Video Output
1x RJ45 (Ethernet) LAN Input
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x 12 V Trigger Control Output
1x DE-9/DB-9 (RS-232) Control Input
1x BNC (VESA 3D Sync) Data Input
1x BNC (VESA 3D Sync) Data Output
1x BNC (VESA 3D Sync) Control Input
1x USB-A Power Output
HDCP Support
Yes: Version 2.2
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
Yes: Android & iOS
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Low Brightness: 30,000 Hours
Fan Noise
Medium Brightness: 48 dB
Low Brightness: 46 dB
Supported Languages
English
French
German
Japanese
Korean
Portuguese
Simplified Chinese
Spanish
Traditional Chinese
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Medium Brightness: < 1550 W
Standby Mode (Lamp Off): < 6 W
Certifications
CE, FCC
Operating Conditions
32 to 104°F / 0 to 40°C at 10 to 85% Humidity
Storage Conditions
14 to 140°F / -10 to 60°C at 5 to 95% Humidity
Dimensions (W x H x D)
26.6 x 10.6 x 23.6" / 676.6 x 270.0 x 598.8 mm
Weight
100.1 lb / 45.4 kg
