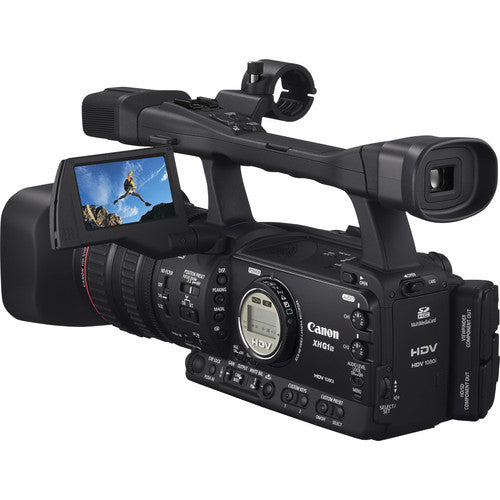

Canon XH-G1s 3CCD HDV Camcorder NTSC

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

TheCanon XH-G1sis an updated version of the award-winning XHG1 HDV camcorder. The camera is geared towards the videographer on a budget who isn't willing to compromise any of the professional attributes of its big brother, the XL-H1. With the same high quality 1/3" CCDs, the camera yields an image both crisp and noise-free. The solid feeling is instantly apparent when operating the XH-G1s; despite its modest frame, the camera performs like a pro. Improvements over the previous model include higher quality zoom, focus and iris rings.

Utilizing the highly efficient HDV compression format allows over an hour of high definition recording on a single miniDV tape! Featuring a 20x fluorite fixed lens, its superior optics gives professional level shooters ultimate image fidelity unmatched by the competition. Also included is the Instant AF auto-focus system, incorporating technology that helps reduce auto focus reaction time while increasing overall accuracy.

The G1s comes equipped with the same professional connections that make the XL-H1 so unique. Fitted with the "jackpack", the camera can output uncompressed video through its integrated HD-SDI connection, making it ideal for field broadcasting. This is combined with both a genlock and timecode out, making the G1 a perfect camera not only for the field, but the studio as well. Concert and event videography is a breeze!
Updated Features
The XH-G1s improves upon on an already stellar camera. Some improvements include flags for 24f 2:3 pulldown through HD-SDI, simultaneous use of XLR and built-in microphone, audio volume lock, a 6-Pin FireWire I/O, the ability to share scene files between XLH1 series and XLA1 series camcorders, an audio limiter, and more!
HD at Your Fingertips
The XH-G1s camcorder has three 1/3" 16:9 interlaced CCDs that capture images at 1080i resolution. The camcorder features selectable frame rates of 60i, 30 Frame and 24 Frame to allow the user to adjust to the assignment at hand and can switch back to SD resolution if needed. At the 30 Frame rate, broadcasters can capture fast motion like sports with confidence that each frame is captured individually and completely. Filmmakers can utilize the 24 Frame rate when creating the look and feel of movie film. The 60i frame rate, meanwhile, delivers exceptional resolution for shooting environments like ENG or Reality TV.
High Quality Images
The XH-G1s HD camcorder includes Canon's proprietary DIGIC DV II image processor. DIGIC DV II is an image processor that can process both HD and SD video signals as well as still photos. The highly effective chip ensures clean, noise-free footage with unmatched color fidelity.
Flip-Out LCD
The camera features a flip-out LCD capable of being viewed from both sides of the camera, a feature often overlooked on competitive cameras. The LCD provides ample resolution for more capable focus assistance. The display tucks cleanly under the handle when not in use, resulting in unfettered side controls.
Instant AF
Instant AF is an auto-focus assistant that dramatically increases both speed and accuracy when paired with HD technology. High Definition requires far more precision to get perfect focus than its standard definition counterpart. The increase in fidelity means the camera itself must work harder to find complete focus. If the auto-focus still doesn't satisfy, Canon has included independent rings for not only focus and zoom, but iris as well; A feature usually only afforded to high-end ENG systems.
Customizable
The XH-G1s can be customized in a variety of different ways. The image itself can be tweaked to get an endless array of different styles. Additionally, all of these functions can be saved via a Secure Digital (SD) card, for future retrieval. This feature can also be used to transfer camera settings from one camera to another, which can save time during projects with multiple cameras.
Optical Stabilization Feature
Canon calls its image stabilizer Super-Range Optical Image Stabilization and it helps defeat camera shake from hand held shooting and even shake produced from a moving vehicle. Because it is an optical function, it can compensate for a greater degree of camera shake and avoids any loss in image quality unlike electronic or digital stabilizing methods.
Uncompressed HD-SDI
The XH-G1s camcorder has all the connectors that professionals have been missing in other low-cost HDTV camcorders. For the ultimate in video transfers, this camera has an uncompressed HD-SDI connector. The serial digital BNC connector provides unparalleled control and image clarity, completely bypassing HDV compression.
Time Code
The XH-G1s camera is equipped with true SMPTE time code input and output. Time code from the camcorder can be sent to other recording devices (cameras, VTRs) so they are all recording with the same clock.
Genlock Synchronization
Multi-camera shoots with the XH-G1s is no problem since the camcorder has Genlock sync. This feature allows many devices including cameras, VTRs and switchers to synchronize.

Item Includes

Canon XH-G1s 3CCD HDV Camcorder
  • CA-920 Compact Power Adapter
  • DC-920 DC Coupler
  • BP-950G Battery Pack
  • SS-1100 Shoulder Strap
  • WL-D5000 Wireless Controller
  • Lens Hood
  • HDVM-E63PR Digital Video Cassette
  • SDC-32M SD Memory Card
  • Eye Cup
  • Two R6/AA Batteries
  • Tripod Adapter Base
  • AC Cable
  • External Microphone Holder Adjustment Band
  • 1-Year Limited USA Warranty

ADDITIONAL ACCESSORIES

  • CLEANING KIT
  • 72MM UV FILTER
  • 32GB MEMORY CARD

Item Includes

Signal SystemMiniDV
HDV: 1080i/60i, 1080i/30f, 1080i/24f
Image Device3 1/3" Native 16:9 CCDs at 1440 x 1080 (Interlaced)
Lens4.5-90mm (32.5-650mm; 35mm photo equivalent)
Signal-to-Noise RatioNot Specified by Manufacturer
Horizontal Resolution1080 Lines
Sensitivityf/1.6-3.5mm
Minimum Illumination0.4 lux (60i/30f Mode, Manual Mode, 1/4 Shutter, F1.6, Gain 18dB)
Built-in FiltersND: 1/6, 1/32
LCD Monitor2.8" (207,000 Pixels)
Viewfinder0.57" (269,000 Pixels)
Memory Card SlotSecure Digital High Capacity (SDHC)
Secure Digital (SD)
MultiMedia Card (MMC)
Shutter Speed Range60i/30f
1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/15000, CS (Clear Scan)

24f
1/3, 1/6, 1/12, 1/24, 1/48, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/15000, CS (Clear Scan)
Gain Selection-3, 0, 3, 6, 12, 18, 36dB (36dB, Camera Only)
VTR
Tape FormatMini DV Cassettes
Tape Speed18.8mm/s
Maximum Recording Time80 min
Audio Dynamic RangeNot Specified by Manufacturer
Audio Signal FormatHDV
2 Ch/MPEG-1 Audio Layer II

DV-PCM
16-bit/48kHz
12-bit/32kHz
Input and Output ConnectorsAudio: XLR (x2 Input)
BNC Video
Component Video
Composite Video
FireWire 6-Pin
Microphone: 3.5mm
Headphones: 3.5mm
LANC Terminal
HD-SDI: BNC (x1 Output}
Timecode: BNC (x1 Output)
Genlock: BNC (x1 Output
General
Power Requirements100-240VAC, 50/60Hz
7.4VDC
Power Consumption7.8W with Power Supply
Operating Temperature32-104F (0-40C)
Dimensions (WxHxD)6.4 x 7.4 x 13.8" (16.3 x 18.9 x 35cm)
Weight4.6 lbs (2.1g)
