Epson PowerLite L690SU 6200-Lumen WUXGA Short-Throw Laser 3LCD Projector (White) - Buy Direct & Save

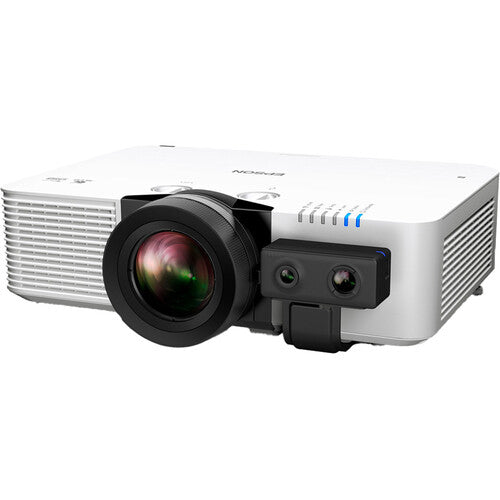

Epson PowerLite L690SU 6200-Lumen WUXGA Short-Throw Laser 3LCD Projector (White)

SKU V11HB31020
Save 2% Save 2%
$6,257.00
$6,257.00 - $6,257.00
$6,257.00
$6,123.00
$6,123.00 - $6,123.00
$6,123.00
Key Features
  • Brightness of 6200 ISO Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • Bright 3LCD Color Technology
  • 0.8 to 1.36:1 Short Throw Ratio
  • HDMI & HDBaseT Inputs / HDMI Output
  • Wide H&V Lens Shift
  • Built-In Geometric Correction
  • 360° Mounting Capability
  • Up to 30,000 Hour Laser Light Source
  • Onboard Wi-Fi, LAN & NFC Connectivity

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Epson PowerLite L690SU 6200-Lumen WUXGA Short-Throw Laser 3LCD Projector (White)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Deliver large images in tight spaces with the versatile PowerLite L690SU 6200-Lumen WUXGA Short-Throw Laser 3LCD Projector from Epson. This bright and compact projector features a long-lasting laser light source and vivid 3LCD color technology, making it well suited to a wide variety of applications, including conference rooms, simulators, advertising, gallery spaces, and more.

Simplified Installation
The L690SU is designed for easy installation and operation. It features a compact and lightweight body with universal VESA mounting support. Built-in NFC functionality, wide lens shift, 360-degree mounting, geometric correction tools, and more, allow for simple integration and setup.
Low Maintenance
Created with convenience in mind, the projector features an up to 30,000-hour virtually maintenance-free laser light source and air filter in Extended Mode.
Additional Features
  • HDBaseT and HDMI inputs, HDMI out for signal chaining
  • WUXGA native resolution, accepts up 4K content
  • Wi-Fi for wireless networking and content sharing
  • Built-in NFC reduces installation time of multiple projectors
  • Optional PixAlign Camera (sold separately) adds powerful multi-projector tools including screen matching, auto color calibration, blending assist, and simple stacking
  • OTA updates
UPC: 010343988996

Item Includes

  • Epson PowerLite L690SU 6200-Lumen WUXGA Short-Throw Laser 3LCD Projector (White)
  • Power Cable
  • Remote Control with batteries
  • Cable Cover
  • Limited 3-Year Manufacturer Warranty

Item Includes

Display System
3-Chip 0.67" Polysilicon TFT LCD
Native Resolution
1920 x 1200
Maximum Brightness
White: 6200 Lumens (ISO)
Color: 6200 Lumens
Throw Ratio
0.8 to 1.36:1 (150" Screen Size @ 10' / 3.0 m)
Projection Size
60 to 400" / 1.5 to 10.2 m
HDR Support
No
Inputs/Outputs
2x HDMI Audio, Video Input
1x HDMI Video Output
2x DE-15/DB-15 (VESA 3D Sync) Video Input
2x RJ45 (HDBaseT) Audio, Video Input
2x 1/8" / 3.5 mm Mini Audio Output
1x USB-B Video Input
1x DE-9/DB-9 (RS-232) Control Input
Light Source
Laser Phosphor
Image Display
Display System
3-Chip 0.67" Polysilicon TFT LCD
Native Resolution
1920 x 1200
Supported Resolutions
Maximum: 1920 x 1200
Maximum Brightness
White: 6200 Lumens (ISO)
Color: 6200 Lumens
Uniformity
88%
Aspect Ratio
Native: 16:10
Supported: 4:3
Supported: 16:9
Supported: 16:6
Supported: 21:9
Dynamic Contrast Ratio
5,000,000:1
Color Depth
10-Bit (1.07 Billion Colors)
Scan
Horizontal: 26 to 135kHz
Vertical: 24 to 60Hz
Lens
Includes Lens
Yes
Focus
Manual
Aperture
f/1.7 to 2.1
Focal Length
11.6 to 19.9mm
Lens Shift
Vertical: ± 50%
Horizontal: ± 20%
Optical Zoom
Manual: 1.7x
Throw Ratio
0.8 to 1.36:1 (150" Screen Size @ 10' / 3.0 m)
Projection Size
60 to 400" / 1.5 to 10.2 m
Features
Keystone Correction
Manual to Vertical: ± 30°
Manual to Horizontal: ± 30°
HDR Support
No
Multi-Input Support (PIP/PBP)
Yes, Picture-by-Picture (PBP)
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
Yes (Mono)
Speaker Power
10 W
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI Audio, Video Input
1x HDMI Video Output
2x DE-15/DB-15 (VESA 3D Sync) Video Input
2x RJ45 (HDBaseT) Audio, Video Input
2x 1/8" / 3.5 mm Mini Audio Output
1x USB-B Video Input
1x DE-9/DB-9 (RS-232) Control Input
HDCP Support
Yes, Version 2.3
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
Yes: Android & iOS
Wireless LAN / Wi-Fi
Yes, Built-in
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Low Brightness: 30,000 Hours
Fan Noise
Medium Brightness: 38 dB
Low Brightness: 27 dB
Security
Cable Lock Slot
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Medium Brightness: 415 W
Standby Mode (Lamp Off): < 2.4 W
Certifications
ISO 21118, RoHS
Operating Conditions
32 to 113°F / 0 to 45°C
Dimensions (W x H x D)
17.3 x 4.8 x 11.9" / 439.4 x 121.9 x 302.3 mm
Weight
22 lb / 10 kg
Packaging Info
Package Weight
29.72 lb
Box Dimensions (LxWxH)
24.2 x 20.7 x 9.1"
