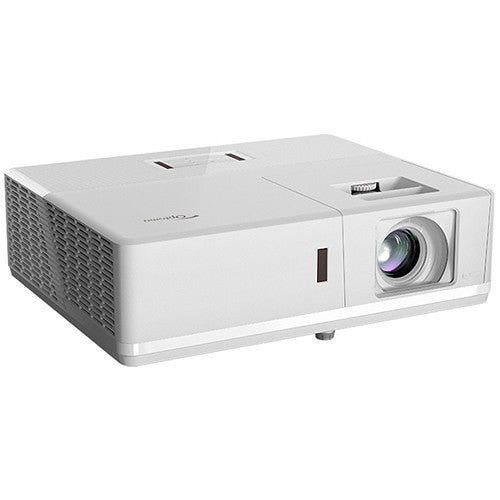

Optoma Technology ZH506-W 5000-Lumen Full HD Laser DLP Projector

Optoma Technology ZH506-W 5000-Lumen Full HD Laser DLP Projector

SKU NJAZH506-W
Save 30% Save 30%
$5,899.00
$5,899.00 - $5,899.00
$5,899.00
$4,125.00
$4,125.00 - $4,125.00
$4,125.00
  • Brightness of 5000 Lumens
  • Full HD (1920 x 1080) Native Resolution
  • 1.4 to 2.24:1 Throw Ratio
  • VGA, Composite Video, 2x HDMI Inputs
  • VGA Output for Loop-Through
  • Analog Audio Input and Output
  • Dual 10-Watt Speakers
  • Compatible with Crestron RoomView
  • Ethernet and RS-232 Controllable
  • IR Remote with Integrated Laser Pointer

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Optoma Technology ZH506-W 5000-Lumen Full HD Laser DLP Projector

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Enjoy bright images and high dynamic contrast with the Optoma ZH506-W 5000-Lumen Full HD Laser DLP Projector. Its native 1920 x 1080 resolution displays data and images clearly at various viewing distances, while its 300,000:1 dynamic contrast ratio helps enhance detail in dark images. Its 1.4 to 2.24:1 throw ratio allows you to place the projector relatively far from the screen without losing focus.

The ZH506-W features RCA composite video, VGA, and two HDMI inputs, one of which is MHL-compatible for wired streaming from your compatible smart device. Two onboard 10W speakers mitigate the need for an external speaker system, but you can connect one with the 1/8" or RCA outputs. An IR remote control with a built-in laser pointer is included as an added convenience.

DLP Technology
Digital Light Processing (DLP) technology is designed to provide digital projection with high contrast, fast response time, good pixel structure, and virtually no color degradation.
Four-Corner Adjustment
Four-corner geometric correction is designed to provide quick and easy image adjustments for any of the corner points of the image for uneven or angled projection surfaces.
Vertical Lens Shift
Vertical lens shift helps simplify installation by letting you shift the image up and down without image distortion to provide a wider range of projector placement possibilities.
RS-232 Control
Take control of the projector using HEX or ASCII commands via RS-232.
Direct Power On & Signal Power On
The Direct Power On feature lets you turn the projector on directly from the power source, allowing for installation with a power-on timer. Signal Power On capability turns the projector on when you power on your source device.
Crestron RoomView Network Control
Software provides a custom configurable interface to monitor, manage, and control the projector and other compatible connected devices remotely from a computer.
  • Manage up to 250 projectors at the same time via a master computer.
  • Control and adjust the projector's settings using a web browser page, including its OSD menu control.
  • Set up email alerts for warning messages.
  • Well-suited for large installations in educational and business environments.
3D Compatibility
Display 3D content from almost any compatible source, including 3D Blu-ray players, broadcast, and game consoles. 144 Hz rapid-refresh rate is supported for smooth, flicker-free images. Optional compatible 3D glasses are required.

Item Includes

  • Optoma Technology ZH506-W 5000-Lumen Full HD Laser DLP Projector
  • Remote Control with Batteries
  • AC Power Cable

Item Includes

Display System
0.65" DMD DLP
Native Chip Resolution
1920 x 1080 (Full HD)
Maximum Brightness
5000 Lumens
Throw Ratio
1.4 to 2.24:1
Inputs/Outputs
1x HDMI Audio, Video Input
1x HDMI  with MHL Support Audio, Control, Power, Video Input
1x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x RCA (Composite) Video Input
1x 1/8" / 3.5 mm Mini Audio Input
1x 1/8" / 3.5 mm Mini Audio Line/Mic Input
1x 1/8" / 3.5 mm Mini Audio Output
1x USB-A 2.0 Power Output
1x RJ45 (Ethernet) LAN
1x DE-9/DB-9 (RS-232) Control
1x 12 V Trigger Control Output

Light Source
Laser Phosphor
Image Display
Display System
0.65" DMD DLP
Native Chip Resolution
1920 x 1080 (Full HD)
Supported Resolutions
Maximum: 4K UHD - 3840 x 2160
Maximum Brightness
5000 Lumens
Uniformity
80%
Offset
103% - 118%
Aspect Ratio
Native: 16:9
Supported: 4:3
Dynamic Contrast Ratio
300,000:1
DLP Link 3D
Yes
Supported 3D Formats
Frame Packing
Side by Side
Top Bottom
Color Wheel
4-Segment (RGBY)
Color Depth
10-Bit (1.07 Billion Colors)
Scan
Horizontal: 13.375 to 91.146 kHz
Vertical: 24 to 85 Hz
Lens
Focus
Manual
Lens
f/2.5 - 3.26 (f = 20.91 - 32.62 mm)
Lens Shift
Vertical: + 15%
Optical Zoom
Manual: 1.6x
Throw Distance
3.28 - 32.8' / 1 - 9.997 m
Throw Ratio
1.4 to 2.24:1
Projection Size
20.2 to 322.6" / 51.31 to 819.40 cm
Features
Keystone Correction
Vertical: ± 30°
Horizontal: ± 30°
Digital Zoom
2x
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
Yes (Stereo)
Speaker Power
20W
Projection Tilt Option
Yes
Remote
Laser Pointer
Input/Output Connectors
Inputs/Outputs
1x HDMI Audio, Video Input
1x HDMI  with MHL Support Audio, Control, Power, Video Input
1x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x RCA (Composite) Video Input
1x 1/8" / 3.5 mm Mini Audio Input
1x 1/8" / 3.5 mm Mini Audio Line/Mic Input
1x 1/8" / 3.5 mm Mini Audio Output
1x USB-A 2.0 Power Output
1x RJ45 (Ethernet) LAN
1x DE-9/DB-9 (RS-232) Control
1x 12 V Trigger Control Output
Hardware
Wireless LAN / Wi-Fi
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Medium Brightness: 30,000 Hours
Fan Noise
Full Brightness: 36 dB
Low Brightness: 30 dB
Security
Cable Lock Slot
Password Protection
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 353 W
Low Brightness: 321 W
Operating Temperature
41 to 104°F / 5 to 40°C
Operating Humidity
0 to 85%
Dimensions (W x H x D)
14.7 x 4.6 x 11.9" / 37.3 x 11.7 x 30.2 cm
Weight
12.12 lb / 5.5 kg
Packaging Info
Package Weight
16.55 lb
Box Dimensions (LxWxH)
21.95 x 18 x 9.5"
