Vivitek DU8055Z 16,000-Lumen WUXGA Laser DLP Projector (No Lens, Black) - Buy Direct & Save

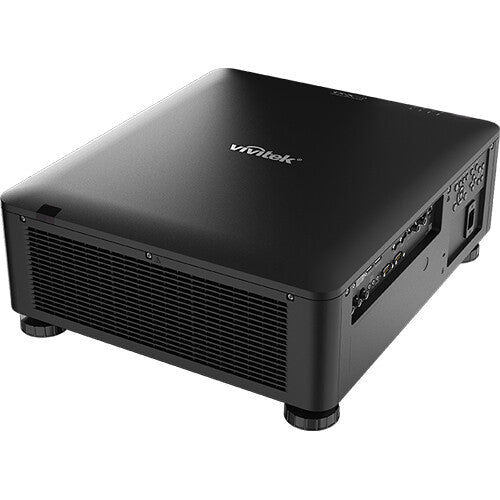

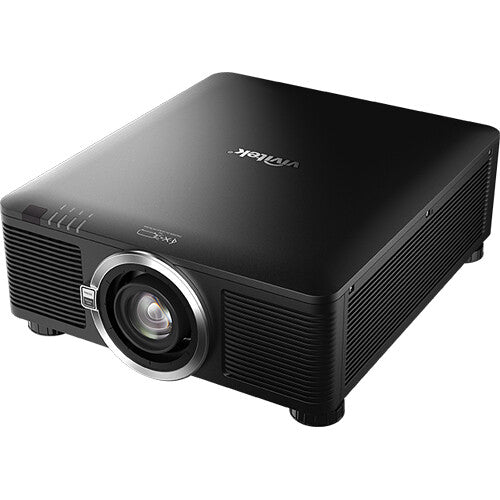

Vivitek DU8055Z 16,000-Lumen WUXGA Laser DLP Projector (No Lens, Black)

SKU DU8055Z-BK
Save 0% Save 0%
$40,230.00
$40,230.00 - $40,230.00
$40,230.00
$40,096.00
$40,096.00 - $40,096.00
$40,096.00
Key Features:
  • Brightness of 16,000 ISO Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • Estimated 20,000+ Hours of Laser Life
  • Network LAN & RS-232 Controllable
  • Eight Optional Lenses (Sold Separately)
  • HDMI, DP, DVI, 3G-SDI & HDBaseT Inputs
  • 360° & Portrait Orientation Support
  • 24/7 Operation Capable
  • Built-In Edge Blending & Image Warping
  • Lens Positioning Memory

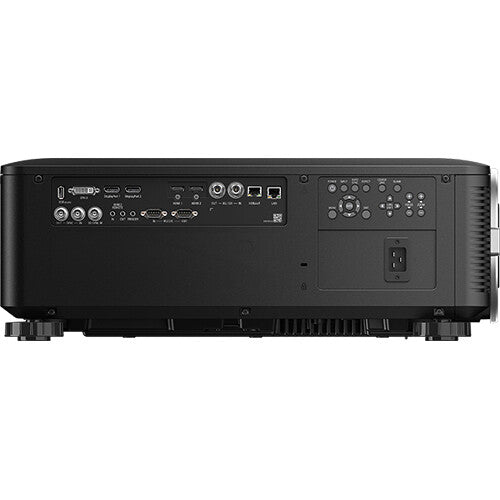

Input/Output Connectors
Inputs/Outputs
2x HDMI 2.0 Video Input
1x RJ45 (HDBaseT) Control, Data, LAN, Remote, Video Input
1x DVI-D Video Input
2x DisplayPort 1.2 Video Input
1x BNC (3G-SDI) Video Input
1x BNC (3G-SDI) Video Output
1x RJ45 (Ethernet) LAN Input
1x RF (VESA 3D Sync) Data Input
1x RF (VESA 3D Sync) Data Output
1x RF (VESA 3D Sync) Remote Input
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x 12 V Trigger Control Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x USB-A Power Output
HDCP Support
Yes, Version 2.2
Media/Memory Card Slot
No

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Vivitek DU8055Z 16,000-Lumen WUXGA Laser DLP Projector (No Lens, Black)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Experience high-brightness and contrast with the Vivitek DU8055Z 16,000-Lumen WUXGA Laser DLP Projector. The DU8055Z features built-in edge blending, image warping, geometric correction, and lens position memory for easy installation. Furthermore, 24/7 operation, along with 360° and portrait orientation capability, make the DU8055Z well suited to large venues and advanced professional applications.

Eight motorized lens options (sold separately) are available to cover a wide range of projection sizes and distances. Additionally, a full suite of display connectivity inputs, including HDMI 2.0, Display Port 1.2, DVI-D, 3G-SDI-I in and out, and RJ45 HDBaseT, can accommodate a broad spectrum of video source devices.

Built-In Image Edge Blending
The DU8055Z features edge-blending capability. This allows multiple projectors to simultaneously project a combined seamless image on large displays.
Built-In Geometric Correction
The geometric correction function of the DU8055Z can provide highly precise image correction and adjustment through the grid, making installation more flexible.
PJ Control Auto Correction
Vivitek's PJ-Control software is specially designed for Vivitek projectors. Its Smart assist supports automatic correction functions which can manage multiple projectors at the same time and support warping, blending, stacking, and auto color correction through mobile phones with the ViviCamm App.
Auto Switching with Constant Input
The DU8055Z supports an auto switching constant input that provides a backup source for the Vivitek projector. When the live event display image signal is lost, the projector will automatically switch to the backup source.
Constant Brightness
With built-in color sensor technology, this projector can automatically adjust the lighting to maintain constant and stable brightness over a long period of time.
Additional Features
  • Dual laser technology
  • DLP DarkChip3 and BrilliantColor technologies for optimal black levels and vibrant colorful images
  • Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
  • Almost maintenance free with up to 30,000 hours of operating time
  • Native WUXGA resolution with a maximum 4K UHD input resolution
  • Crestron RoomView integration for network monitoring and management
  • Heavy-duty steel chassis for extra strength and integrity
  • Network ready for integration and system administration via RJ45

Item Includes

  • Vivitek DU8055Z 16,000-Lumen WUXGA Laser DLP Projector (No Lens, Black)
  • AC Power Cord
  • Remote Control with Batteries
  • Remote Control Cable
  • Limited 5-Year Manufacturer Warranty (On Projector)
  • Limited 5-Year Manufacturer Warranty (or 20.000 Hours on the Laser Light Source, Whichever Comes First)

Item Includes

Display System
1-Chip 0.80" DLP
Native Resolution
1920 x 1200
Maximum Brightness
16,000 Lumens (ISO)
HDR Support
Yes, HDR10/Hybrid Log Gamma
Inputs/Outputs
2x HDMI 2.0 Video Input
1x RJ45 (HDBaseT) Control, Data, LAN, Remote, Video Input
1x DVI-D Video Input
2x DisplayPort 1.2 Video Input
1x BNC (3G-SDI) Video Input
1x BNC (3G-SDI) Video Output
1x RJ45 (Ethernet) LAN Input
1x RF (VESA 3D Sync) Data Input
1x RF (VESA 3D Sync) Data Output
1x RF (VESA 3D Sync) Remote Input
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x 12 V Trigger Control Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output

1x USB-A Power Outputv
Light Source
Laser Phosphor
Image Display
Display System
1-Chip 0.80" DLP
Native Resolution
1920 x 1200
Supported Resolutions
Maximum: 3840 x 2160 @ 60 Hz
Maximum Brightness
16,000 Lumens (ISO)
Aspect Ratio
Native: 16:10
Contrast Ratio
1300:1
Dynamic Contrast Ratio
20,000:1
DLP Link 3D
Yes
Supported 3D Formats
Side by Side
Top Bottom
Frame Sequential
Frame Packing
Scan
Horizontal: 23.67 to 135kHz
Vertical: 24 to 30Hz
Vertical: 47 to 120Hz
Lens
Includes Lens
No
Features
Keystone Correction
Horizontal: ± 60°
Vertical: ± 40°
HDR Support
Yes, HDR10/Hybrid Log Gamma
Digital Zoom
2x
Multi-Input Support (PIP/PBP)
No
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
No
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI 2.0 Video Input
1x RJ45 (HDBaseT) Control, Data, LAN, Remote, Video Input
1x DVI-D Video Input
2x DisplayPort 1.2 Video Input
1x BNC (3G-SDI) Video Input
1x BNC (3G-SDI) Video Output
1x RJ45 (Ethernet) LAN Input
1x RF (VESA 3D Sync) Data Input
1x RF (VESA 3D Sync) Data Output
1x RF (VESA 3D Sync) Remote Input
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x 12 V Trigger Control Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x USB-A Power Output
HDCP Support
Yes, Version 2.2
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
Yes: Android & iOS
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Full Brightness: 20,000 Hours
Fan Noise
Medium Brightness: 39 dB
Low Brightness: 36 dB
Supported Languages
English
French
German
Japanese
Korean
Portuguese
Simplified Chinese
Spanish
Traditional Chinese
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Medium Brightness: < 950 W
Certifications
FCC
Operating Conditions
32 to 104°F / 0 to 40°C at 10 to 85% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C at 10 to 90% Humidity
Dimensions (W x H x D)
19.7 x 8.5 x 23.3" / 500.0 x 216.0 x 591.0 mm
Weight
64.8 lb / 29.4 kg
